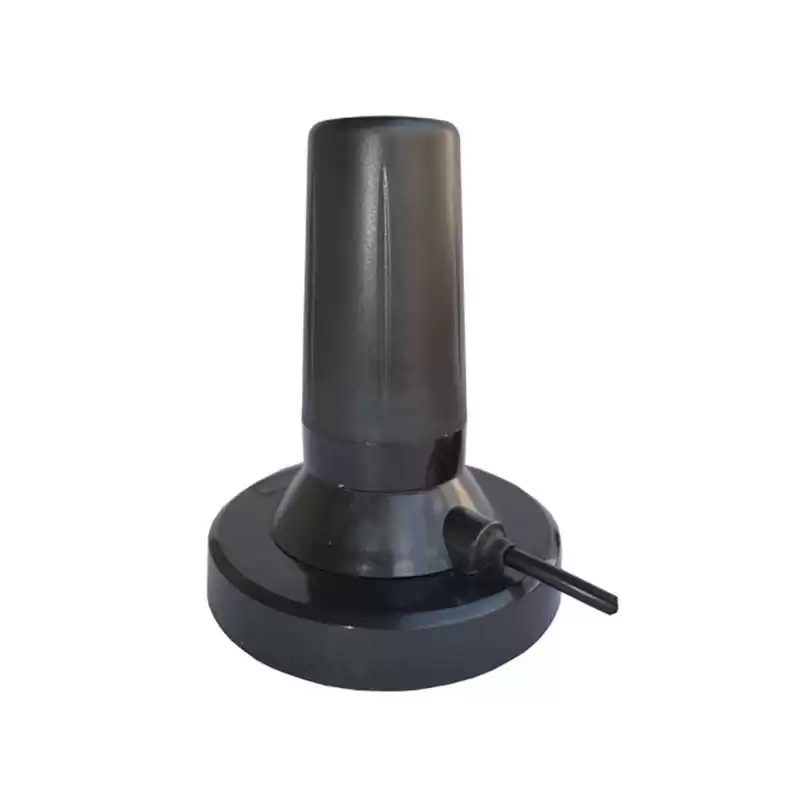

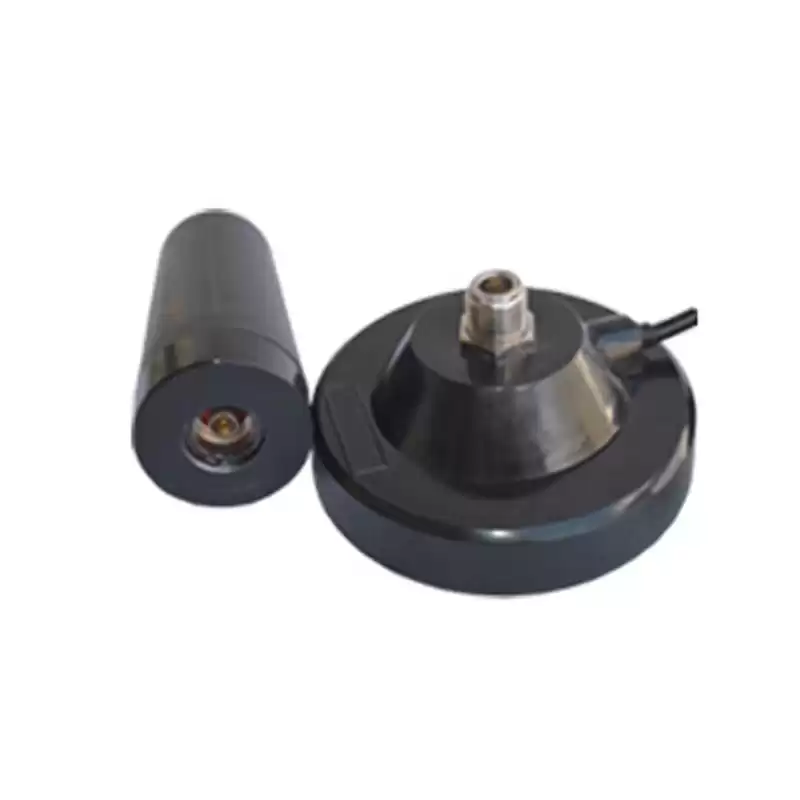

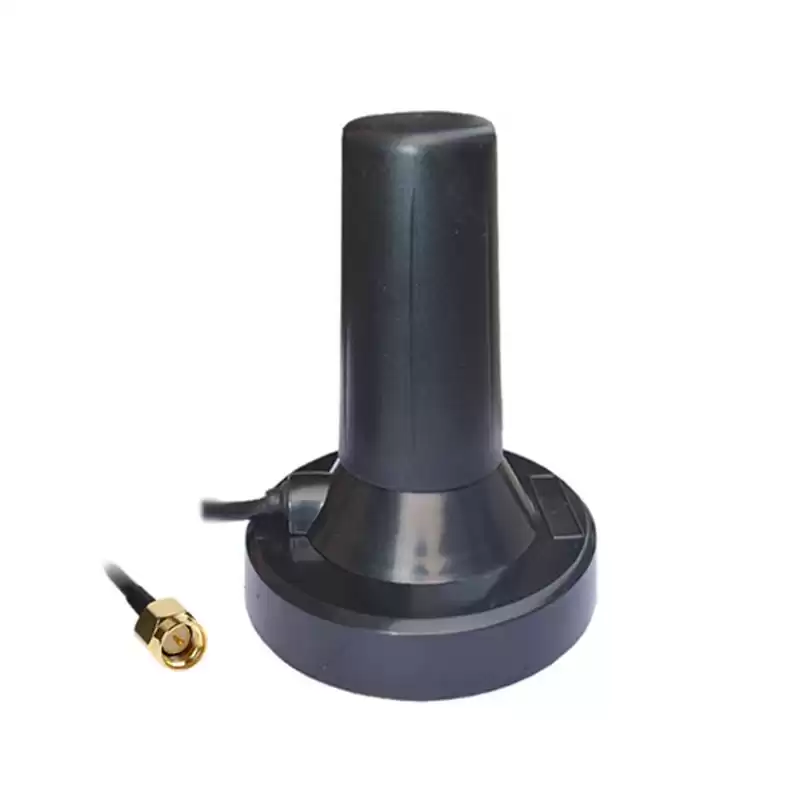

698-960MHz 1710-2700MHz 4dBi 6dBi Omni Direction 4G LTE Antenna Magnetic Mount SMA Connector for Car Mobile Communication

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



698-960MHz 1710-2700MHz 4dBi 6dBi Omni Direction 4G LTE Antenna Magnetic Mount SMA Connector for Car Mobile Communication

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  698-960MHz/1710-2700 MHz
VSWR  ≤1.5
Gain(dBi)   4-6dBi
Input Impedance(Ω)  50
Cable Type RG58
Connector Type  SMA Male
Mounting  Magnetic
Housing Black
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 6dBi SMA Connector 4G LTE Antenna          1710-2700MHz 4G LTE Car Antenna          1710-2700MHz 6dBi 4G LTE Antenna          698-960MHz 4G LTE Antenna          6dBi 4G LTE Car Antenna          SMA Connector 4G LTE Antenna
