Applications:

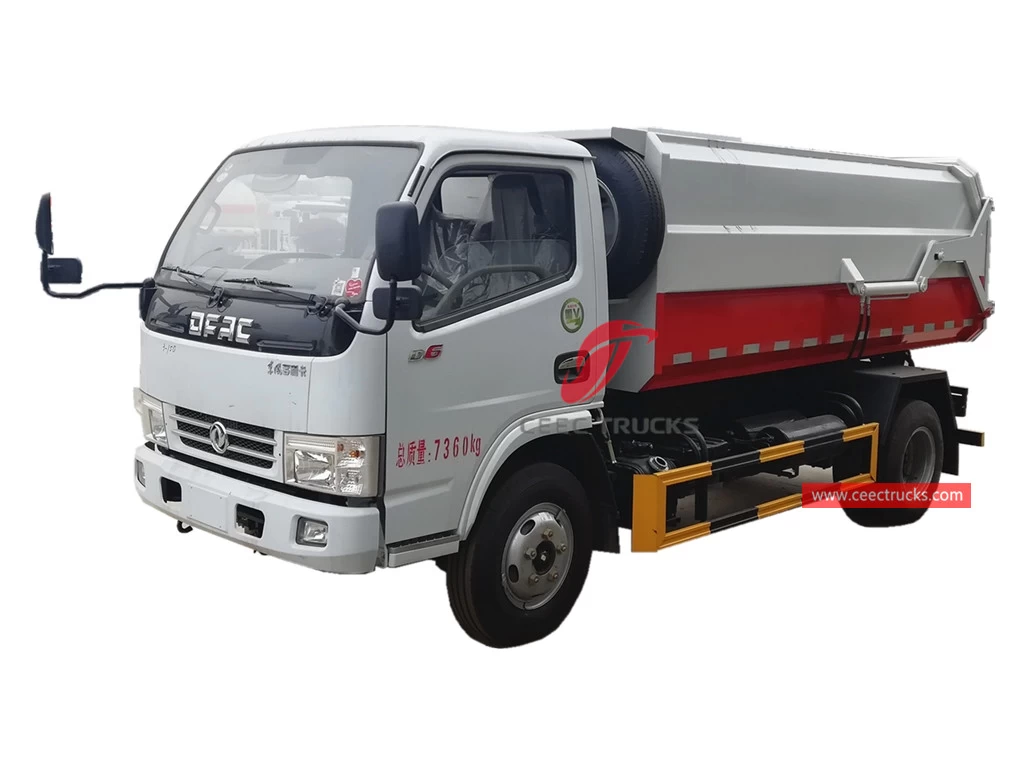

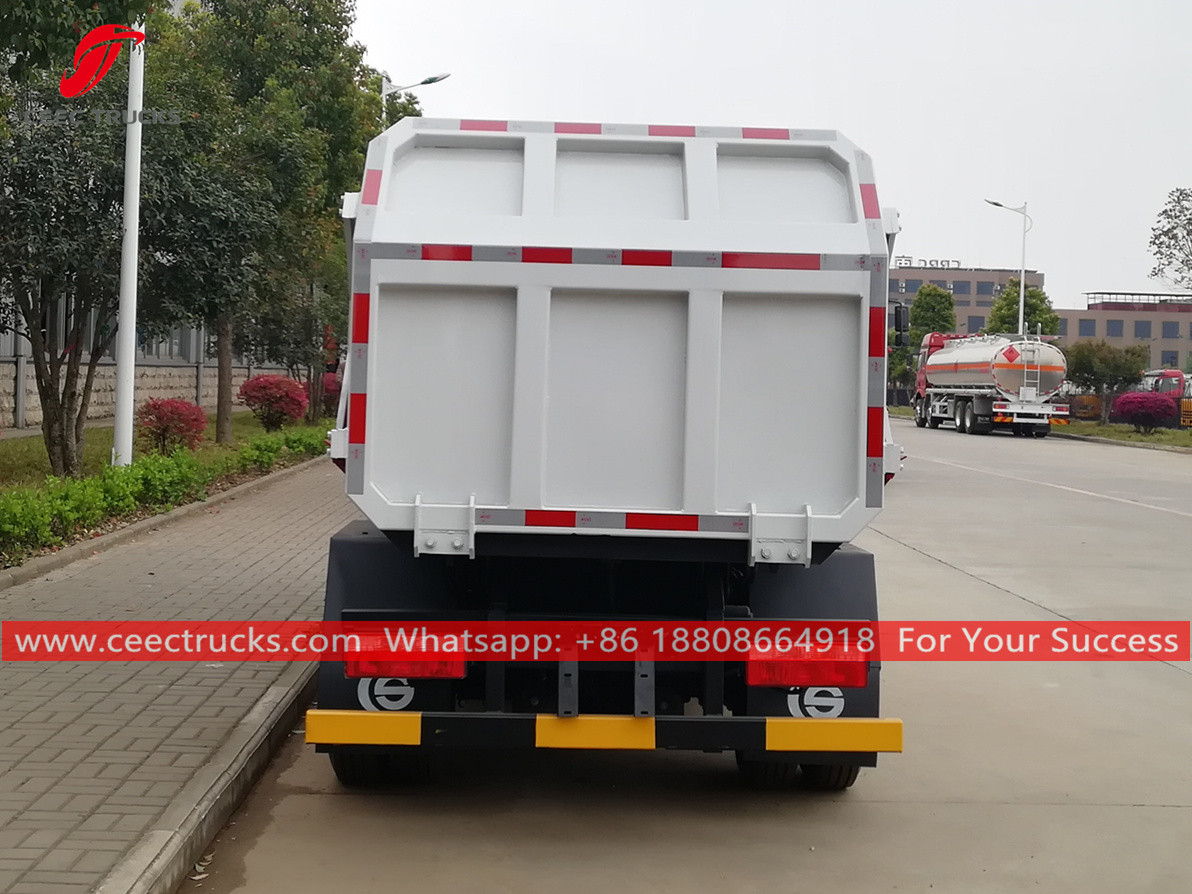

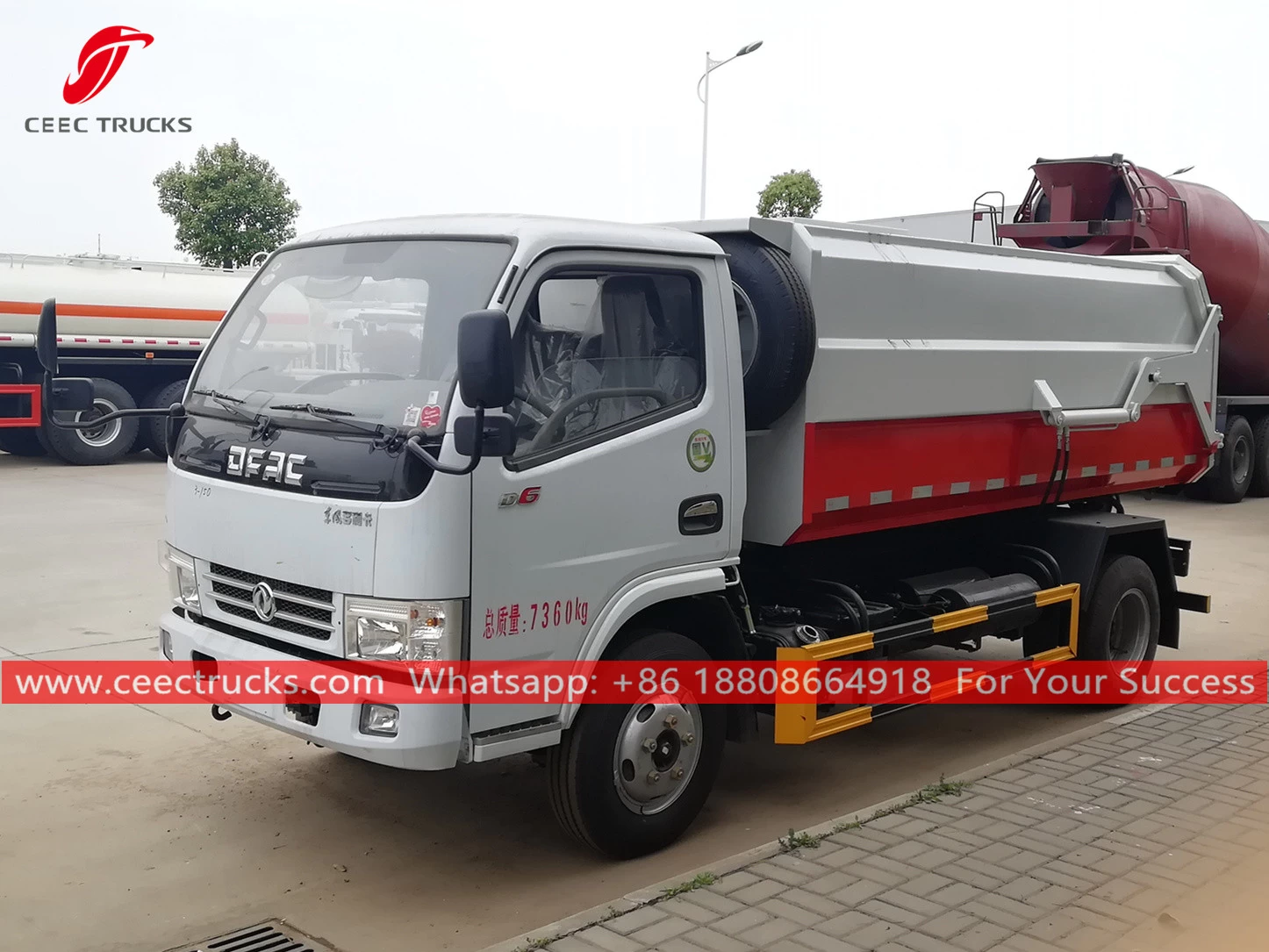

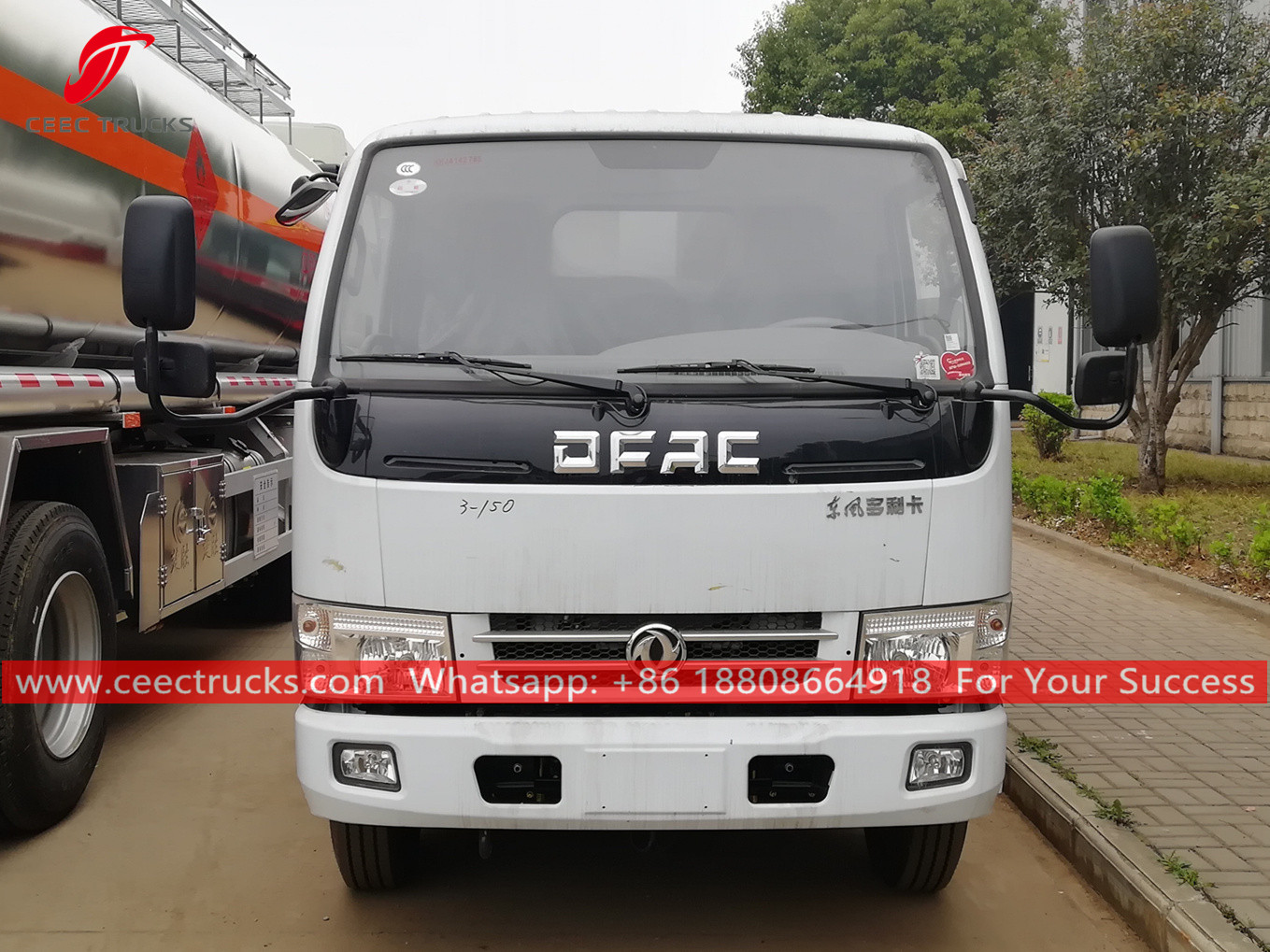

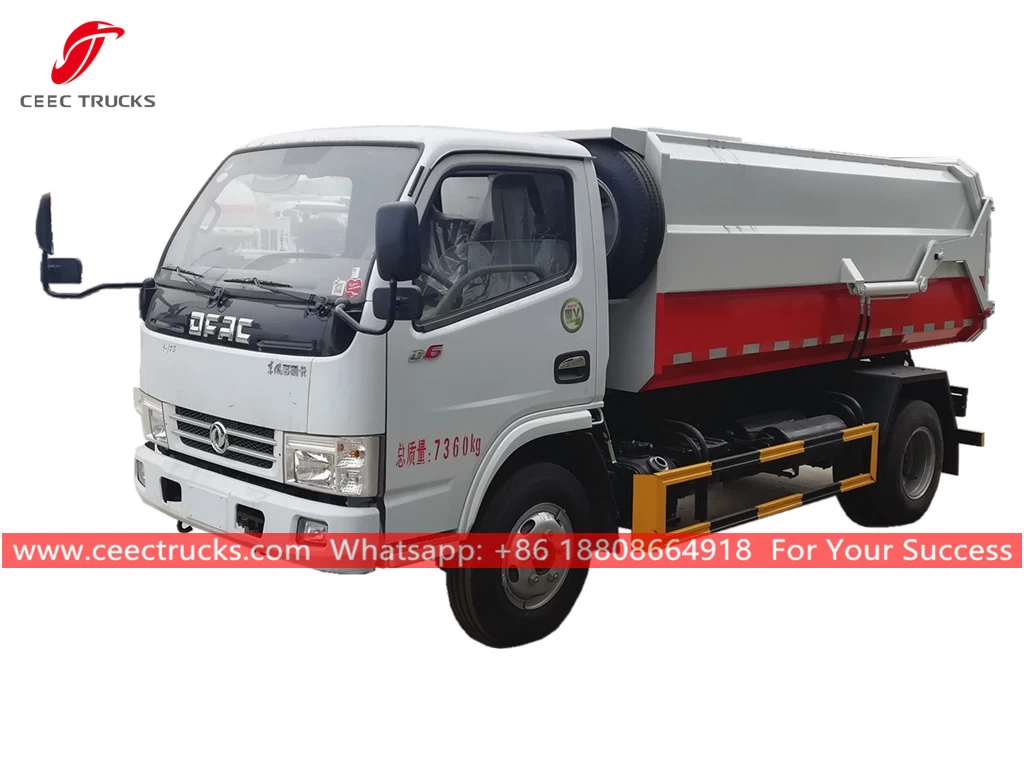

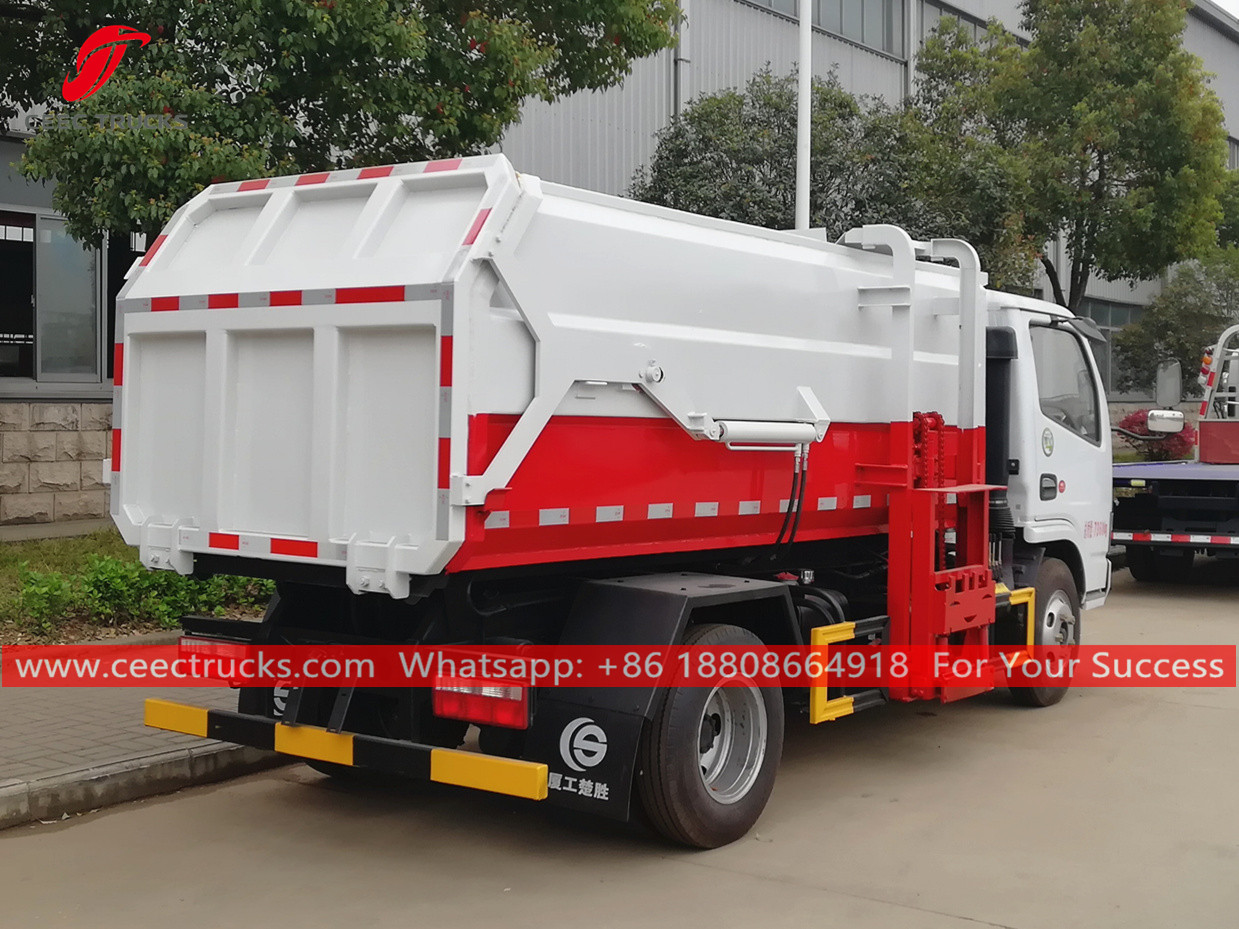

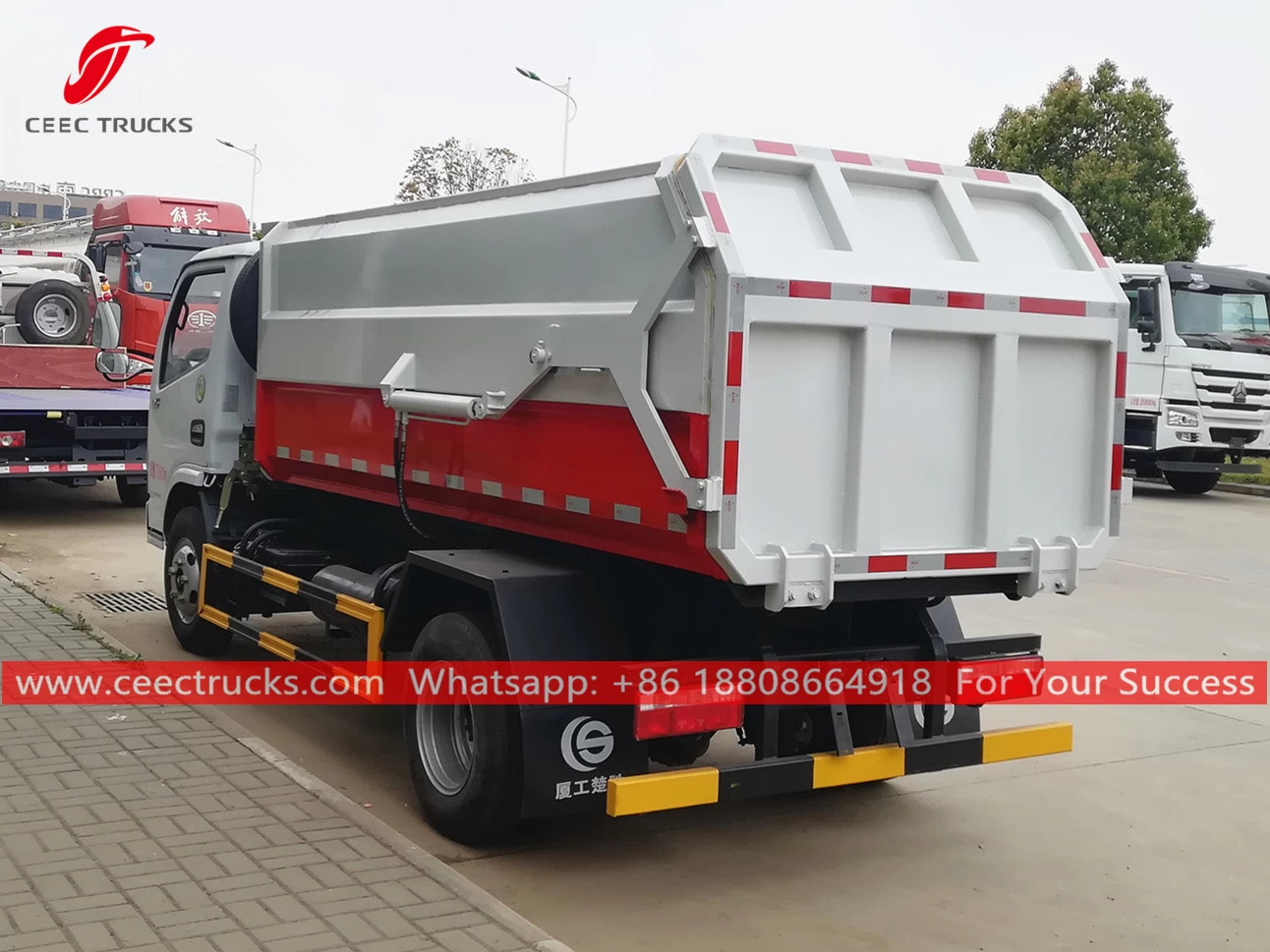

Self loading Garbage Truck Dongfeng (also called DFAC side loader garbage truck, Dongfeng DFAC side loader waste truck, Dongfeng refuse collector, mini hanging bucket garbage truck, Dongfeng waste collection vehicle) is designed
for daily rubbish transport in such living areas as all kinds of
cities, large station, port and wharf, airport, and densely-populated
areas like industrial and mineral enterprises and military units.
CEEC TRUCKS compactor
garbage truck reduces back-and-forth transport times and prevents
rubbish and stinks from spreading and avoids second-time pollution
produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- DONGFENG chassis, perfect performance
---- CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Garbage container capacity from 2 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|
DFAC Garbage Collection Truck (6 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
61200 * 2140 * 2500 mm
|
|
GVW / Kerb Weight
|
7,360kg / 3,365kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
DONGFENG
|
|
Power
|
120 HP (88KW)
|
|
Displacement
|
3856 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
4X2, (left / right hand drive)
|
|
Transmission
|
Manual 5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3800 mm / 2
|
|
Tire Specification
|
7.50-16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
6cbm
|
|

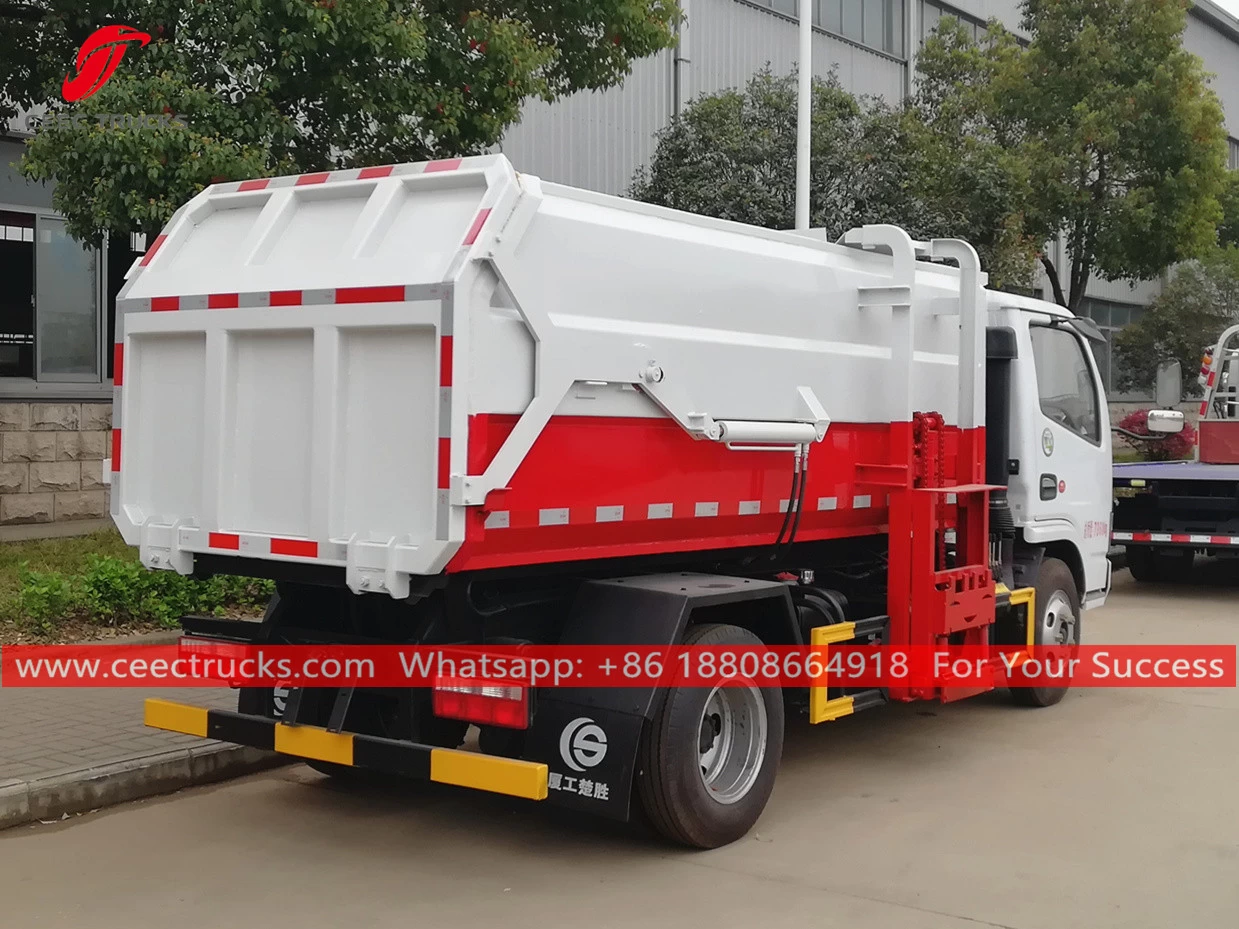

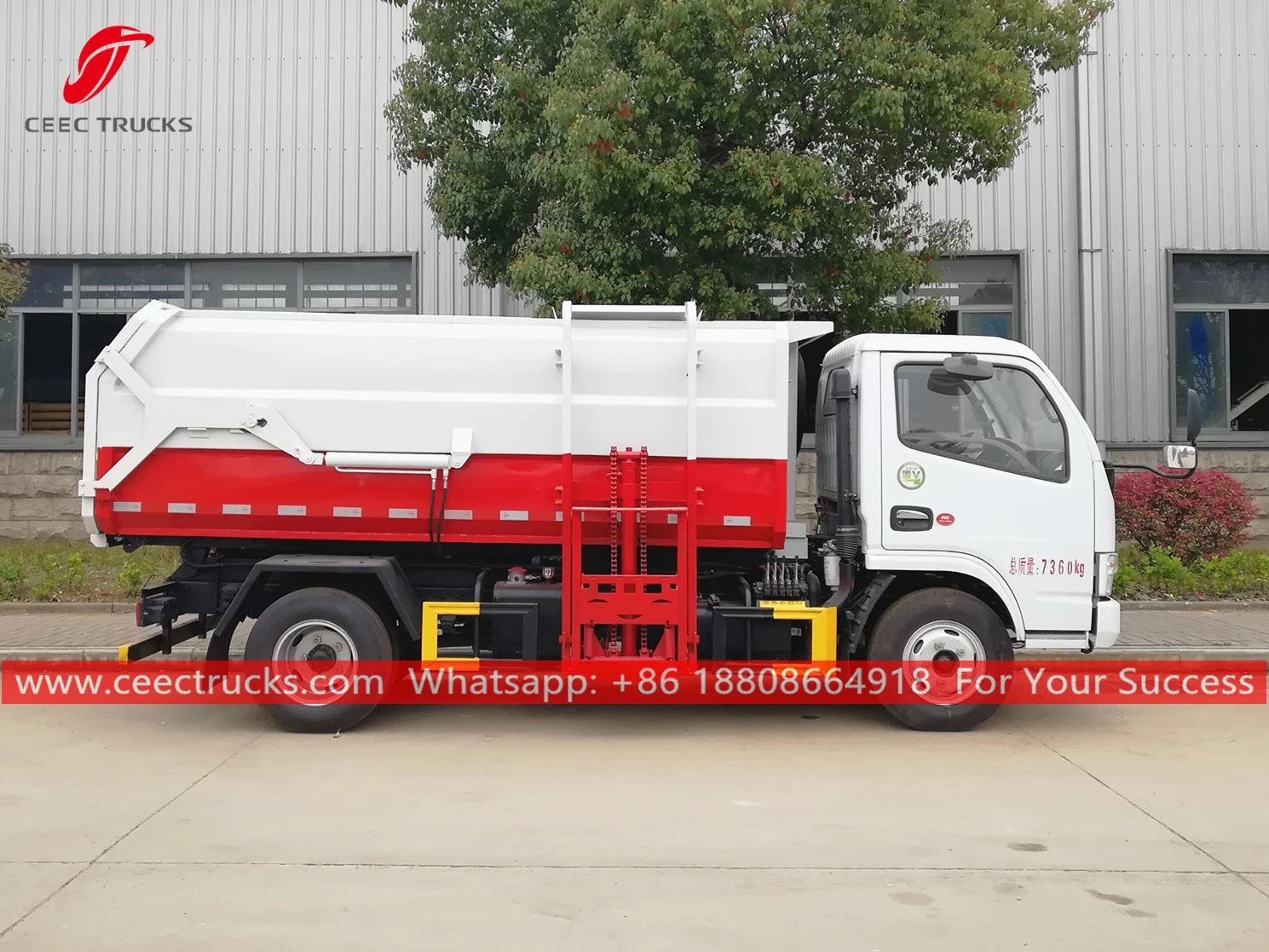

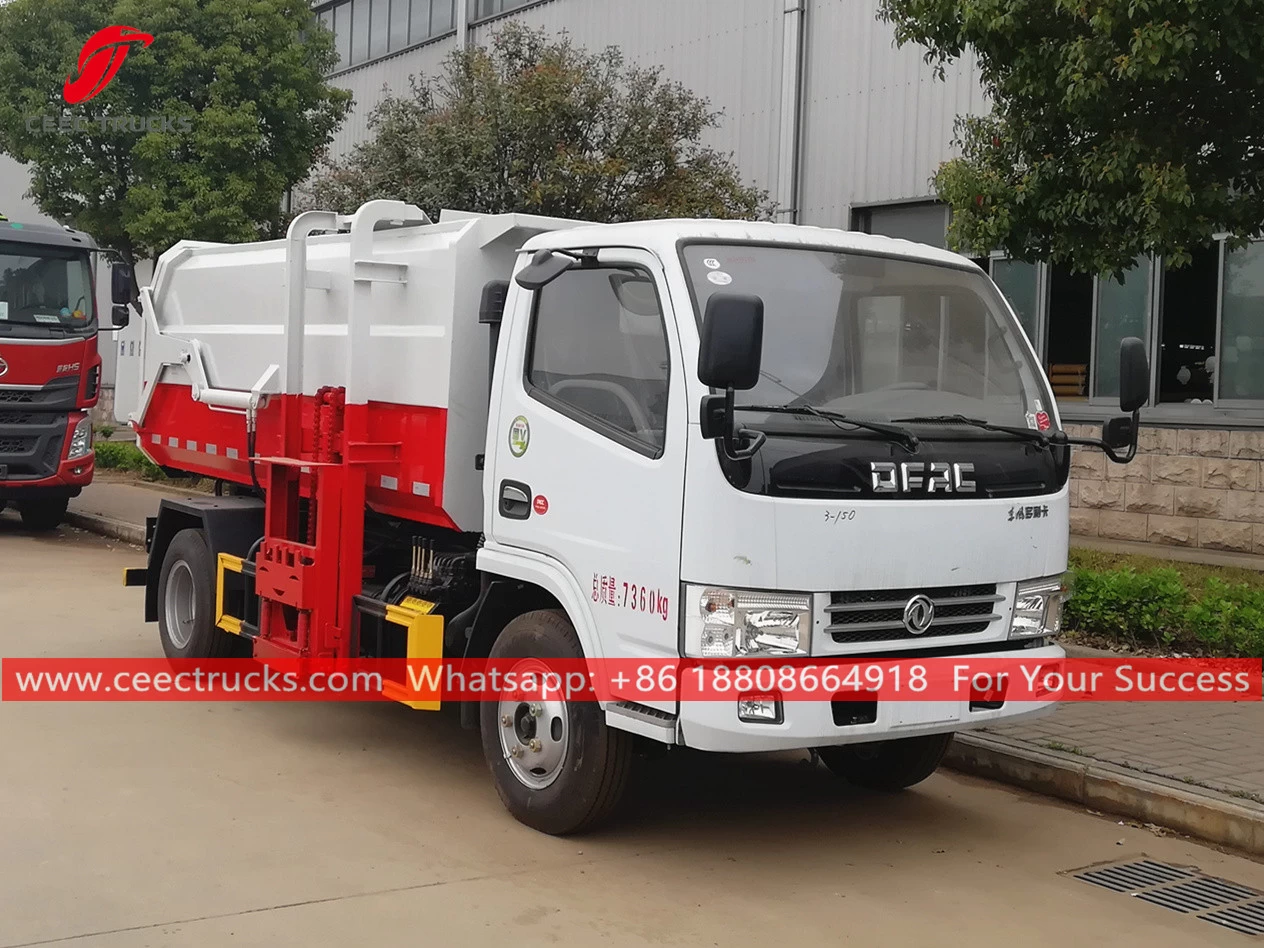

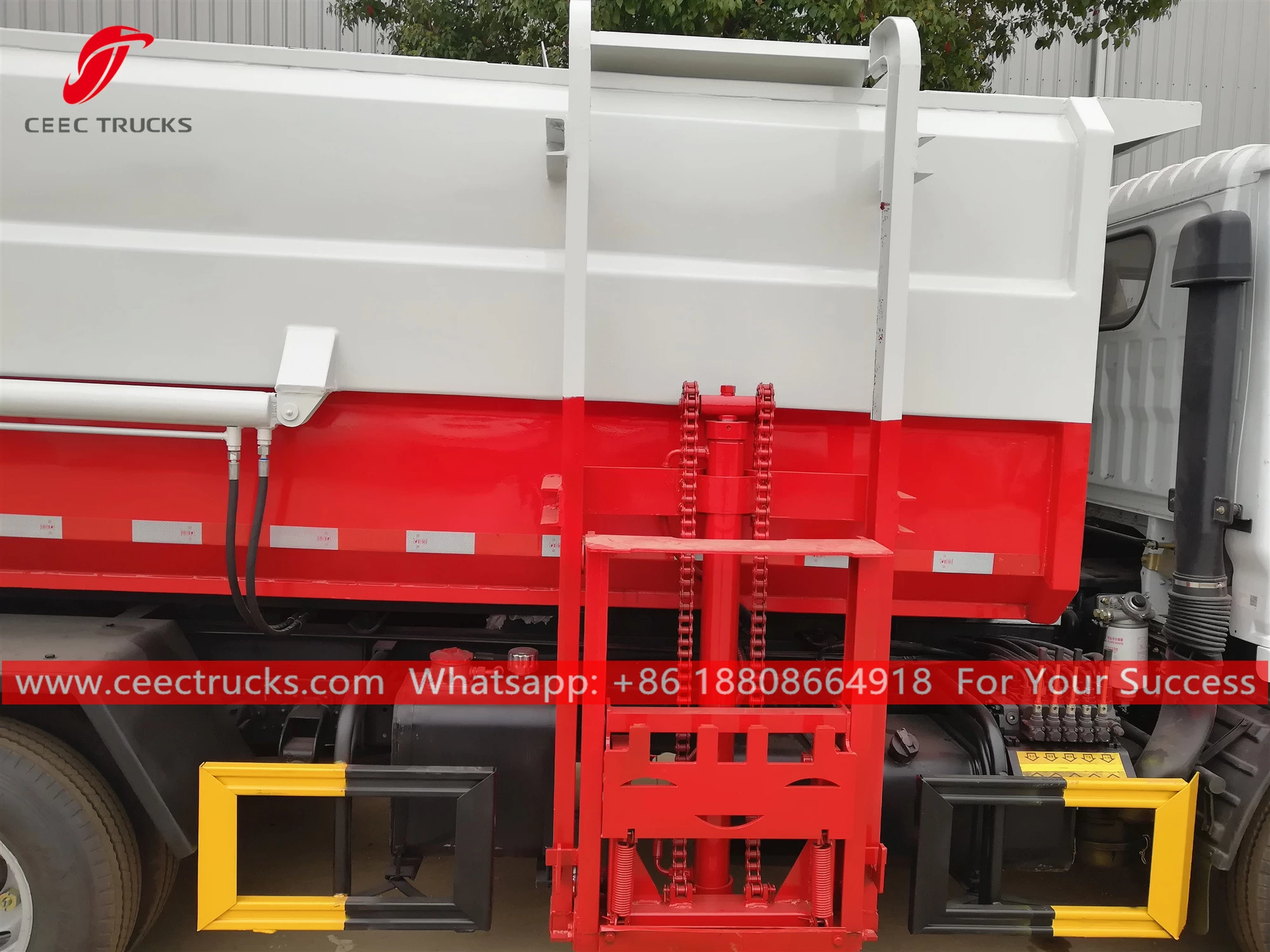

Lifting device
|
Side lifting system
|
|
Lifting model
|
Chain lifting model
|
|
Lifting cycle time
|
10~15 s
|
|
Container model
|
International standard 240L dustbins |
|
Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|
