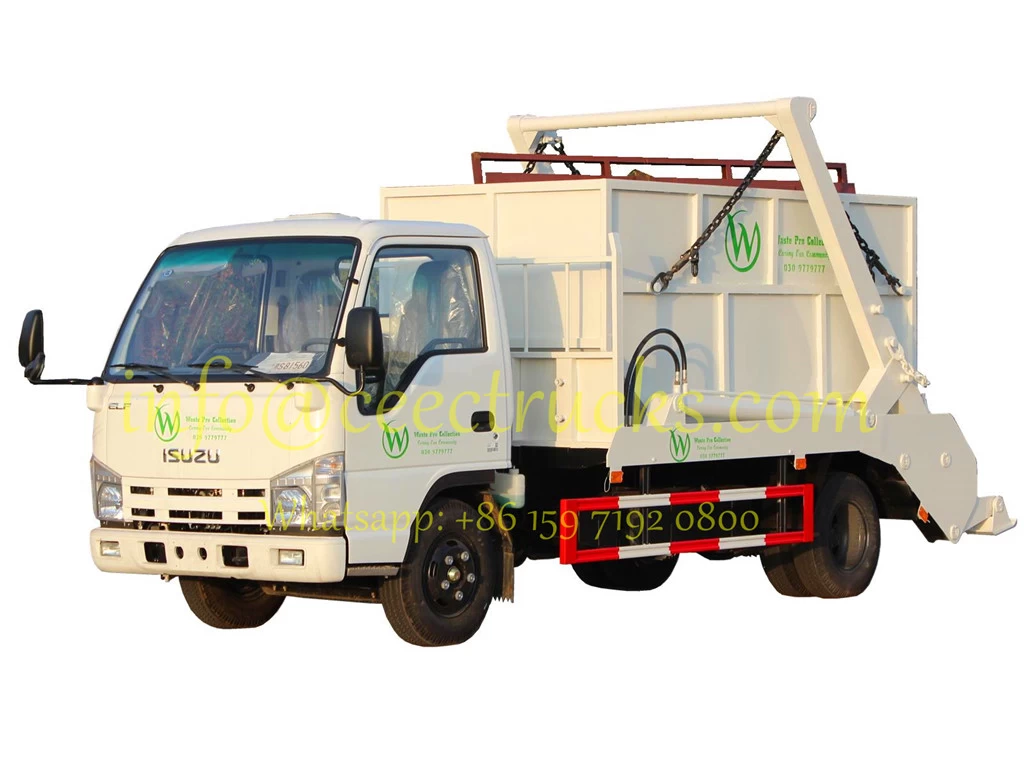

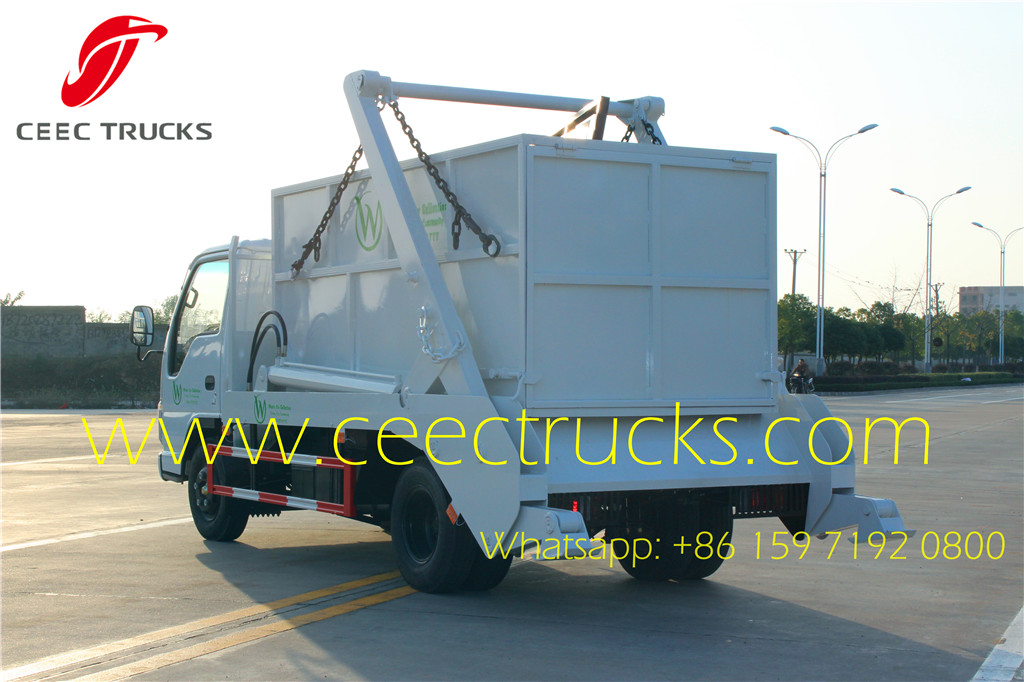

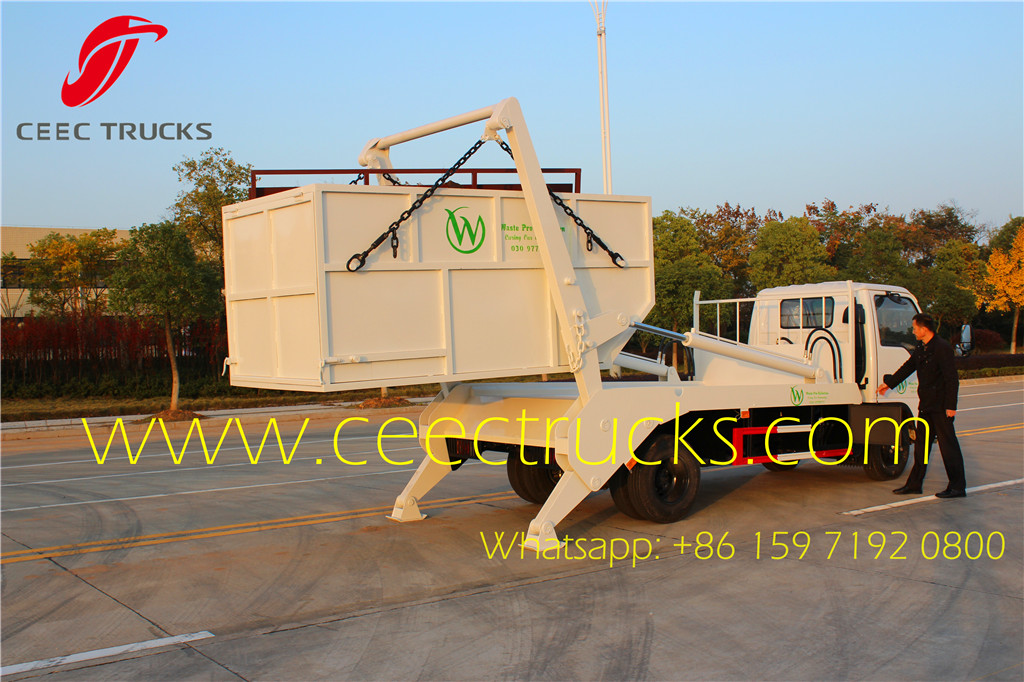

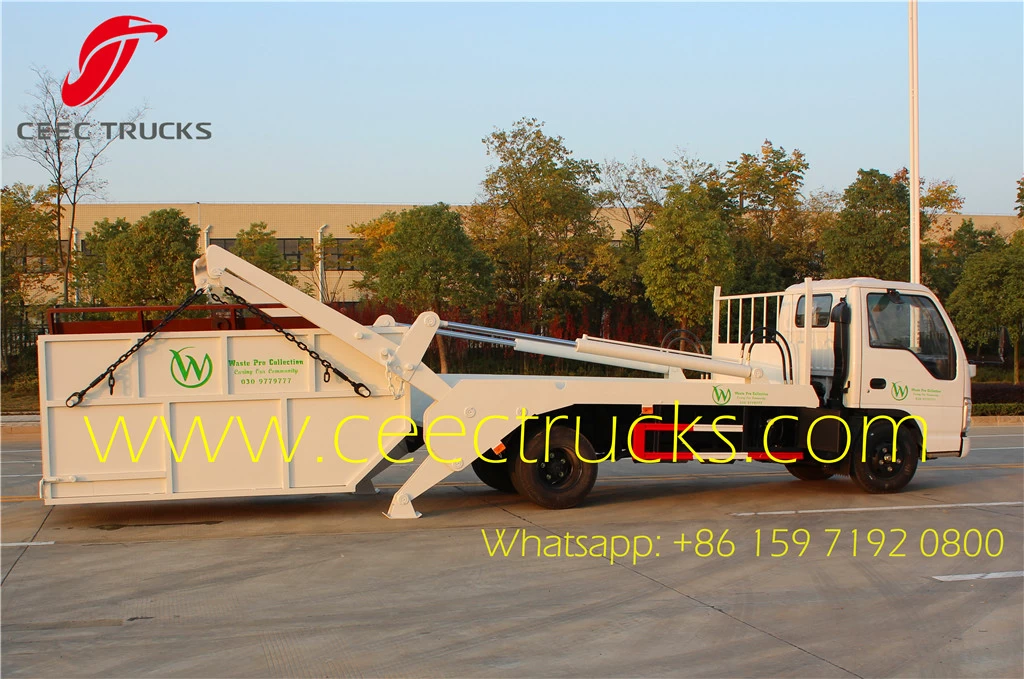

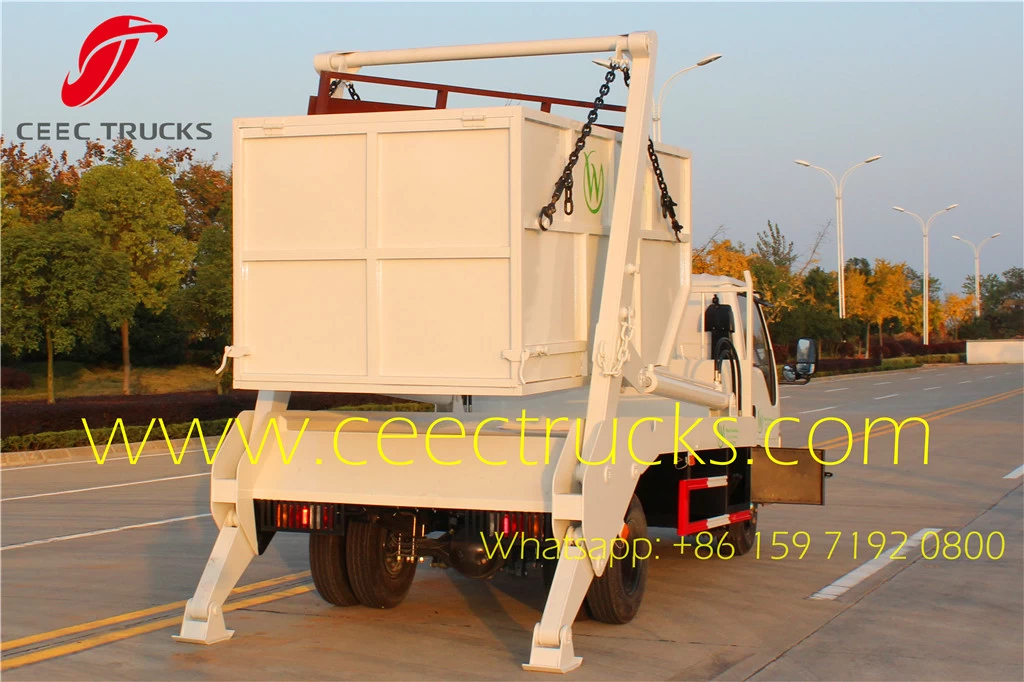

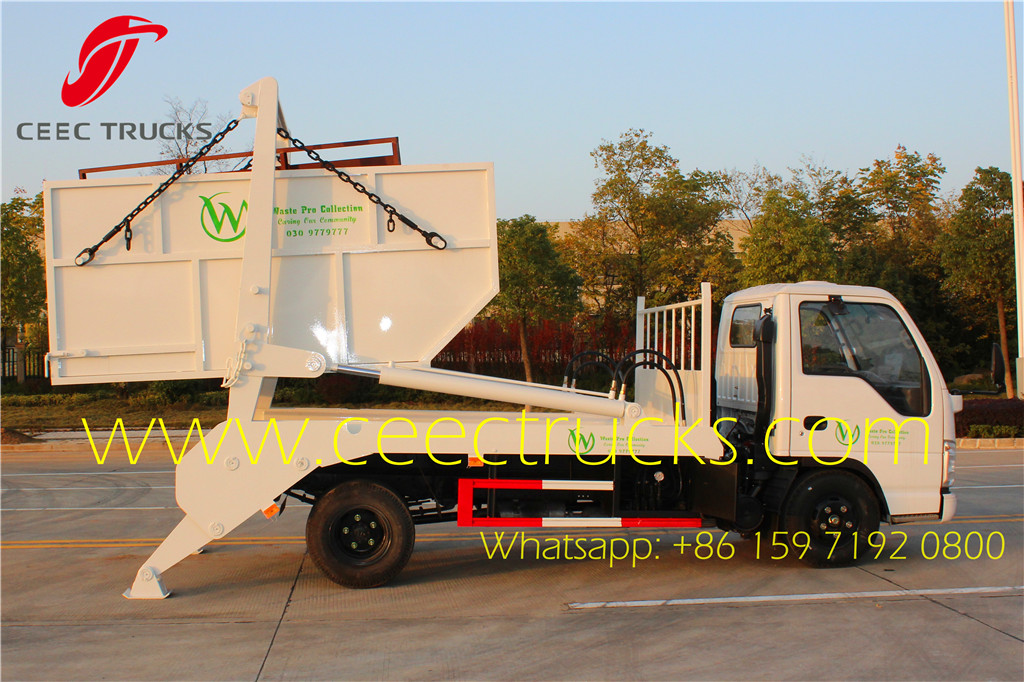

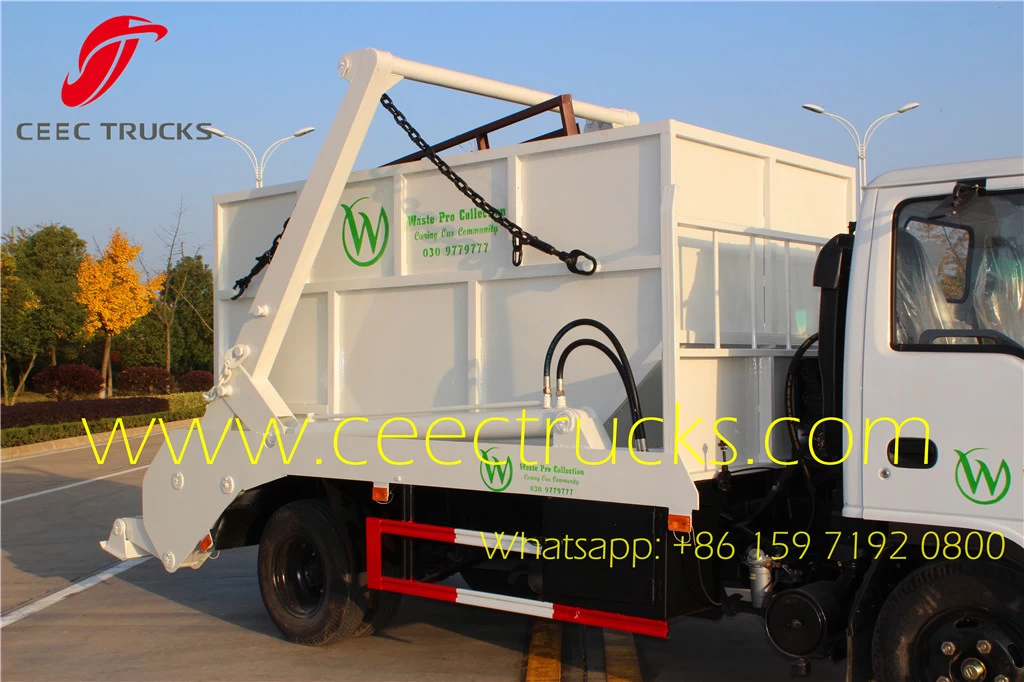

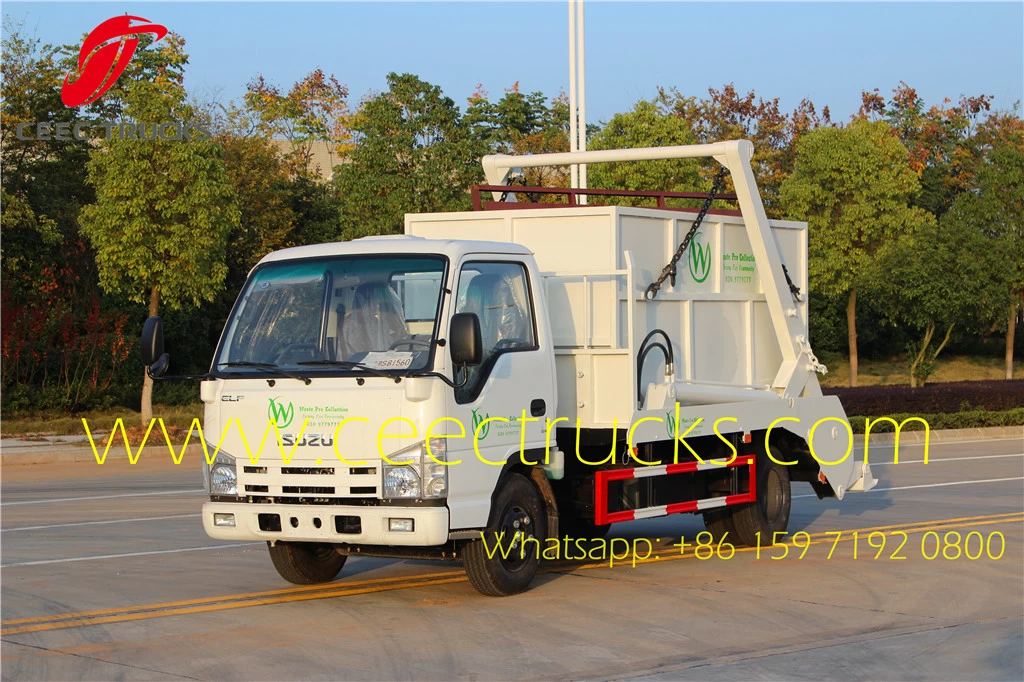

ISUZU Skip refuse truck also named swing arm garbage truck, which widely used for
city street and school trash collection. The main character of this
garbage truck is that the garbage can is with dumping function and can
be separated from the truck, thus it can realize one truck work with
more than one garbage can, and one garbage spot can locate with several
garbage containers. With the trash truck’s hydraulic operation and circle transit functions, the truck’s transportation ability improved a lot.

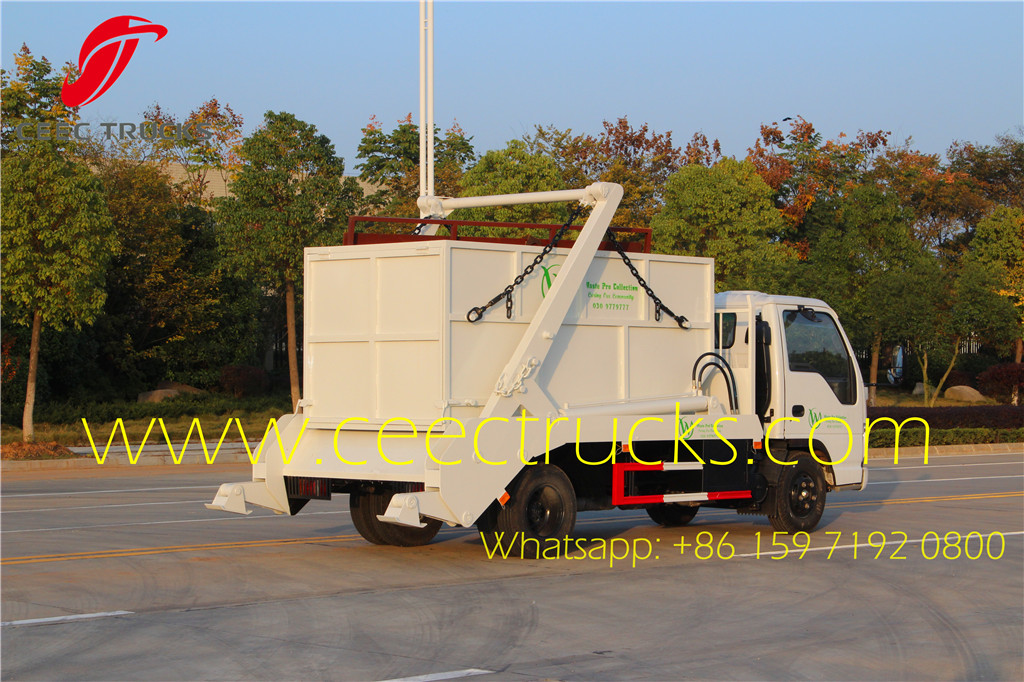

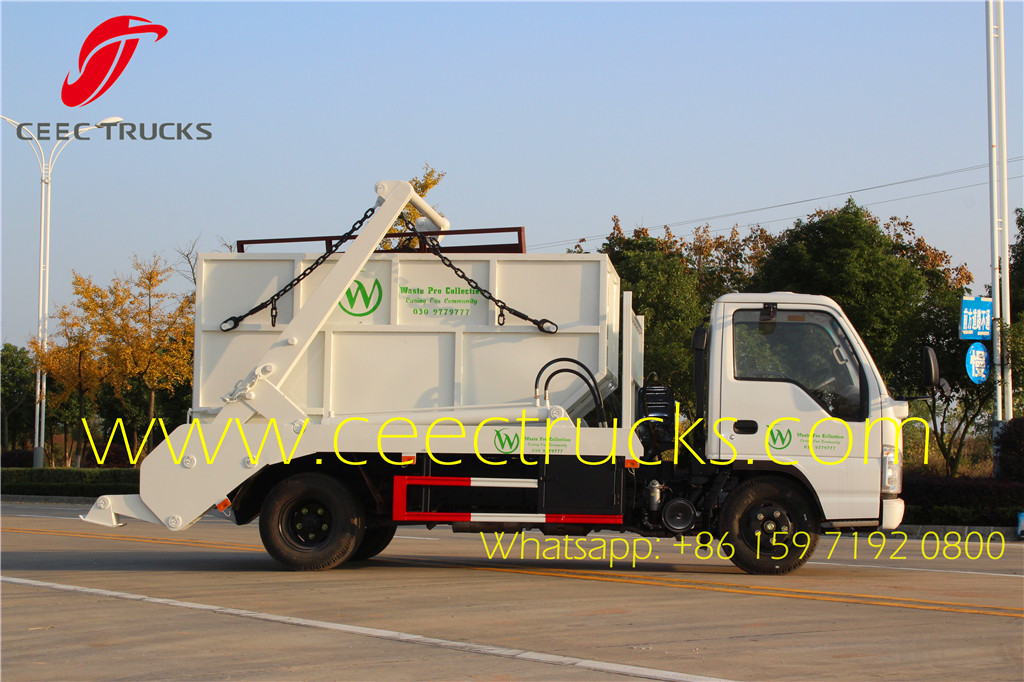

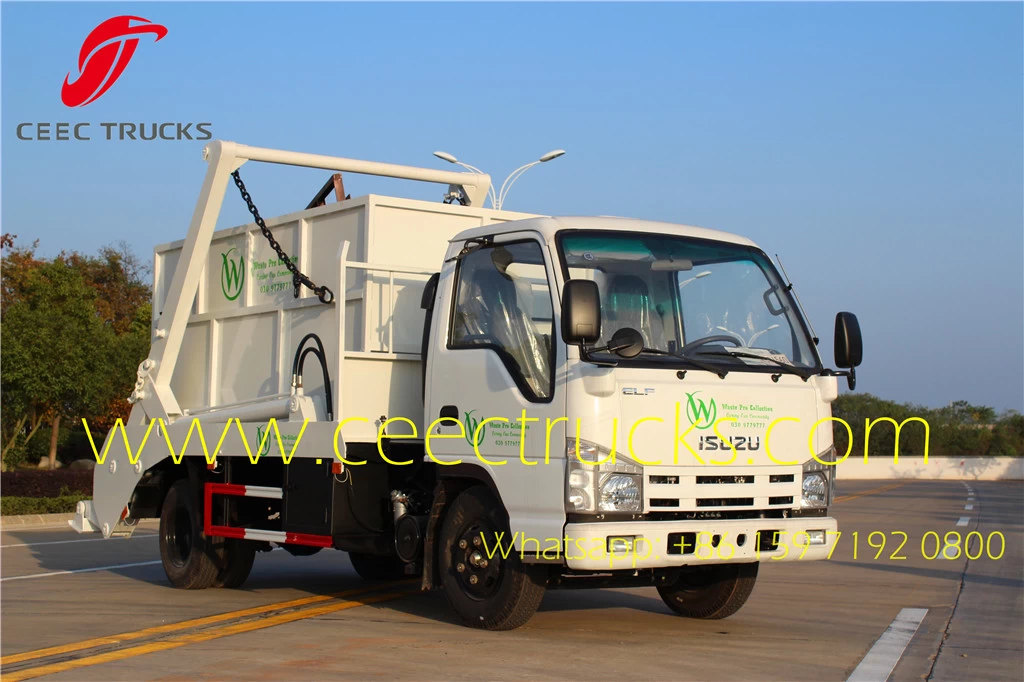

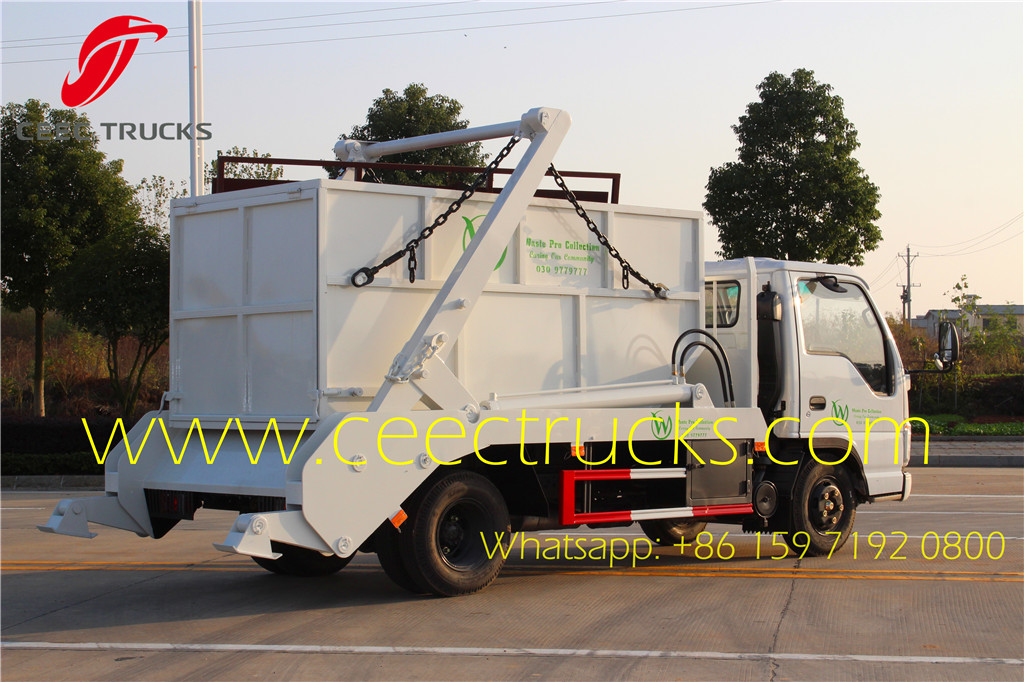

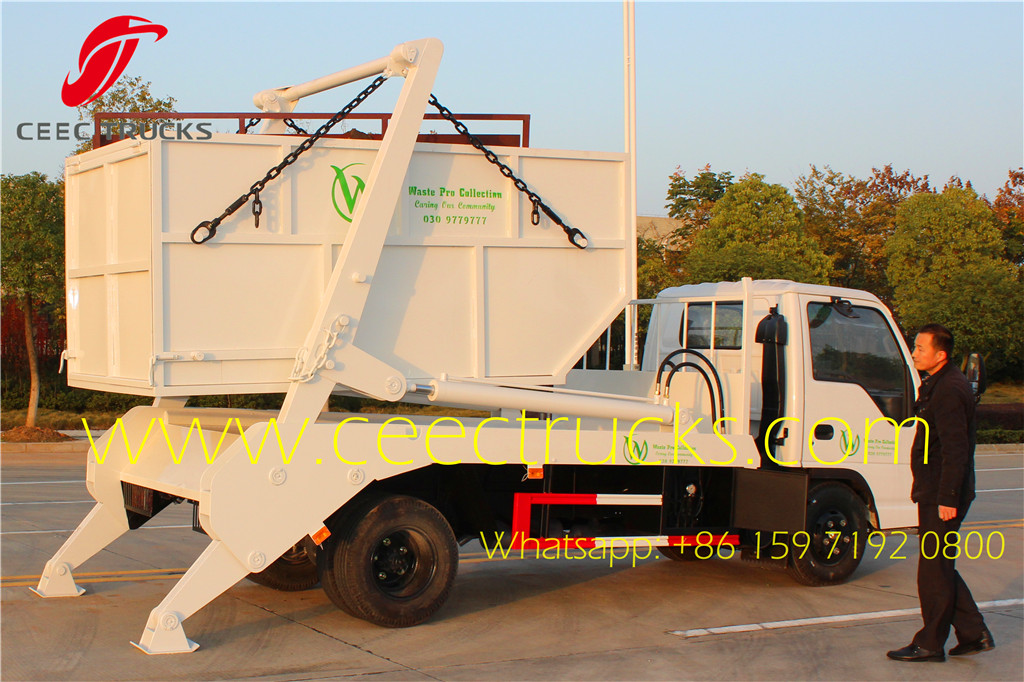

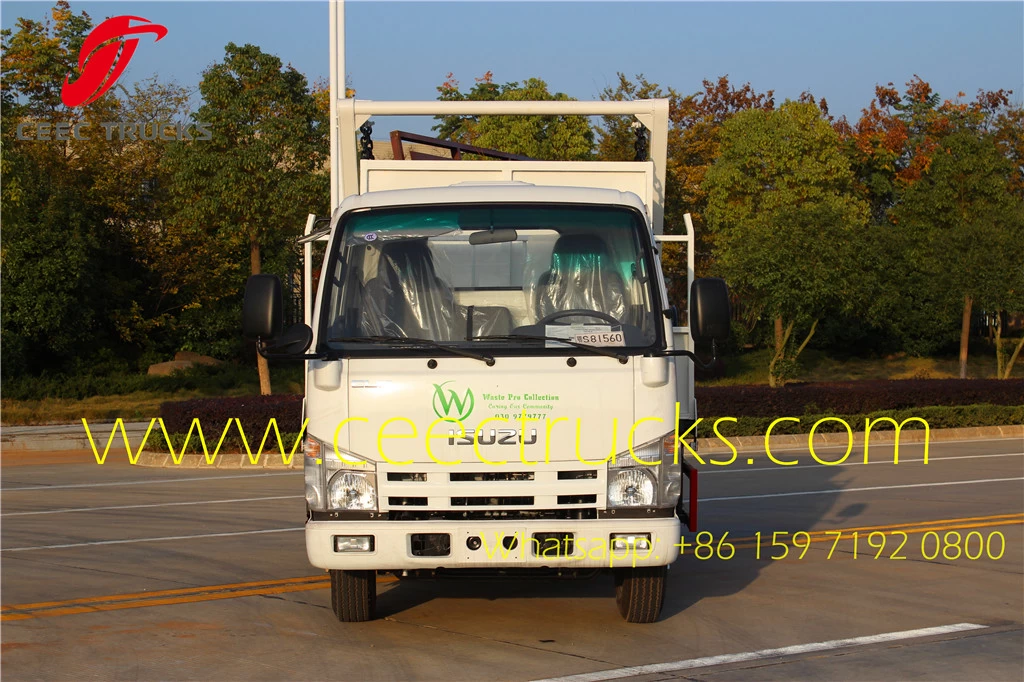

ISUZU 6CBM skip refuse truck hot sale
Why Asia country customer like CEEC supply ISUZU 6CBM swing arm garbage truck?
★ The dust bin material of carbon steel Q235A, more types and more specification to meet various customers’ needs in different regions.
★ Designed sewage collecting box in the bottom of fill device, the sewage directly flow into the box, avoid to re-pollution.

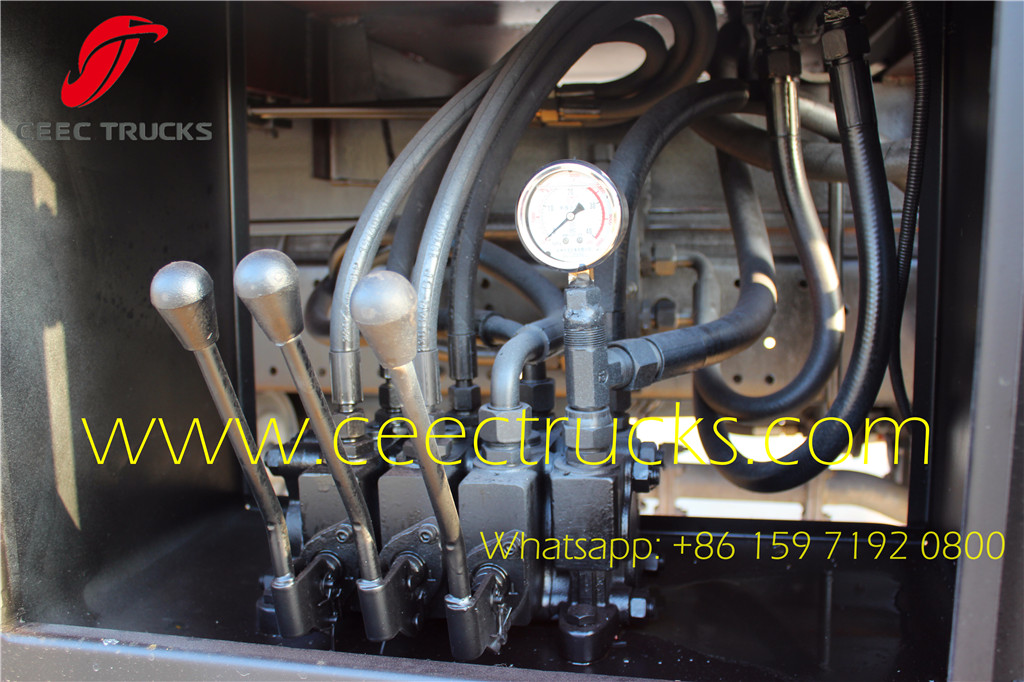

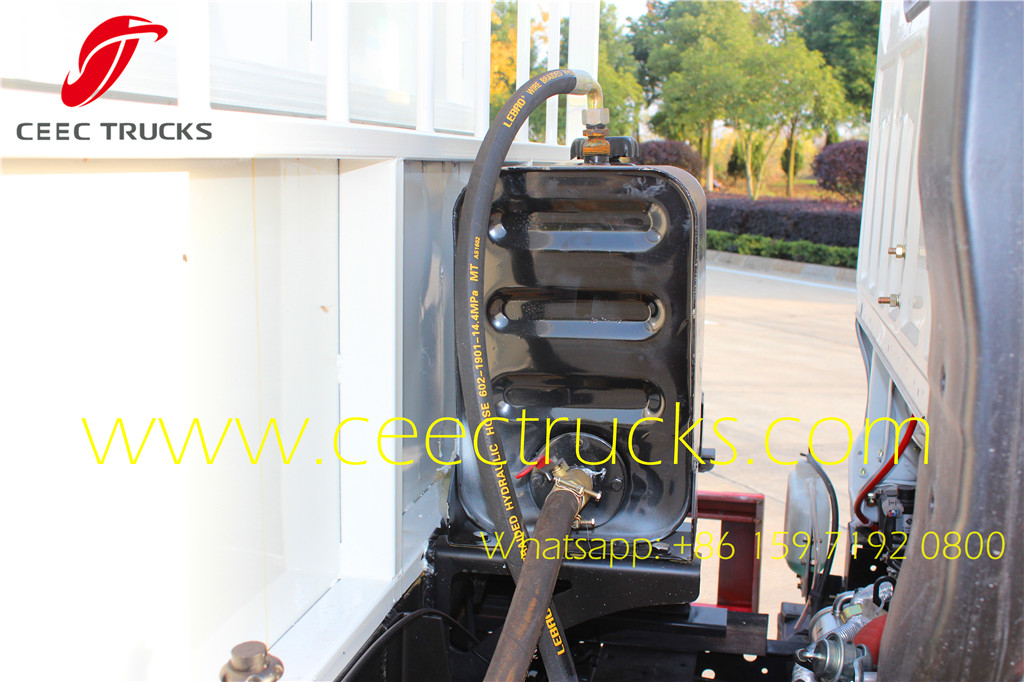

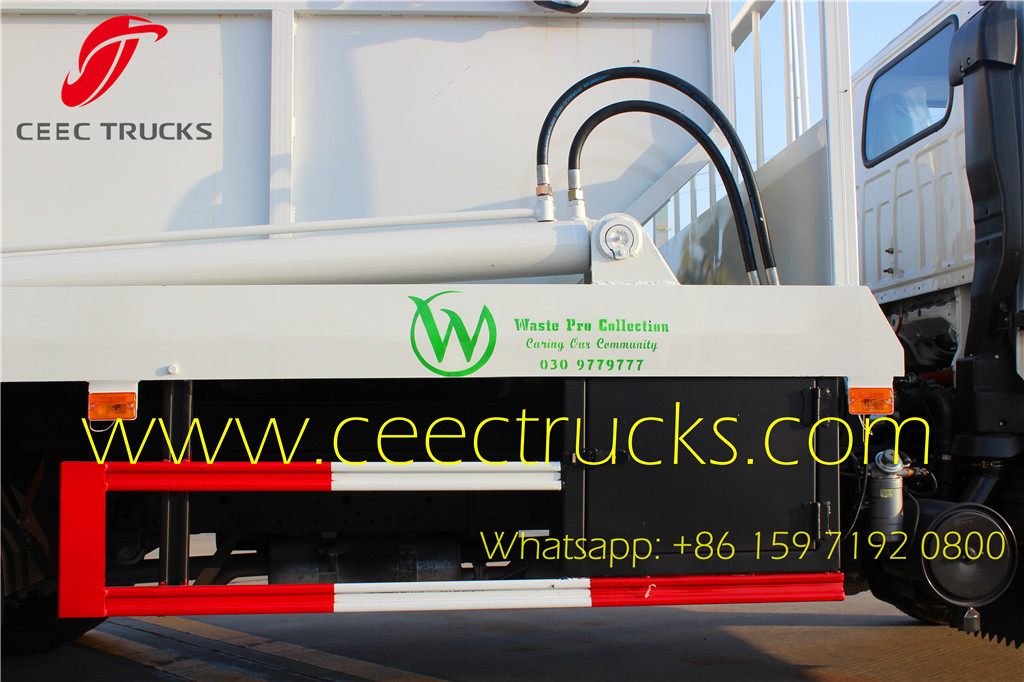

★ Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.

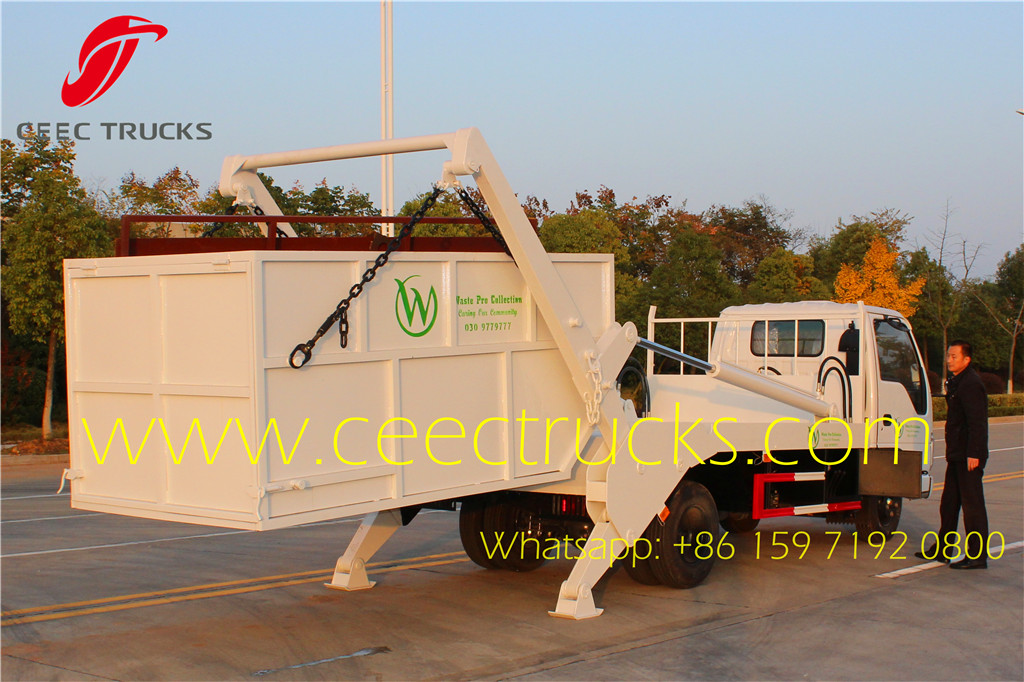

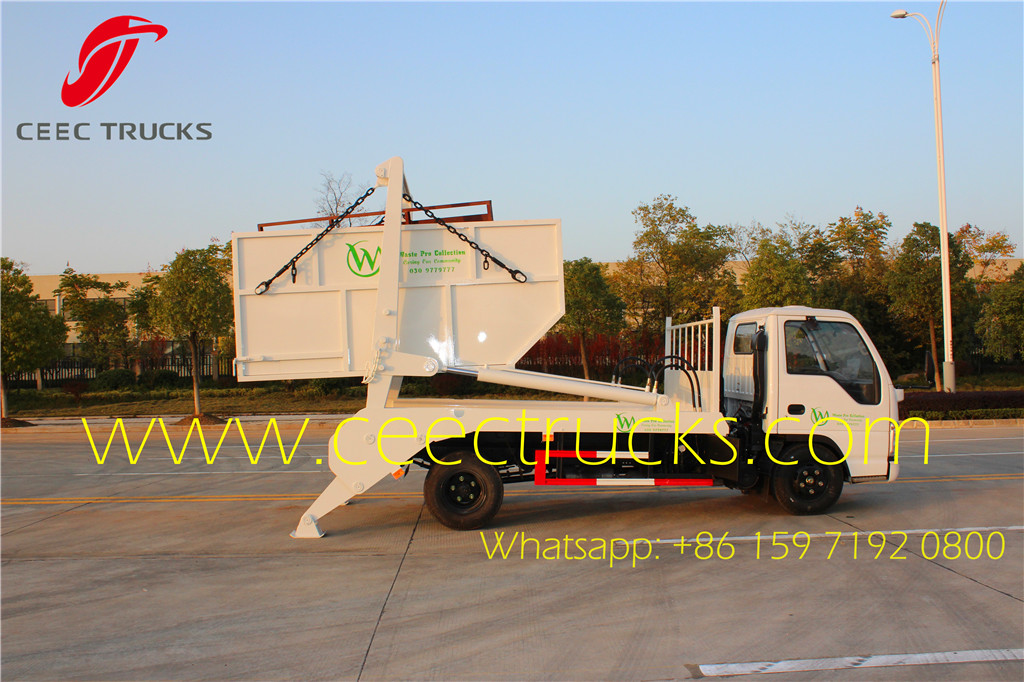

★ Skip garbage truck with detachable container can realize the function of garbage bins and truck body separate, which means that one vehicle can work with more than one garbage cargo bodies, to recycle transport, improve the transport capacity.

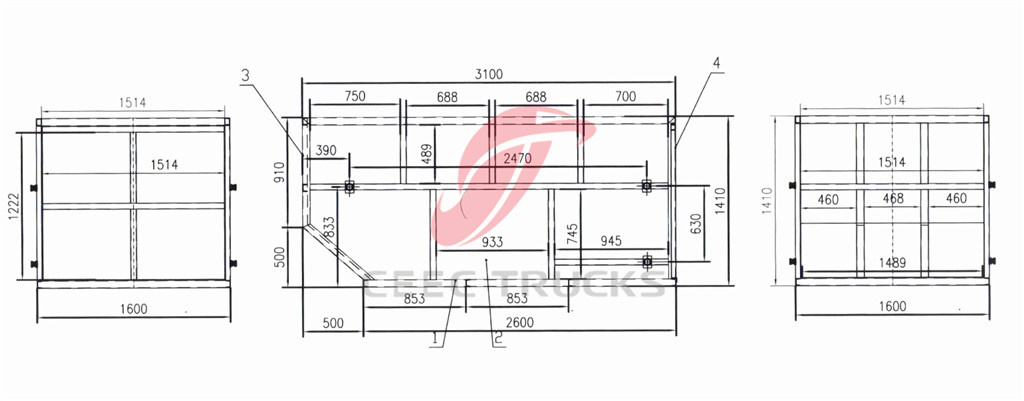

★ Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. Shape of garbage box: rectangular shape, trapezoidal.
Similar Key Words: ISUZU skip refuse truck, skip loader truck, skip loader vehicle, skip loader garbage truck, swing arm garbage truck,telescopic arm skip loader, multi skip loader truck, 6CBM skip loader

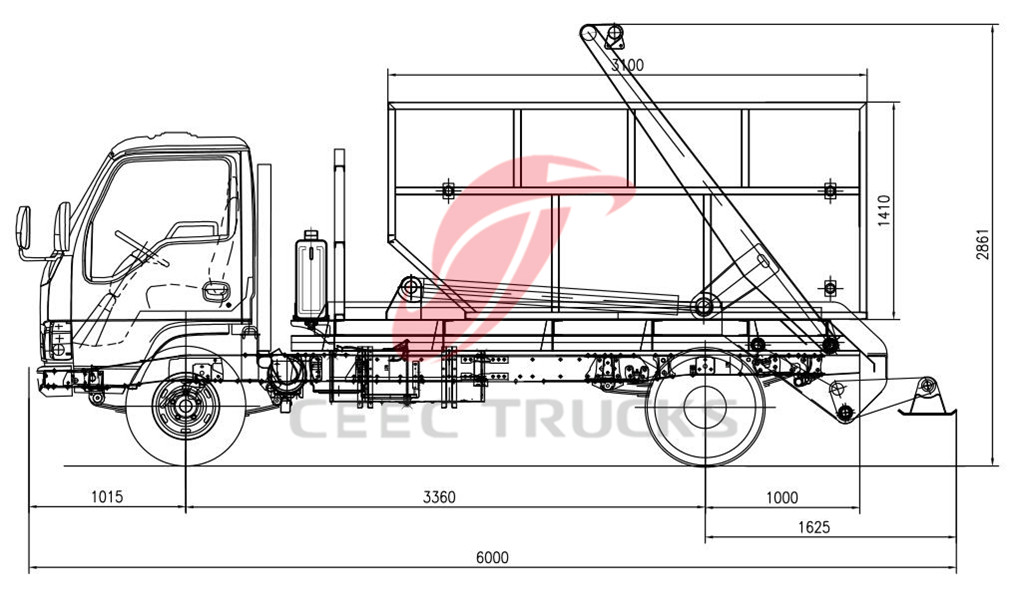

| Swing Arm Garbage Truck ISUZU ( 6 CBM )
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
ISUZU
|
| Overall Dimension
|
6900×2000×3100 mm
|
| GVW / Kerb Weight
|
7,300 kg / 3,800 kg
|
| Cab
|
Cab Capacity
|
3 persons allowed
|
| Air Conditioner
|
Air conditioner is optional
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
ISUZU engine
|
| Power
|
98 Hp (72 KW)
|
| Displacement
|
2771 ml
|
| Emission Standard
|
Euro 4
|
| Chassis
|
Drive Type
|
4X2, left hand drive
|
| Transmission
|
5-speed front, 1 reverse
|
| Wheelbase/No. of axle
|
3360 mm / 2
|
| Tyre Specification
|
7.00-15
|
| Tyre Number
|
6 tyres and 1 spare tyre
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Container Capacity
|
6 CBM
|
| Waste Box Material
|
Carbon steel
|
| All other standard accessories: English manual, tool kit……
|
| Optional
|
** Container material could be stainless steel.
** A sealed cover for the container.
** A truck with several containers.
|
