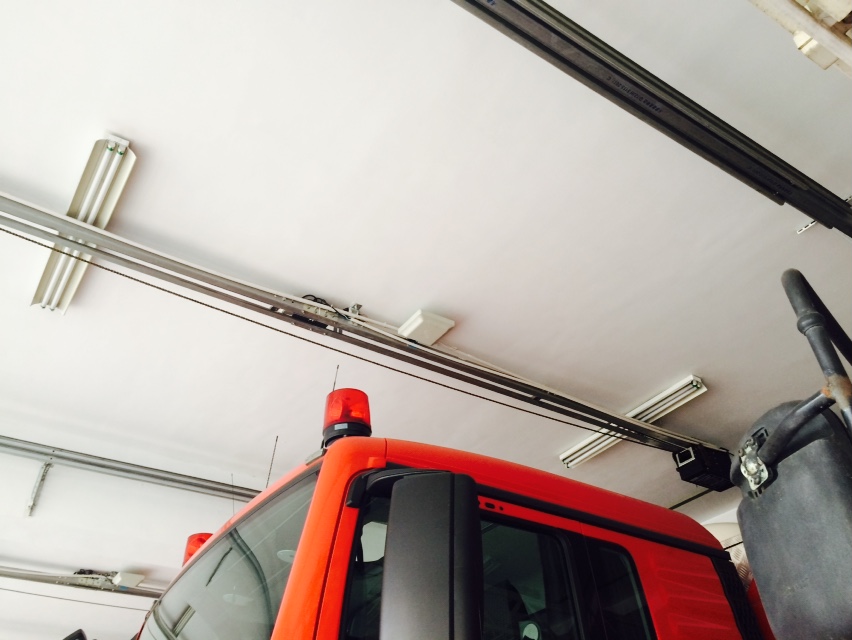

6MM Fixed UHF RFID reader for Fire Vehicle Management

6MM Fixed UHF RFID reader  for Fire Vehicle Management with 220x220MM small size  built in 8dbi antenna




Description

RFID middle range reader JT-8280C could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 6m(related to the tag and environment). JT-8280C is easier to install for its small size and light weight.


Application

1.Intelligent traffic such as ETC;

2. Customs border-crossing;

3. Parking lot ;

4. Automatic weighting;

5. Container management,pallet management ;

6. Asset management ;

7. Ticketing& access control;

8. Pharmaceuticals such as medical waste management.


Specification

Item No


JT-8280C

RS232,RS485,Wiegand

Performance parameters


Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Radio frequency power

0dBm~30dBm(Adjustable)

Software & SDK

DEMO and C#,VC,VB,Java,DELPHI, etc.,

Encryption

Can be directly encrypted, copy prevention.

Reading range

stable reading range 6M(Depends on tag&environment)

Industrial lightning protection

6000V industrial lightning protection

Low temperature protection

Northeast,Northwest extremely cold region,low temperature protection

Frequency modulation way

Broad spectrum frequency hopping or fixed frequency

Input/output port

Two-way relay output(customized), one-way trigger input

Antenna gain

8dBi circular polarization

Working way

Buzzer

Power

12V/3A Adaptor

Physical parameters:

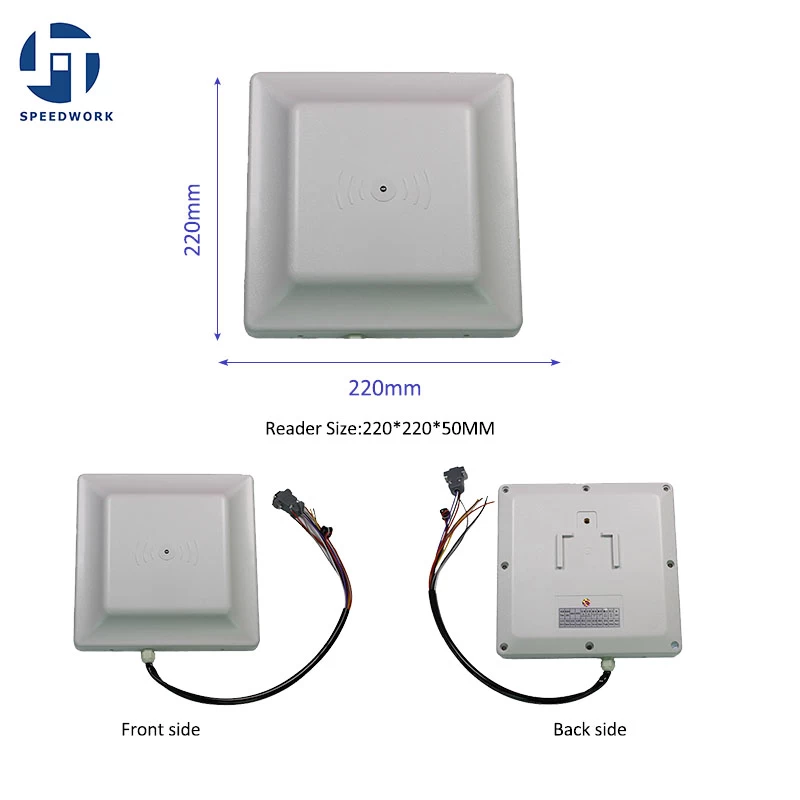

Item size

220x220x50mm

Package size

430x320x140mm

Net weight

3KG

Shell material

ABS

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃



Product Tags uhf rfid reader range          mid range rfid reader          mid range rfid reader          uhf rfid middle range reader          uhf rfid reader long range          uhf rfid long range reader          middle range uhf rfid reader          long range uhf rfid readers          short range uhf rfid reader
