6x4 350 GXZ Prime Mover Tractor ISUZU
Isuzu
Prime Mover Truck Tractor Unit
Tractor Trucks ISUZU (also called Semi trailer tractor head, tractor head truck, heavy tractor head, Tractors semi, prime mover, Truck-ractor trucks, Japan semi tractor, Hauler tractor truck,Semi tractor head, tractor unit, Prime mover trucks, road tractor, semi truck tractor, Mobile tractor unit, etc.) is a specialized towing engine that provides motive power for hauling a towed or trailered load.
Isuzu Truck
tractor unit is an articulated vehicle composed of a towing engine or tractor
and a trailer that carries the freight. The tractor and trailer are detachable,
that is, the tractor can be used to haul other trailers, or vice versa.
According to connection type of tractor and trailer, there are full trailer and
semi trailer. A full trailer is a trailer that is supported by front and rear
axles and pulled by a drawbar. A semi trailer is a trailer that has no front
axle and is supported by a road tractor.
Key further of Isuzu VC46 Prime Mover
1. Excellent Isuzu
6UZ1 Surging Power
2. Lightweight and
High Strength Frame
3. Style of Great
General
4. Working with
Great Care
5. Cost-efficient
and Worry-free Performance
Main
specifications:
|
Model
|
PT4250UK46
|
|
Driving Type
|
6x4
|
Left
hand drive
|
|
Weight
|
Kerb Weight (kg)
|
8200
|
|
Max. Fifth Wheel
Payload (kg)
|
15000
|
|
Max. Towed Mass (kg)
|
45000
|
|
Overload Range of Gross
Vehicle Weight (kg)
|
55000 @ complex road
|
|
Dimensions (mm)
|
Wheelbase
|
3425+1300
|
|
Overall
Dimension
|
6775x2490x3580
|
|
Front Overhang
|
1370
|
|
Rear Overhang
|
680
|
|
King Pin Diameter
|
90#
|
|
Min. Ground Clearance
|
285
|
|
Cab
|
All-steel-welded
construction, 3 seats with 1 sleeper
|
|
Engine
|
Model:
|
6UZ1-TCG40
|
|
Cylinder
in Line
|
6
|
|
Capacity
|
9839
ml
|
|
Type
|
Diesel,
turbo charged inter-cooled
|
|
Max.
Power:
|
257/2000
KW/RPM
|
|
Max.
Torque
|
1422/140
N.m/RPM
|
|
Gearbox
|
9JS119TA 9-shift, mechanical type, 9 forward and 1 reverse with
|
|
Brakes
|
Type
|
2
independent pneumatic circuits, disc/drum
|
|
Parking
|
Mechanic
with spring cylinder, rear
|
|
Emergency
|
Combined
with parking brake
|
|
Engine
|
Decompression
|
|
ABS
|
Yes
|
|
Axles
|
Type
|
ISUZU
exclusive high-performance axle
|
|
Loading
|
Front
9T
Rear
20T+20T
|
|
Tyre
|
11.00-20
|
|

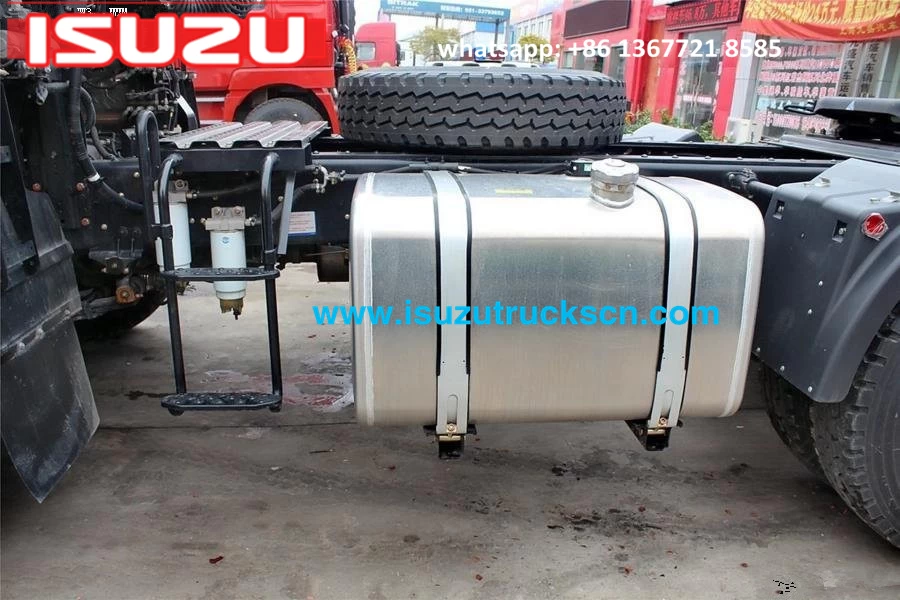

Fuel tank
|
400
L
|
|
Color
|
White
|
|
Max Speed
|
105
km/h
|
|
|
|
|

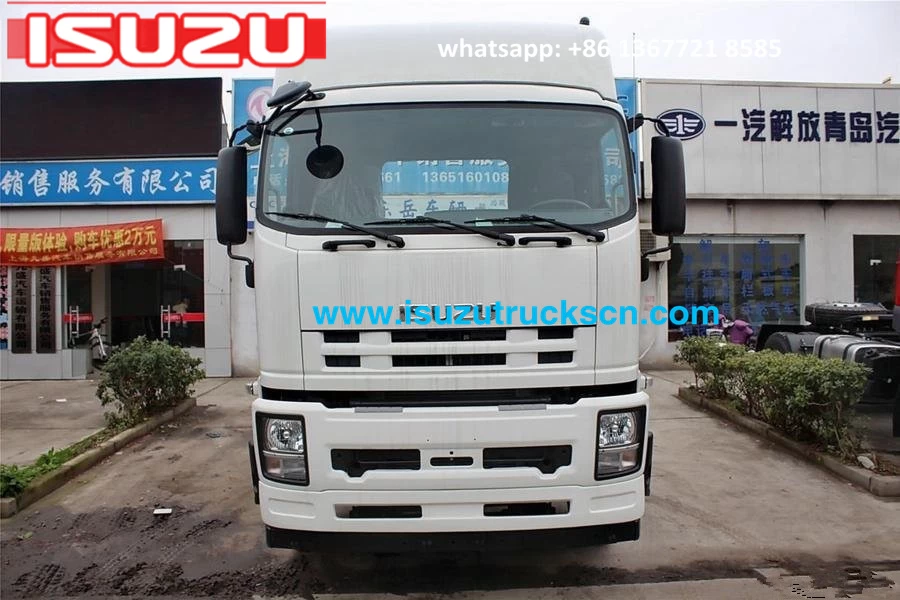

Over view of the 6x4 350 GXZ Prime Mover Tractor:
 |
 |

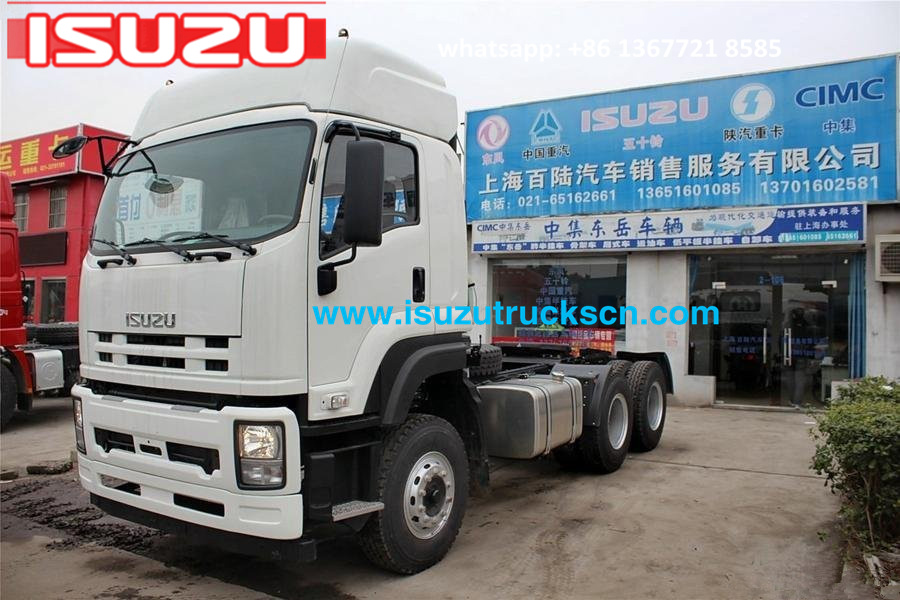

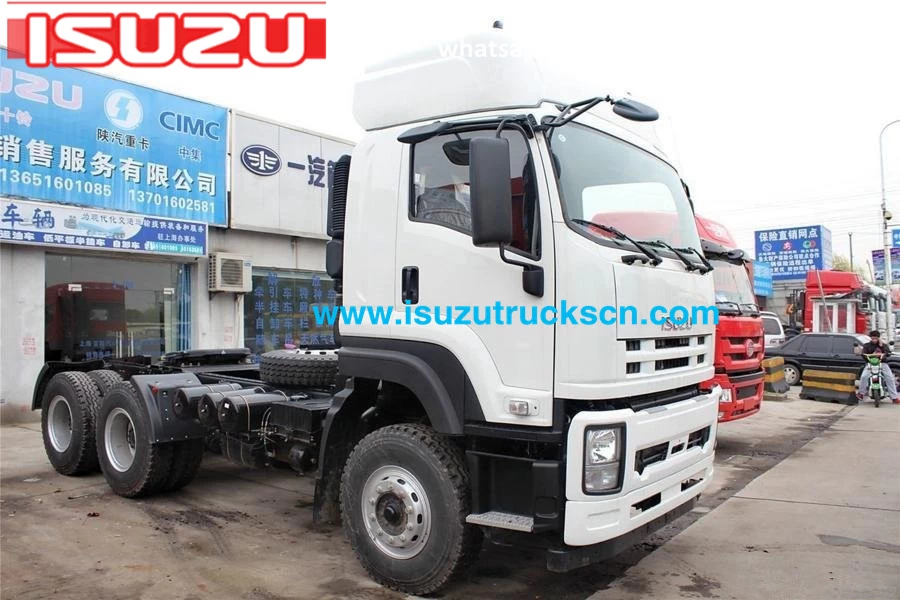

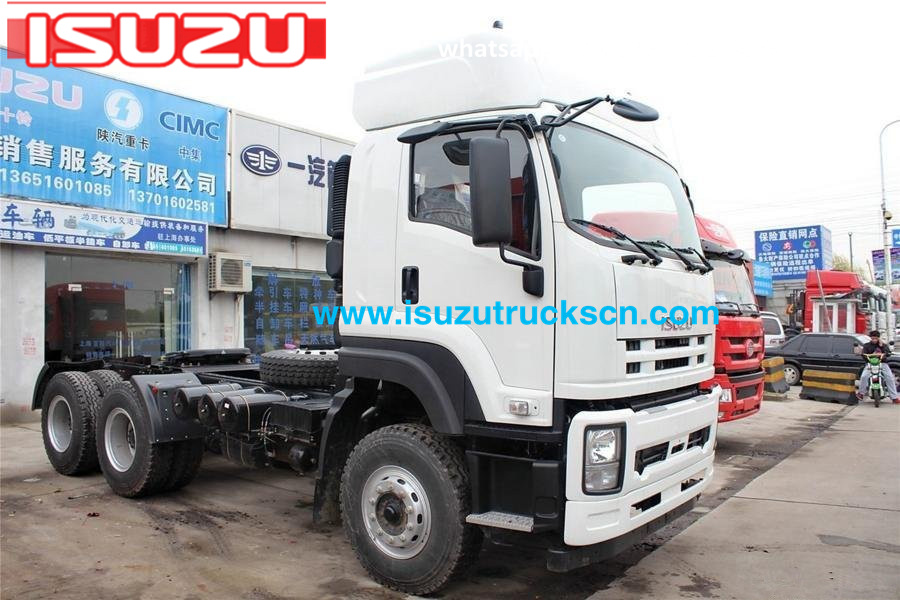

| Front left view |

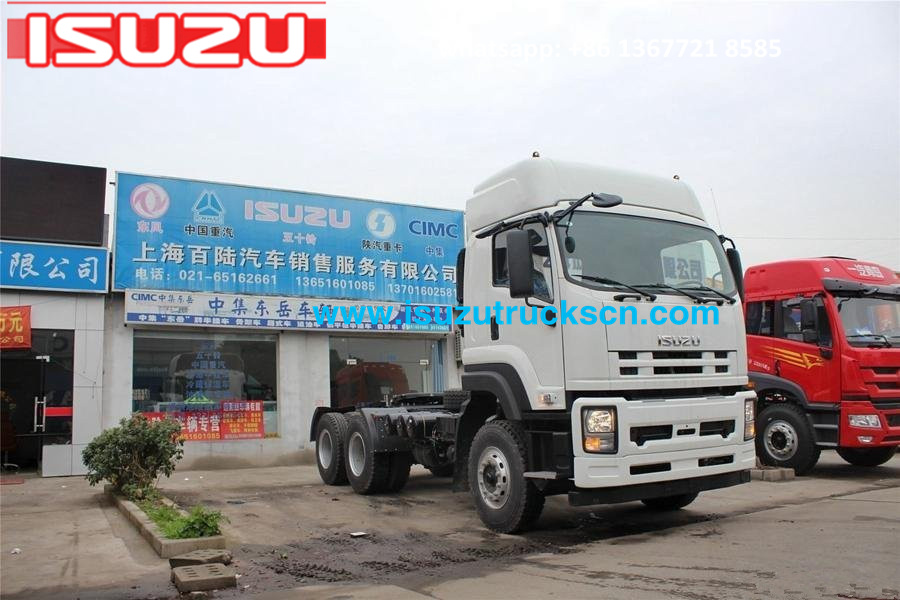

Front right view |
 |
 |

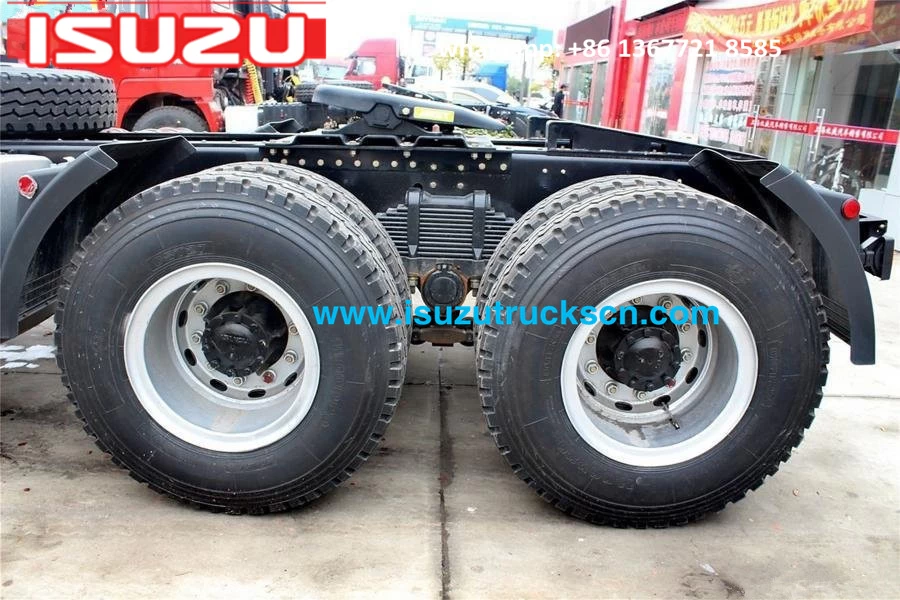

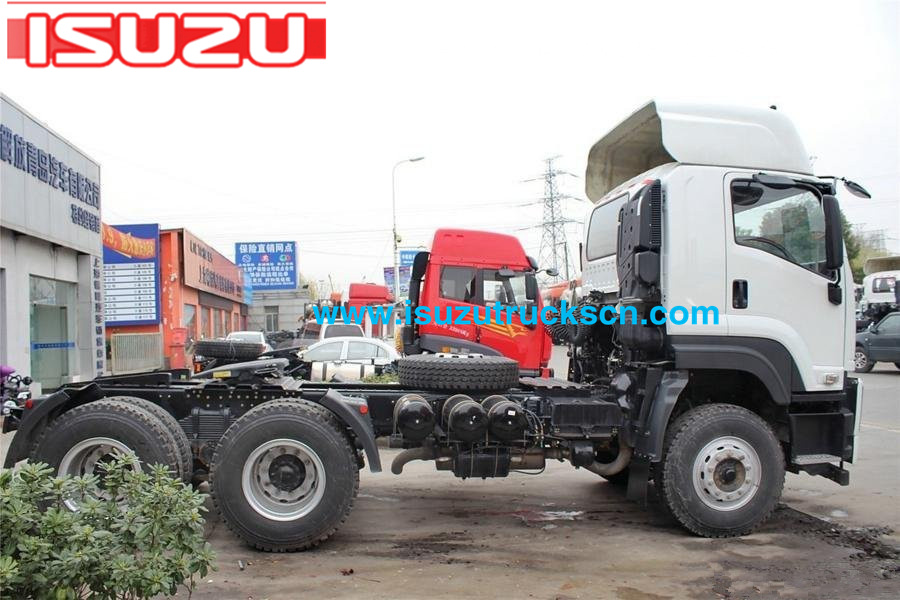

| Right side view |

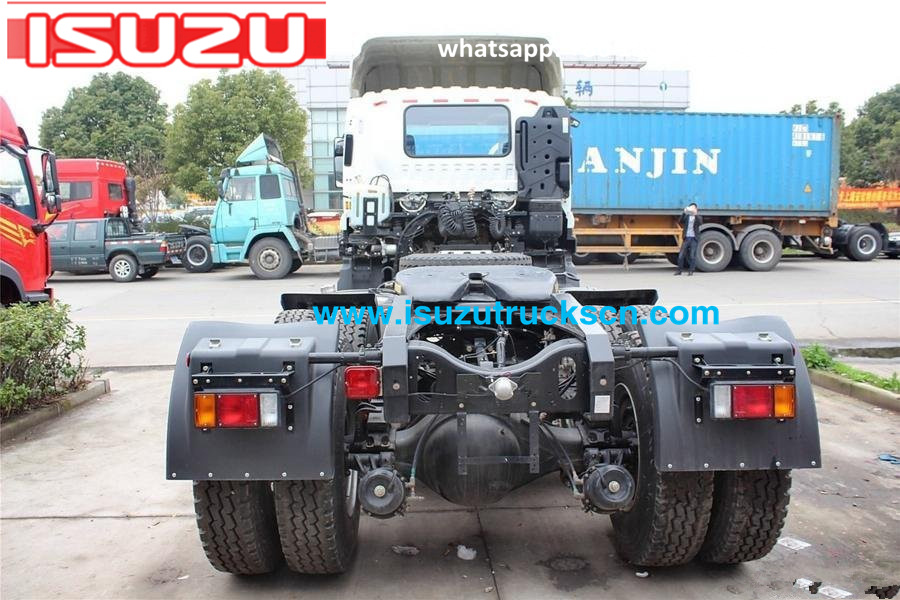

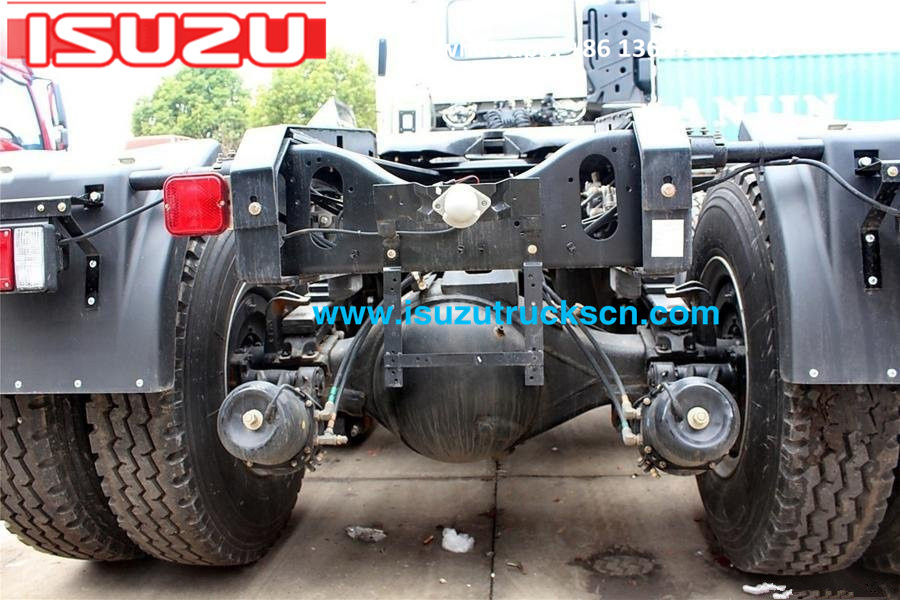

Rear view |
 |
 |

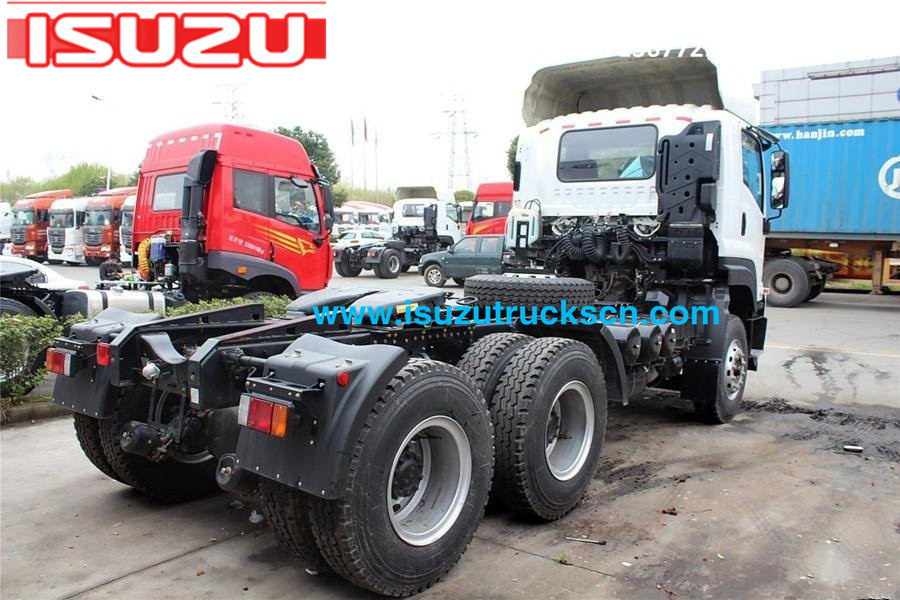

| Rear left view |

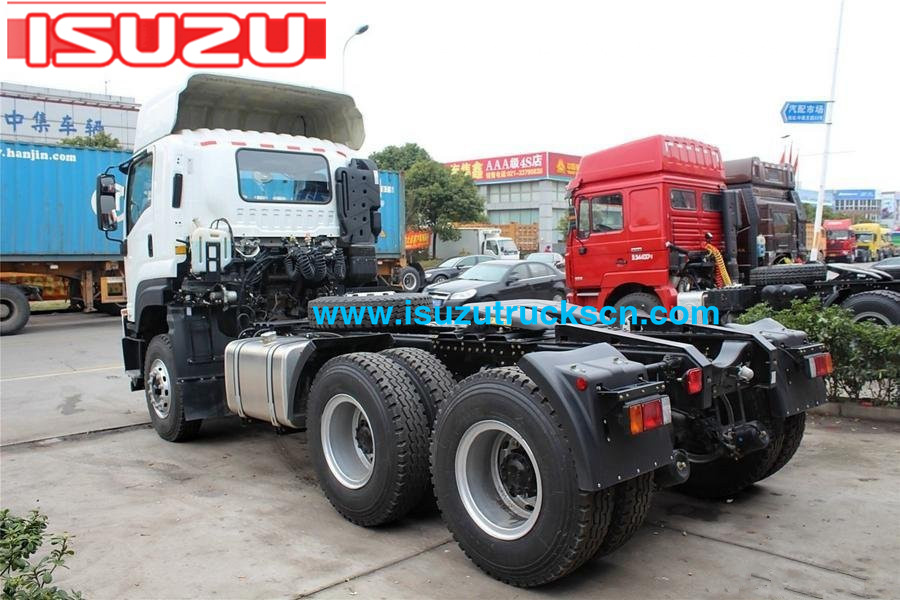

Rear right view |
