7.0 Inch ips 1024(RGB)*600 display module 400 nits brightness

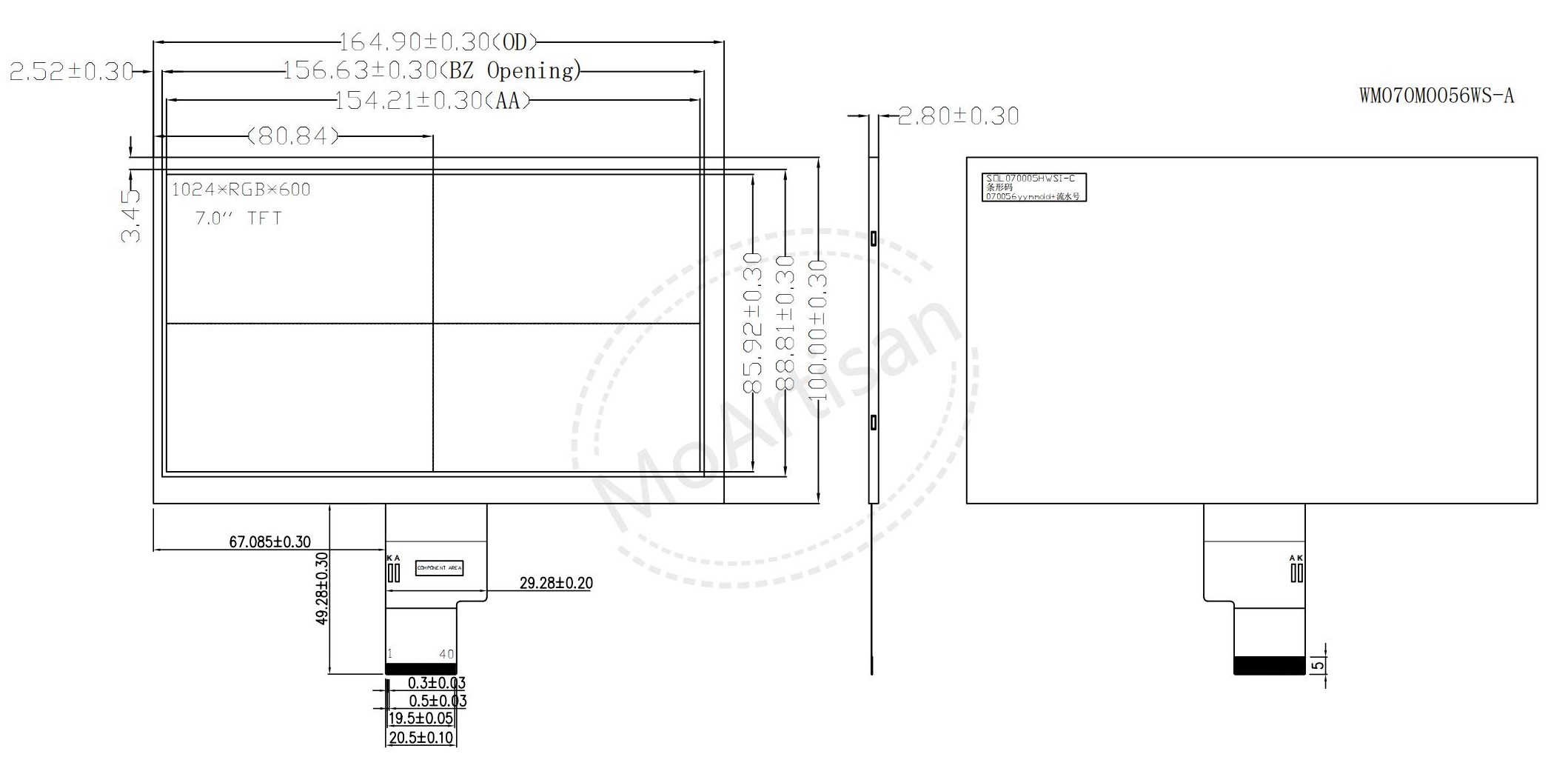

Production Drawings

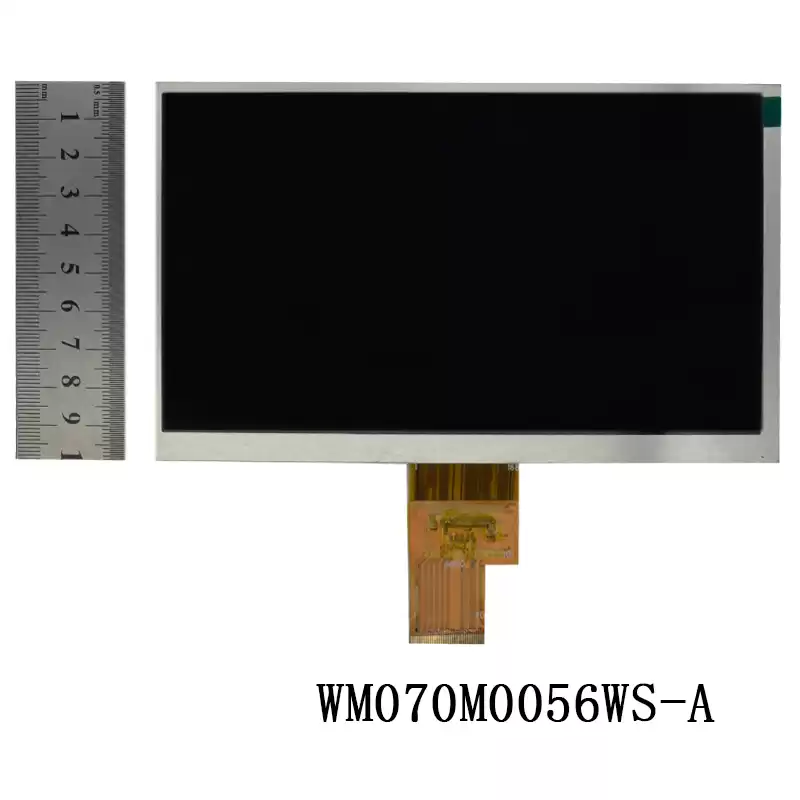

WM070MO056WS-A Introduction
-
A 7.0 (17:10 Diagonal) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600 vertical pixel) resolution.
-
7.0 inch ips WSVGA LCD module LVDS interface.
-
400 nits brightness.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WSVGA, 1024RGB*600, IPS, landscape view screen
|
164.9*100*2.8
|
9X3 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS
|
400 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
80/80/80/80
|
WM070M0056WS-A
|
Production Applications
Mobile NB, Digital photo frame, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
This is a normal one.
