7.0 Inch TFT 1024(RGB)*600 display 500 nits brightness

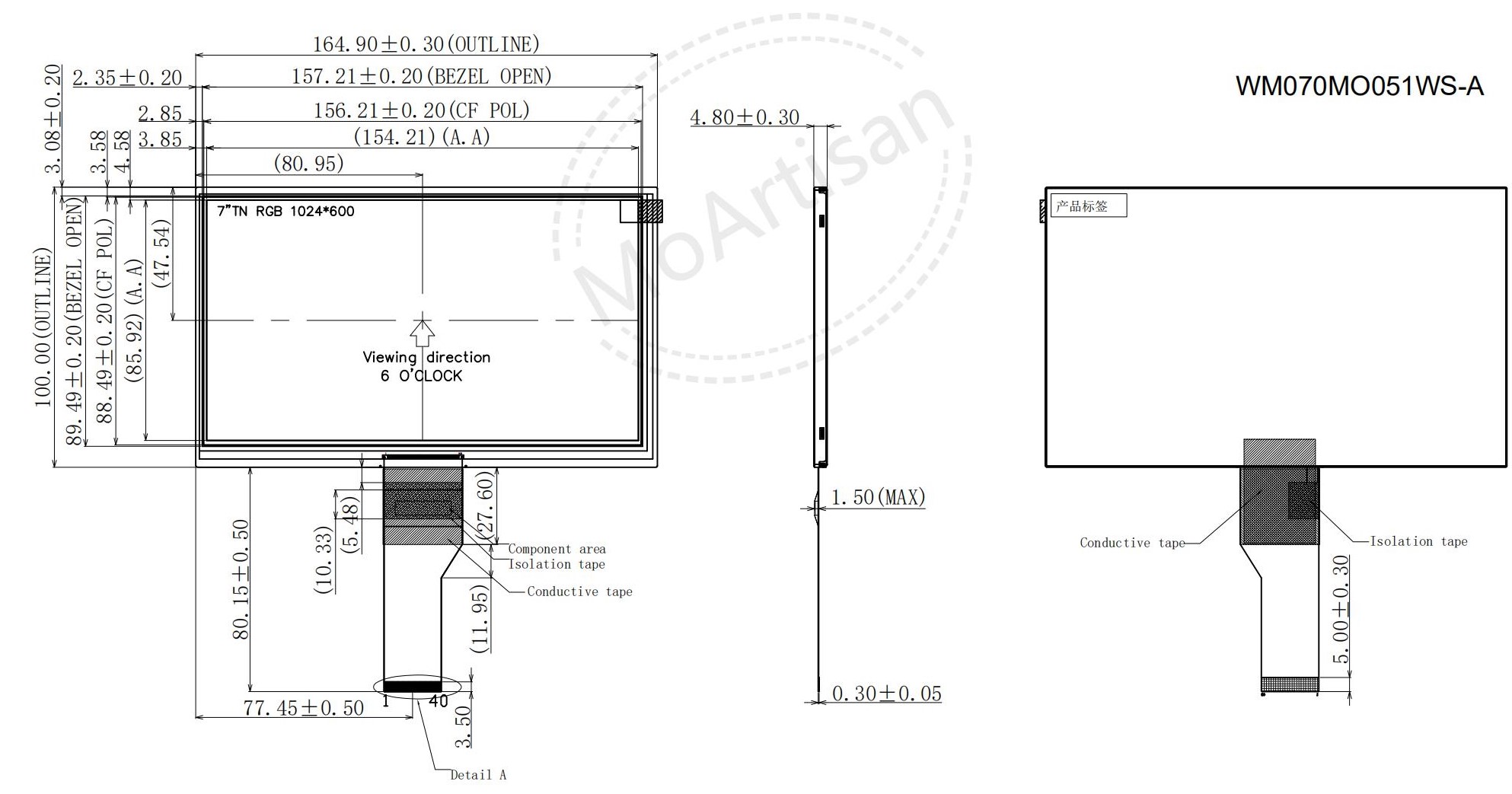

Production Drawings

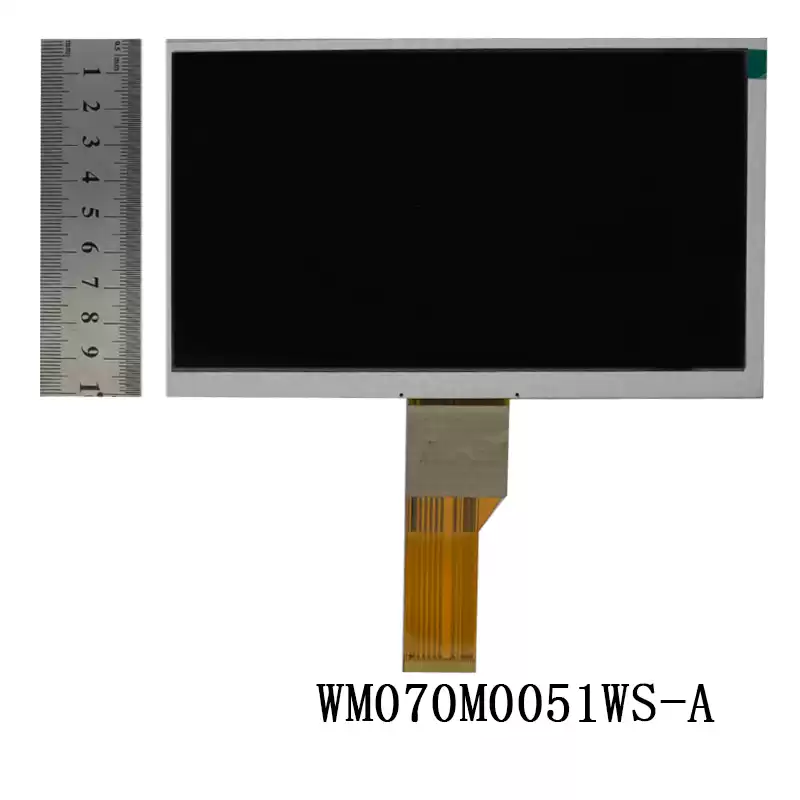

WM070MO051WS-A Introduction
-
7.0 (16:9 Diagonal) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600 vertical pixel) resolution.
-
7.0 inch TN LCD module with LVDS interface.
-
surface brightness 500 nits.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
7.0
|
WSVGA, 1024RGB*600, TN, 6 O'clock, landscape view screen, LVDS.
|
165*100*4.8
|
9X3 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS
|
500 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
70/75/75/75
|
WM070M0051WS-A
|
Production Applications
Mobile NB, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Note:
This is a normal product.
