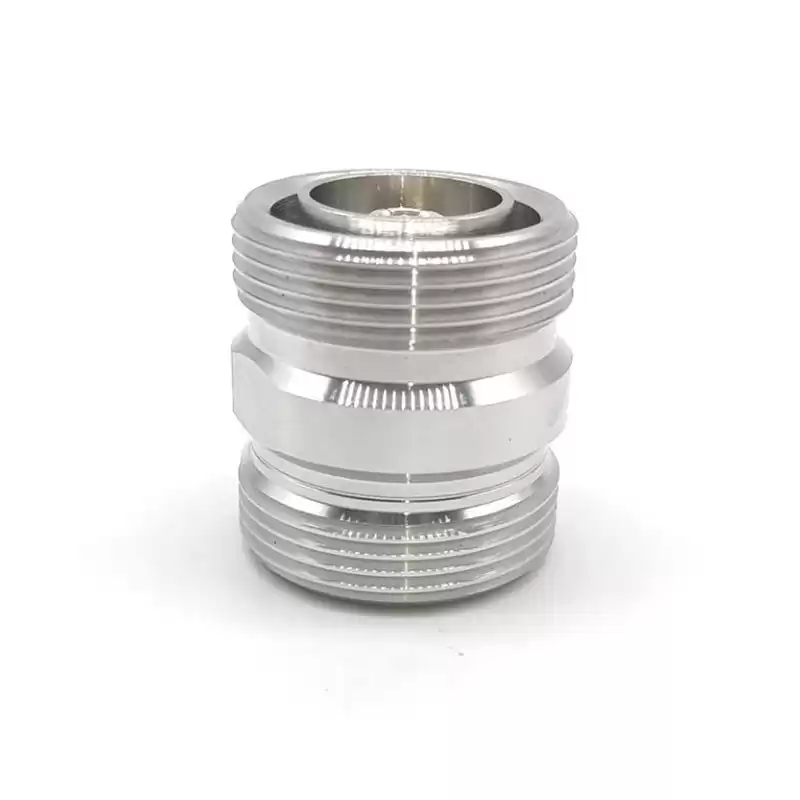

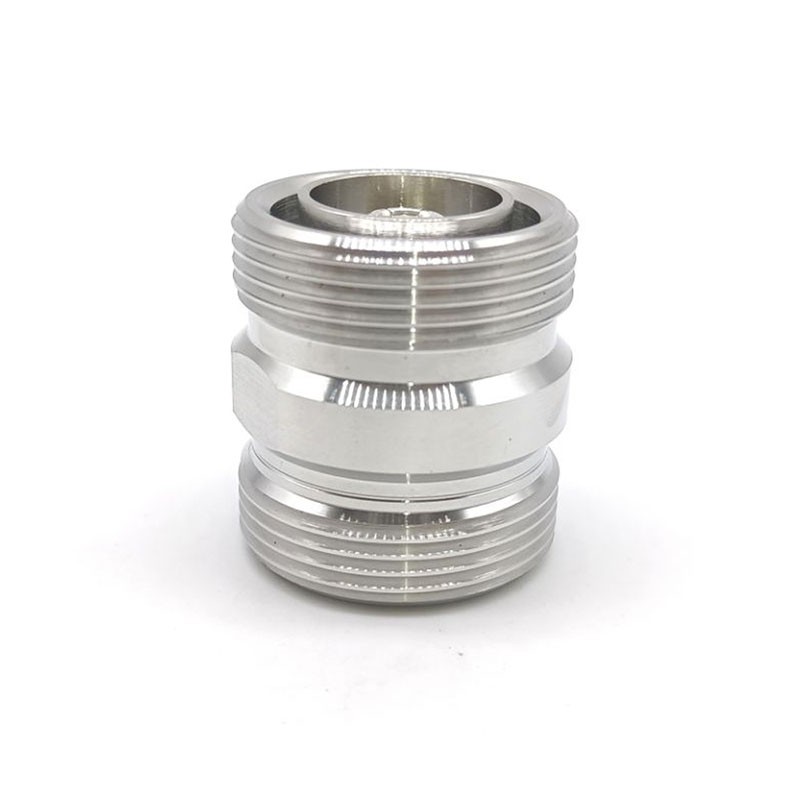

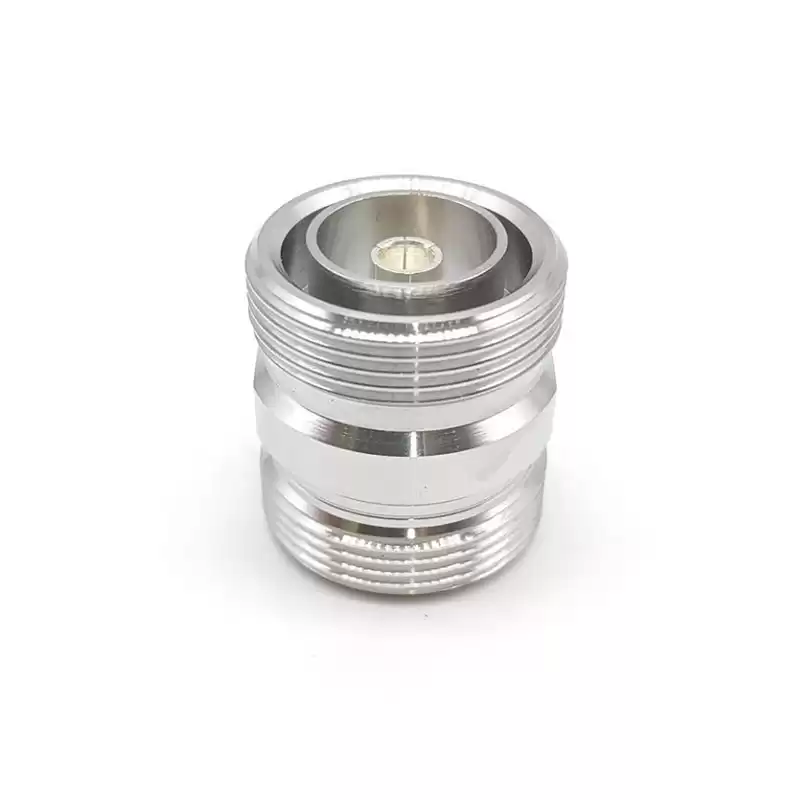

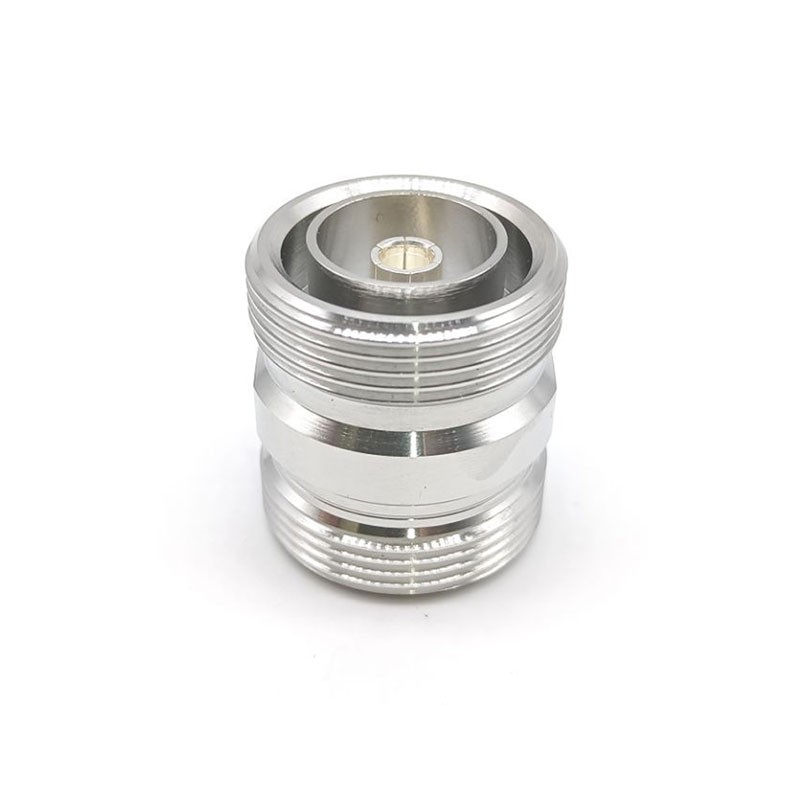

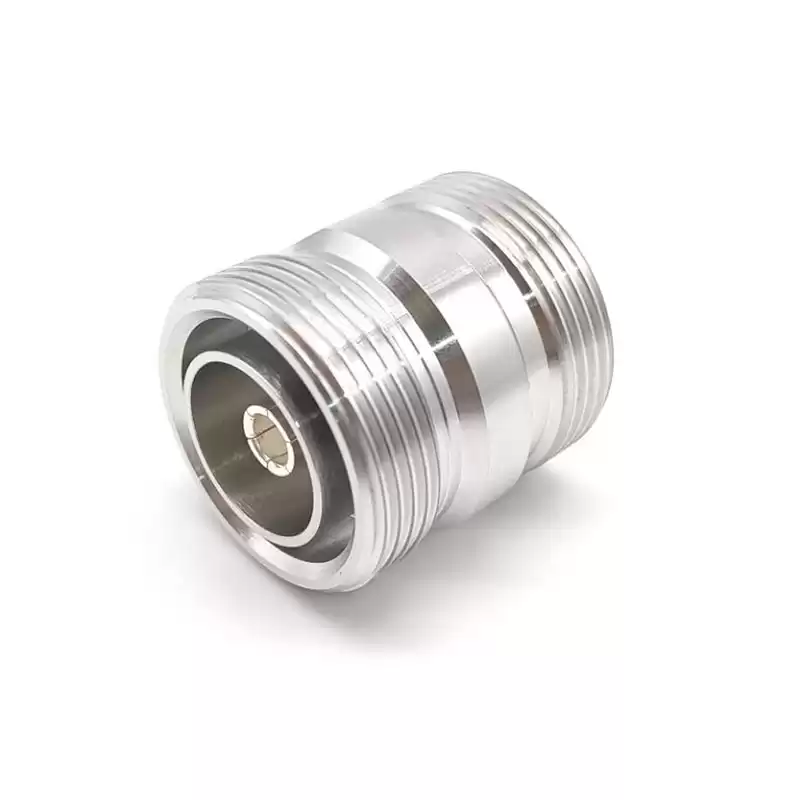

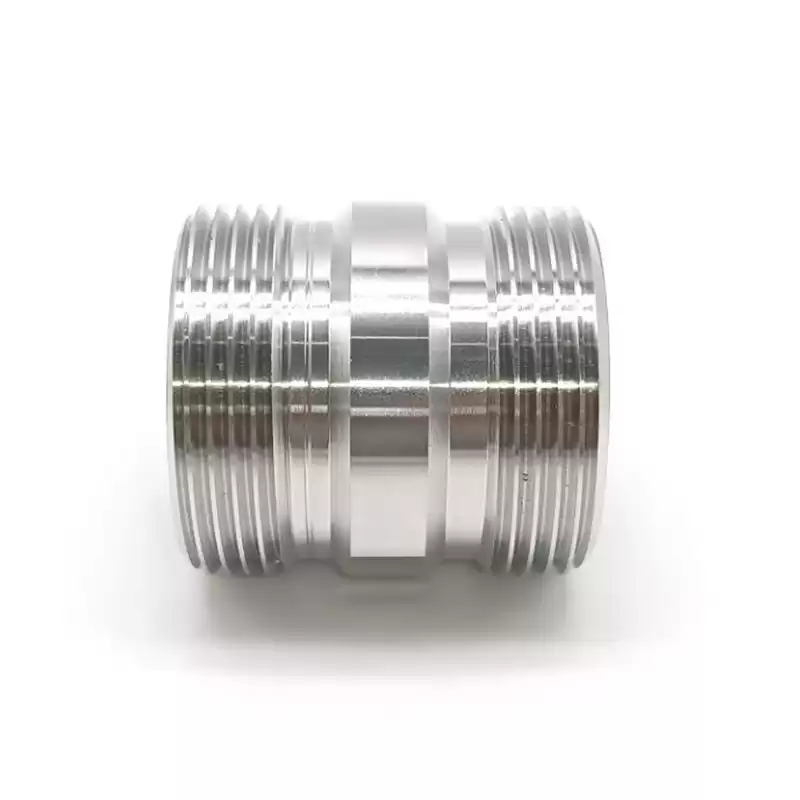

7-16 DIN Female to 7-16 DIN Jack Connector Adapter
The 7-16 DIN Adapter has different 7-16 DIN to 7-16 DIN adapter gender.The 7-16 DIN to 7-16 DIN adapters has female to female, male to female or male to male gender. it has straight or right angle shape, and you can select bulkhead or mountless configurations. ROHO offers 7-16 DIN to 7-16 DIN adapters in standard or low PIM designs. This 7-16 DIN female to 7-16 DIN female adapter has a maximum frequency of 8GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
7-16 DIN |
| Adapter Side 1 Style |
Female/Jack |
| Adapter Side 2 Series |
7-16 DIN |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
8 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Wireless LAN
- Broadcast systems
- Outdoor antennas
- Radar equipment
- Microwave Radio
- Base stations
- Satellite systems
