7-16 DIN Male Connector Clamp Solder Attachment for RG213 LMR400 RG214 Cable

7-16 DIN features

  • Can terminate to coax or terminal;
  • Can be male or female gender in standard polarity, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be press in, bulkhead, 4 hole panel or mount-less;
  • Attachment methods include clamp/solder, crimp/solder, field replaceable or solder.

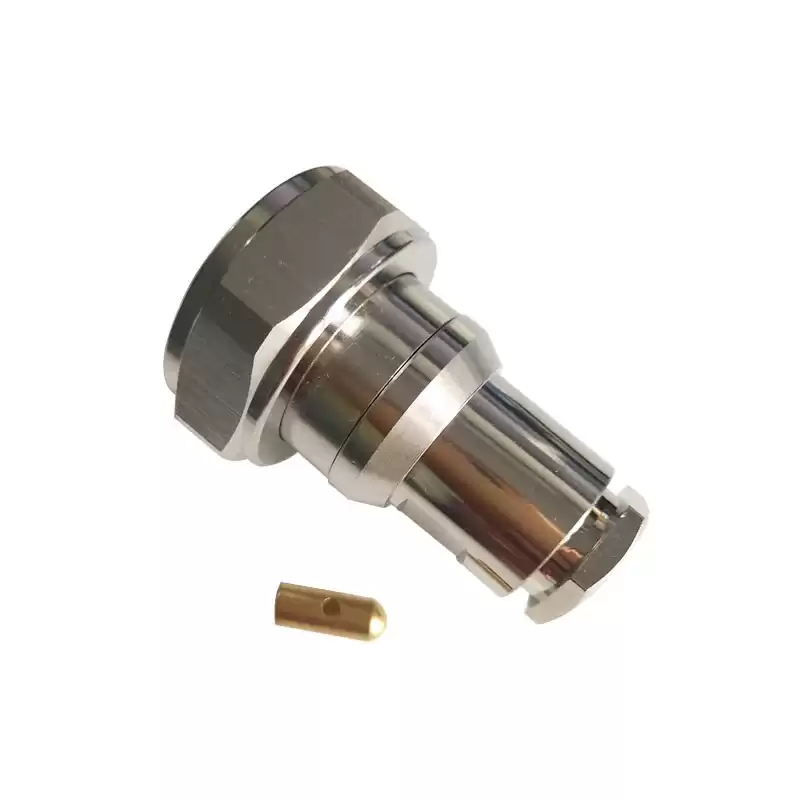

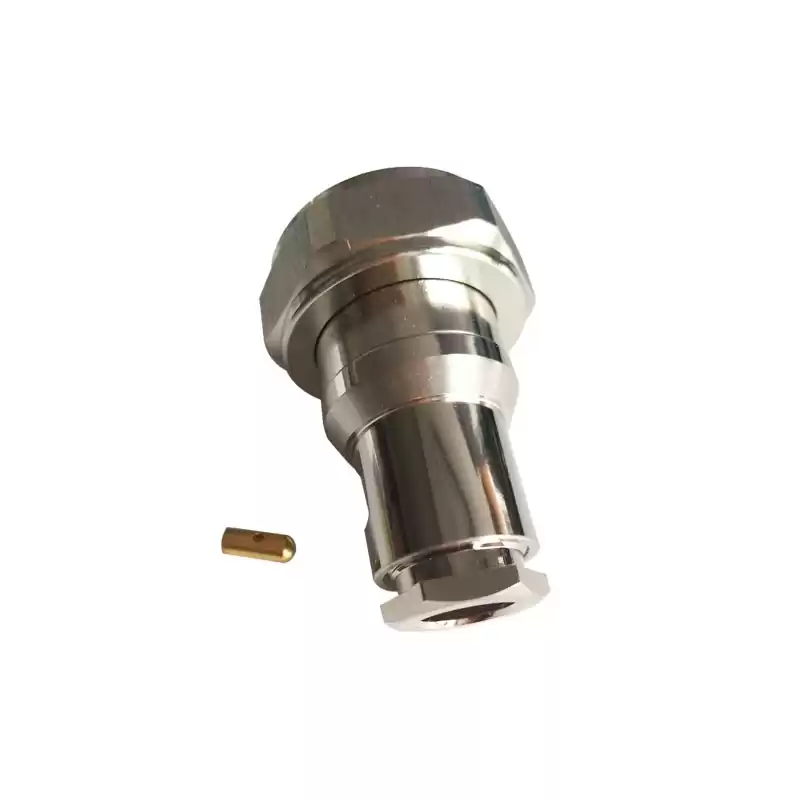

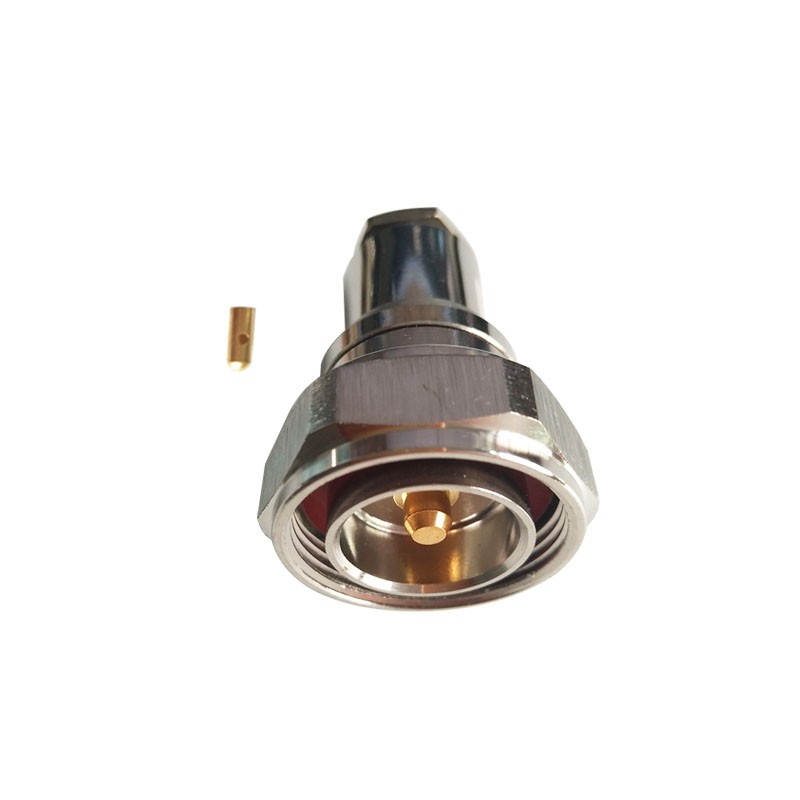

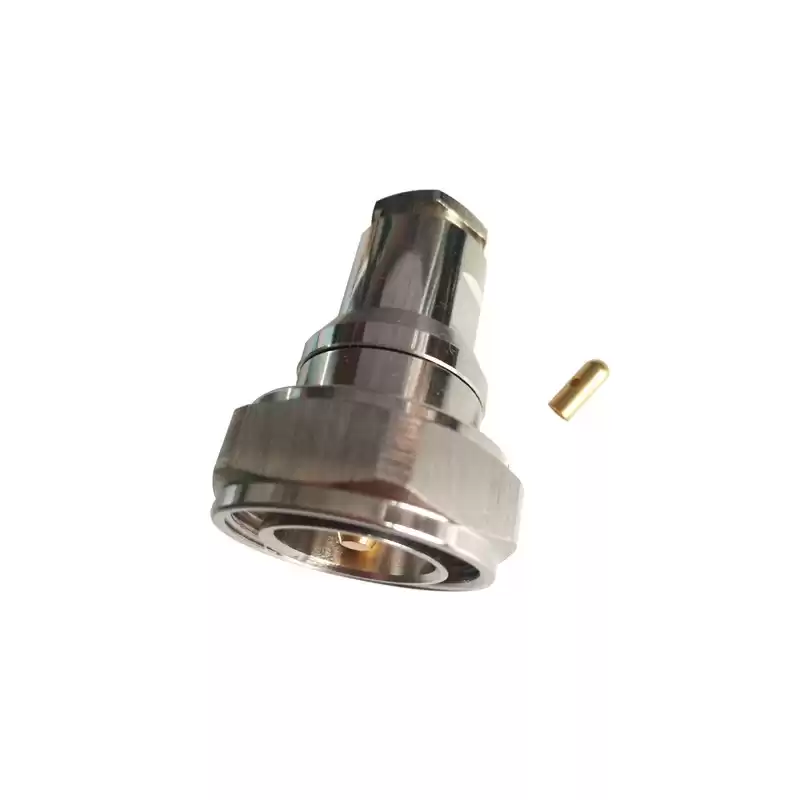

7-16 DIN Male Connector Clamp Solder Attachment for RG213 LMR400 RG214 Cable



The 7-16 DIN connector are from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact; These RF coaxial connectors are very robust, extremely stable and waterproof, frequency max up to 7.5GHz; this 7-16 DIN male coaxial connector has an interface type of RG213 LMR400 RG214 Cable and a 50ohm impedance, attachment method uses shield/contact clamp/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency Range 1GHz
Dielectric withstanding voltage (at sea level) 4000 V rms,50Hz
Working voltage (at sea level) 2500 V rms,50Hz
Insulation resistance ≥ 100000 mΩ
Contact resistance Inner conductor: ≤0.4mΩ
Outer conductor: ≤1.5mΩ
RF leakage (at 1 GHz) ≥128dB
MECHANICAL DATA
Coupling nut torque Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs
Proof torque: 35 Ncm / 310 in.lbs
Coupling nut retention force ≥1000N / 225.0 lbs
Contact captivation ≥200N / 45.0 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--ternary alloy plating
Pin contacts Brass--Au/Ag plating
Socket contacts Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules Copper--ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Wireless Infrastructure
  • Base Stations
  • Lightning Protection
  • Satellite Communications
  • Antenna Systems
