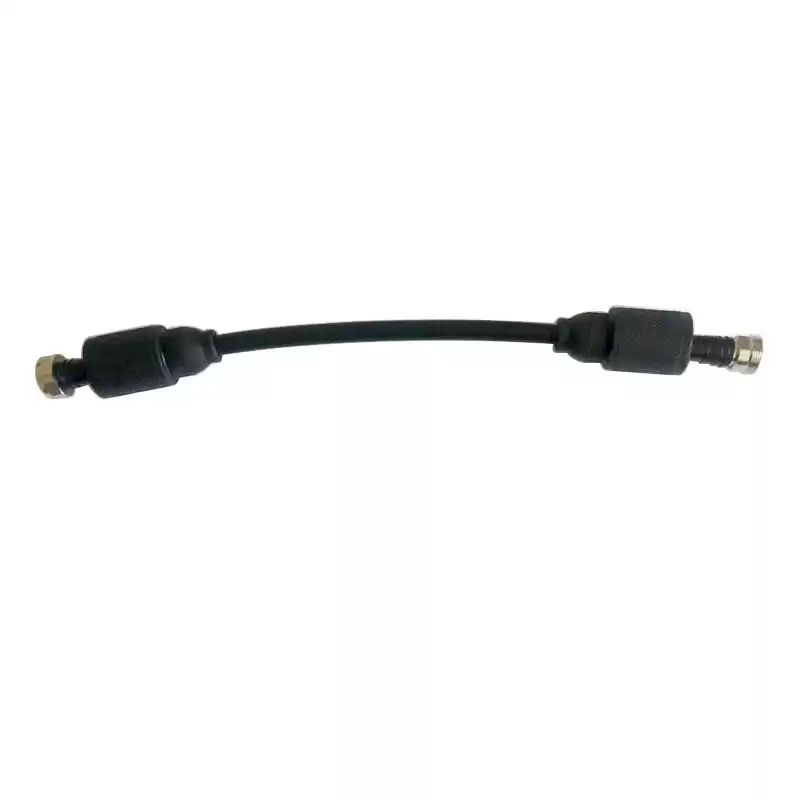

7-16 DIN Male to 7-16 DIN Female RF Coaxial Connector Cable Assembly with 1/2 Superflexible Cable

7-16 DIN Cable assembly Features:

  • Can be combined with 4.3-10, 7-16 DIN, BNC, N, NEX10, QMA or SMA connector;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.

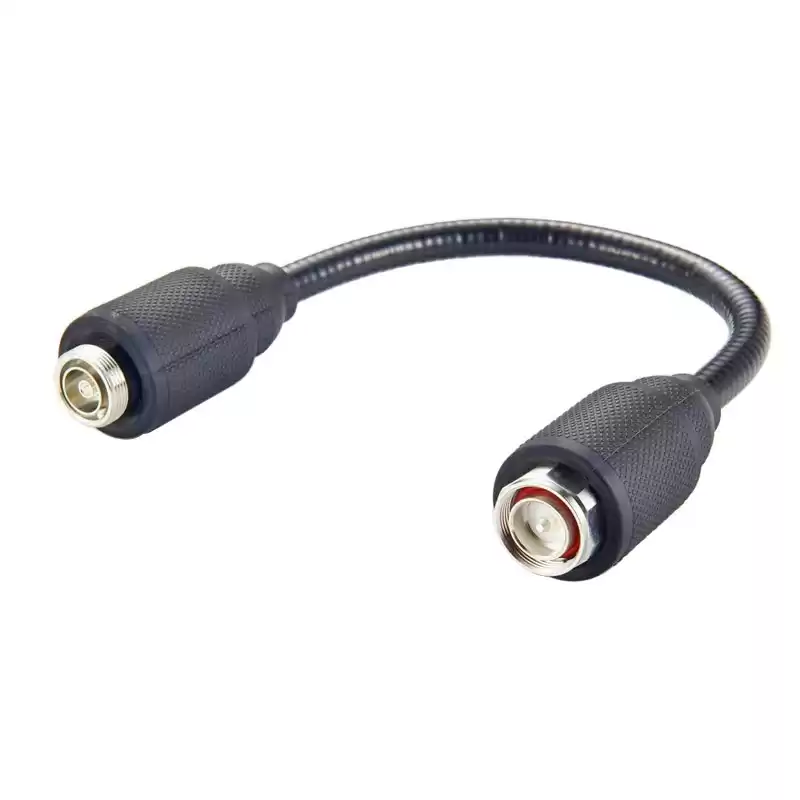

7-16 DIN Male to 7-16 DIN Female RF Coaxial Connector Cable Assembly with 1/2 Superflexible Cable



The 7-16 DIN cable assembly can use flexible or corrugated coaxial cable such as TFT402, LMR-240 and 1/4" Superflexible; the body of 7-16 DIN to 7-16 DIN cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 7-16 DIN to 7-16 DIN cable assembly is a low PIM cable. This 7-16 DIN male to 7-16 DIN female cable assembly uses a 50ohm straight 7-16 DIN for connector 1 and a 50ohm straight 7-16 DIN for connector 2, Cable is 50ohm 1/2 super flexible.



Specifications

ELECTRICAL DATA
Connector 1 Series 7-16 DIN

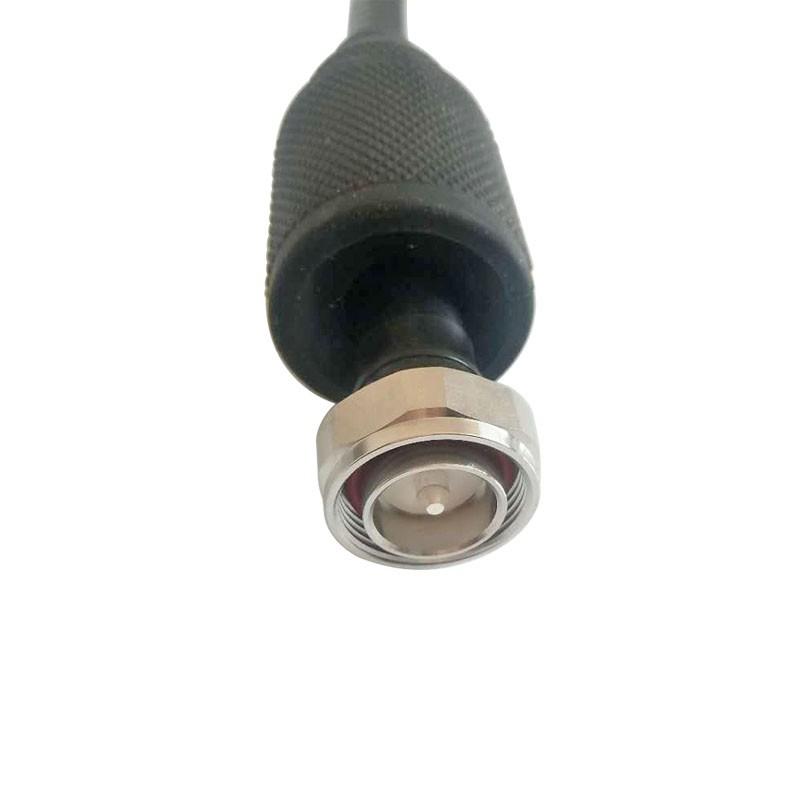

Connector 1 Style Str Male
Cable Type 1/2 Super flexible
Connector 2 Series 7-16 DIN

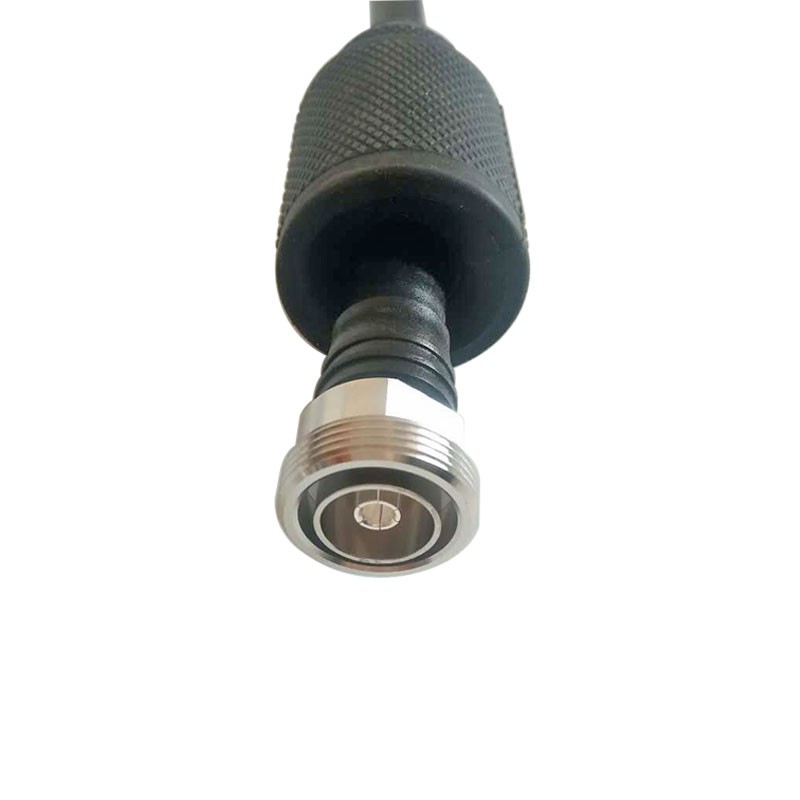

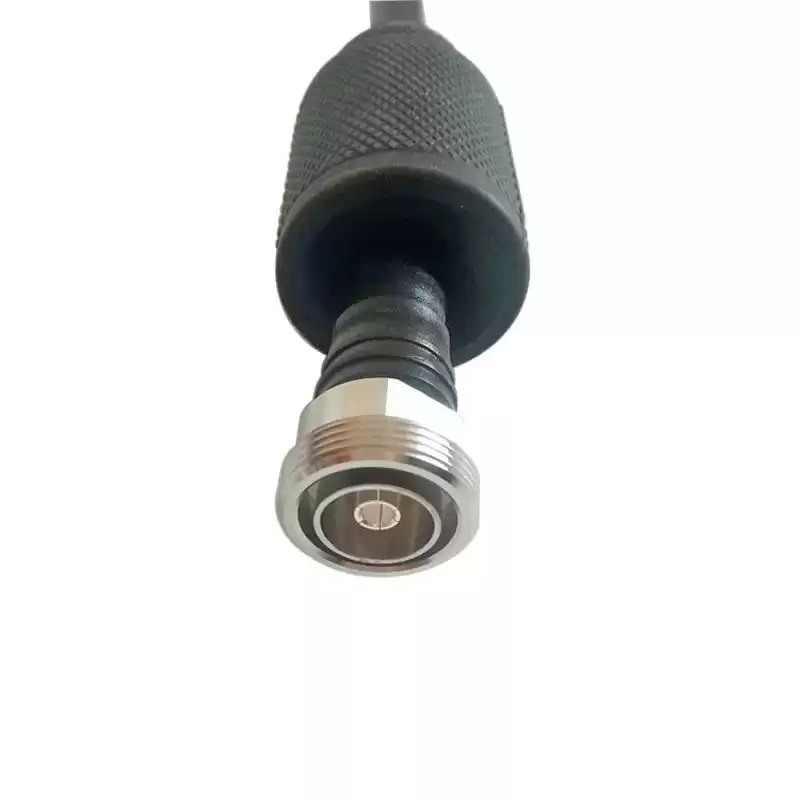

Connector 2 Style Str Female
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
