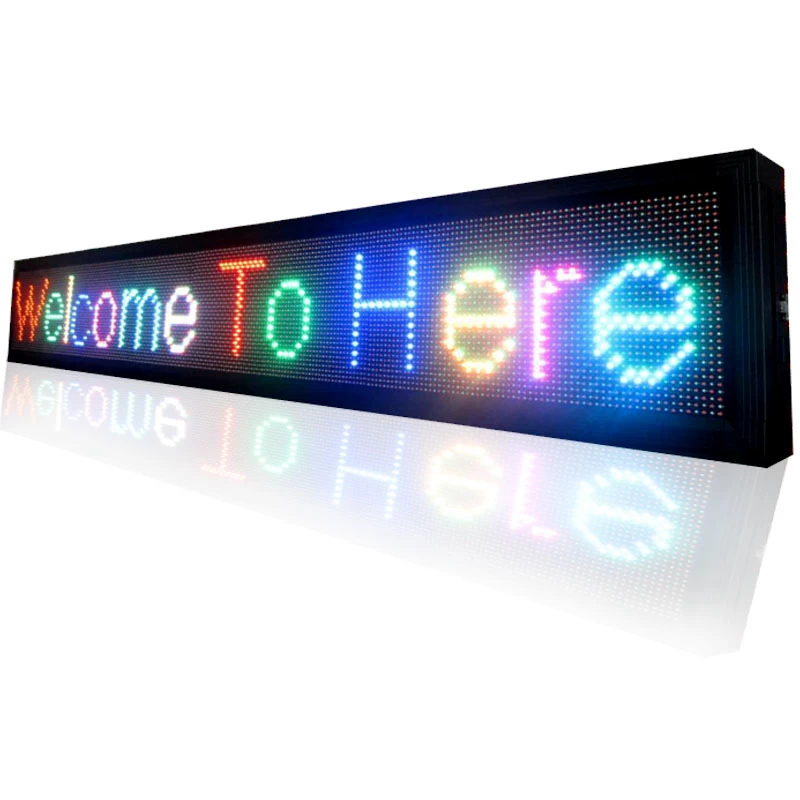

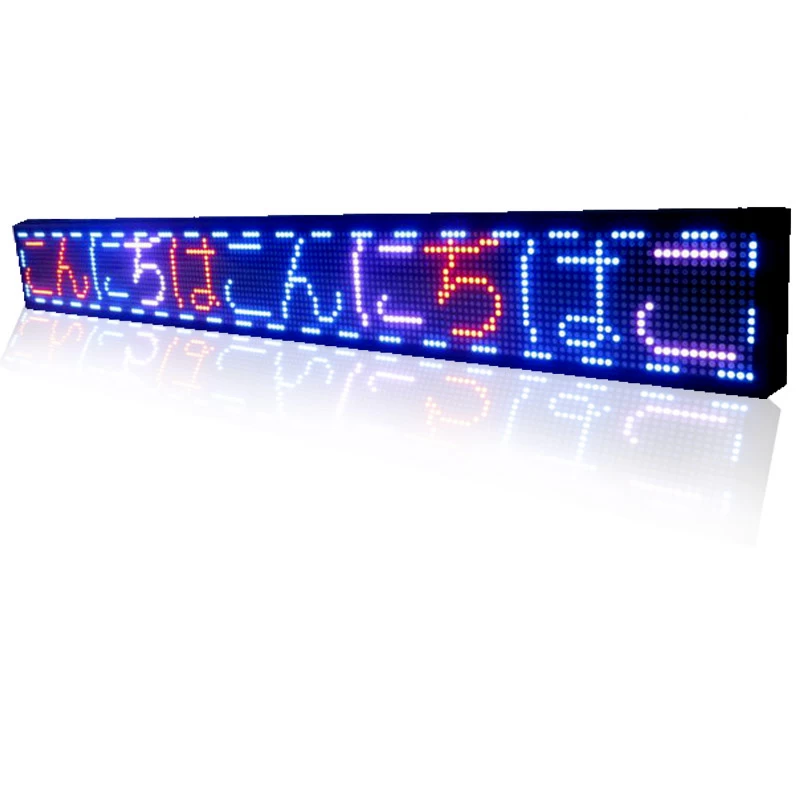

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
【Feature & Function】
*Brightness is adjustable
*Display speed is adjustable
* Letter font and letter size are adjustable
*Housing material is Aluminium alloy and housing color is black
*Default function is text letter, time and date;(temperature function is for option.)
*Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.
*Super Low Energy Consumption
*Signal cable interface is USB+wifi
*Support: Win8/Winxp/ Win7/ W10
*Waterproof: IP45
*Tube Chip Color: Full Color
*Brightness: 6000CD
Package including
*LED sign 1 PCS (size 23*391cm/ 154x 9 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P13 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W24 X H12
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/3 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
|
Cabinet Size (mm)
|
W3910 x H230 MM (154x9 Inch)
|
|
Power Consumption Max (w/set)
|
200 Watt
|
|
Brightness(CD/㎡)
|
≥5500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB+ WIFI control(network port,optional)
|
|
Display function
|
Date, Text
|
