7 in 1 Multi Ports USB C Smartphone Stand Hub
Product description:
1, 7 in 1 Multi Ports USB C Smartphone Stand Hub equipped with 3 USBA 3.0 ports, USBC 3.1 port , 4 K HDMI ,1000 Mbps RJ45 , PD3.0 Easily expand your daily Usb C devices, as well as your laptop.
2, USBA 3.0 Ports at 5 Gbps:Allow you to connect keyboard, mouse, thumb drive to your laptop; provide
high speed transfer rate of up to 5Gbp.
3, USBC 3.1 Port at 5 Gbps : Allow you to connect laptop high speed transfer rate of up to 5Gbp .
4, 4K display Adapter: This Usb C stand hub enables you to mirror or extend the display of your laptop to your TV,monitor or projector in up to ultra HD (4K) at 30Hz or Full HD (1080p) at 60Hz resolution.
5,Gigabit Ethernet port: Connect your laptop to ethernet and get faster downloads(faster internet up to 1000 Mbps), more reliable video calls, less buffering, and less waiting around.
6.Power delivery port:Power is shared between all dock-connected USB-C devices and adjusted based on needs,the 7 in 1 usb C adapter delivers about 52W for charging a connected laptop and 8W for powering the hub when connected to a 60W power input,delivers about 32W for charging the connected laptop and 8W for powering the hub when connected to a 40W power input.

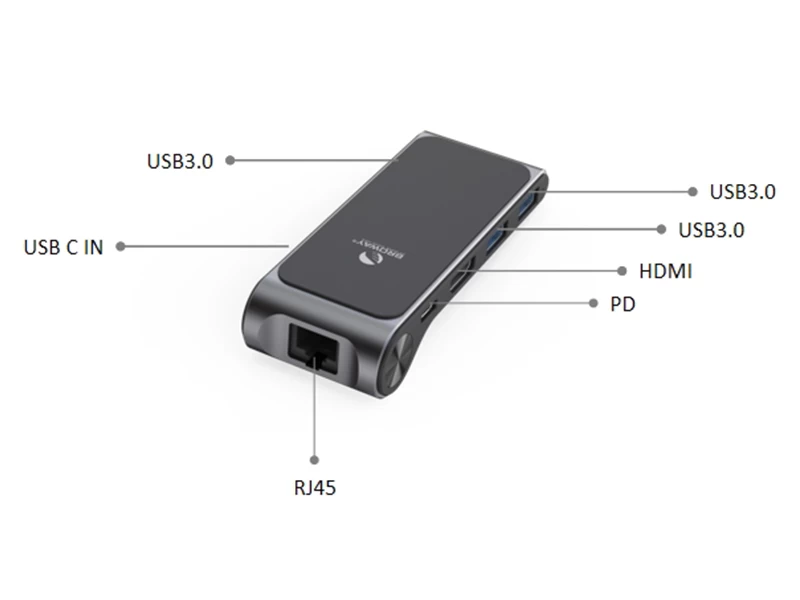

Interface:
3*USBA 3.0
1*USBC 3.1
1*HDMI 4K 30Hz
1*Ethernet 10/100/1000
1* PD3.0
Details Display:
Specification:
Brand:
|
Broway
|
Item Name:
|
BD138B
|
Color:
|
Black &Grey
|
Material :
|
Aluminum
|
Product size:
|

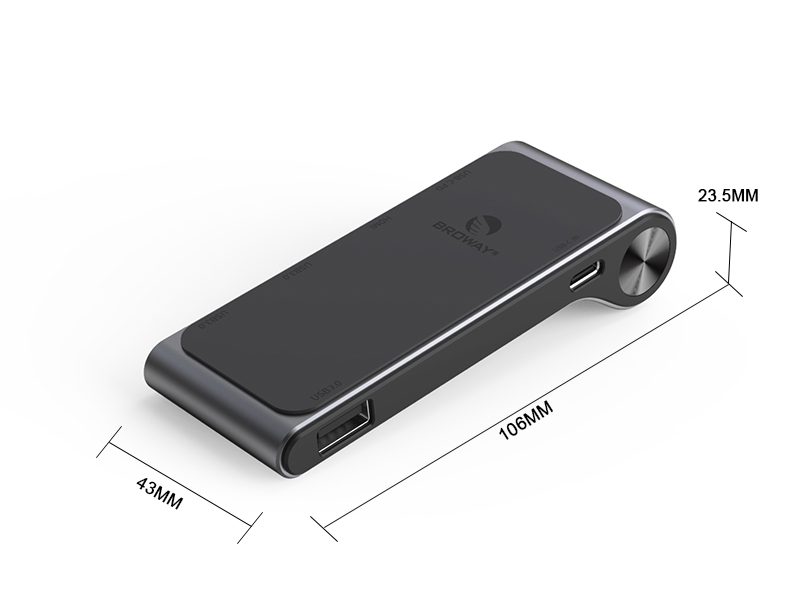

106*43*23.5MM
|
Working Temperature:
|
0℃~40℃
|
|
Weight:
|
---
|
Storage temperature:
|
'-20℃~60℃
|
Supported Systems:
|
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
|
Humidity:
|
25%RH.~93%RH.
|
Incompatible Devices:
|
iPad Pro 2018；Nintendo Switch; Apple USB Super Drive
|
Compatible Devices :
|
Apple Macbook Air (2018), Apple MacBook/ Pro
(2016 / 2017/2018), Apple iMac / iMac Pro (21.5 in & 27 in).
Google Chrome Book Pixel, Dell, HP, Dell, Asus, HP, Lenovo and more laptops based on USB Type-C Protocol (USB 3.1 & PD 3.0 & DP 1.2).
|
Notice:
1, For a stable connection, connected devices should not exceed a combined current of 900mA.
2, Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended to connect only one HDD/SSD at one time.
3, 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may be effected occasionally.
Service:
Warranty:14 month warranty
Service: OEM &OEM Support is available
FAQ:
1,Does it support 4K@60hz or just 30hz?
It just supports 4K@ 30hz
2,Will this usb c adapter work well with all ports together?
Yes,all ports work perfectly at the same time
3, Does this require driver install ?
No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
