Basic Information
-
Resolution: 1024RGBx 600
-
Outline Dimension: 165*100*7.38
-
Active Area: 61.78*109.82
-
View Area: 155.2*86.92
-
Interface: LVDS
-
View Direction: 6 o'clock
-
PIN: 40
-
Backlight: White LED
-
Touch Screen: Capacitive Touch Screen

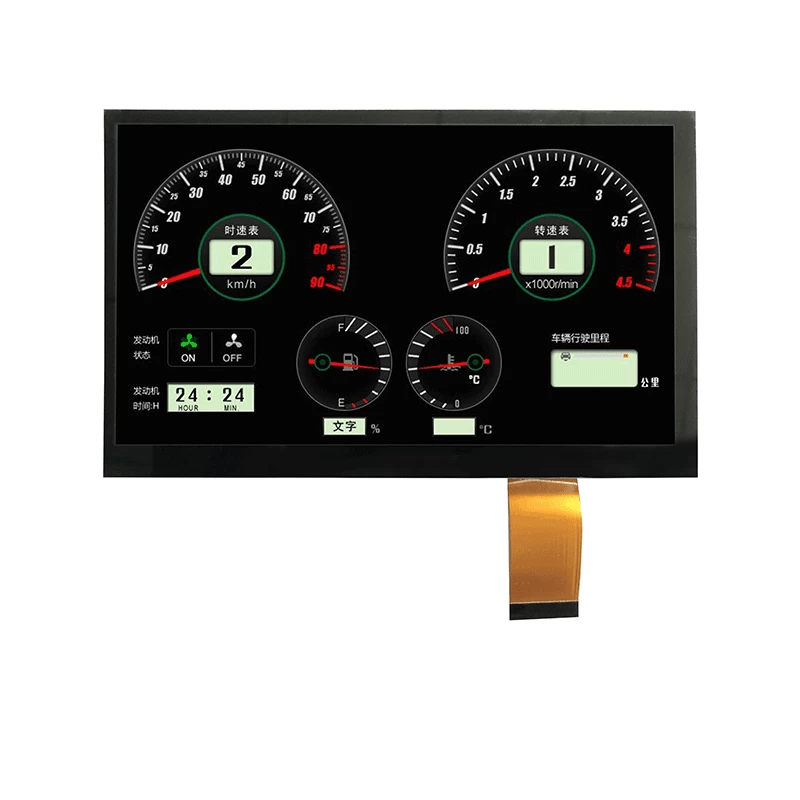

Description

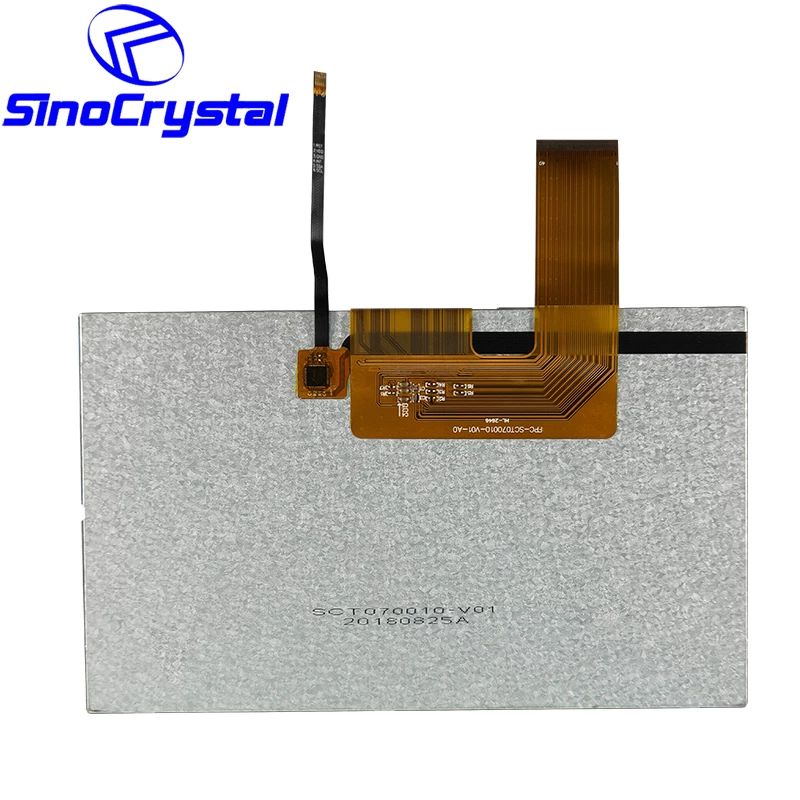

SCT070010-V01 is a 7 inch normal black TFT LCD display module which with 1024*600 dot graphic and power supply circuit, it is built in with
LVDS interface and this TFT-LCD has 7.0 inch
diagonally measured active display area with WSVGA resolution.
This display LCD can be
operating at temperatures from -20℃ to +70℃; its storage temperatures
range from -30℃ to +80℃, the standard display with CTP screen, and we can also provide this display with RTP or w/o touch screen solutions.
CTP Technical parameters:
1. Structure:.Cover GLASS+LOCA+ITO GLASS+FPC
IC model:GSL1691
Interface:I2C
2. Surface hardness: ≥6H
3.Transmittance: ≥85%
4.Operation voltage:2.8V~3.3V
5.Operation temperature:-20°C~+70°C
6.Storage temperature:-30°C~+80°C
7.ROHS must be complied
8.Unspecification tolerance are ±0.2mm

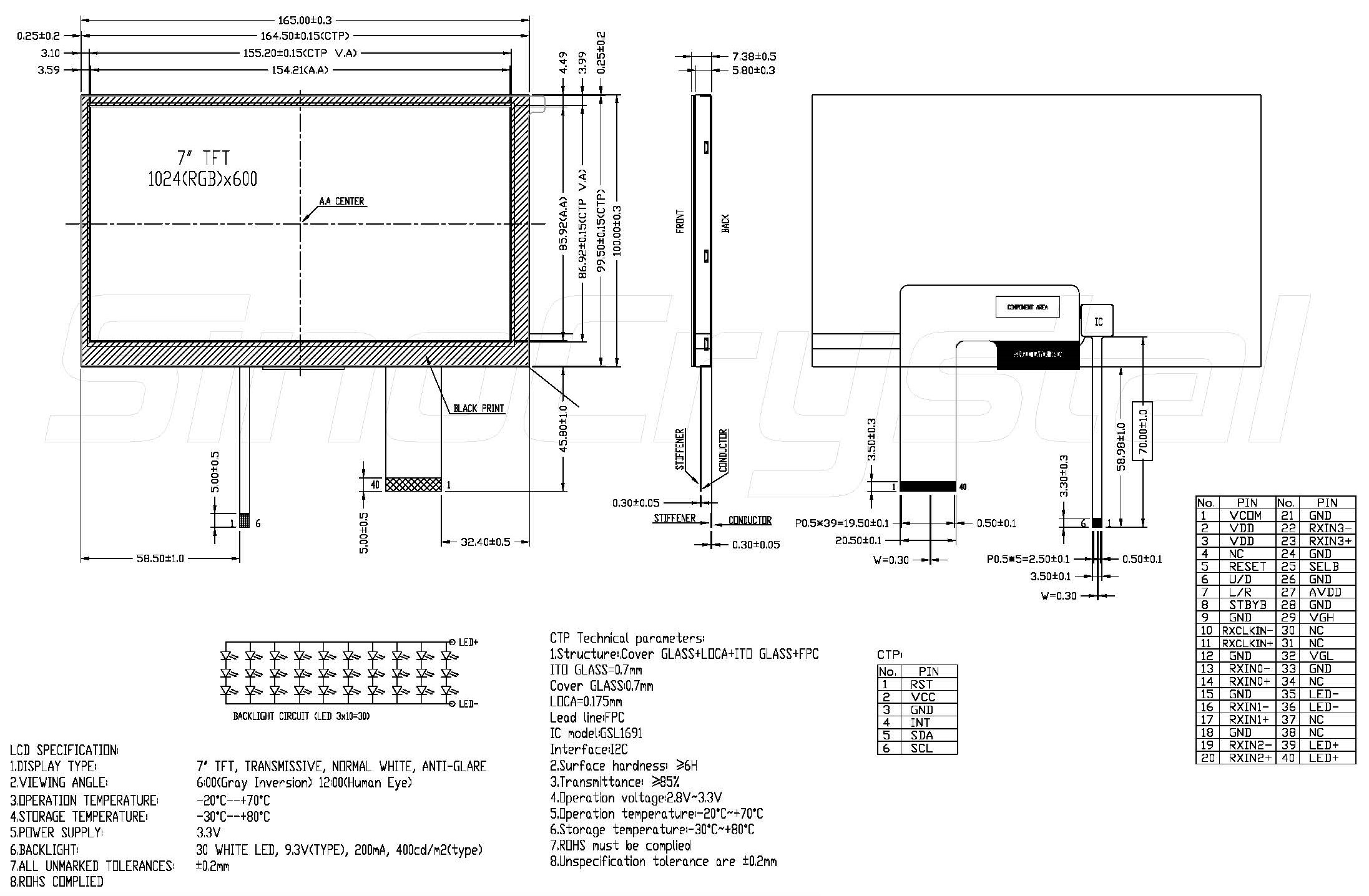

Drawing
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
1024 * RGB * 600
|
Dots
|
|
Module Size ( W×H×T )
|
165 * 100 * 7.38
|
mm.
|
|
CTP Size ( W×H ×T )
|
164.5 * 99.5 * 1.23
|
mm
|
|
Active Area ( W×H )
|
154.21 * 85.92
|
mm.
|
|
Pixel arrangement
|
RGB Stripe
|
mm.
|
|
Dot Pitch ( W×H )
|
0.1506 x 0.1432
|
mm.
|
|
Color depth
|
16M
|
colors
|
|
Interface
|
LVDS
|
-
|
|
Driving IC Package
|
COG
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
a-Si TFT
|
-
|
|
LCD Mode
|
TN/Normal BLACK
|
-
|
|
Backlight Type
|
LED x 30
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Description
|
|
1
|
VCOM
|
Common Voltage.
|
|
2
|
VDD
|
Power Supply
|
|
3
|
VDD
|
Power Supply
|
|
4
|
NC
|
No connection.
|
|
5
|
RESET
|
Global reset pin.
|
|
6
|
U/D
|
Vertical inversion.
|
|
7
|
L/R
|
Horizontal inversion.
|
|
8
|
STBYB
|
Standby mode, Normally pulled high. STBYB="1",
normal operation.
STBYB="0", timing controller, source driver will turn off, all output are High-Z.
|
|
9
|
GND
|
Ground.
|
|
10
|
RXCLKIN-
|
-LVDS differential clock input.
|
|
11
|
RXCLKIN+
|
+LVDS differential clock input.
|
|
12
|
GND
|
Ground.
|
|
13
|
RXIN0-
|
-LVDS differential data input.
|
|
14
|
RXIN0+
|
+LVDS differential data input.
|
|
|
GND
|
Ground.
|
|
16
|
RXIN1-
|
-LVDS differential data input.
|
|
17
|
RXIN1+
|
+LVDS differential data input.
|
|
18
|
GND
|
Ground.
|
|
19
|
RXIN2-
|
-LVDS differential data input.
|
|
20
|
RXIN2+
|
+LVDS differential data input.
|
|
21
|
GND
|
Ground.
|
|
22
|
RXIN3-
|
-LVDS differential data input.
|
|
23
|
RXIN3+
|
+LVDS differential data input.
|
|
24
|
GND
|
Ground.
|
|
25
|
SELB
|
6bit/8bit mode select.
|
|
26
|
GND
|
Ground.
|
|
27
|
AVDD
|
Power for Analog Circuit.
|
|
28
|
GND
|
Ground.
|
|
29
|
VGH
|
Gate ON Voltage.
|
|
30
|
NC
|
No connection.
|
|
31
|
NC
|
No connection.
|
|
32
|
VGL
|
Gate OFF Voltage.
|
|
33
|
GND
|
Ground.
|
|
34
|
NC
|
No connection.
|
|
35
|
LED-
|
LED Cathode.
|
|
36
|
LED-
|
LED Cathode.
|
|
37
|
NC
|
No connection.
|
|
38
|
NC
|
No connection.
|
|
39
|
LED+
|
LED Anode.
|
|
40
|
LED+
|
LED Anode.
|
Touch Interface PIN
|
|
Pin No
|
Pin Symbol
|
Description
|
|
1
|
RST
|
CTP-reset
|
|
2
|
VCC
|
CTP-power supply
|
|
3
|
GND
|
CTP-ground
|
|
4
|
INT
|
CTP-interrupt
|
|
5
|
SDA
|
CTP-data
|
|
6
|
SCL
|
CTP-clock
|
