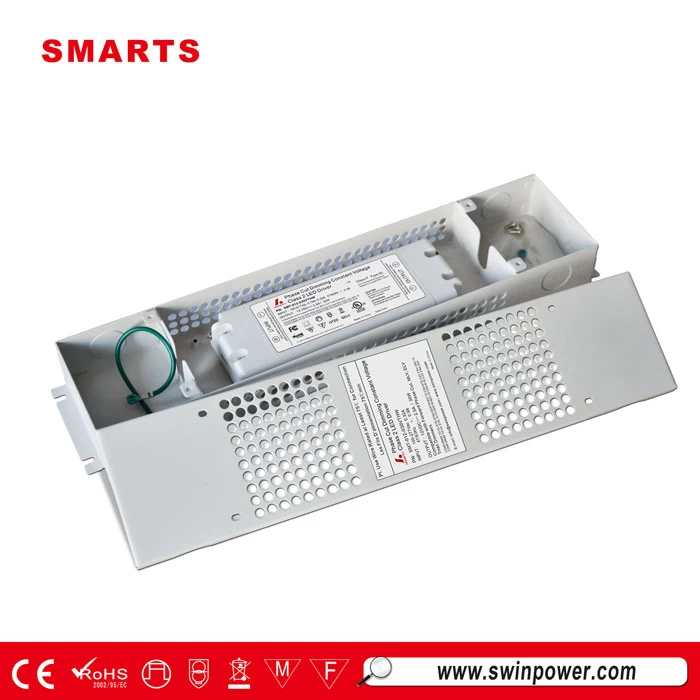

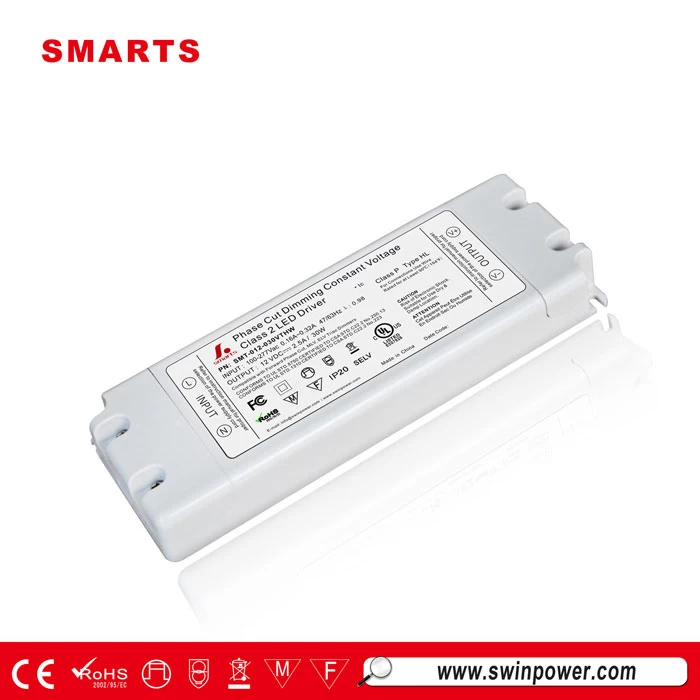

7 years warranty power supply 12v 24v 30w triac dimmable led transformer with UL list
|
Triac dimmable 12v 24V 30w LED strip transformer is UL,CE,ROHS listed for use in North American countries and covered by 7 years warranty. This dimming LED transformer is can use for outdoor with high PF, Efficiency,and 0-100% dimming.
The applications of triac dimmable led transformer 12v 24v are widely used,such as mr16 lighting,bulb lighting,floor lamp...
|
|
Specification
|
model
|
SMT-012-030VTHW
|
SMT-024-030VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.50A
|
1.250A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.98@277VAC
|
0.98@120VAC 0.98@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>81%
|
|
AC Current（Typ.）
|
0.53A/110VAC
|
|
Inrush Current （Typ.）
|
7.1A, 50%, 425us
|
|
Leakage current
|
<0.50mA
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.95KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
About 0.25Kg
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
40PCS/CTN
（L*W*H）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

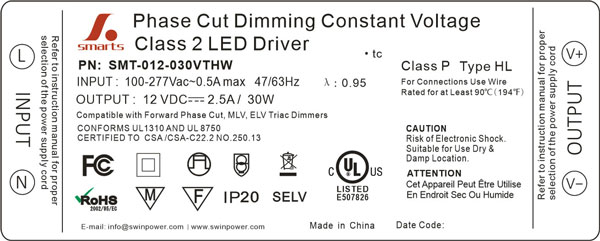

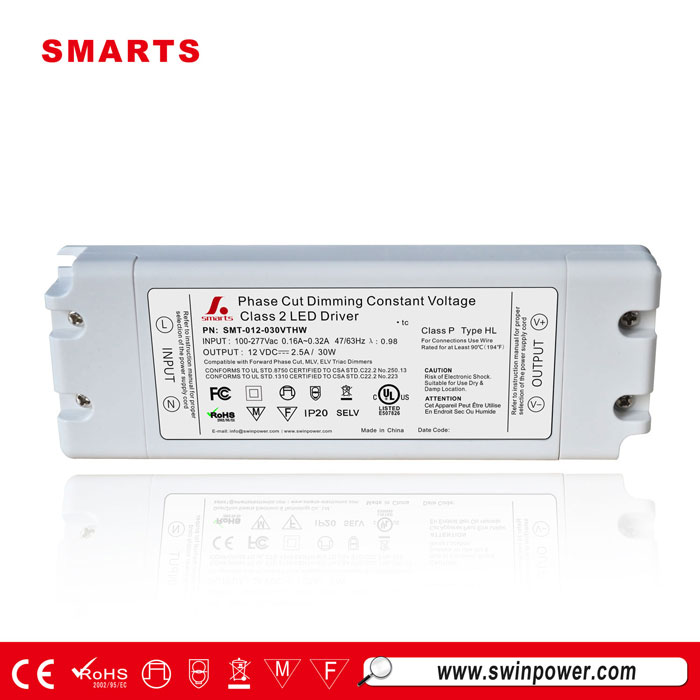

Label
|
|
Problem analysis
1.Question: What is the wire gauge that fits into the UL Triac Dimmable LED Driver?
Answer: 14-26 AWG
2. Question:Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer: Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
3.Question: If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .
Answer: ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.

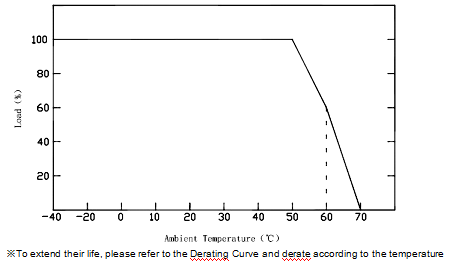

Derating Curve

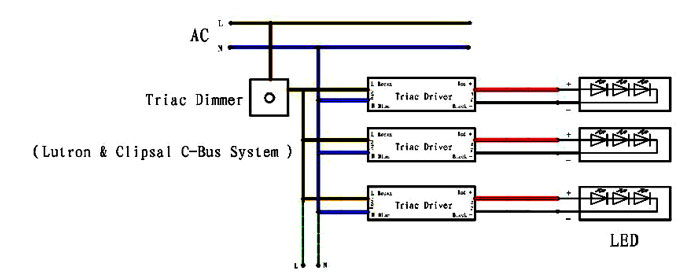

Connecting Diagram

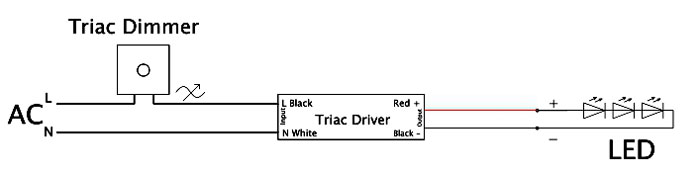

Simple Connection Diagram
