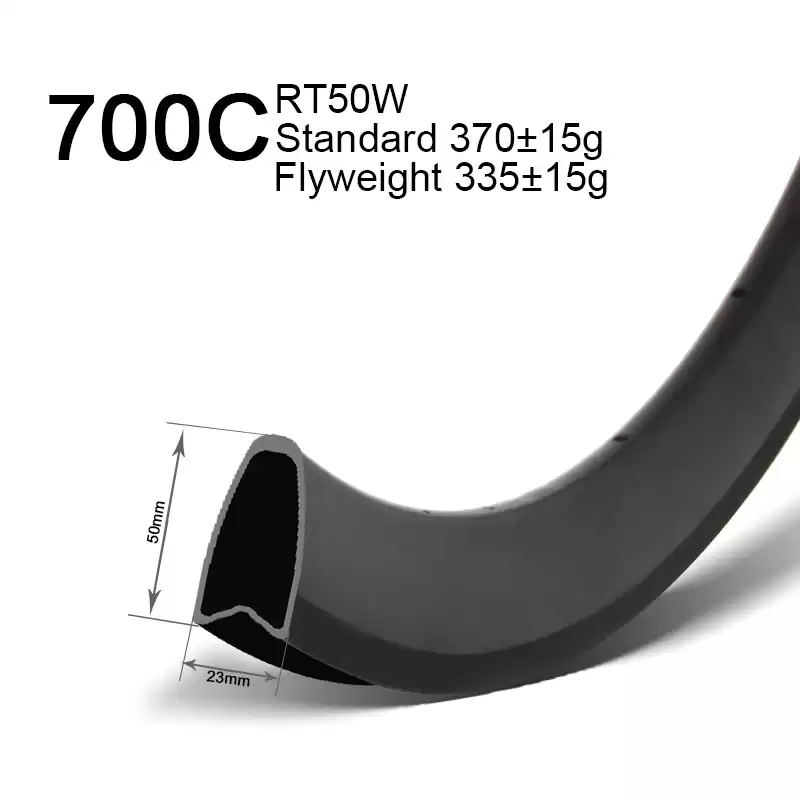

700C 23mm Width 50mm Depth Road Bike Carbon Tubular Rims

700C 23mm wide 50mm deep carbon tubular rims are constructed from Toray T700.The max rider weight of 700c road rims is 100kg.



700C 23mm Width 50mm Depth Road Bike Carbon Tubular Rims


Product Feature

  • Super lightweight,700c 23mm wide 50mm deep carbon tubular rims are constructed from Toray T700 that structure minimize the rotational weight.
  • The max rider weight of 700c road rims is 100kg.
  • 700c tubular rims have flyweight version,weigh 335±15g.
  • 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
  • UCI test.We have professional testing equipment.All our carbon rims and wheels can pass uci test.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.


Specification

Item NO.:
RT50W

Braking  System:

Rim Brake/Disc Brake
Applicable Bicycle:
Road Bicycles
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700 and T800)
Spoke Hole:
16H-36H
Outer width:
25mm
Depth:
50mm
ERD:
543mm
Type:
Tubular
Weight:

Standard:370±15g  Flyweight:335±15g

Standard:
En Standard
Assembly Hole Dia:
8.5mm
Spoke Hole Dia:
4.5mm
Valve Hole Dia:
6.5mm
Roundess:
<0.25mm
Flatness:
<0.15mm
Max Spoke Tension:
>350kgf
Weight limit
<100kg

Teleport to the wheel page.

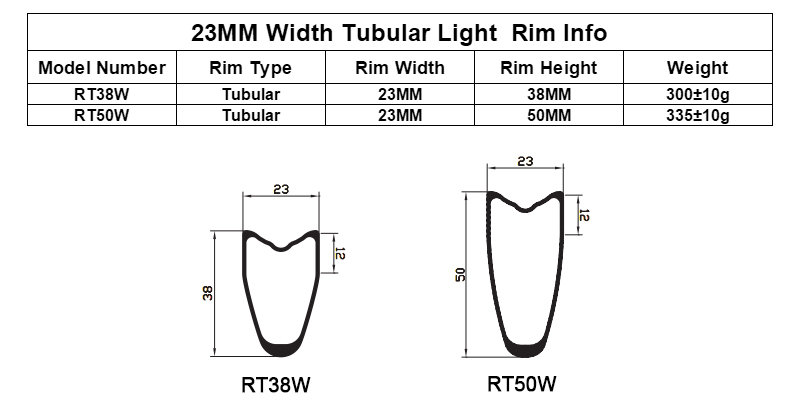

Geometry

23mm tubular rims

Our 23mm Width Tubular Carbon Road Rims Info

carbon tubular rims 700c


Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
