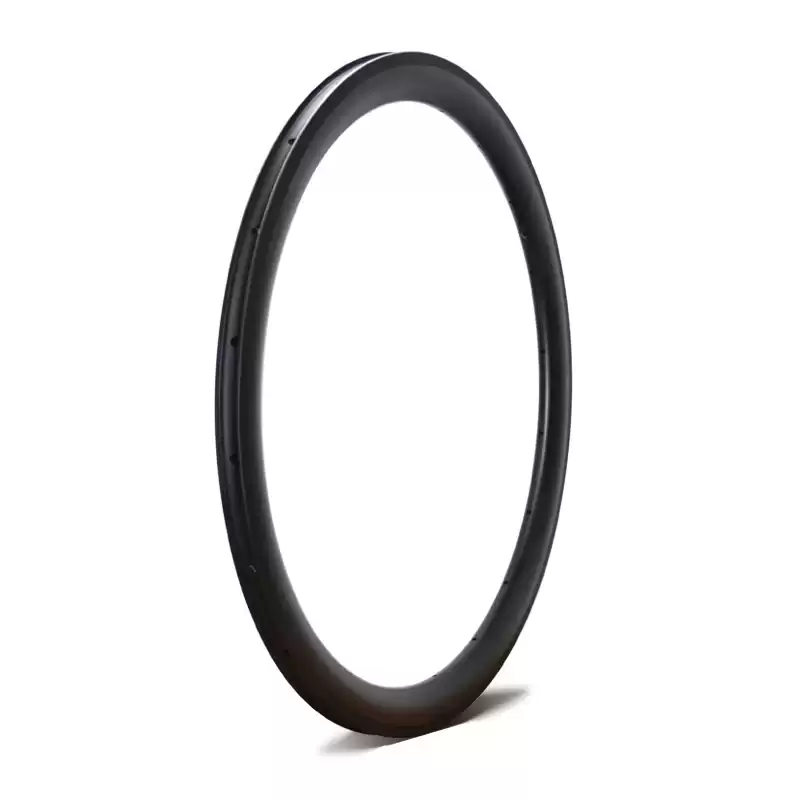

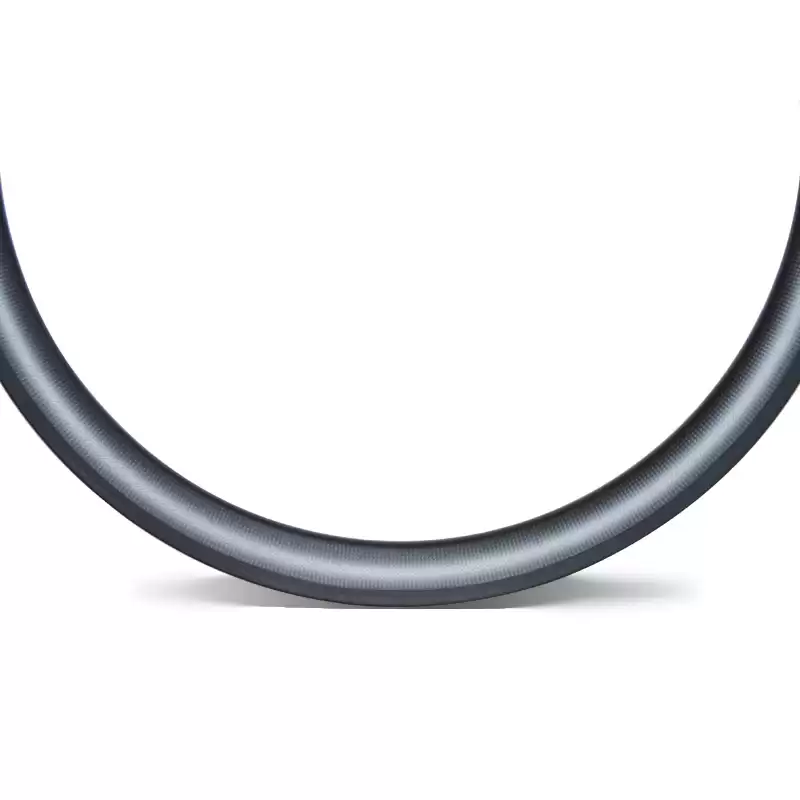

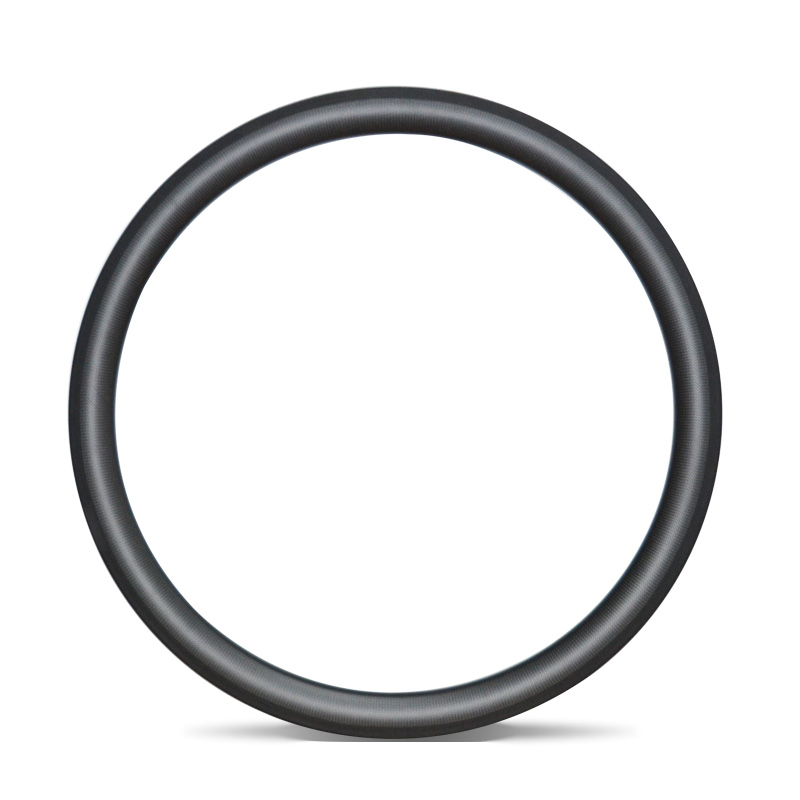

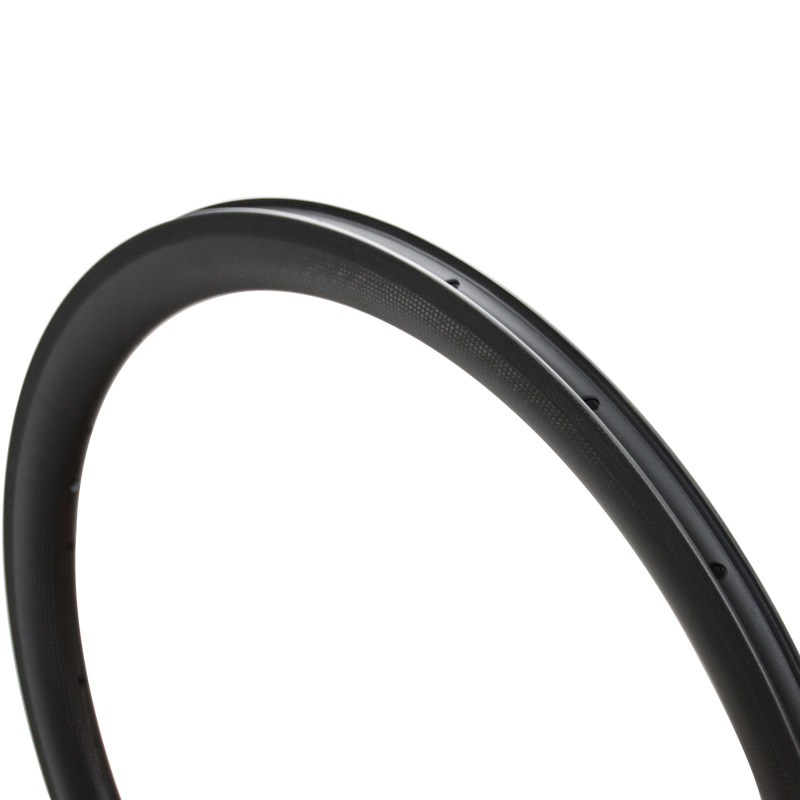

700C 25mm Width 45mm Depth Carbon Tubelss Rims

25mm wide 45mm deep 700c road bike rims are constructed from Toray T700&T800.The max rider weight of tubeless rims 700c is 125kg.



700C 25mm Width 45mm Depth Carbon Tubelss Rims


Product Feature

  • Super lightweight,25mm wide 45mm deep 700c carbon tubeless rims are constructed from Toray T700&T800 that structure minimize rotational weight.
  • 700c road bike rims have flyweight version and weigh 415±15g.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing, also to ensure an easy mounting and a safe tire seat on the rim.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Specification

Item NO.:
RX45S
Braking  System:
Rim Brake/Disc Brake
Applicable Bicycle
Road Bicycles
Appearance
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700 and T800)
Spoke Hole:
16H-36H
Outer width:
25mm
Depth:
45mm
ERD:
553mm
Type:
Tubeless
Weight:

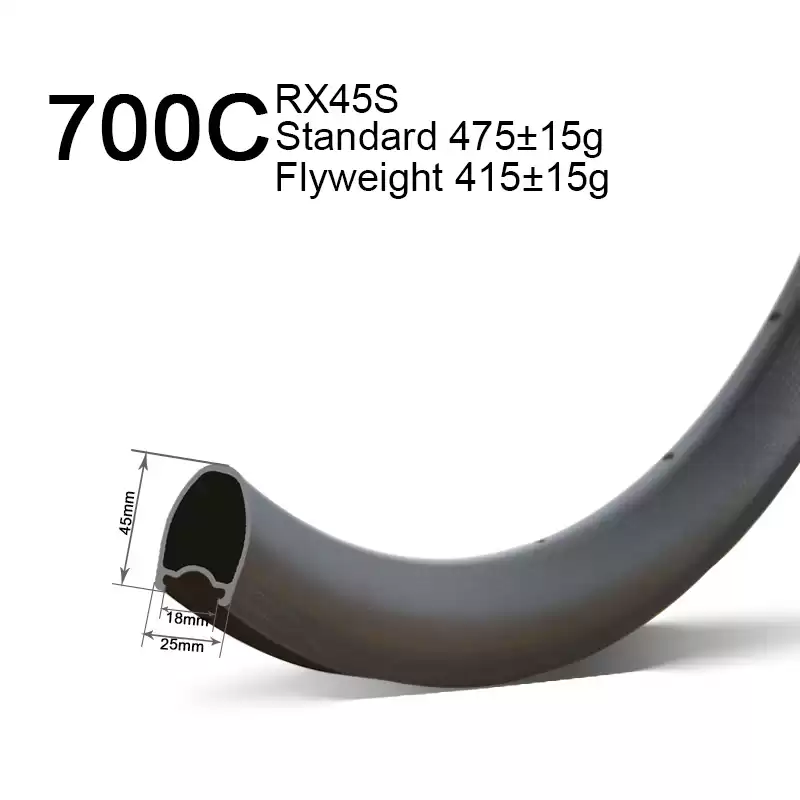

Standard:475±15g  Flyweight:415±15g
Standard:
En Standard
Assembly Hole Dia:
8.5mm
Spoke Hole Dia:
4.5mm
Valve Hole Dia:
6.5mm
Roundess:
<0.25mm
Flatness:
<0.15mm
Max Spoke Tension:
>350kgf

Weight limit:

<125kg

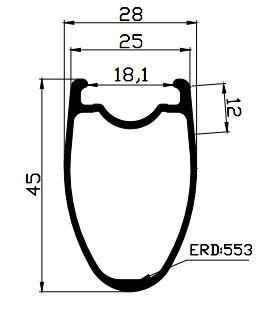

Geometry

700c 45mm deep carbon tubeless rims


Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory



Product Tags carbon tubeless rims          700c road bike rims          700c rims for sale          bicycle rims 700c          tubeless rims 700c          aero rims 700c          25mm wide rims          wide road bike rims          road bike rims for sale
