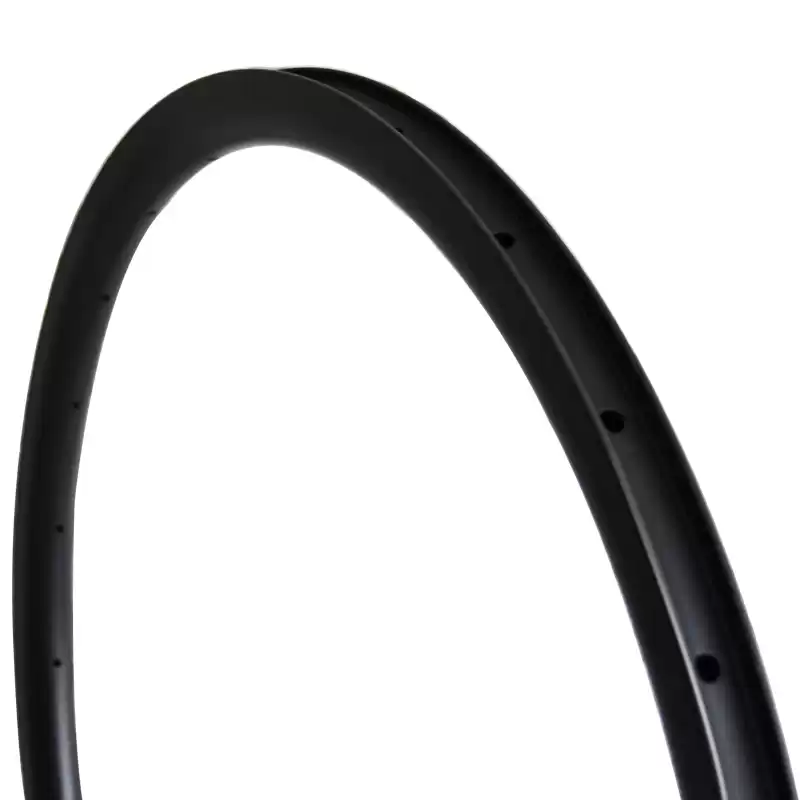

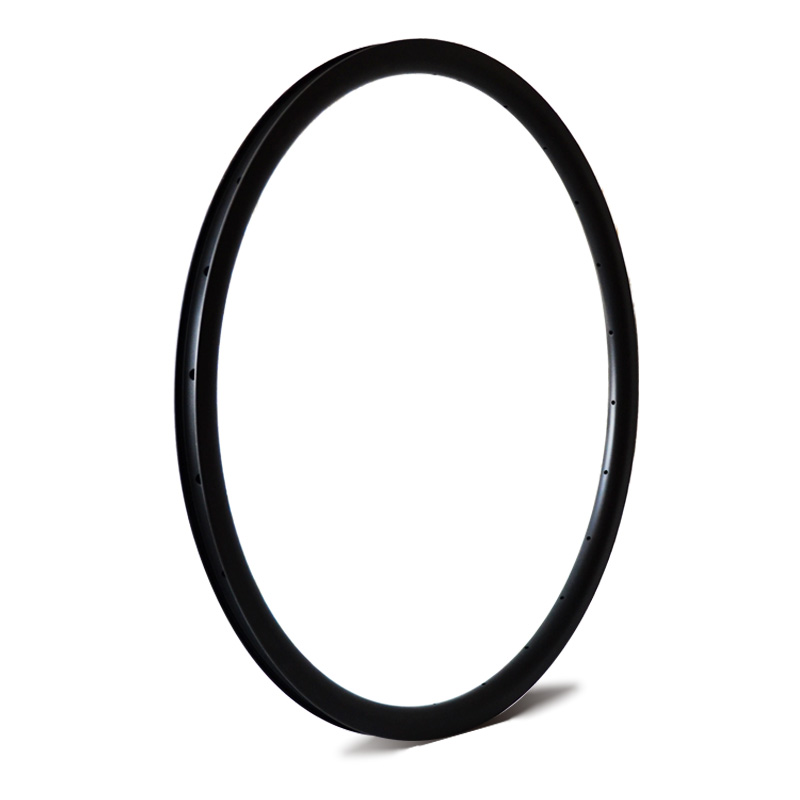

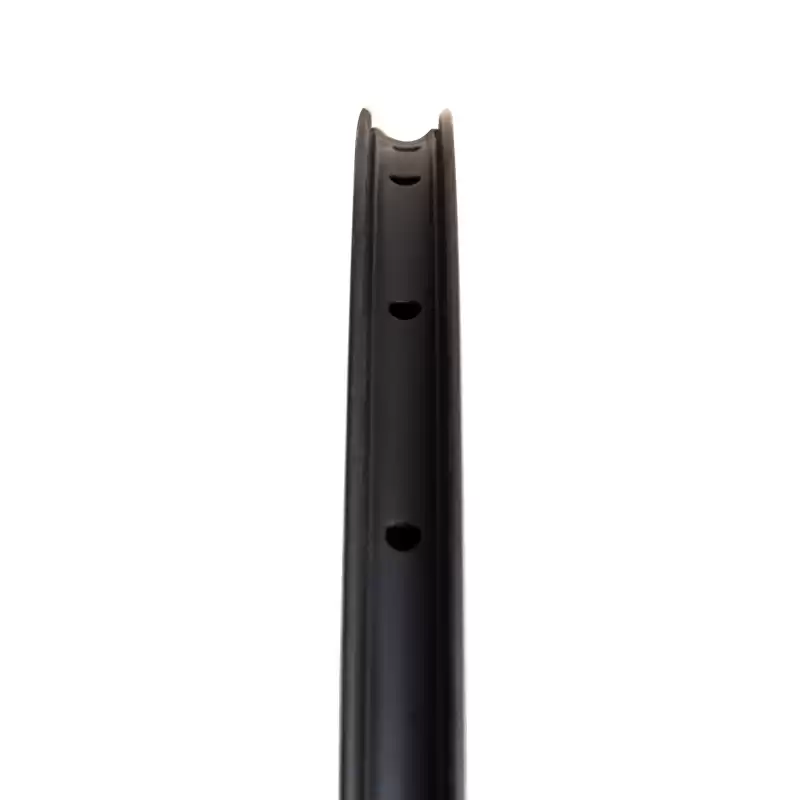

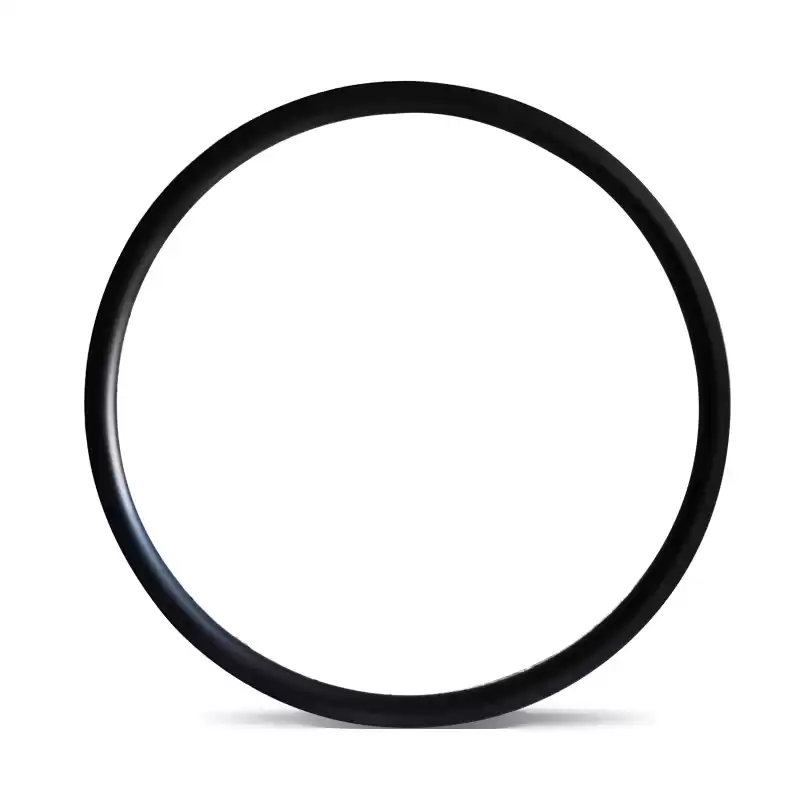

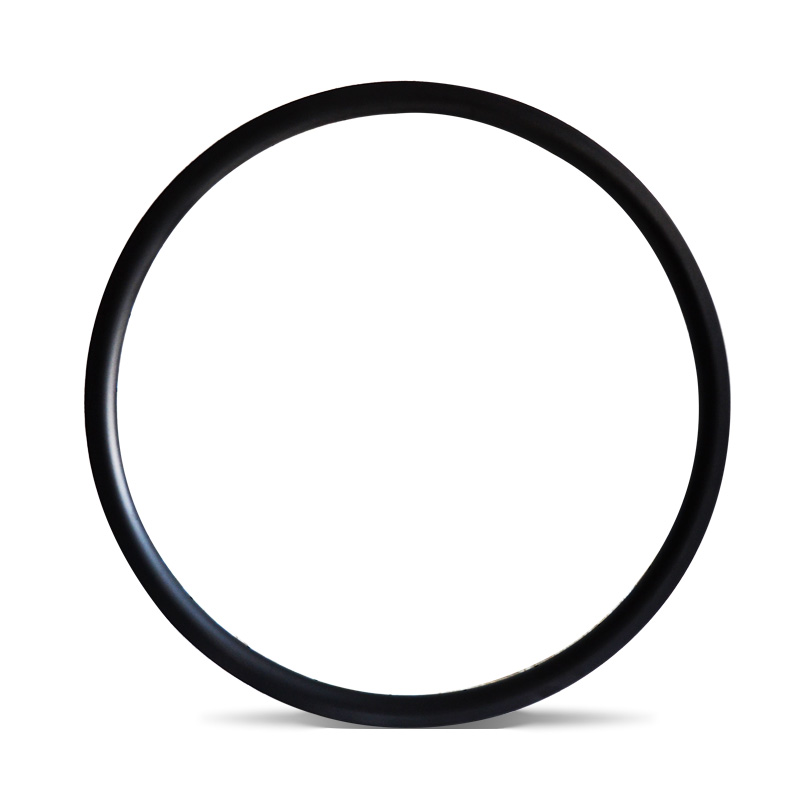

700C 28mm Width 35mm Depth Carbon Tubeless Rims

700c 28mm wide 35mm deep carbon tubeless rims are constructed from Toray T700&T800.The max rider weight of 700c tubeless rims is 110kg.



700C 28mm Width 35mm Depth Carbon Tubeless Rims


Product Feature

  • Super lightweight,28mm wide 35mm deep carbon tubeless rims 700c are constructed from Toray T700&T800 that structure minimize rotational weight.
  • 28mm rims have flyweight version and weigh 390±15g.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing, also to ensure an easy mounting and a safe tire seat on the rim.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Specification

Item NO.:
RX35L
Braking  System:
Rim Brake/Disc Brake
Applicable Bicycle:
Road Bicycles
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700 and T800)
Spoke Hole:
16H-36H
Outer width:
28mm
Depth:
35mm
ERD:
573mm
Type:
Tubeless
Weight:
Standard:455±15g  Flyweight:390±15g
Standard:
En Standard
Assembly Hole Dia:
8.5mm
Spoke Hole Dia:
4.5mm
Valve Hole Dia:
6.5mm
Roundess:
<0.25mm
Flatness:
<0.15mm
Max Spoke Tension:
>350kgf

Weight limit:

<110kg

Teleport to the wheel page.

Geometry

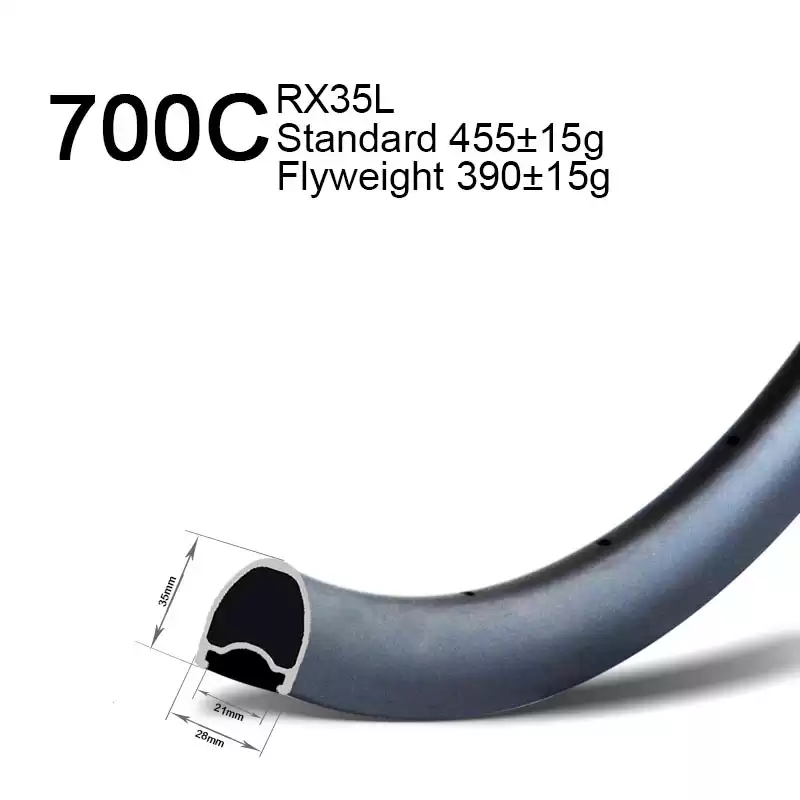

700c 28mm wide 35mm deep carbon tubeless rims



Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
