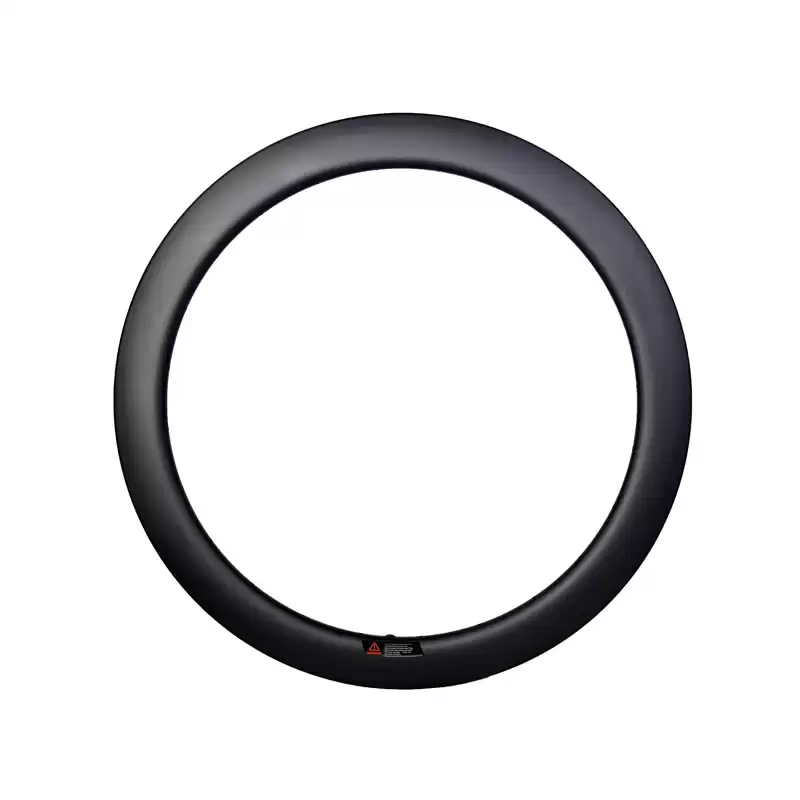

700C 50mm Deep road bicycle Clincher tubeless carbon rims




Type:50mm Deep clincher tubeless carbon rims

Material:Tory T700/T800 Full carbon fiber

Appearance:3K/UD or customized

New Style 50mm Deep tubeless Clincher Rims

25mm Wide U shape design

High quality bicycle rims manufacturer






Product Model:700C 50mm Deep Clincher tubeless bicycle rims

50mm Deep Clincher rims Wide U shape design,it makes road tubeless rims lightweight but sitll stiff,keeping them stable in cross winds condition.better for aerodynamics and stiffness.

Tubeless ready design,easy for tire mount.it makes road clincher rims better sealing.Faster braking heat

elimination.

wider Road bicycle rim has pretty stiff,durable and aerodynamic enough for road racing,training ,climbing and also cyclocross riding.

250°C high TG resin system,can tolerate max 250°C high temperature from braking.

Best quality carbon wheels manufacturer,strong technical force ,good service and fast delivery.


50mm tubeless carbon rim
700C Clincher rim
clincher tubeless rim

Features:

1.Wider U shape design offers improved aerodynamics.it is better handing in crosswinds conditions and faster in fiding.

2.Our carbon wheels use premium Toray T700 & T800 carbon fiber,it has Super lightweight, best strength to weight ratio with no expense spared.

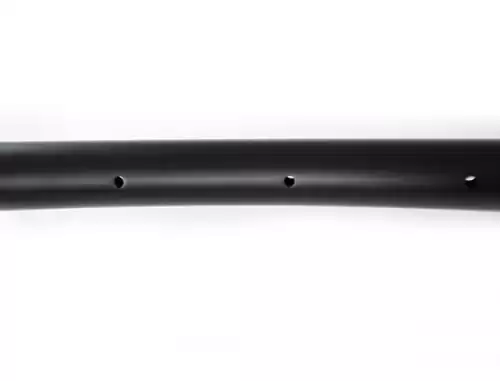

3.The rims design angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples

4.Our new style with tubeless ready design, it makes road clincher rims better sealing,better for raing,climbing and cyclocross riding.

5.We can product different patterns of brake surface optional (customs patterns can also be made).

6.High quality carbon wheels manufacturer,reasonable prices,specially designed,good service and fast delivery.

7.5 years warranty


Specification:

Model

TR50C-23

TR50C-25

TR50C-27

Size

700C

700C

700C

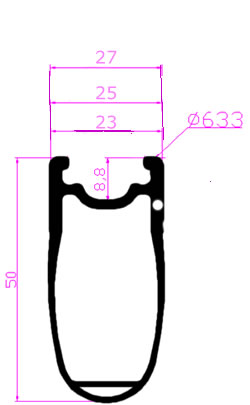

Sectional Drawing

23mm wide clincher rim

700C tubeless clincher wheel

basalt braking carbon rim

Material

Toray T700 & T800

Toray T700 & T800

Toray T700 & T800

Depth

50mm

50mm

50mm

Wide

23mm

25mm

27mm

Weight

500+/-15g

510+/-15g

520+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

18-36#Customized

ERD

540mm

540mm

540mm

Assembly Hole Dia.

7.6mm

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

<0.5mm

Max Spoke Tension

>300kg

>300kg

>300kg

Ultimate Strength

>300kg

>300kg

>300kg

Torsion Strength

>50kg

>50kg

>50kg

Tire Size Recommended

700*23-25c

700*25-28c

700*25-28c

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar

125psi/8.6bar


Factory production manufacture

high TG Carbon rim Factory


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3.Improper installation,maintenance or other conduct by an unauthorized technician.
