700C Aero Road Bike Caliper Brake Carbon Fiber Fork F02 with 25C Tire

- 700C Road Bike Carbon Fork
- Caliper Brake
- internal cable routing
- Toho carbon fiber



ADVANTAGES:

1, Material: Toho carbon fiber.

2, EPS foam molding process, inner smoothly, better strength.

3, Customized painting / Decals is acceptable.

4, Strict develop test and mass production test. (exceed 30% of ISO4210)


PRODUCTS DESCRIPTION:

700C road bike disc brake carbon fiber fork F01-D, Light weight carbon fiber fork for road bike,

With the strict test standards, will provide you a wonderful riding experience.

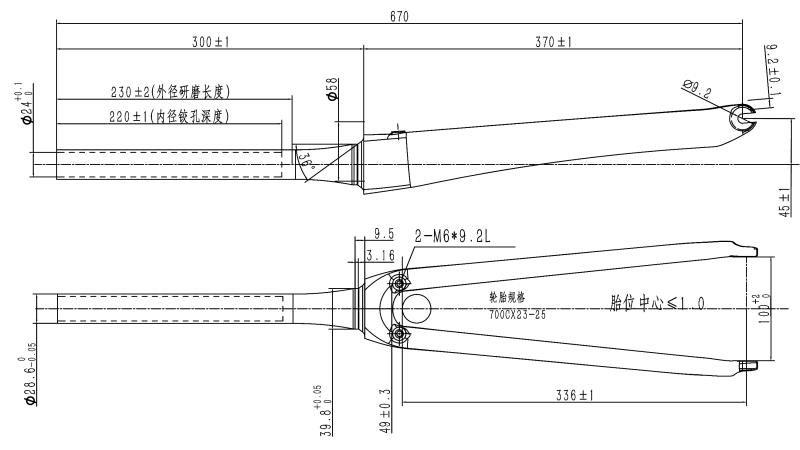

PRODUCT DETAIL:

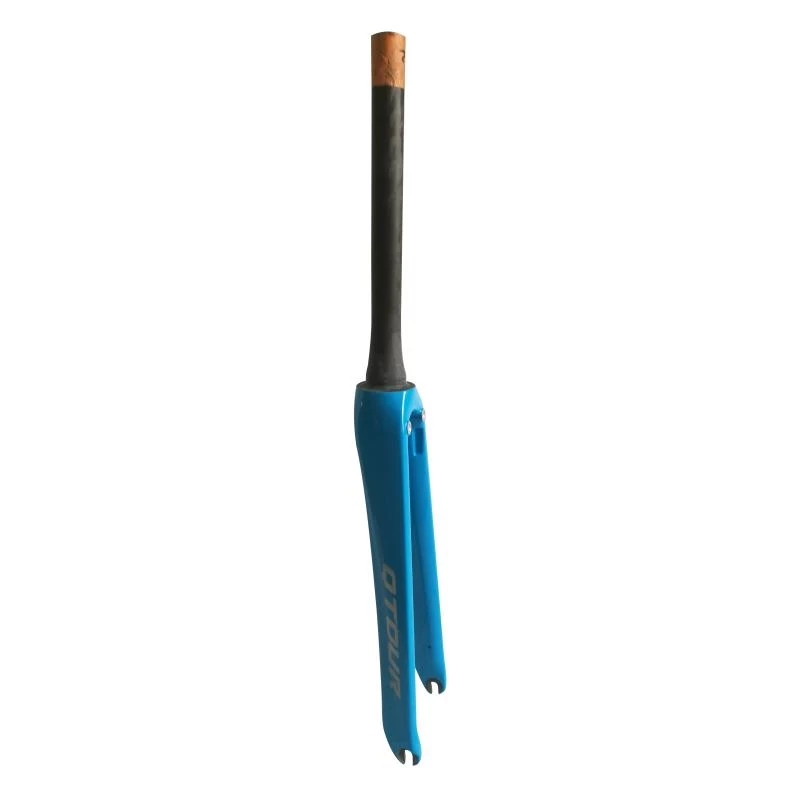

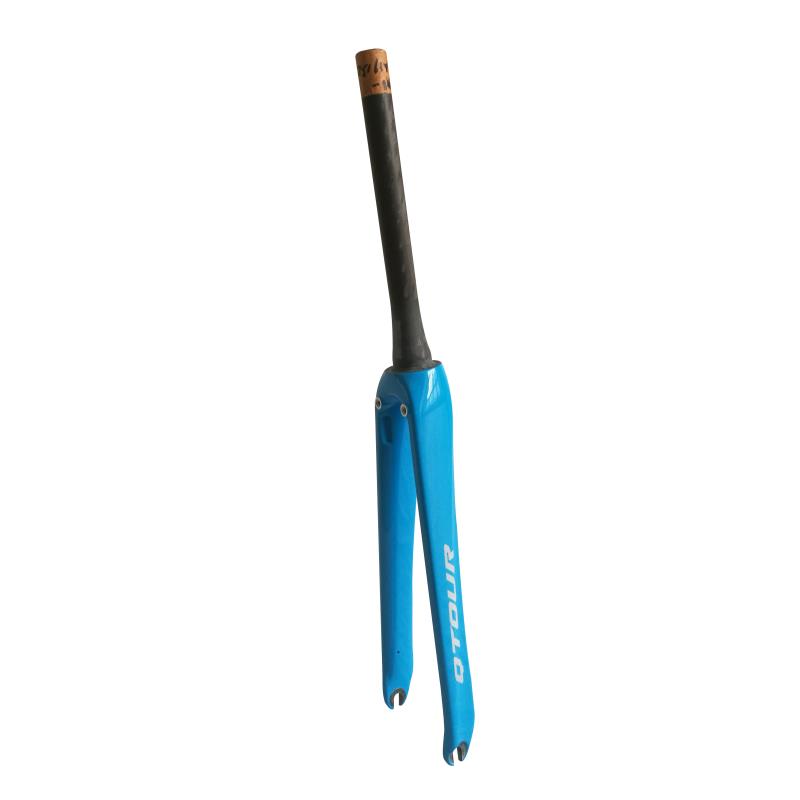

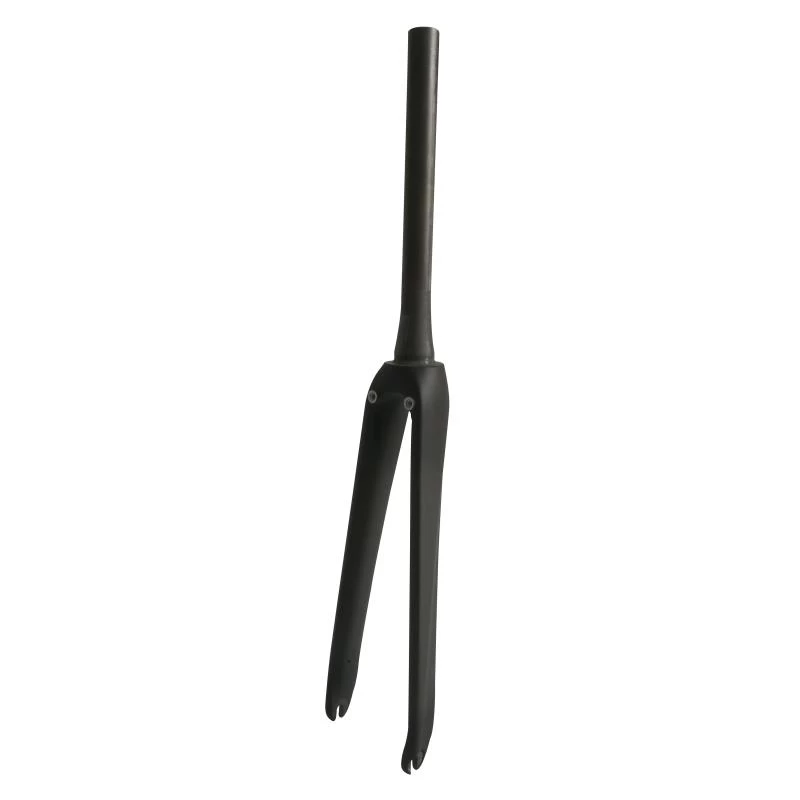

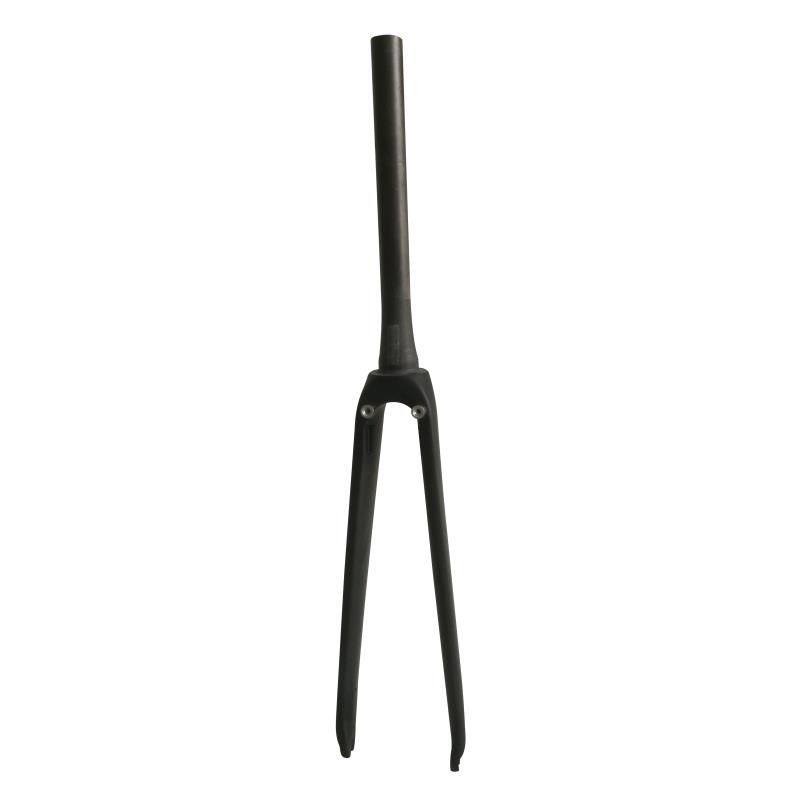

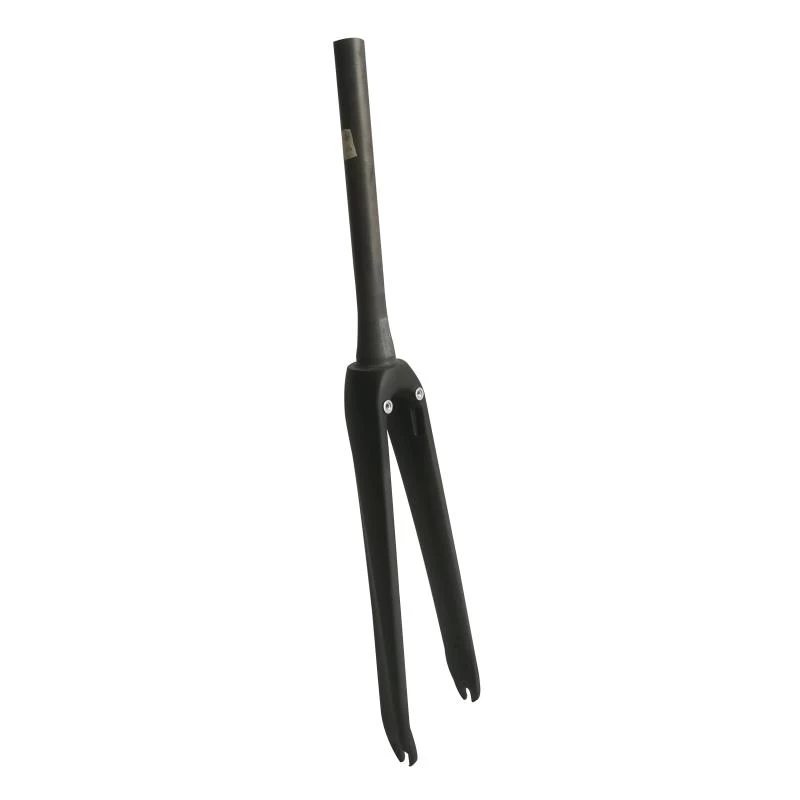

Fork: QTOUR 700C carbon fiber fork F02

Brake: Caliper Brake;                         Steer: 1-1/8'', 1-1/2''

Blade Length: 370mm;                      Crown Race: φ58mm

Offset: 45mm;                                  Dropout: Carbon dropout

O.L.D: 100mm*φ9mm(QR)                 Weight: 422g±20g;

Finish: UD / Color


700C road bike disc brake carbon fiber fork test

OUR FACTORY:

1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.

    Our plant covers 8.5 acres, 42,000mworkshop, 450m2 testing room.

2, We have over 10 years production experience in carbon fibre products.

3, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,

    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.

4, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.

5, Small order and sample order are accepted, OEM & ODM avilable too.

All our test standard was comply with ISO4210 test standard, in order to make our products more stiff and strong we have raised up 30% for strict test.
