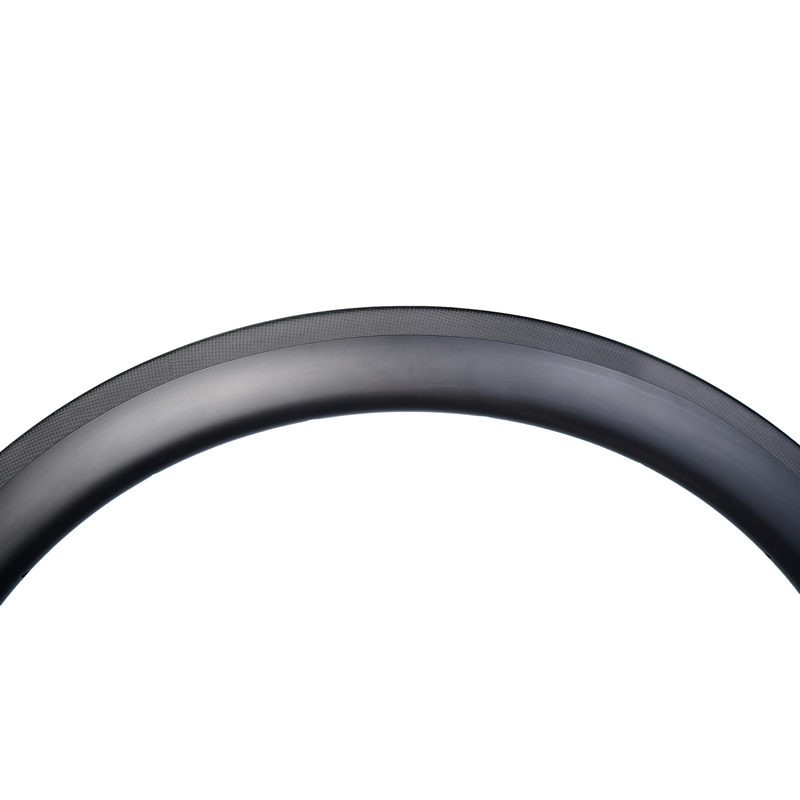

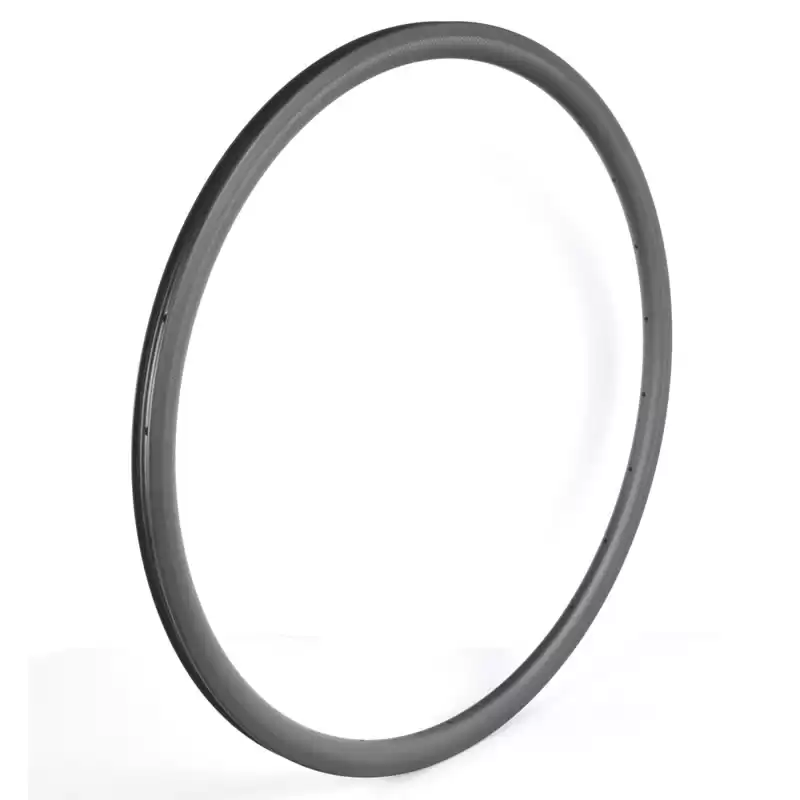

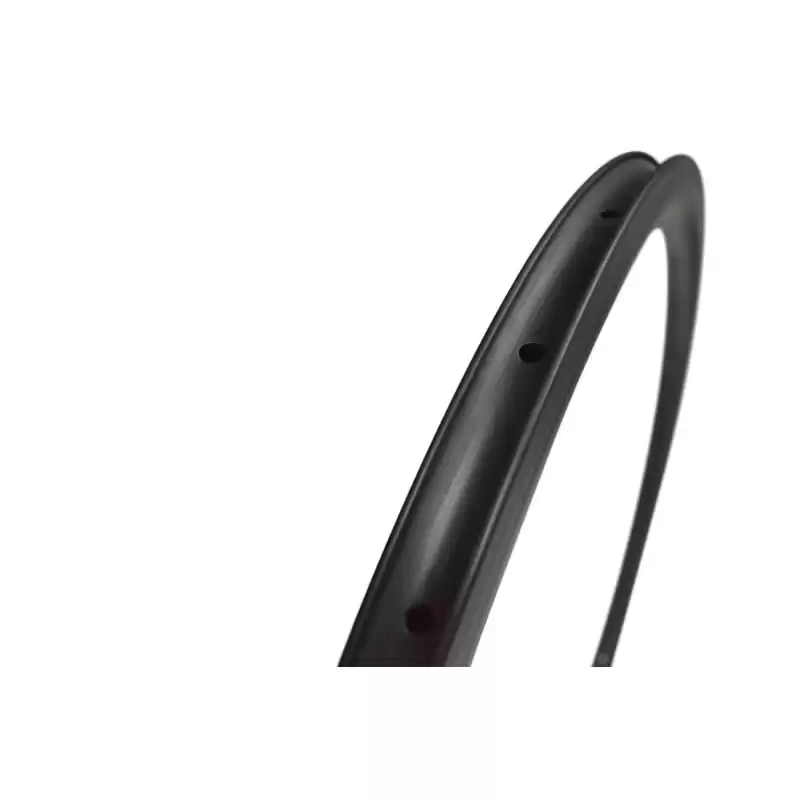

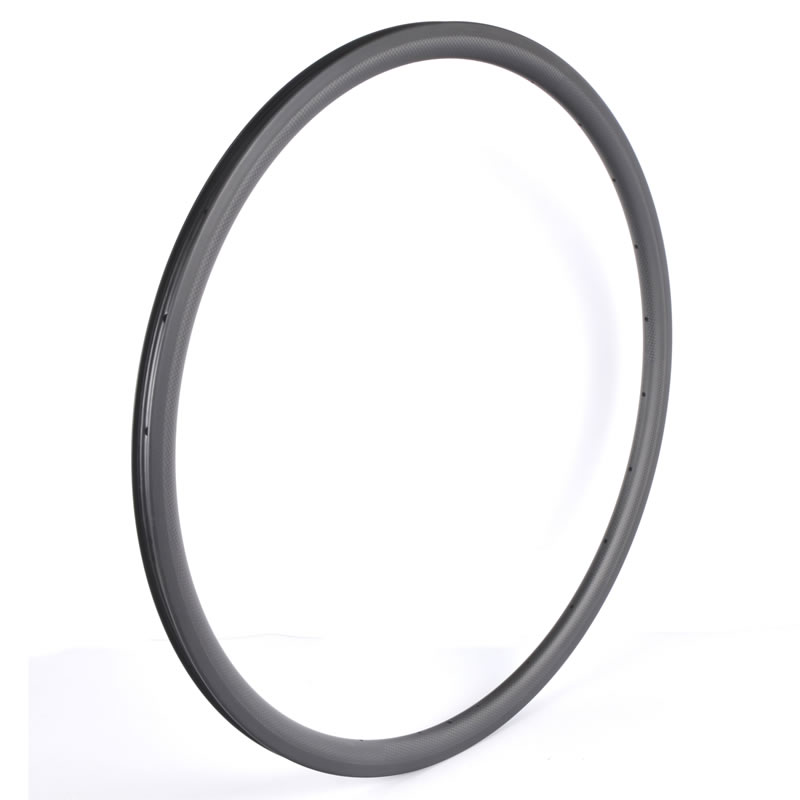

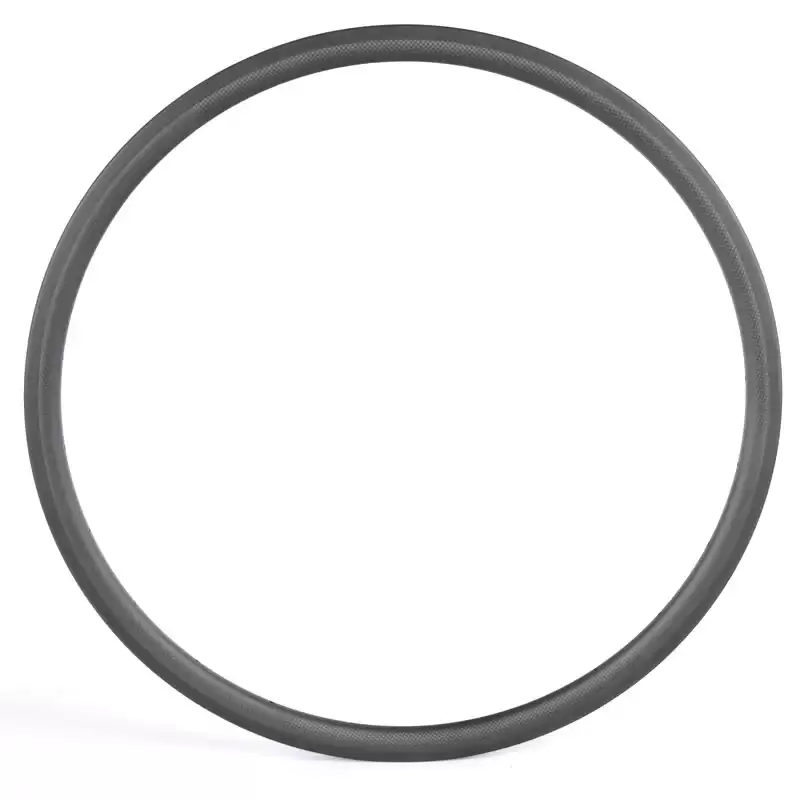

700c Clincher 30mm Deep carbon rims

Type:30/35mm Deep clincher rim

Appearance:3K/UD/12K or customized
Track raod bike carbon wheels

250°C high TG braking temperature

700C new design Carbon Clincher Rims

U shape 25mm wide design

High quality bicycle rims manufacturer



Product Model:35mm Deep 700C Clincher carbon rims

35mm Deep clincher carbon rims U shape Lightweight road bike rims offers improved aerodynamics.better handing in crosswinds condition and faster riding.comfot for climbing and flat bike.

30mm clincher rims with250°C high TG resin system.better for braking sysytem.UD Appearance to be more resistant to high temperature.

25mm wide carbon wheels made of Toray T700 and T800 carbon fiber.better for the stiffness and strength.Different patterns of brake surface optional. comfort for track road bike wheels.

High quality tubeless carbon clincher rims with the wholesale price.

35mm Deep carbon rim
Deep 30mm clincher rim
25mm Wide clincher rim


Features:

1.Use 250°C high TG resin system,can tolerate max 250°C high temperature from braking.

2.High quality wheels,Super lightweight rims product with Full Toray T700 & T800 carbon fiber.
3.U shape wider rim design offers improved aerodynamics.better handing in crosswinds condition and faster riding.

4.We offer decal and painting service for OEM your brands.

5.We can customized Different patterns of brake surface .

6.High quality carbon wheels with reasonable prices, good service and fast delivery.

7.5 years warranty


Specification:

Model

R30C-25

R35C-23

R35C-25

Size

700C

700C

700C

Sectional Drawing

30mm Deep clincher rim

Deep 35mm tubeless rim

Wide 25mm tubeless wheel

Material

Toray T700 & T800

Toray T700 & T800

Toray T700 & T800

Depth

30mm

35mm

35mm

Wide

25mm

23mm

25mm

Weight

420+/-15g

440+/-15g

430+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

18-36#Customized

ERD

580mm

570mm

570mm

Assembly Hole Dia.

7.6mm

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

<0.5mm

Max Spoke Tension

>280kg

>280kg

>280kg

Ultimate Strength

>200kg

>200kg

>200kg

Torsion Strength

>50kg

>50kg

>50kg

Tire Size Recommended

700*25-28c

700*21-25c

700*25-28c

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar

125psi/8.6bar


Factory production manufacture

customication carbon wheel


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
