Patented HTG Road Bike Carbon Rims
Key Features
Patented resin formula with less than 0.5% braking failure
Patented layup schedule to allow as high as 180psi tire pressure
Easy tire mount&tubeless ready design
Aerodynamic profile design
Professional high end carbon rims
|
Extraordinary Brake Surface
Sold 5000PCS no braking failure.
Resist MAX. Heating Temp. 378°C
htg High Tech Resin Formular
Long Life Carbon Clincher Rims
2 Years Warranty
3-5 Years life riding time
Stiffer Stronger Faster Lighter
|
ROAD RIM BRAKE CARBON RIMS
|
700C HTG RIM BRAKE CLINCHER FOR AERO&PERFORMANCE ROAD BIKES
|
|
Modle
|
HTG33C-TLR
|
HTG-38C-TLR
|
HTG-44C-TLR
|
HTG-50C-TLR
|
HTG-55C-TLR
|
HTG-65C-TLR
|
|
Rim
|
|
|
|
|
|
|
|
Weight
|
480+/-15g
|
485+/-15g
|
520+/-15g
|
545+/-15g
|
555+/-15g
|
590+/-15g
|
Carbon Fiber
|
UD/3K
|
UD/3K
|
UD/3K
|
UD/3K
|
UD/3K
|
UD/3K
|
Prepreg
|
T700 W/T HTG Resin
|
T700 W/T HTG Resin
|
T700 W/T HTG Resin
|
T700 W/T HTG Resin
|
T700 W/T HTG Resin
|
T700 W/T HTG Resin
|
|
Max. Rider Weight
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
Rec. Tire Size
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
|
Rim Chart
|
|
|
|
|
|
|
|
Tire Bead
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Profile
|
33mm
|
38mm
|
44mm
|
50mm
|
55mm
|
65mm
|
OD
|
632mm
|
632mm
|
632mm
|
632mm
|
632mm
|
632mm
|
|
Dimension
|
621*19mm
|
621*19mm
|
621*19mm
|
621*19mm
|
621*19mm
|
621*19mm
|
|
ERD
|
580mm
|
570mm
|
558mm
|
546mm
|
536mm
|
516mm
|
|
Terrain
|
Climbing/Flat
|
Climbing/Flat
|
Climbing/Flat
|
Flat
|
Flat
|
Flat
|
Advantage
|

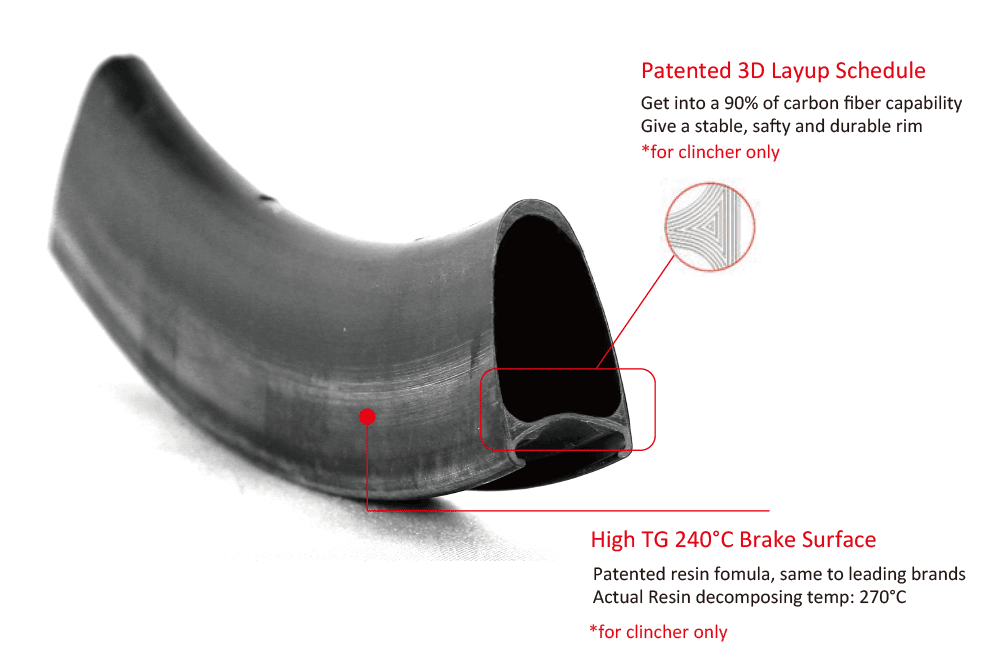

■ Patent HTG epoxy resin with less than 0.1% braking failure ■ Diamond polish treatment brake surface for a best braking performance
■ Tubeless ready design ■ Extra inner width for bigger tires ■ Internal&external nipple systems available
|
We can ship these rims from Germany to EU countries with free taxes and free shipping service, pls contact us for more details.
