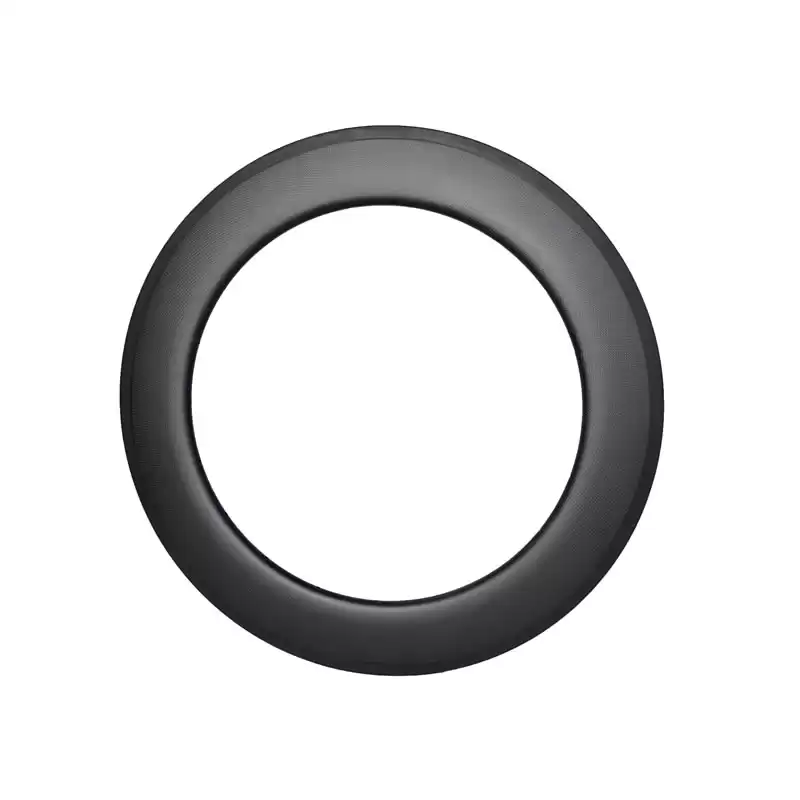

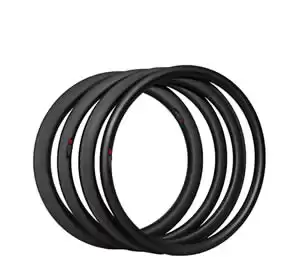

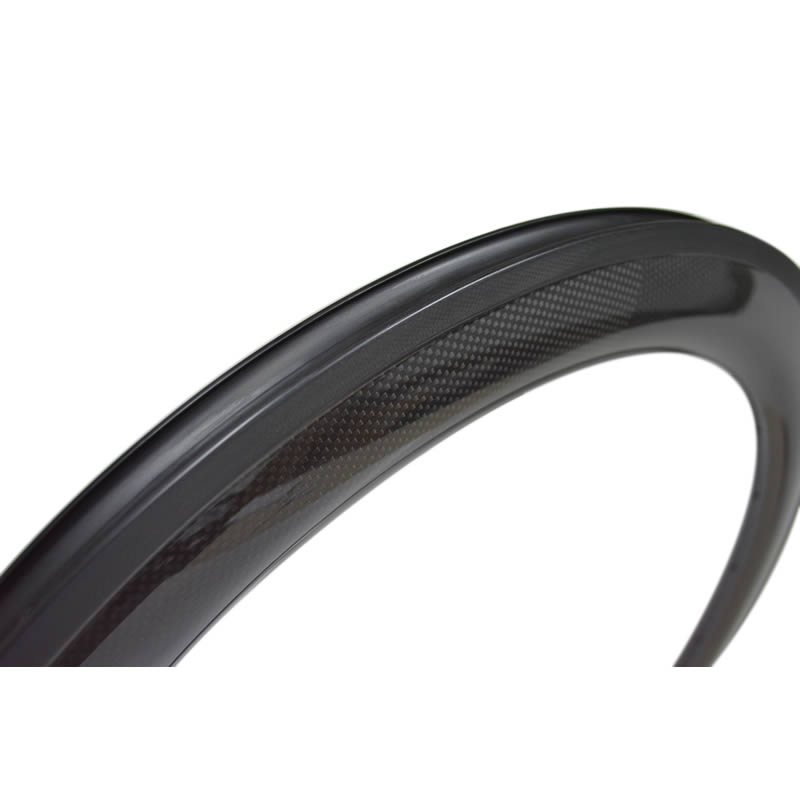

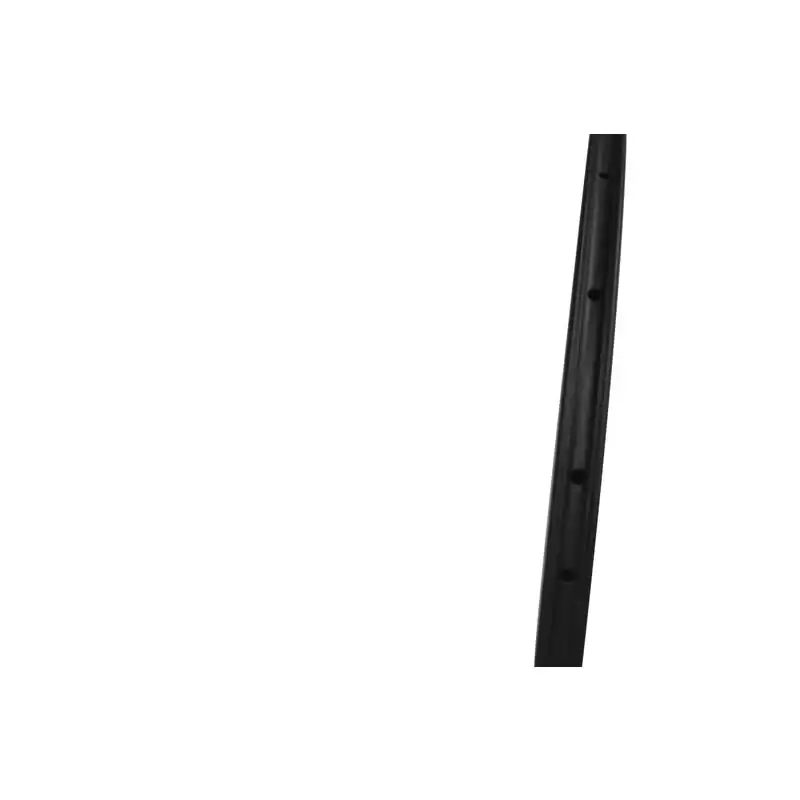

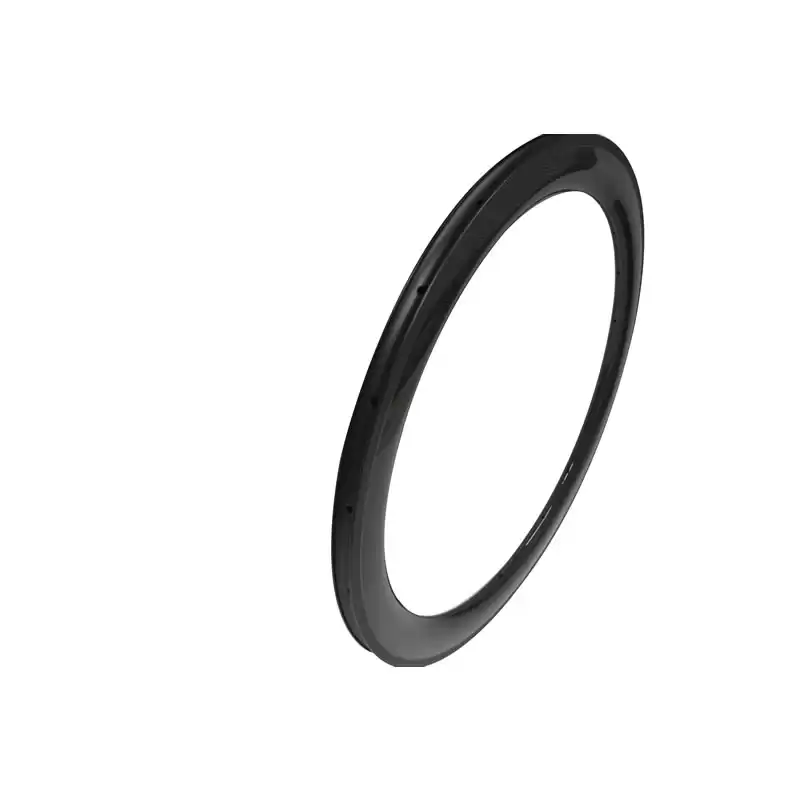

700C Lightweight 65mm Deep clincher carbon rims

Type:65mm Deep clincher road carbon rims

700C Clincher lightweight bicycle rims

Tubeless ready,25mm wider U Shape design

High quality clincher rims manufacturer

250°C high TG resin system

Made of Full Toray T700&T800

Track bike carbon wheels



Product Model:700C Clincher bike rims 65mm Deep tubeless

The classical model of 65mm Deep clincher rims suitable Track wheels.new style U shape 65mm Deep rims profile makes this clincher rims pretty stiff.better aerodynamic performance,durable and strength.

25mm wide tubeless rims made of Full carbon Toray T700, 250°C high TG resin stystem,high TG brake surface.

UD appearance to be more resistant to high temperature.Tubeless ready design,easy for tire mount.

This 65mm Deep have classical clincher and tubeless styles.

Our Factory offer high quality carbon clincher rims with competitive price and fast delivery.

Deep 65mm carbon rim
25mm wide carbon wheel
tubeless clincher rim
clincher carbon rim


Features:

1.High TG resin temperature with 250°C brake track from braking in road bicycle clincher wheels.

2.Full Toray T700 & T800 carbon fiber, Super lightweight rims,best strength to weight ratio with no expense spared.
3.The new style of 65mm Deep clincher rims have faster braking heat elimination.

4.25mm wide U sahpe design.

5.We offer decal and painting service for OEM your brands.

6.We can customized Different patterns of brake surface .

7.Fast delivery,strong technical force and good service.

8. 5 years warranty


Specification:

Model

TR65C-25

R65C-25

Size

700C

700C

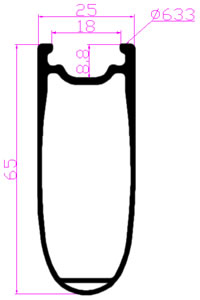

Sectional Drawing

Material

Toray T700 & T800

Toray T700 & T800

Depth

65mm

65mm

Wide

25mm

25mm

Weight

650+/-15g

630+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

ERD

510mm

510mm

Assembly Hole Dia.

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

Max Spoke Tension

>300kg

>300kg

Ultimate Strength

>300kg

>300kg

Torsion Strength

>50kg

>50kg

Tire Size Recommended

700*25-25c

700*25-28c

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar

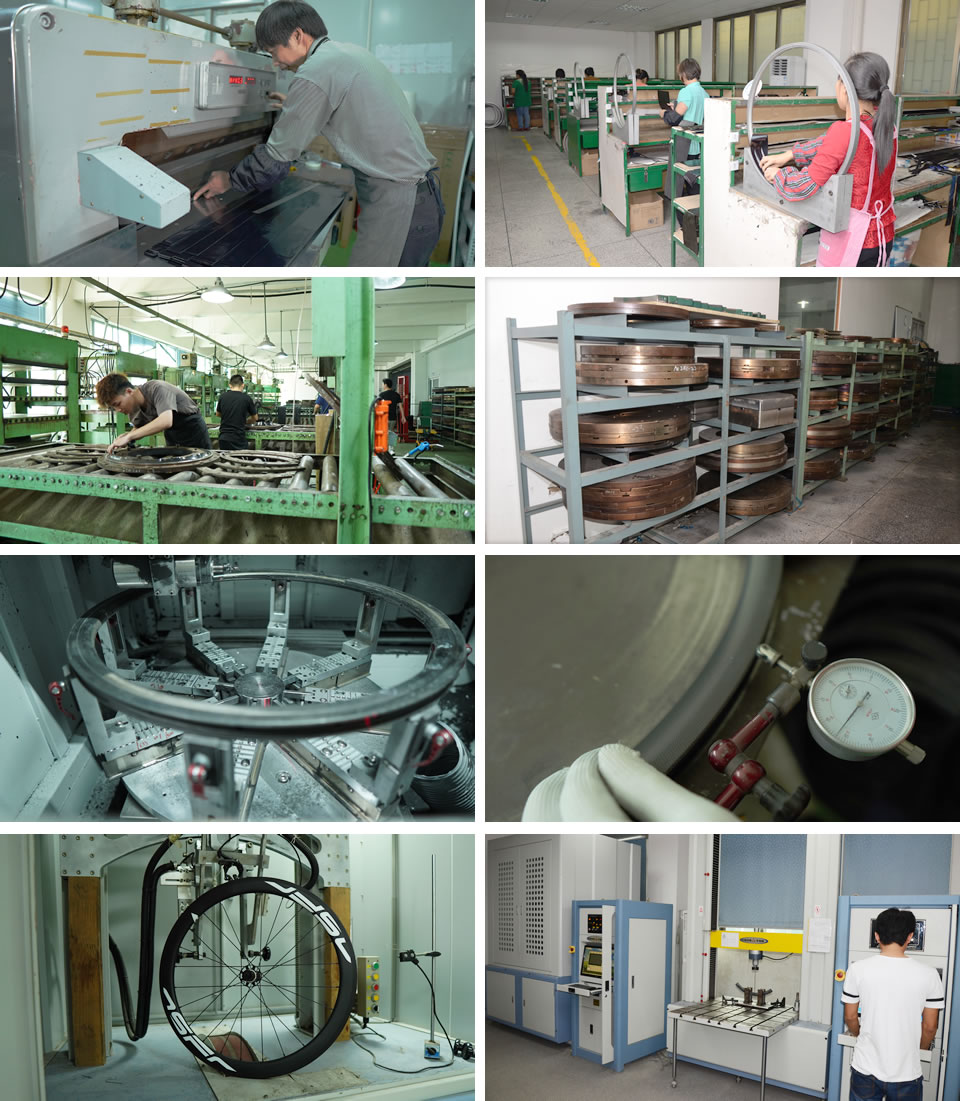

Factory production manufacture

Factory carbon rim


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
