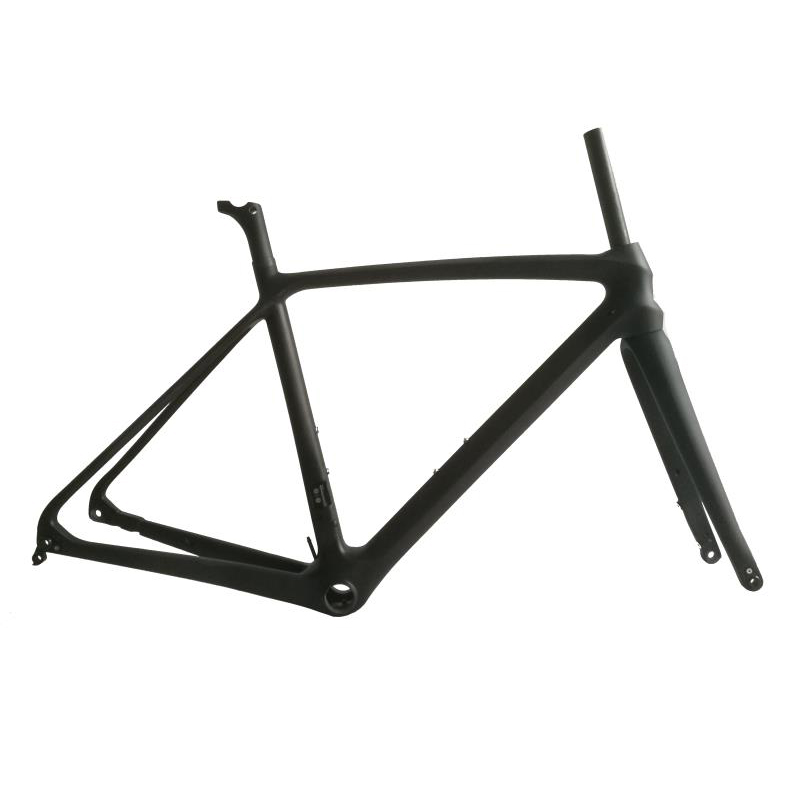

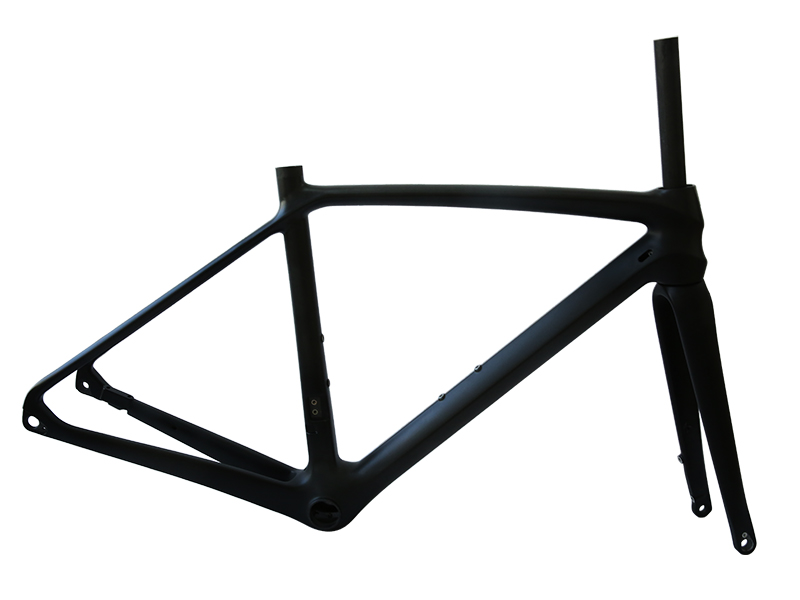

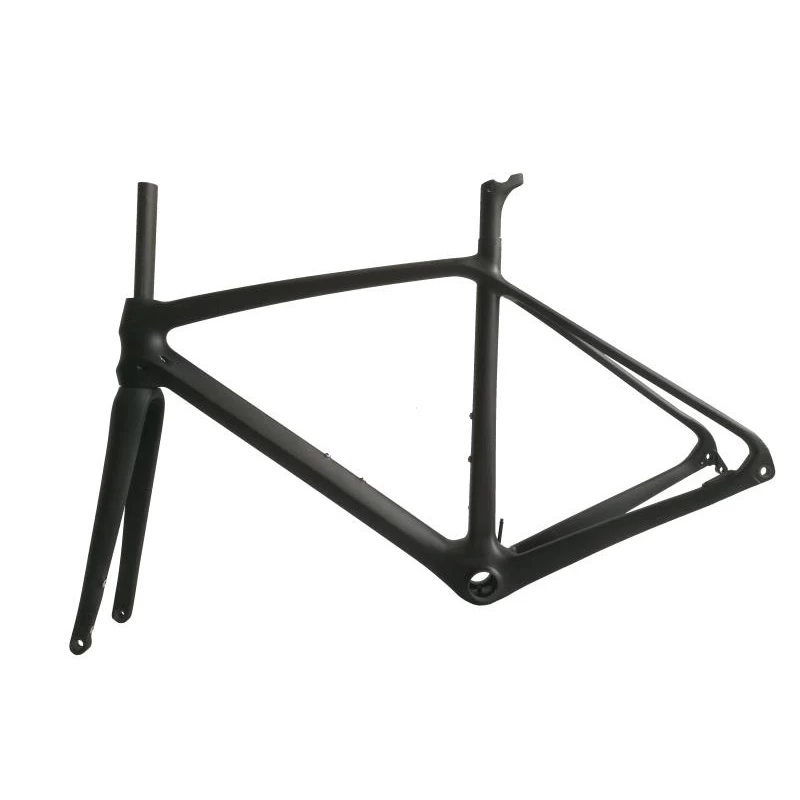

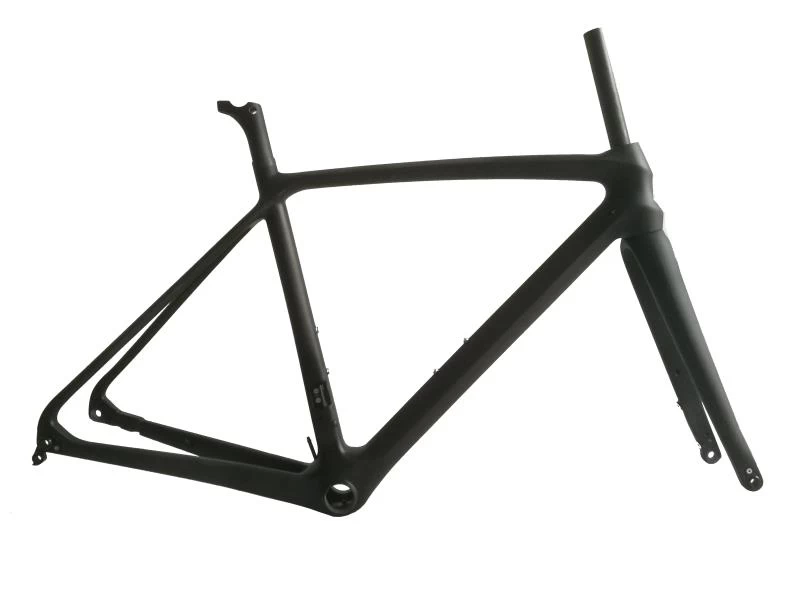

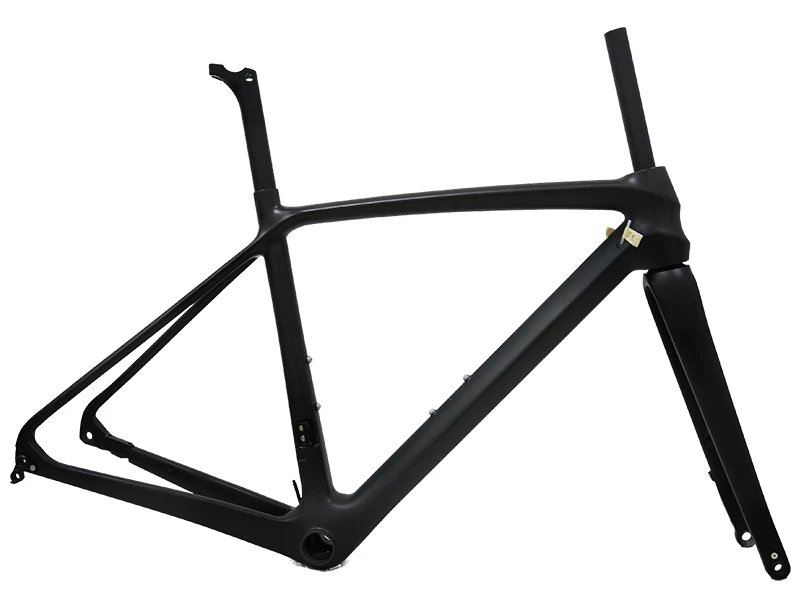

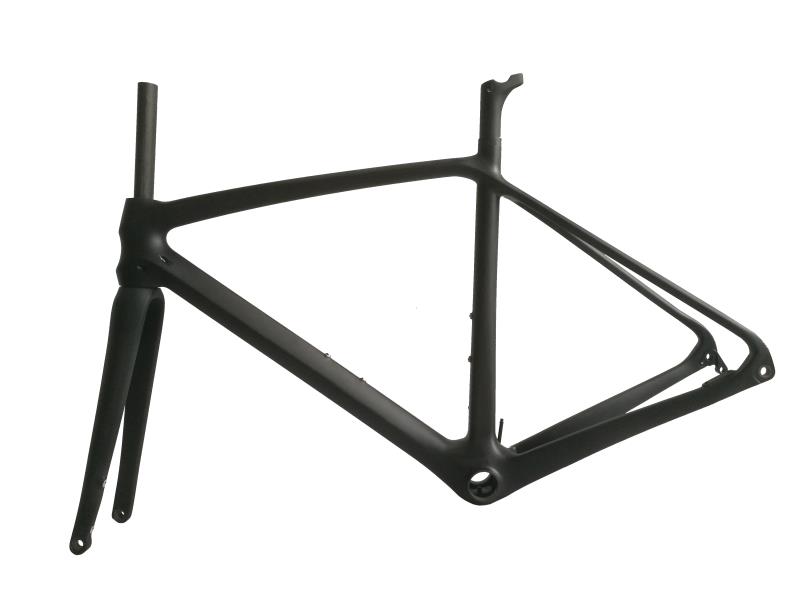

700C Racing Carbon Fiber Road Integrated Frame with Disc Brake

- 700C road bike frameset R01-F

- Flat mount disc brake mount

- 160mm disc rotor

- Full internal cable routing

- Machanical and Di2 groupset compatible

- High modulus carbon fiber



700C Racing Carbon Fiber Road Integrated Frame with Disc Brake

ADVANTAGES:

1, Material: Toho carbon fiber.

2, EPS foam molding process, inner smoothly, better strength.

3, Customized painting / Decals is acceptable.

4, Strict develop test and mass production test. (exceed 30% of ISO4210)


PRODUCTS DESCRIPTION:

Full carbon fiber road bike frame;

With two version in this geometry: one is flat mount disc brake frame, another is rim brake frame;

We are good at making the customized painting.

PRODUCT DETAIL:

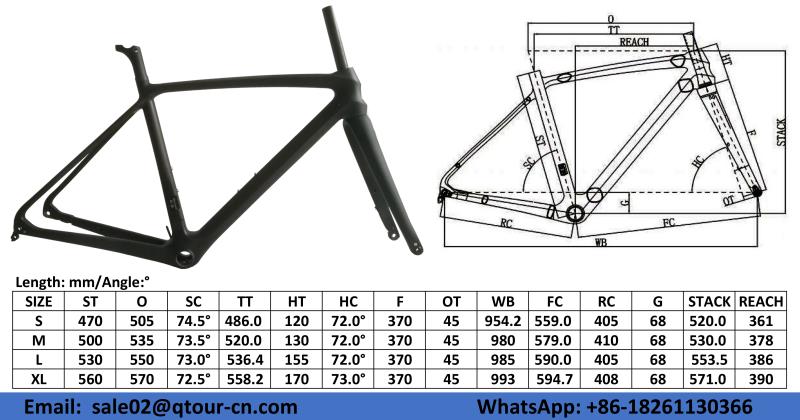

Frame: QTOUR 700C full carbon racing bike frame                         Model: R01-F + F03 + P01
Size: 470mm / 500mm / 530mm / 560mm                                  Brake: Disc Brake
Headtube: Tapered 1-1/8'', 1-1/2''                                             Seatpost: 31.6mm
Bottom Bracket: BB86 press fit                                                  Max Tire: 700C*28C
O.L.D (Frame): 142mm*φ12mm                                                Finish: UD matt / glossy (customized painting acceptable)
O.L.D (Fork): 100mm*φ12mm                                                  Test Standards: EN / ISO4210
Weight: Frame 930g±50g, Fork 420g±20g                                 Warranty: 2 years


OUR FACTORY:

1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.

    Our plant covers 8.5 acres, 42,000mworkshop, 450m2 testing room.

2, Production Capacity per year:120,000 sets Carbon Bicycle Frame,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)

3, We have over 10 years production experience in carbon fibre business.

4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,

    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.

5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.

6, Small order and sample order are accepted, OEM & ODM avilable too.


Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.

Carbon road bike frame, carbon e-bike frame, carbon e-mtb frame, carbon e-racing frame, carbon e-gravel frame, carbon mtb frame,

Carbon Road Bike Frame;

Carbon Road Bike Frame; 700C Road Bike Frame;
