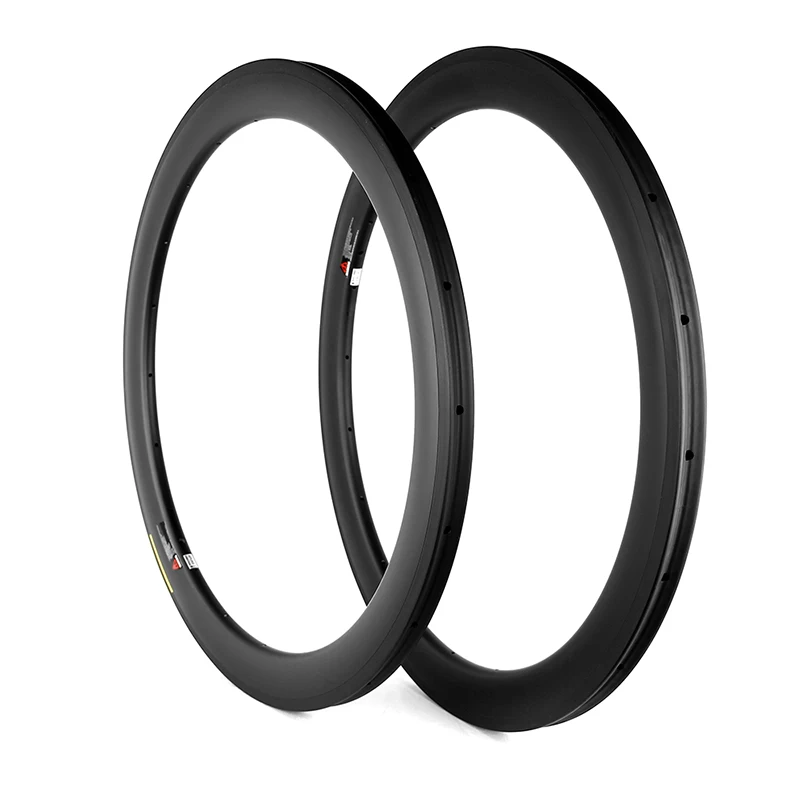

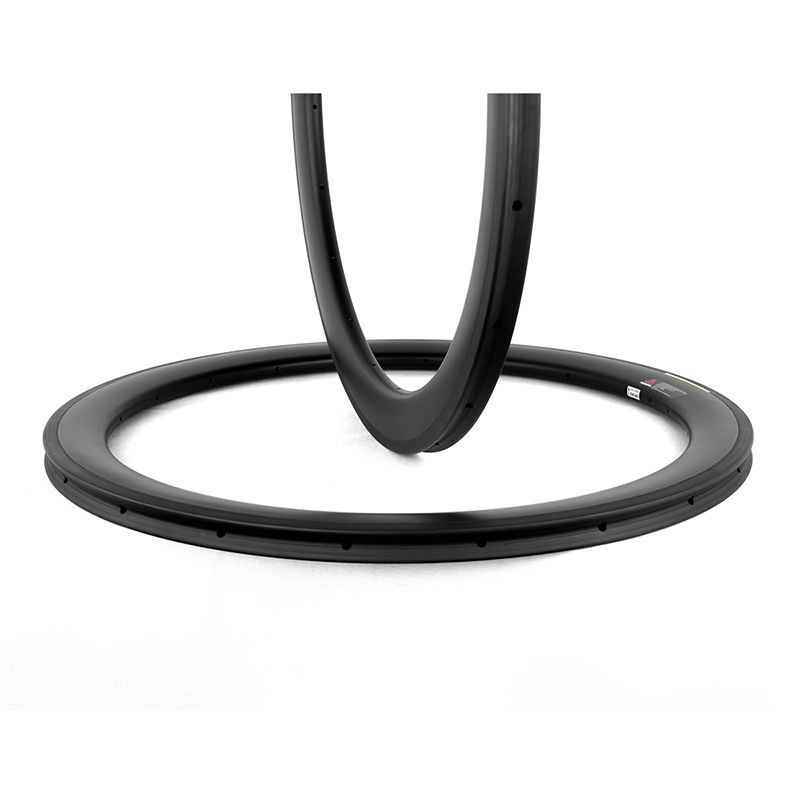

700C BRAKE TUBULAR CARBON RIMS
Key Features
Patented resin formula with less than 0.5% braking failure
Patented layup schedule to allow as high as 180psi tire pressure
Easy tire mount&tubeless ready design
Aerodynamic profile design
Professional high end carbon rims
ROAD RIM TUBULAR CARBON RIMS
|
700C RIM BRAKE TUBULAR FOR AERO&PERFORMANCE ROAD BIKES
|
|
Modle
|
WTD33T
|
WTD38T
|
WTD44T
|
WTD50T
|
WTD55T
|
WTD60T
|
WTD88T
|
|
Rim
|
|
|
|
|
|
|
|
|
Weight
|
330+/-15g
|
360+/-15g
|
370+/-15g
|
400+/-15g
|
410+/-15g
|
470+/-15g
|
530+/-15g
|
|
Finish
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
Prepreg
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
|
Max. Rider Weight
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
|
Rec. Tire Size
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
|
Max Spoke Tension
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
|
Rim Chart
|
|
|
|
|
|
|
|
|
Tire Bead
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
Profile
|
33mm
|
38mm
|
44mm
|
50mm
|
55mm
|
60mm
|

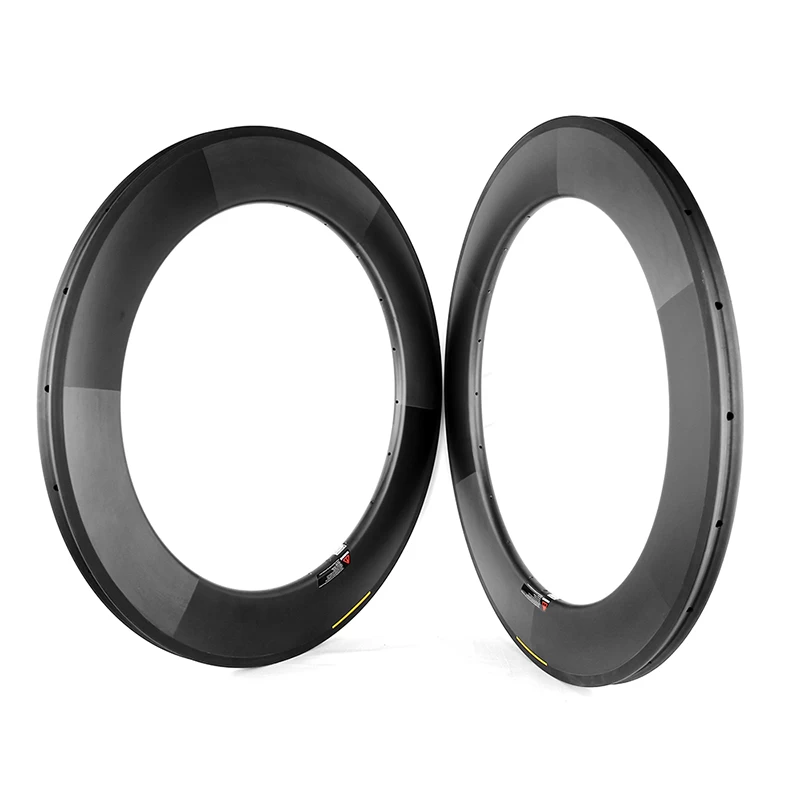

88mm
|
OD
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
|
Dimension
|
633*26mm
|
633*25mm
|
633*26mm
|
633*25mm
|
633*26mm
|
633*25mm
|
633*25mm
|
|
ERD
|
580mm
|
571mm
|
558mm
|
547mm
|
536mm
|
527mm
|
471mm
|
|
Terrain
|
Climbing/Flat
|
Climbing/Flat
|
Climbing/Flat
|
Flat
|
Flat
|
Flat
|
Flat
|
Advantage
|
■ Diamond polish treatment brake surface for a best braking performance ■ Internal&external nipple systems available

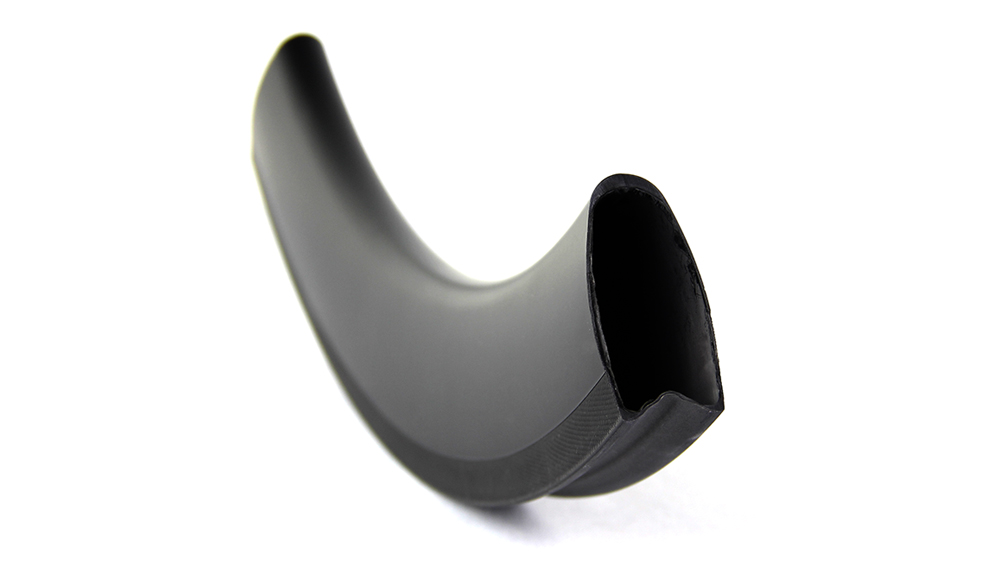

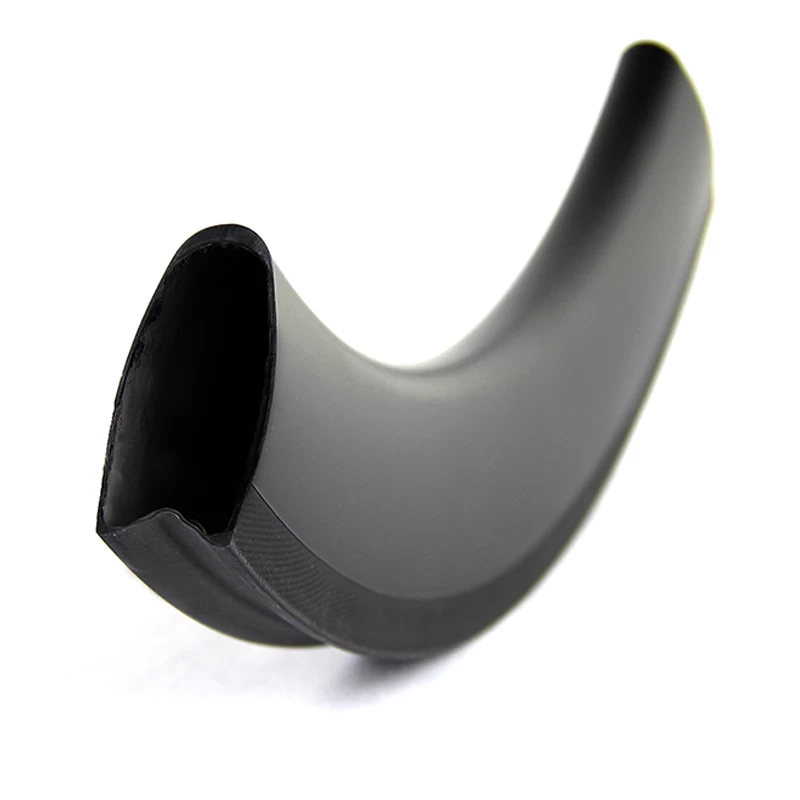

■ Contour rim bed shape design for better tubular tire sitting
|
