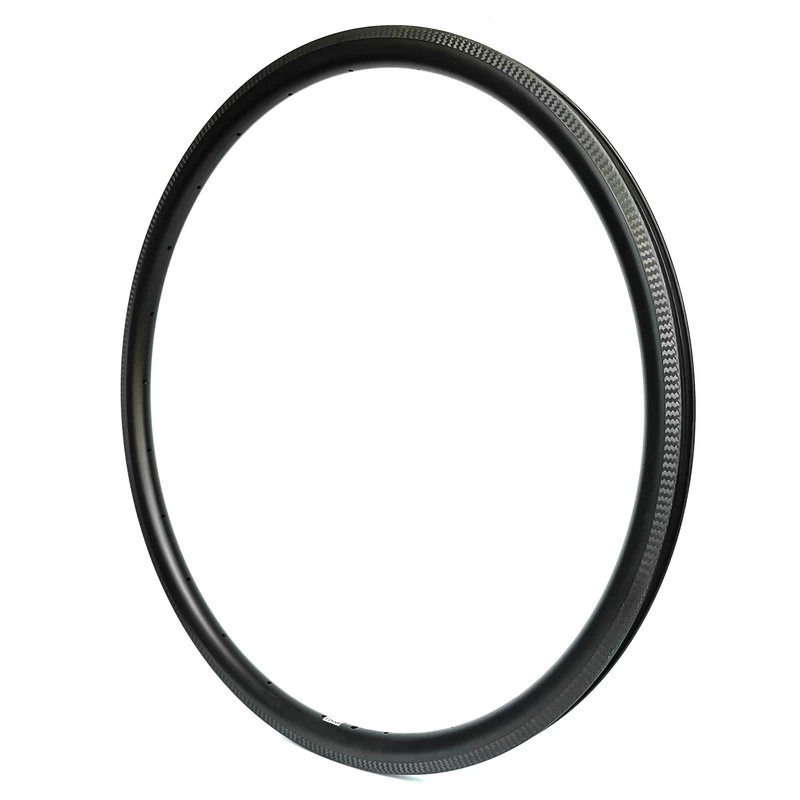

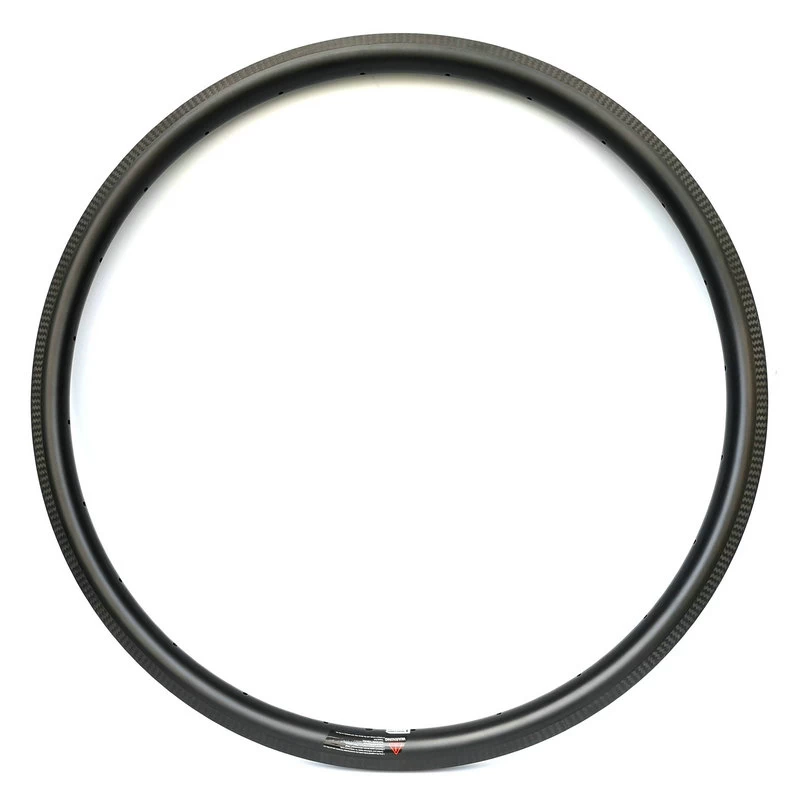

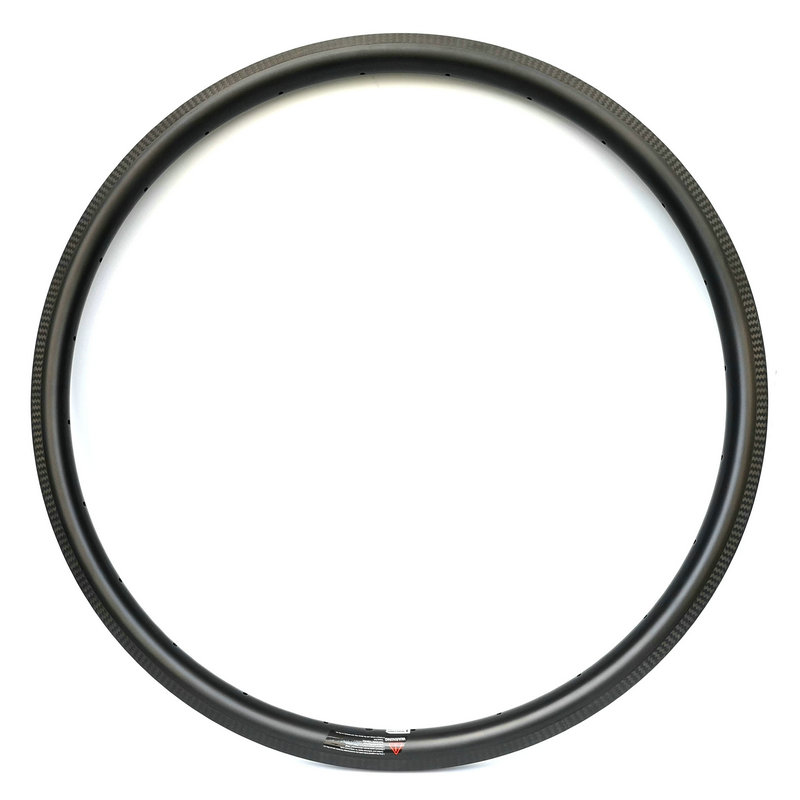

700C road bike 25mm wide U shape 30mm deep clincher tubeless ready rim

Item RX30SH, weight 430g, ERD 585mm. This 30mm deep clincher rim is the lightest rim in 25mm wide rim brake clincher range. Wider but lower profile makes this rim unmatched aerodynamic, it has the lowest possible cross wind sensitivity.


  • Max weight limit115kg
  • Max spoke tension140kgf
  • Depth30mm
  • Outer width25mm
  • Inner width18mm
  • ERD585mm
  • Weight430g±20
  • Brakerim brake
  • Typeclincher (tubeless ready)
  • Materialfull carbon Toray T700
  • Size700C

Product Item: 700C road bike 25mm wide  U shape 30mm deep clincher tubeless ready rim

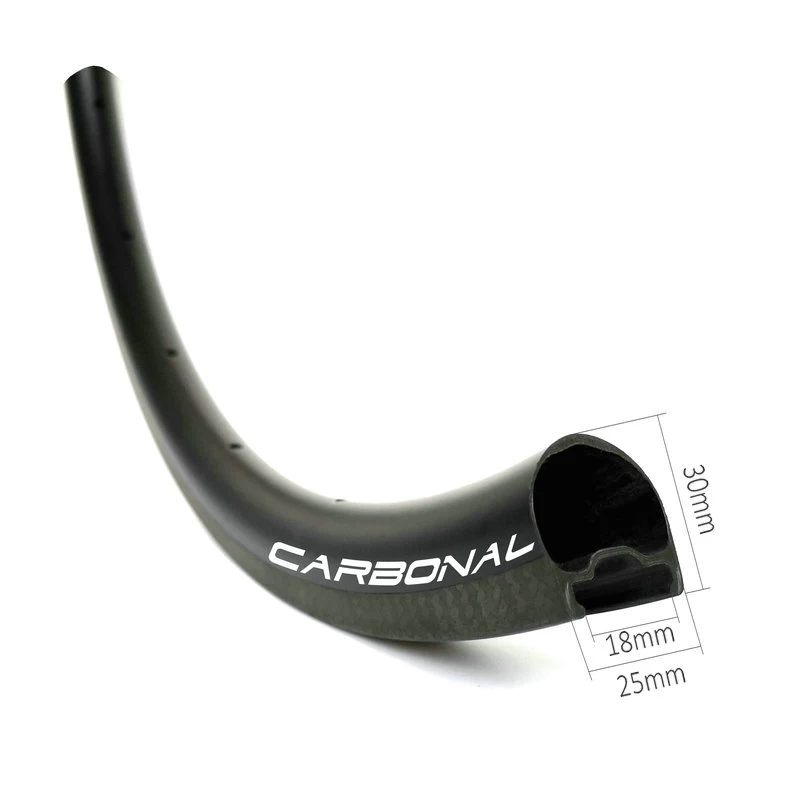

carbon 30mm clincher tubeless rim profile

This 30mm deep clincher rim is the lightest rim in our 25mm wide rim brake clincher range. U shaped and wider but lower profile makes this rim unmatched aerodynamic, it has the lowest possible cross wind sensitivity.


Rim Specifications:

 Item:
 RX30SH
 Use:
 road, cyclocross
 Rim type:
 700C clincher - *rim brake
 Material:
 Toray T700 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 430g±20
 External/Internal width:
 25mm / 18mm
 ERD:
 585mm
 Depth:
 30mm
 Max weight limit:
 115kgs
 Weave:
 UD
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36 or customized
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max / Min tire pressure:
 125psi (8.6bar) / 80psi (5.5bar)
 Decal:
 Customized
 Warranty:
 5 years
 High TG resin temperature:
 255°C
 Standard:
 EN standard


*Rim brake track available in 3k twill (recommended why 3k twill brake track is better?) or basalt surface.

carbon rim with basalt & 3k twill brake track


Features:

  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.

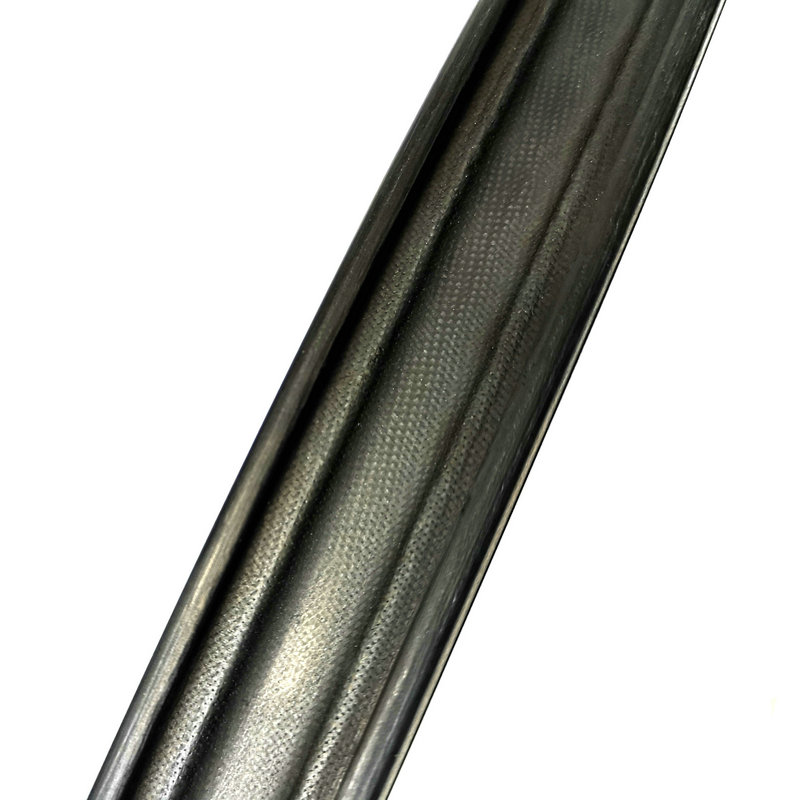

  • Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing, also to ensure an easy mounting and a safe tire seat on the rim.
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
  • High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.

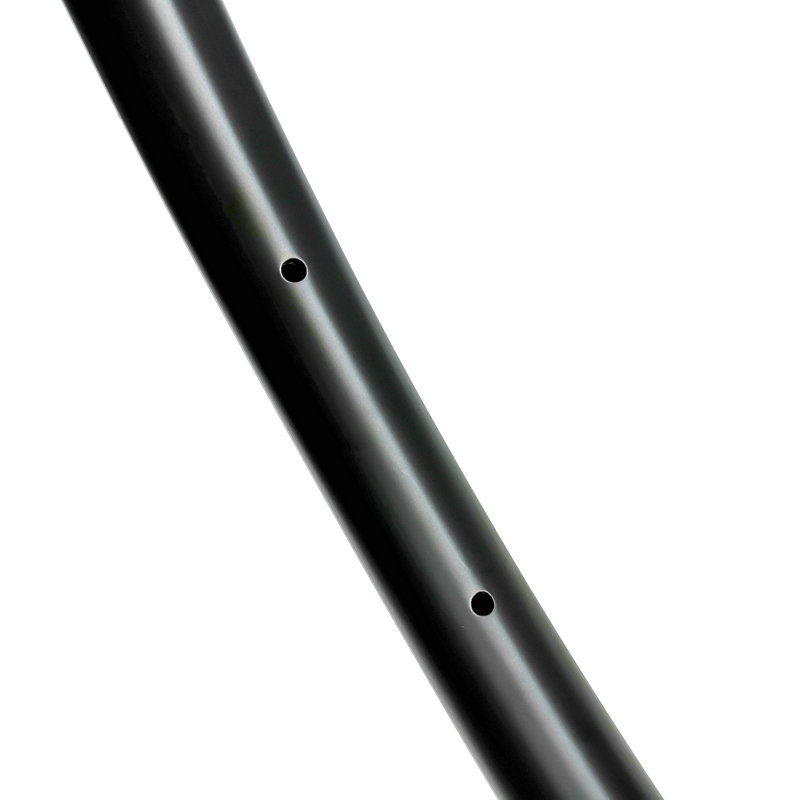

  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
