700C Road bike carbon wheels superlight tubular 24mm deep carbon wheels

Type:20/24mm Deep 700C tubular carbon rim

Material: Toray T700

Appearance:3K/UD/12K or customized
Brake track:Basalt,Disc brake

250°C high TG braking temperature

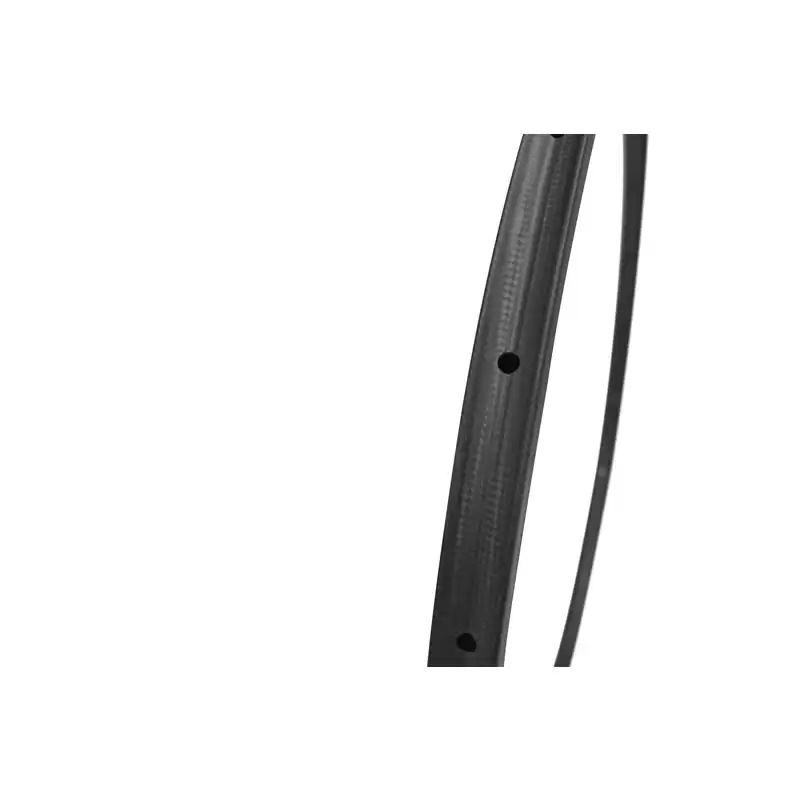

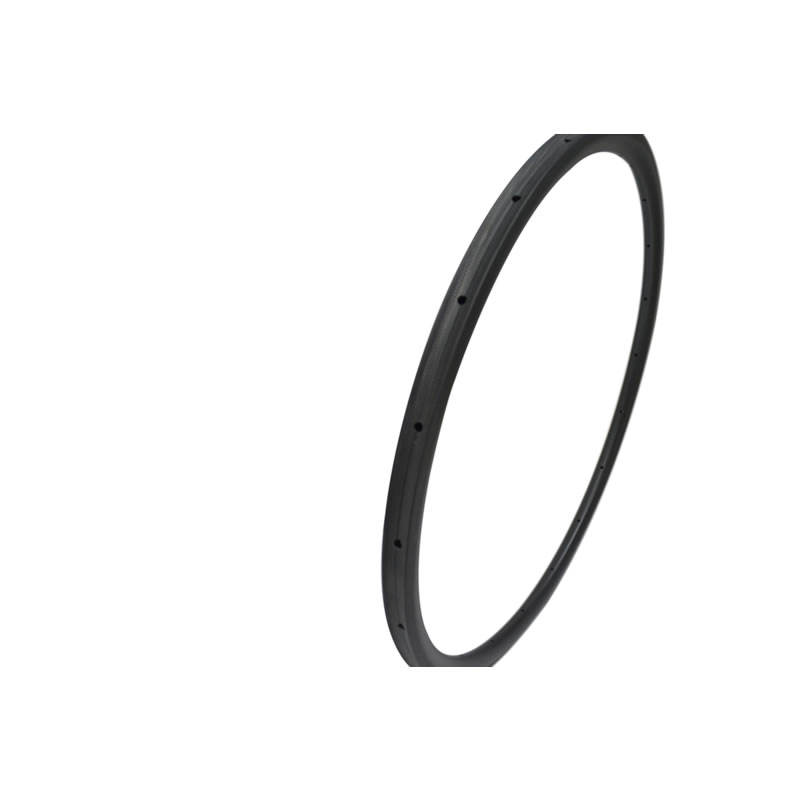

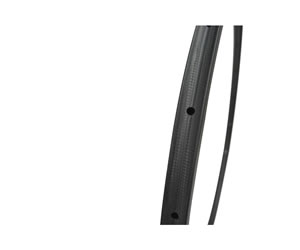

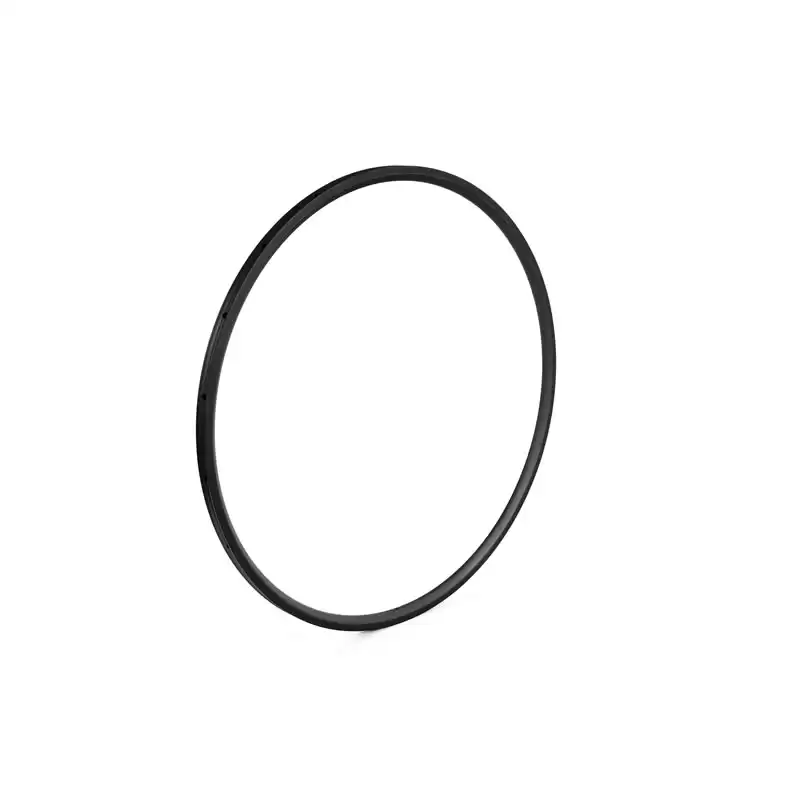

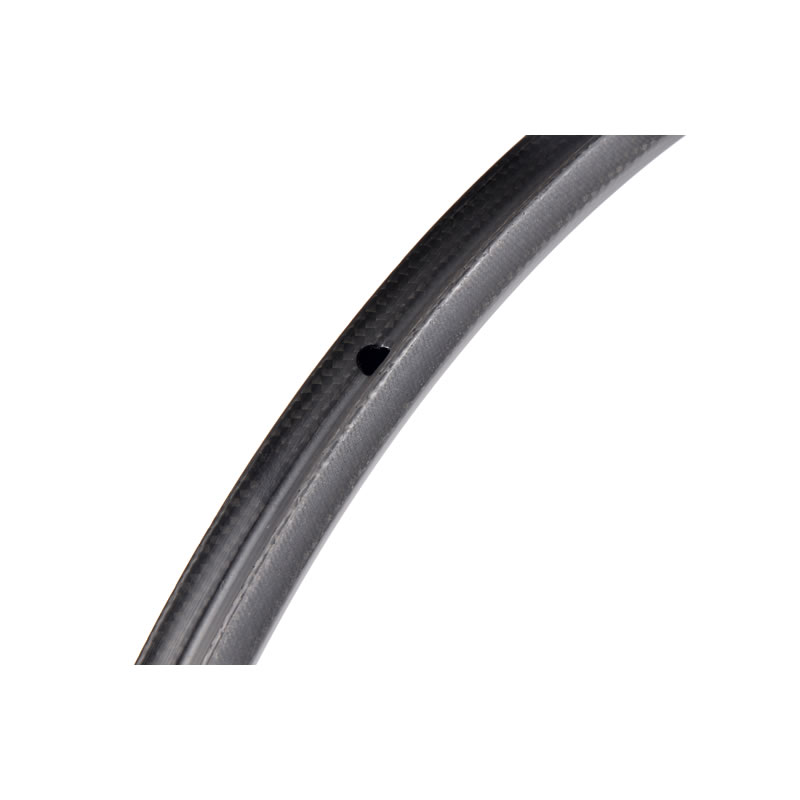

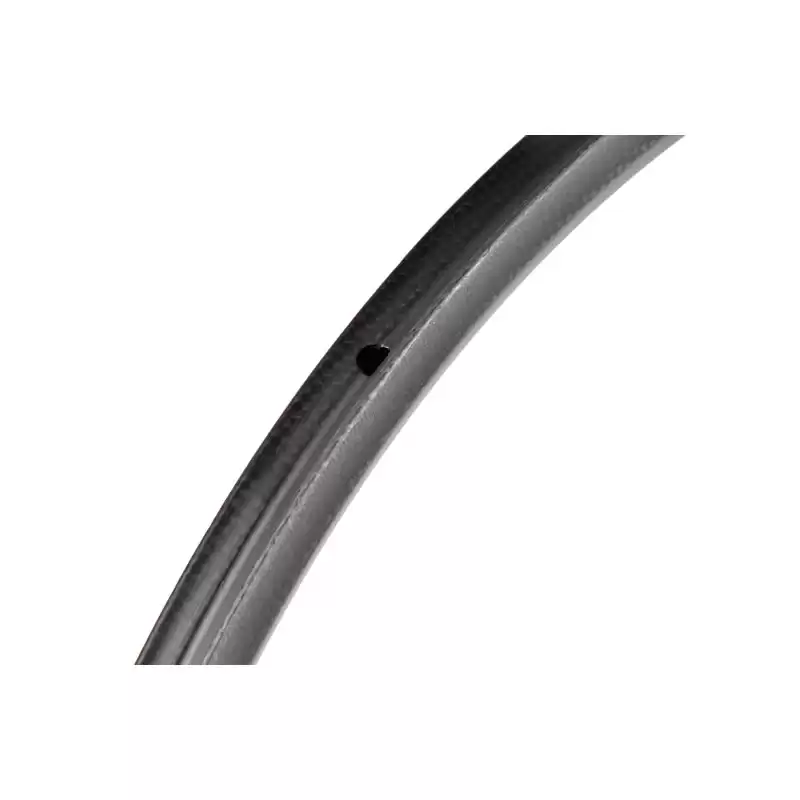

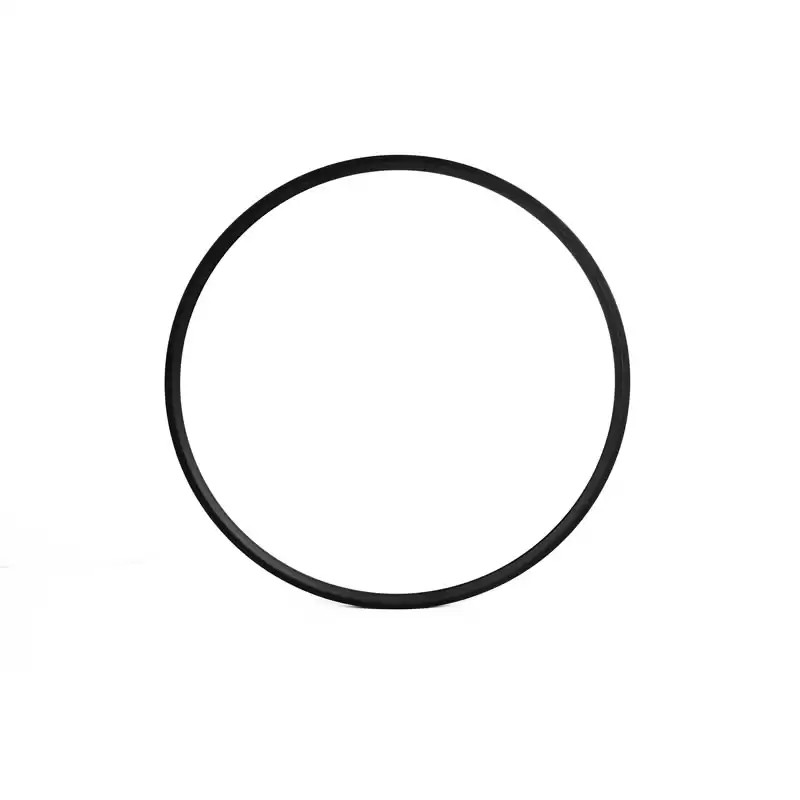

700C carbon road bike tubular Rims

V shape design

High quality bicycle rims manufacturer



Product Model:20mm/24mm Deep 700C tubular carbon rims road bicycle wheels

20mm/24mm Deep tubular lightweight carbon rims with V shape,better aerodynamics and sitffness.

This tubular carbon rims made of Toray T700 and T800 carbon fiber.

High TG Tubular carbon rims use high TG basalt brake surface,can tolerate high temperature from braking.

High quality tubular carbon rims with the wholesale price.





Features:

1.High TG resin system,can tolerate max 250°C high temperature from braking.

2.High quality wheels,Super lightweight,made of Full Toray T700 & T800 carbon fiber,as far as possible less weight and easier for ride.
3.V shape design,better aerodynamics and stiffness.

4.Best tubular carbon rims use basalt brake track,high temperature resistance,brake system is important for riding,more safety for cyclist.

5.Use TI design,rim flange incl circle titanium,stronger and stabilized structure.

6.We have not MOQ limit,sample order are avaliable,we also can mixed product to order.

7.We offer decal and painting service for OEM your brands.

8.We can customized Different patterns of brake surface .

9.High quality carbon wheels with reasonable prices, good service and fast delivery.

10.5 years warranty


Specification:

Model

T20-20.5

T24-20.5

Size

700C

700C

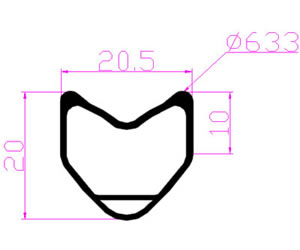

Sectional Drawing

Material

Toray T700 & T800

Toray T700 & T800

Depth

20mm

24mm

Wide

20.5mm

20.5mm

Weight

270+/-15g

280+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

ERD

600mm

592mm

Assembly Hole Dia.

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

Max Spoke Tension

>280kg

>280kg

Ultimate Strength

>85kg

>850kg

Torsion Strength

>50kg

>50kg

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar


Factory production manufacture

customication carbon wheel


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.





Product Tags carbon rims 700C tubular          20mm Deep carbon rim          24mm depth road rim          21mm wide tubular rim          UD carbon rim tubular          3K glossy carbon Wheel
