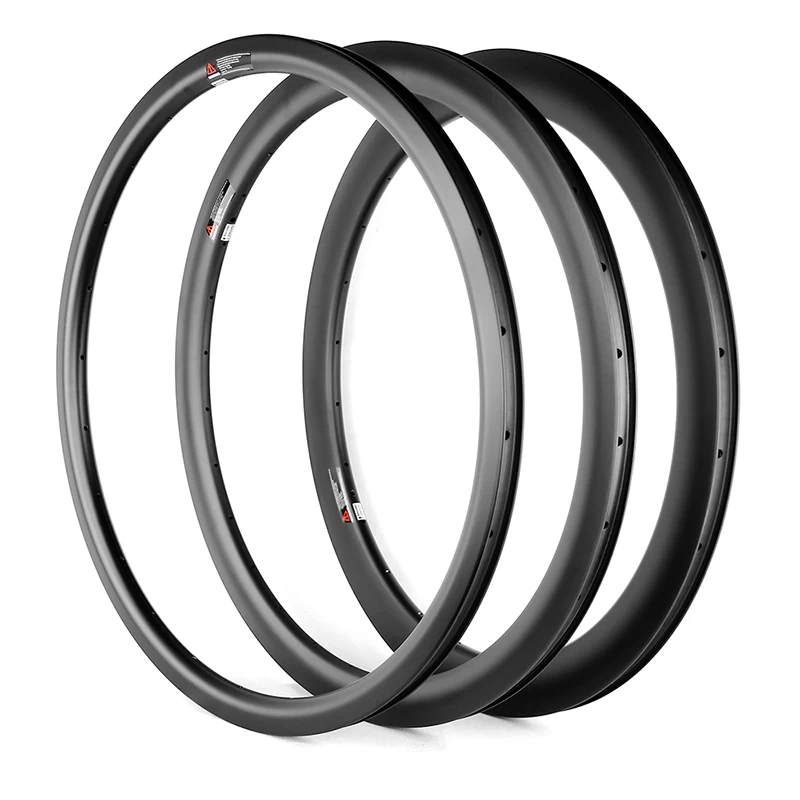

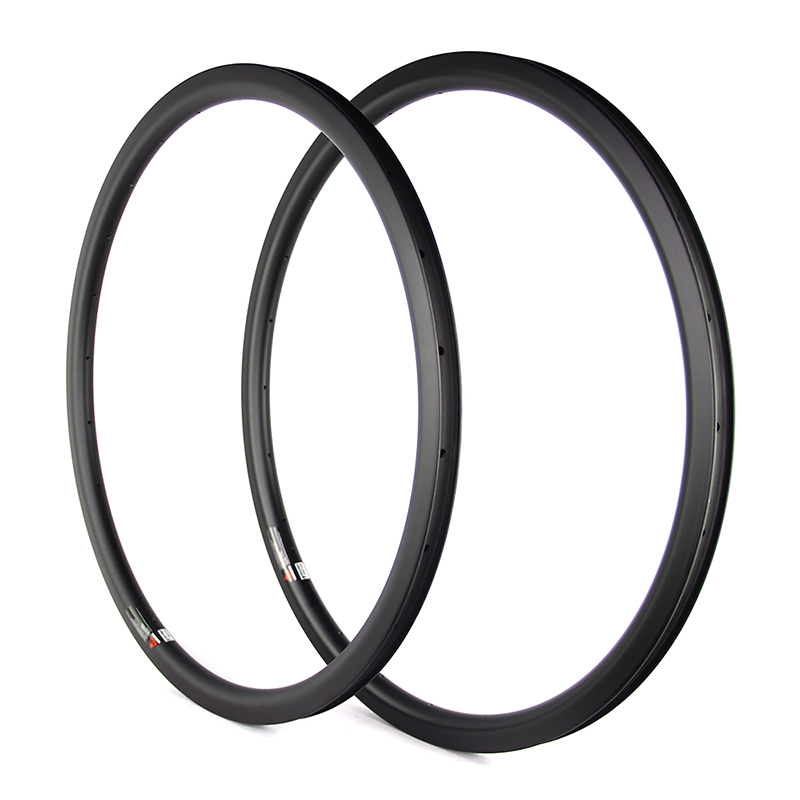

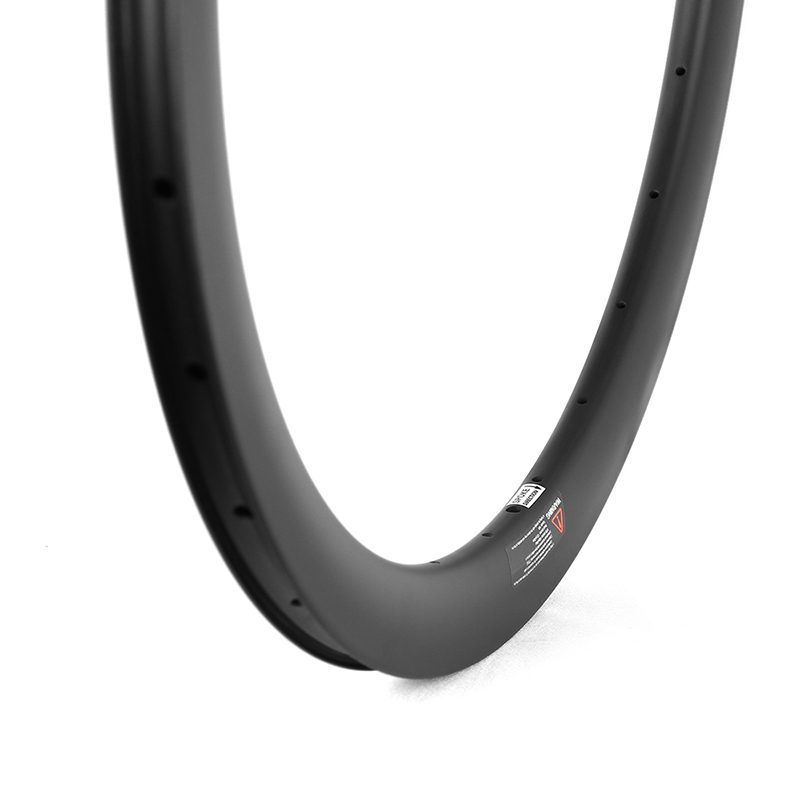

700C RSD ROAD DISC BRAKE CARBON RIMS
Key Features

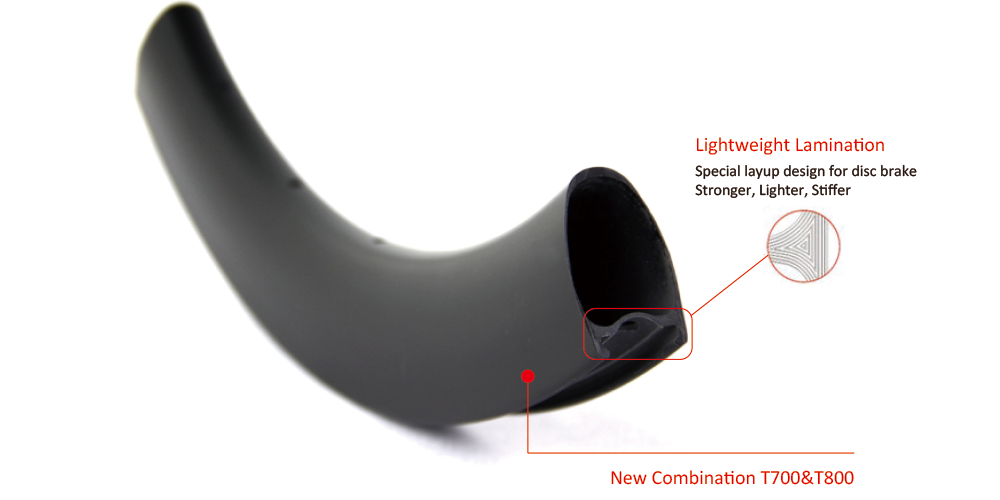

Lightweight disc brake system
Special layup schedule to allow as high as 160psi tire pressure
Easy tire mount&tubeless ready design
Aerodynamic profile design
Economical high end rims
ROAD DISC BRAKE CARBON RIMS
|
700C RSD DISC BRAKE CLINCHER FOR AERO|PERFORMANCE|ENDURANCE ROAD BIKES
|
|
Modle
|
RSD33C-TLR-DISC
|
RSD38C-TLR-DISC
|
RSD44C-TLR-DISC
|
RSD50C-TLR-DISC
|
RSD55C-TLR-DISC
|
|
Rim
|
|
|
|
|
|
|
Weight
|
380+/-10g
|
400+/-10g
|
440+/-10g
|
460+/-10g
|
480+/-10g
|
|
Finish
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
|
Prepreg
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
|
Max. Rider Weight
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
125psi/8.6bars
|
Rec. Tire Size
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
|
Max Spoke Tension
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
Rim Chart
|
|
|
|
|
|
|
Tire Bead
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Clincher|TLR
|
Profile
|
33mm
|
38mm
|
44mm
|
50mm
|
55mm
|
OD
|
632mm
|
632mm
|
632mm
|
632mm
|
632mm
|
|
Dimension
|
621*19mm
|
622*18mm
|
621*19mm
|
622*18mm
|
621*19mm
|
|
ERD
|
580mm
|
571mm
|
558mm
|
547mm
|
536mm
|
|
Terrain
|
Road Race|Endurance
|
Road Race|Endurance
|
Road Race|Endurance
|
Road Race|Endurance
|
Road Race|Endurance
|
Advantag
|

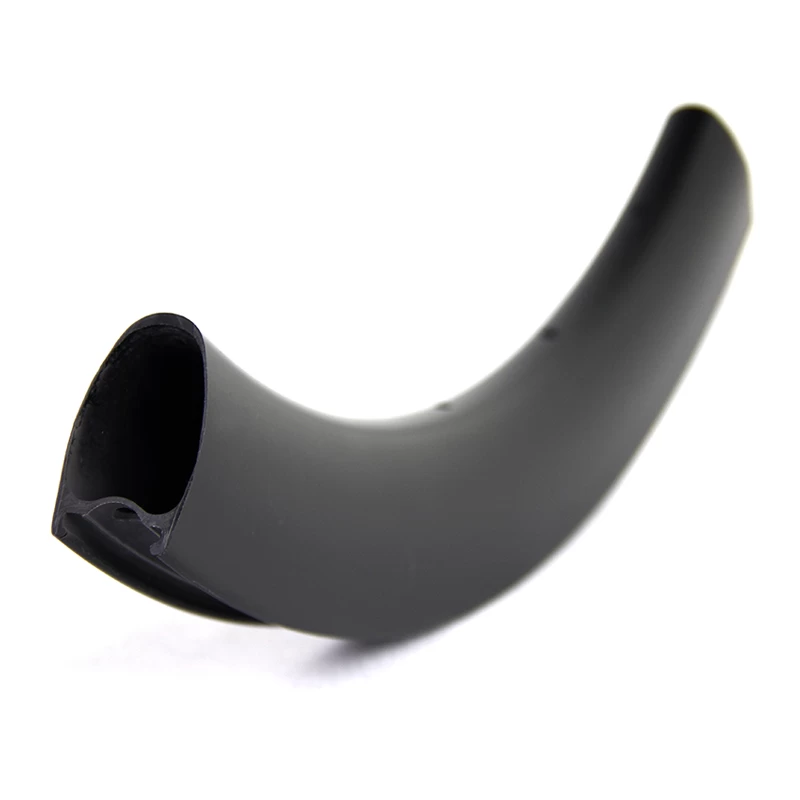

■ Bead hook design ■ Contour rim bed shape design for better tubular tire sitting
■ Super light lay-up to minimize the rim weight ■ Symmetric profile for better aerodynamics ■ Internal&external nipple systems available
|
|
700C RSD DISC BRAKE TUBULAR FOR AERO|PERFORMANCE|ENDURANCE ROAD BIKES
|
|
Modle
|
RSD33T-DISC
|
RSD38T-DISC
|
RSD44T-DISC
|
RSD50T-DISC
|
RSD55T-DISC
|
|
Rim
|
|
|
|
|
|
|
Weight
|
305+/-10g
|
330+/-10g
|
340+/-10g
|
360+/-10g
|
370+/-10g
|
|
Finish
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
|
Prepreg
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
60% T700 & 40% T800
|
|
Max. Rider Weight
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
As tire instruction
|
|
Rec. Tire Size
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
700*25|28C
|
|
Max Spoke Tension
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
|
Rim Chart
|
|
|
|
|
|
|
Tire Bead
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
|
Profile
|
33mm
|
38mm
|
44mm
|
50mm
|
55mm
|
|
OD
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
|
Dimension
|
633*26mm
|
633*25mm
|
633*26mm
|
633*26mm
|
633*26mm
|
|
ERD
|
580mm
|
571mm
|
558mm
|
547mm
|
536mm
|
|
Terrain
|
Road Race|Endurance
|
Road Race|Endurance
|
Road Race|Endurance
|
Road Race|Endurance
|
Road Race|Endurance
|
|
Advantag
|
■ Bead hook design ■ Tubeless ready ■ Contour rim bed shape design for better tubular tire sitting
■ Super light lay-up to minimize the rim weight ■ Symmetric profile for better aerodynamics ■ Internal&external nipple systems available
|
