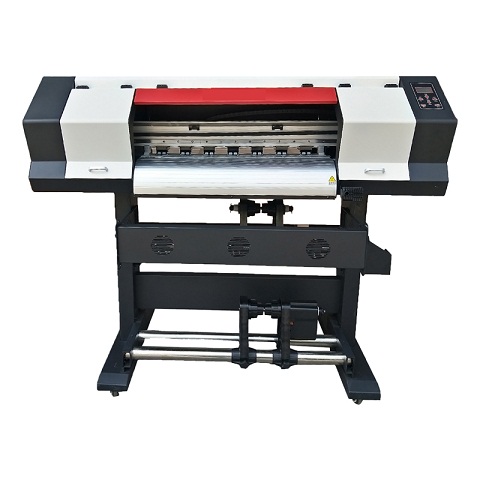

70cm Series Sublimation

Epson printing heads

1440dpi high resolution

70cm printing wide



Equiped withe Epson print head, high resolution and steady working
70cm printing size, suit for small shop and DIY

sublimation printers for t shirts, mug, cap, shoes, plates etc.
Less investment and big return

Model

XP600

Print head

XP600

Number of printhead (PC)

1

Maximum print width(mm)

70cm

Color

CMYK

Compatible ink

Eco-solvent ink/ Water-based ink/ Sublimation ink etc.

Eco-solvent

Printable PU/PVC

Sublimation

Sublimation paper

Special

Wallpaper/Canvas/Chines art paper/Mesh

Printing resolution(dpi)

1440dpi

Cleaning of printhead

Automatic

Heating system

 Front/Back

Infrared

Optional

Infrared  heating

Fan/Auto media take-up system/Platform suction control

Equipped

Interface

Net cable

Wording environment(℃)

15-30

Relative humidity(%)

40-60

Speed

Draft mode

18/h

Production

15/h

Quality mode

13/h

RIP software

Maintop/ Photo Print

Operation system

WinXP/Win7

Voltage

AC220V/110V 50-60HZ

Power(w)

600

Package(mm

2350*730*650

Weight(kg)

150±5%

Printer size(mm)

2200*730*1260

Printer weight(kg)

110±5%

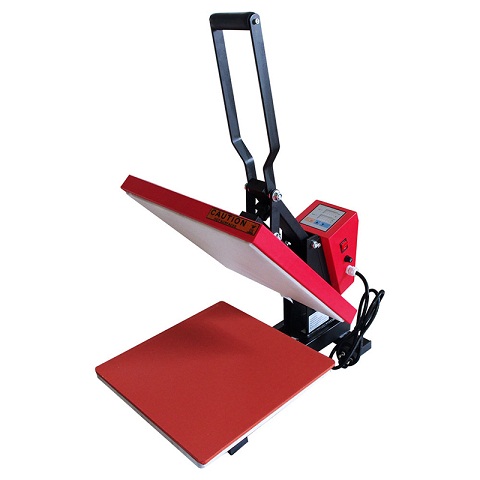

Model No

H-004

Machine

Aluminum heating plate,Anti-scald protecting cover,strong springs,high pressure

Name

Europe Type High Pressure Heat Press Machine

Controller

Digital panel

Voltage

100V/220V

Power

1800W

2200W

2800W

Time Range

0-999sec

Max.temp

399

Printing Area

38*38CM

40*50CM

40*60CM

Printing Thickness

Up to 70mm

Gross Weight

23kg

33kg

35kg

Package Size

725*440*420mm

800*480*450mm

725*680*410mm

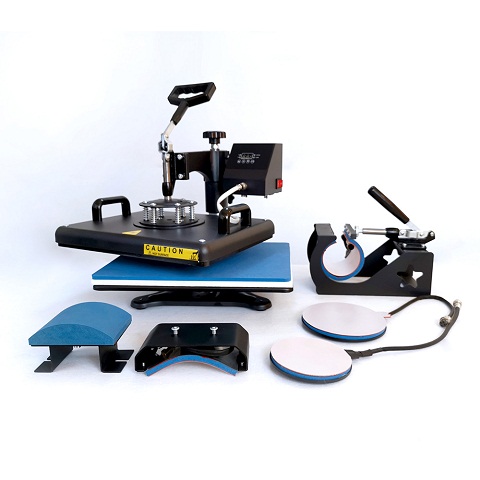

Model No

XY-008(4in1/5in1/6in1/8in1)

Machine

 Multi-function,Swing-away,Aluminum heating plate,Anti-scald protecting cover,Strong springs

Name

 Combo heat press machine

Controller

digital panel

Voltage

110V/220V

Power

1000W

1800W

Time Range

0-999sec

Max.temp

399

Printing Area

29*38CM

38*38CM

Printing Thickness

Up to 70mm

Gross Weight

32kg

35kg

Package Size

50.5*47*41.5cm

59*47*48cm

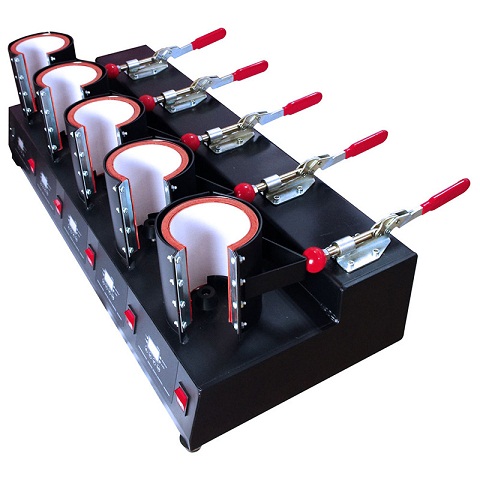

Model No

H-012E

Machine Type

Digital panel,High quality mug heater,Adjustable pressure,5 mugs in one time

Name

Manual High Pressure Heat Press Machine

Controller

Digital panel

Voltage

110V/220V

Power

1350W

Time Range

0-999sec

Max.temp

399

Gross Weight

30kg

Package Size

86.5*37.5*29.5cm

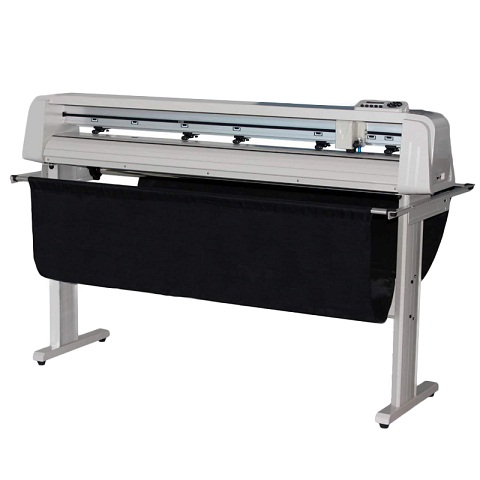

Item NO.

C720I

C1350I

Max media width

720mm

1400mm

Max cutting width

630mm

1260mm

Accuracy

+/-0,01m

+/-0,01m

Connectors

USB/RS-232

USB/RS-232

Drive

Stepper

Stepper

Power consumption

<100w

<100w

Ambient temperature

+5℃-+35℃

+5℃-+35℃

Meas

103x35x49cm

171x35x49cm

G.W/N.W

27.8/25KG

42/35KG
