The panel can withstand high humidity, high temperatures, sandstorms and ultraviolet, G T Energy. is a one-stop shop for panel product and solar mounting service you need to get the job done. all of which translates to A UNIQUE SOLUTION FOR YOUR PROJECT
|

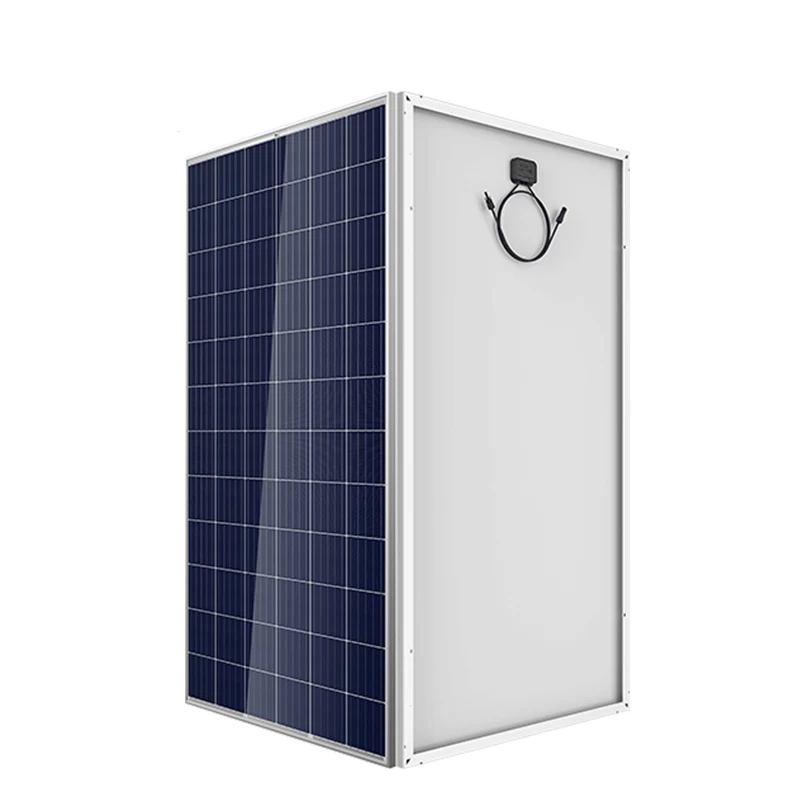

320w Solar Panel Dimensions
|
WORKING CONDITIONS
|
|
Cell(mm)
|
Poly156x156
|
Maximum System Voltage
|
DC 1000V(TUV)
|
|
Weight(kg)
|
25
|
Operating Temp.
|
-40℃～+85℃
|
|
Dimensions(LXWXH)(mm)
|
1956x992x40
|
Maximum Series Fuse(A)
|
20
|
|
Cable Length(mm)
|
≥1000
|
Static loading
|
≤5400Pa
|
|
Cable cross section size(mm)
|
4
|
Grounding conductivity
|
<0.1Ω
|
|
No. of cells and connections
|
72(12x6)
|
NOCT
|
47±2℃
|
|
No. of diodes
|
3
|
Application Class
|
Class A
|
|
Packing configuration
|
30pcs/carton
|
Insulation Resistance
|
≥100MΩ
|
|
Solar Panel Specification
|
|
TYPE
|
SPC-PP315W
|
SPC-PP320W
|
SPC-PP325W
|
SPC-PP330W
|
SPC-PP335W
|
|
Rated Maximum Power at STC(w)
|
315
|
320
|
325
|
330
|
335
|
|
Open Circuit Voltage(Voc/V)
|
45.4
|
45.6
|
45.9
|
46.2
|
46.4
|
|
Maximum Power Voltage(Vmp/V)
|
37.1
|
37.4
|
37.6
|
37.8
|
38
|
|
Short Circuit Current(Isc/A)
|
9.09
|
9.10
|
9.16
|
9.24
|
9.32
|
|
Maximum Power Current(Imp/A)
|
8.51
|
8.56
|
8.65
|
8.74
|
8.84
|
|
Module Efficiency (nm/%)
|
16.23
|
16.49
|
16.75
|
17.01
|
17.26
|
|
Power Tolerance
|
+3%
|
|
αIsc
|
+0.04%/℃
|
|
βVoc
|
－0.30%/℃
|
|
γPmp
|
－0.40%/℃
|
|
STC
|
AM1.5、1000W/㎡、25℃
|
GUARANTEE
15-year limited product warranty
Limited performance warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output.
