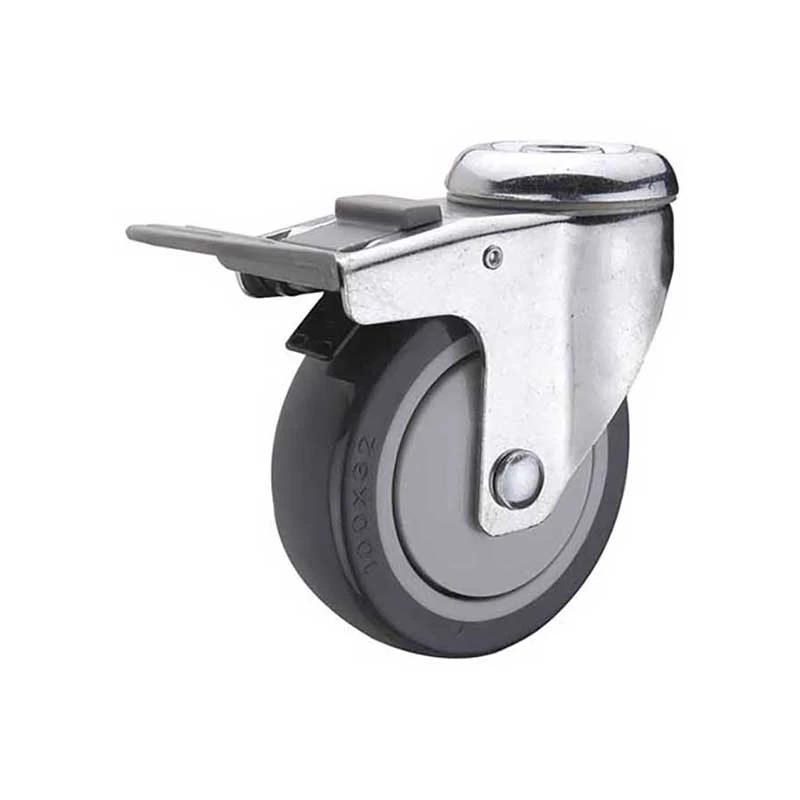

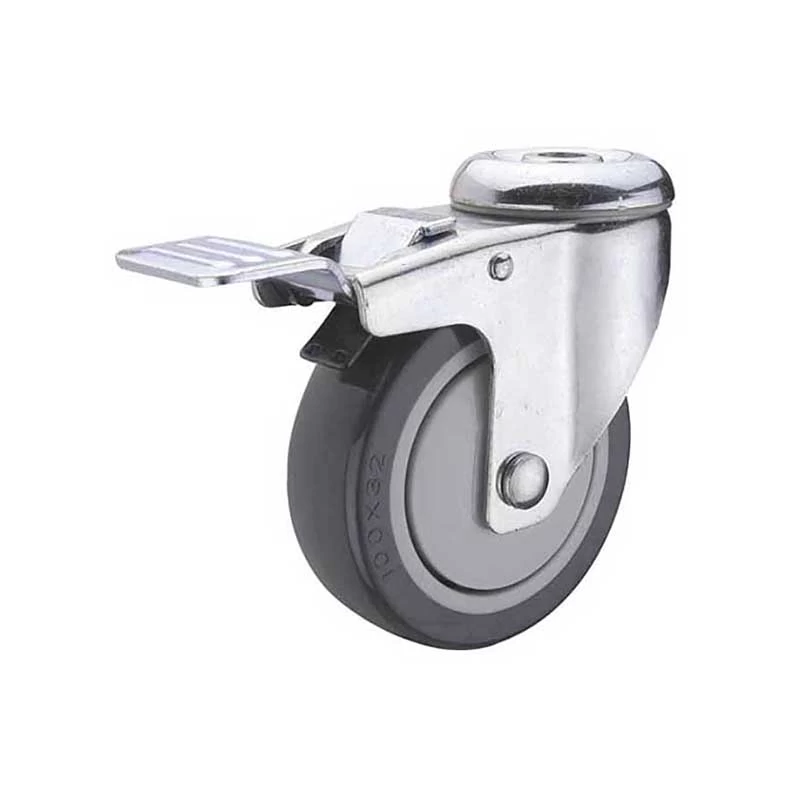

75 mm polyurethane bolt hold double brake stainless steel caster

Caster Type:Bolt hold double brake
Wheel Material : polyurethane
Wheel Diameter: 3'' 4''5''
Load Rating:80/120/150 KG



75 mm polyurethane bolt hold double brake stainless steel caster

Housing:
Made of pressed stainless steel
double ballrace swivel head
transparent dust-proof seal



Wheel:
Material:Polyurethane
Hardness:90±5 Shore A
Bearing type:Precision ball bearing
Temperature:-20℃~80℃


(mm)

Item No.

Wheel

Diameter

Overall

Height

Caster

Type

Top

 plate

Hole

Distance

Hole

Dia

Wheel

Material

Weight

Capacity

W28075SSPUDB2/3 75X32 104 Bolt hold 95X67X3 73X45 11X8.5 PU 100KG
W28100SSPUDB2/3 100X32 132 Bolt hold 95X67X3
73X45 11X8.5 PU 120KG
W28125SSPUDB2/3 125X32 158 Bolt hold 95X67X3 73X45 11X8.5
PU 150 KG


Feature :


  • Wheels roll smoothly with integrated ball bearing design.

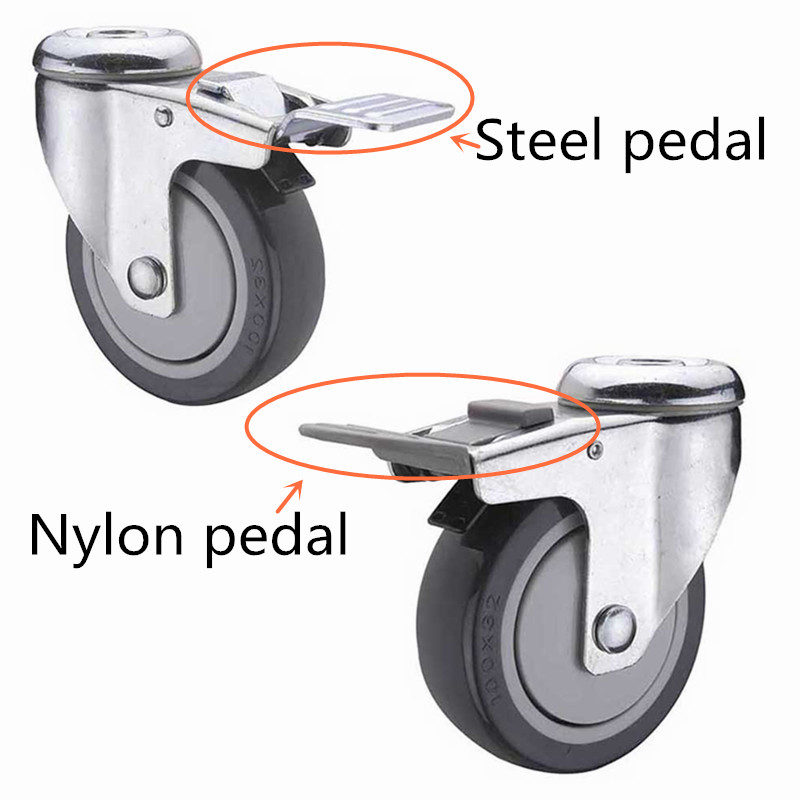

  • Steel pedal and Nylon pedal for choose
  • Total Lock brake solidly locks both the swivel and wheel, double locking is safety and convenient.

80 kg polyurethane double brake stainless steel caster

Blot hole PU caster wheels  ,apply to  for light and medium duty material handling, carts, equipment, and shop projects.
