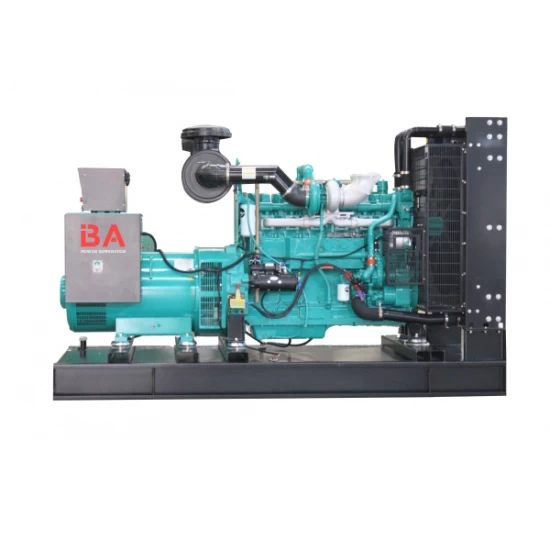

600kw to 1000kw big power generator sets adopts cummins geradores diesel coupled with leroy-somer, stamford, marathon and so on diesel generator sets as the standard supply, There are open and container silent type for options, 50hz and 60hz are available.
|
Manufacturer
|
Chongqing Cummins Engine Co., Ltd.
|
|
Model
|
KTA38-G2
|
|
Air intake way
|
Turbochanger& Aftercooler
|
|
Type
|
4 stroke cycle , Verticle In-line, 6-cylinder
|
|
Bore * Stroke
|
159*159 mm
|
|
Displacement
|
38L
|
Alternator Specifications
|
Manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Model
|
LSA49.1M65
|
|
Output power
|
600KW
|
|
Number of phase
|
3
|
|
Power factor (Cos Phi)
|
0.8
|
|
Altitude
|
≤ 1000 m
|
|
Overspeed
|
2250RPM
|

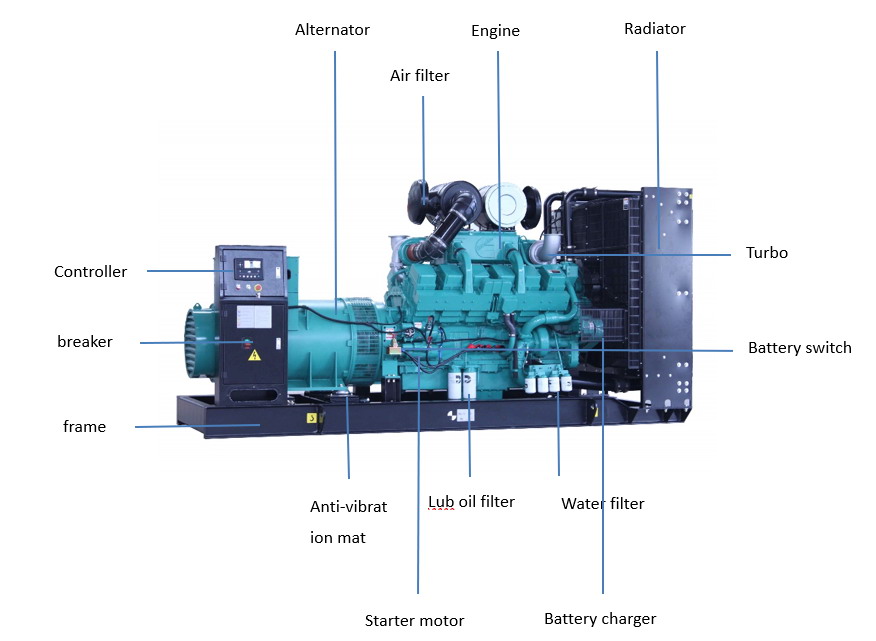

Main Features:

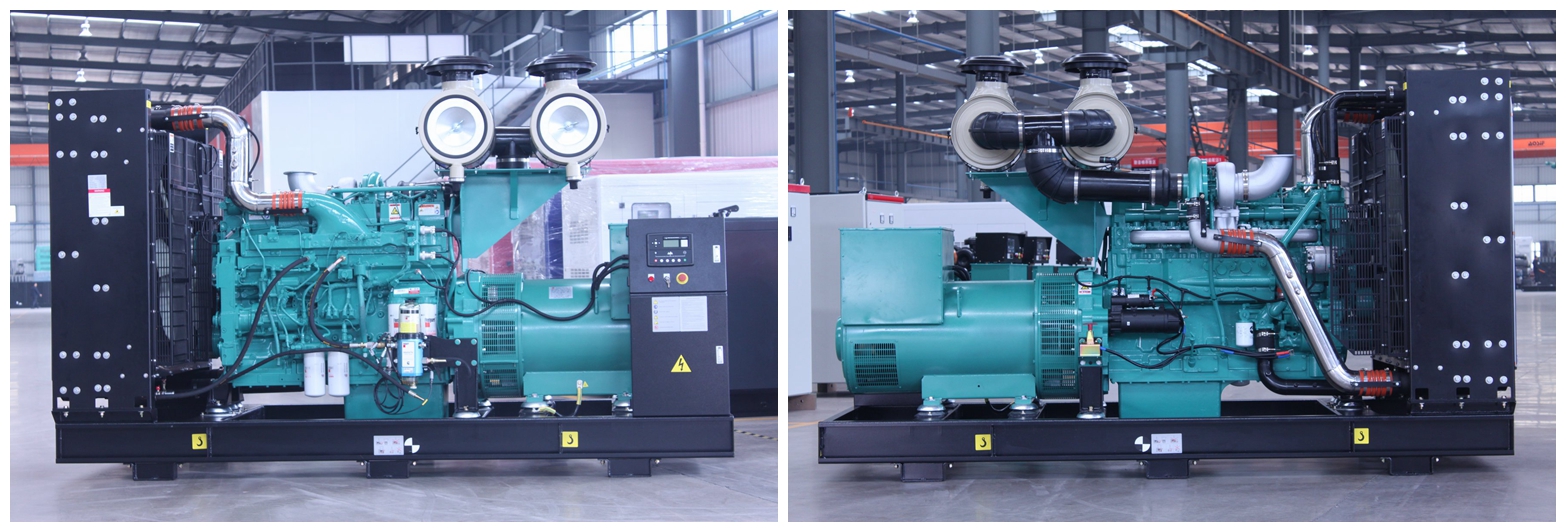

1) Assembled by Cummins diesel engine and Leroy Somer alternator.
2) Three filters as standard, fuel and water separator as optional.
3) Radiator and fan with safety guard.
4) Single bearing alternator IP 23, Insulation Class H.
5) Heavy duty steel as base frame and 8hrs operation base fuel tank.
6)Automatic control panel and 3 poles circuit breaker, internal cable.

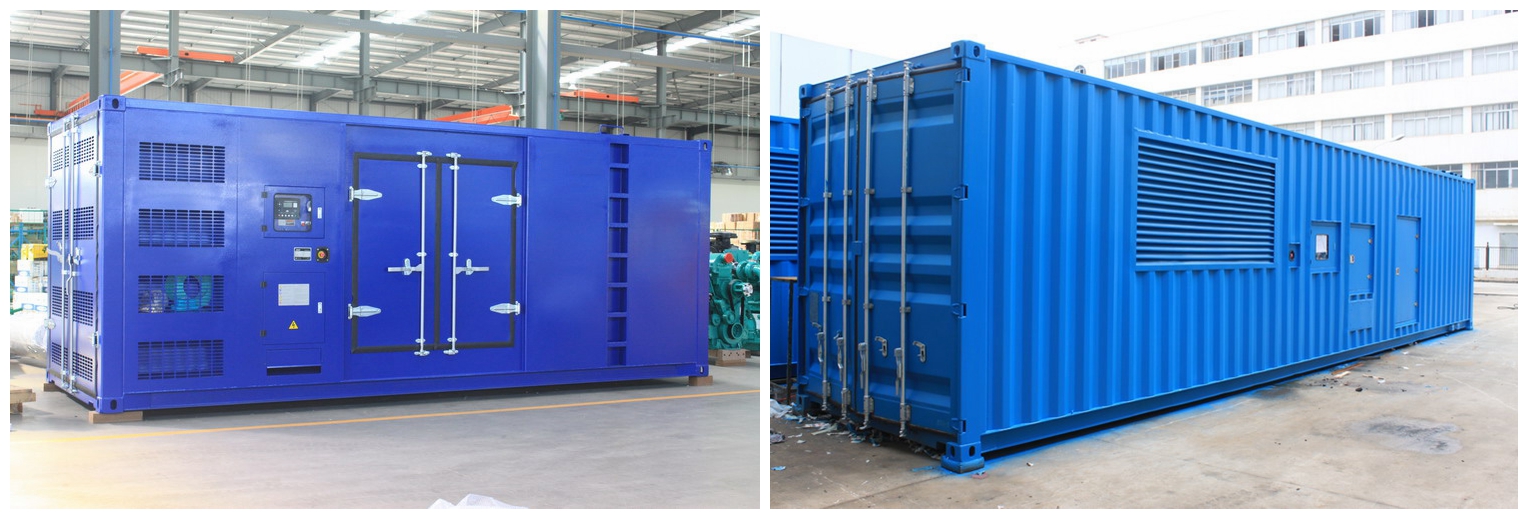

7)Optional soundproof canopy, ATS, synchronization panel, movable trailers.
★Guarantee to respond customers' requirement within 24 hours and solve clients' problem within the shortest period of time.
★On the basis of in-house service network, service resources from global partners could be shared to ensure international warranty service.
★Established spare parts management system and with automatic storage to satisfy clients' demand on spare parts.
★Services for remote monitor, diagnosis and maintenance.
★According to customer's requirement, we are able to establish service center at project site to provide service around the clock.
