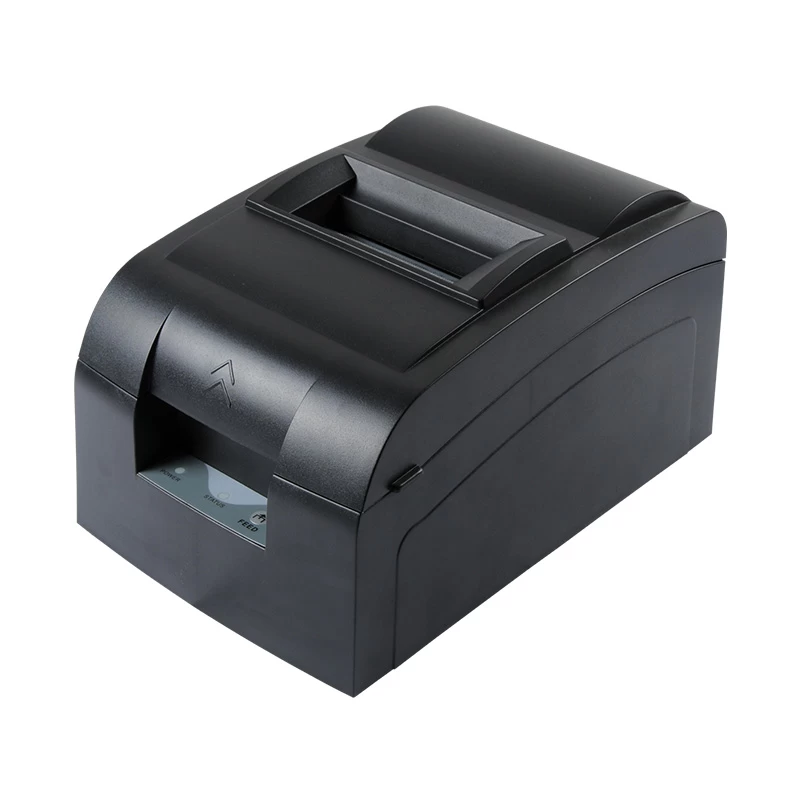

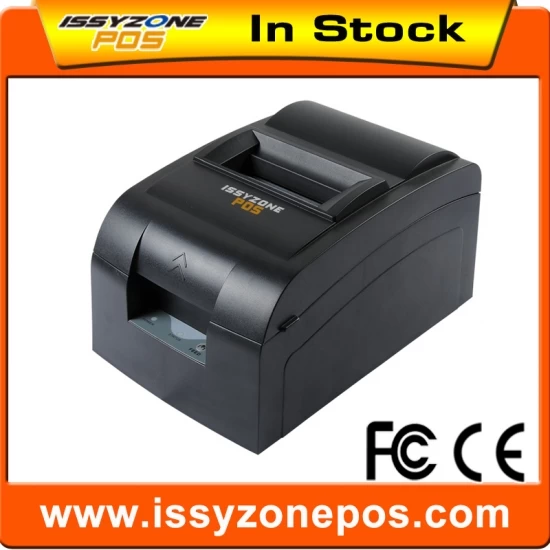

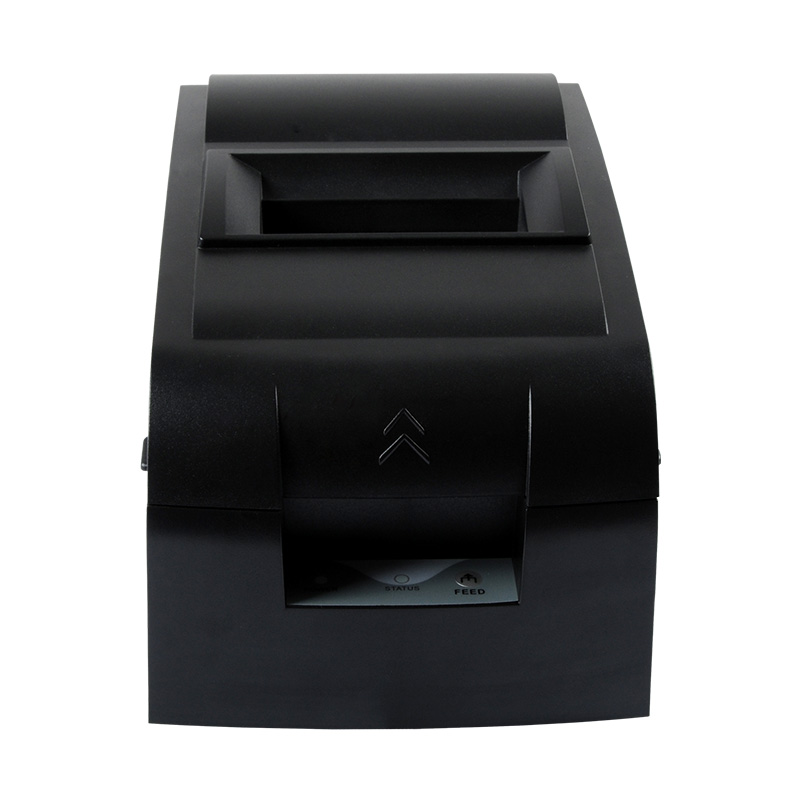

76mm Dot Matrix Printer Paper Ethernet IDMP008

Printing

Printing method

9-Pin serial impact dot-matrix printing

Print width

63.5mm

Column capacity

400 dots/line

Printing speed

4.5 line/s

Interface

Parallel/Serial/USB/Lan

Printing paper

75.5±0.5mm×φ80mm(max)

Line spacing

4.23mm (Adjustable by commands)

Column number

76mm paper: Font A - 32 columns /Font B - 42 columns / Chinese,traditional Chinese - 16 columns

Character size

ANK，Font A: 1.6×3.1mm（9×9 dots） Font B: 1.2×3.1mm（7×9 dots）Chinese,traditional Chinese: 2.7×2.7mm（16×16 dots）

Cutter

Auto cutter

Full or partial ( Optional)

Character

Extension character

PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）

sheet

Power

Power adaptor

Input：AC 110V/220V, 50～60Hz

Power source

Output：DC 24V/2.5A

Cash drawer output

DC 24V/1A

Physical characteristics

Weight

1.28 KG

Dimensions

220×150×140mm (D×W×H)

Environmental Requirements

Work environment

Temperature (0～45)  humidity(10～80%)

Storage environment

Temperature(-10～60℃) humidity(10～80%)

Reliability

Cutter life

1million cuts

Printer head life

10 Million Lines
