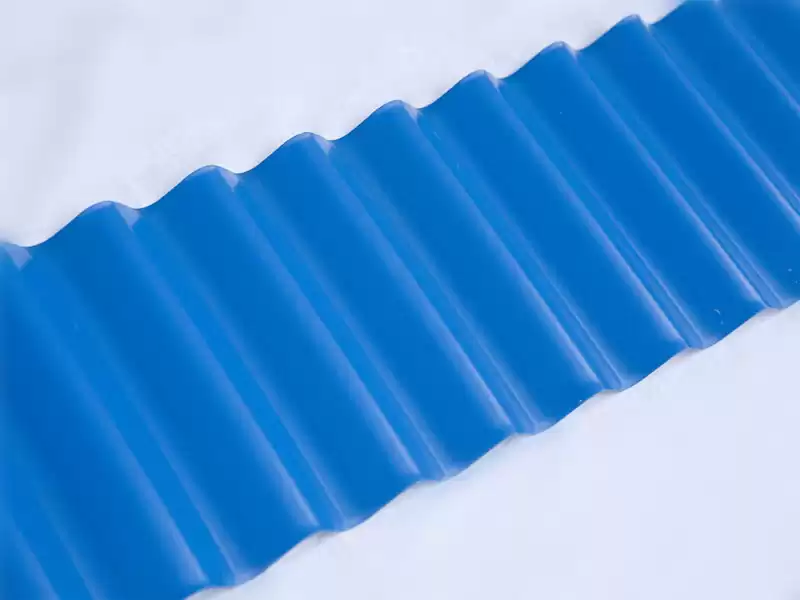

780 Big Wave Wall Panel Corrugated Steel Wall Sheets
Product Parameters:
|
Product Name
|
780 Big Wave Wall Panel Corrugated Steel Wall Sheets
|
|

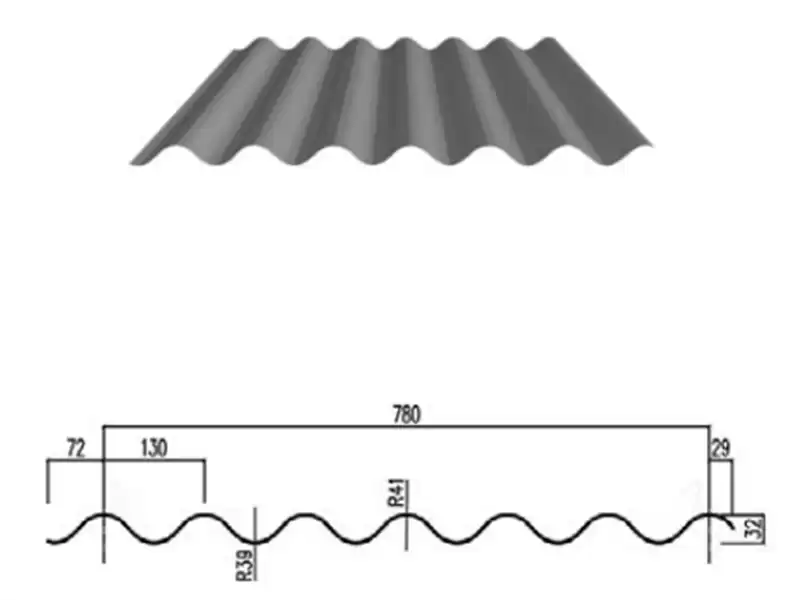

Profiled Steel Sheets Type
|
WAV780
|
|
Effective Width
|
780mm
|
|
Feeding Width
|
1000mm
|
|
Crest Height
|
32mm
|
|
Panel Thickness
|
0.5-0.6mm
|
|
Section Inertia
|
7.2-8.64cm⁴/m
|
|
Section Resistance
|
4.64-5.55cm³/m
|
Product Advantages:
1.The wall pattern is parallel to the eyes, which is ergonomic and comfortable.
2.The beautiful large circular corrugated gold curve, producing excellent light and shadow effects.
3.The exquisite and close to the seam to make the building facade more atmospheric.
4.Excellent coated metal plates and precision accessories make the wall more texture and tension, giving the wall a stronger artistic sense.
