Product Name
790-870MHz High Gain 9dBi Panel Antenna
Product Features
◆with Wide Frequency Band 790-870MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Gain with 9dBi
◆ Widely used for In-building Solutions
Panel Antenna Operates From 790 MHz to 870 MHz With a Nominal 9 dBi Gain N Female Input Connector
Antenna from Maniron is featured in our extensive in-stock radio frequency omni directional antenna selection.It has a frequency range of and 9 dBi gain
Technical &Mechanical Specifications
|
Model No.
|
MNA-7987V9i65A
|
|
Freq(MHz)
|
790- 870MHz
|
|
Polarization
|
±45°
|
|
Antenna Structure
|
2 Ports
|
|
Gain
|
9dBi
|
|
Beamwidth
|
H: 65±10° / V: 55±10°
|
|
VSWR
|
≤1.7：1
|
|
Impedance- Ω
|
50
|
|
Inter-Port Isolation
|
＞25dB
|
|
Maximum Input Powe
|
50W
|

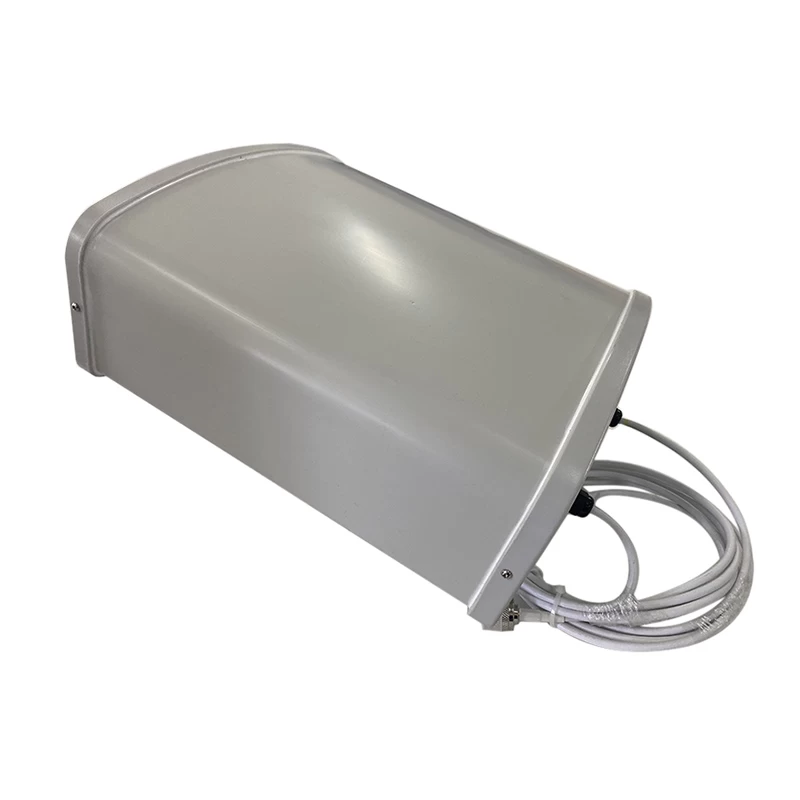

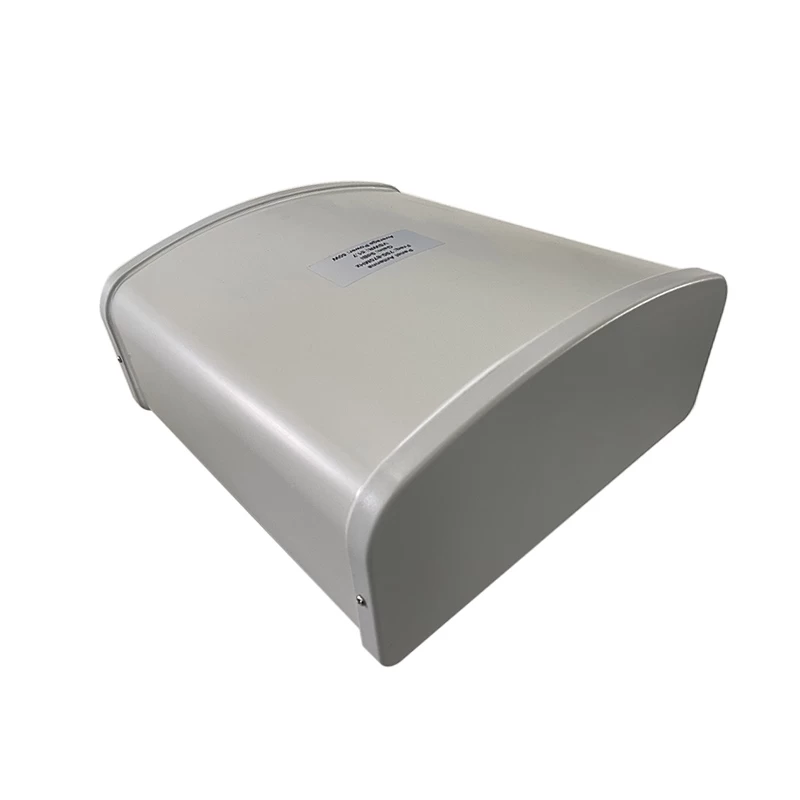

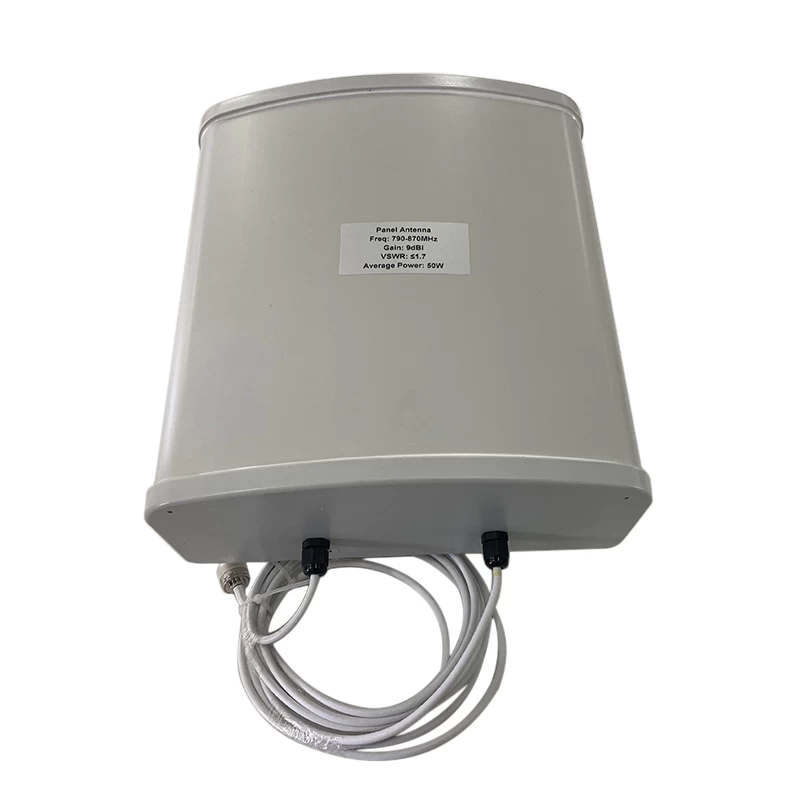

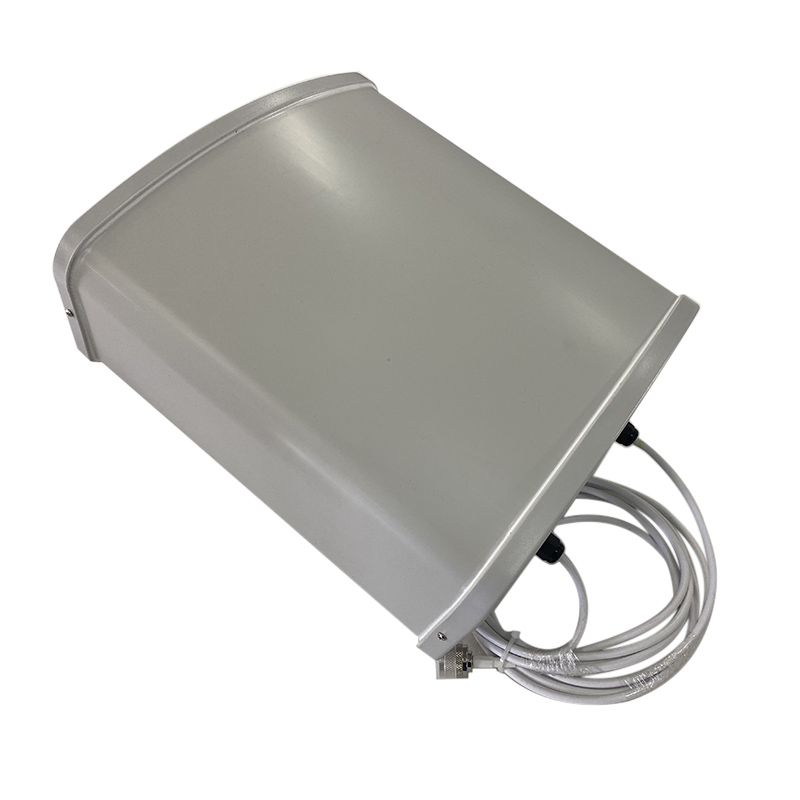

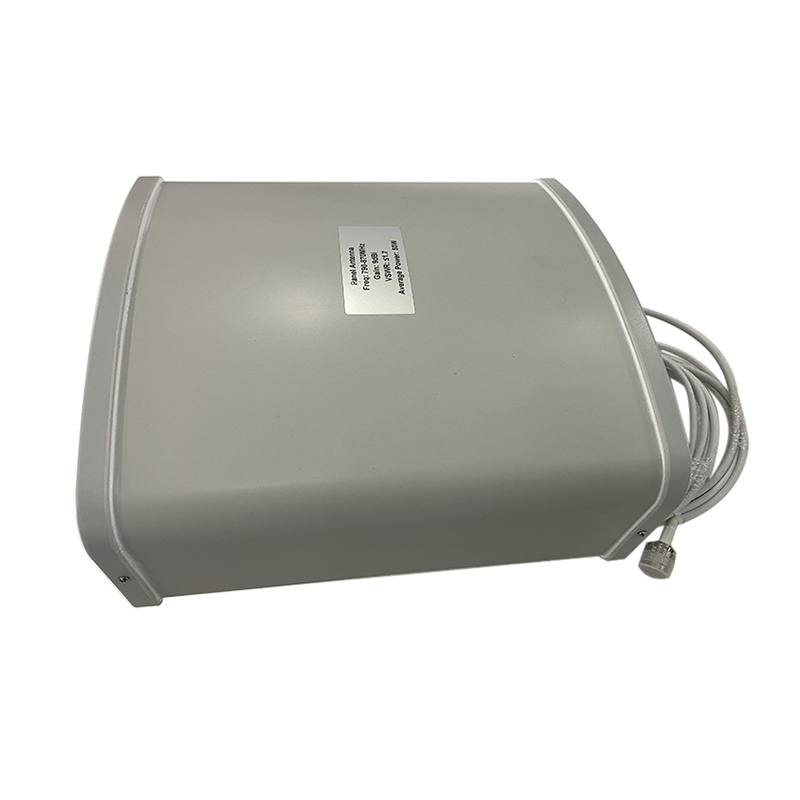

Products Pictures
