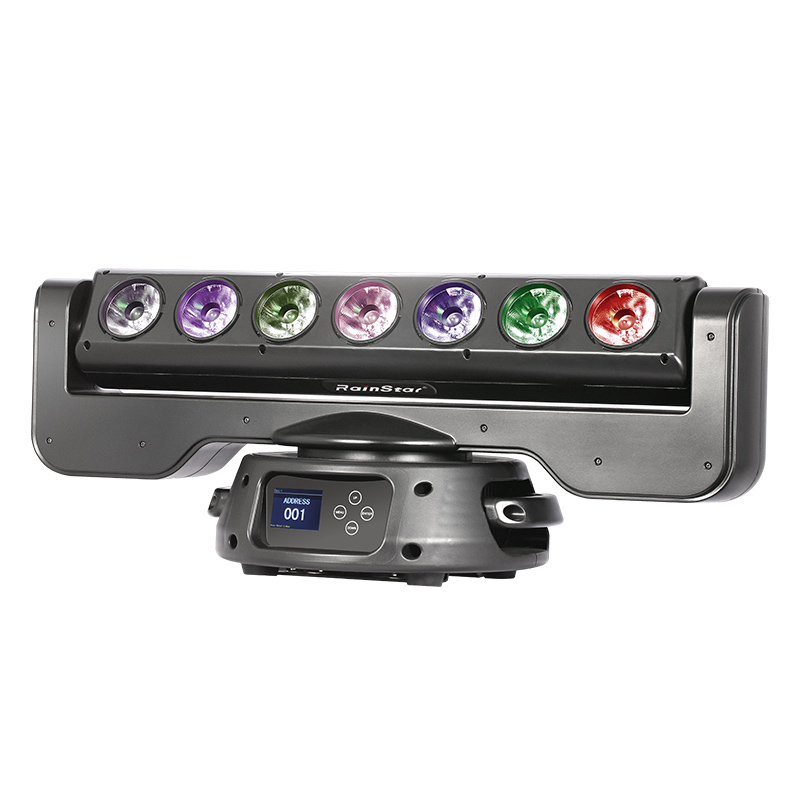

7X40W Pixel LED Bar Beam Moving Head Light

Pixel LED Bar Beam Moving Head Light.It follow DMX&Artnet control protocol and uses 7x40W RGBW LEDs.And can work infinite rotation at Pan / tilt and 7pcs of LEDs individually controlled




It is a brand new design with a unique appearance. Pan / tilt rotation is universal, using 7x40W RGBW 4 in1 LEDs, with high precision 54 diameter 5 degree lens. Makes the color of light truly consistent. On the stage, the light intensity of LCA035 fills the stage with light. Compact design, very suitable for unique location installation, plus 7 class RGBW light sources can be controlled individually, making it reflect a unique effect. A 32-bit circuit board is used to control the single point control of each LED and horizontal and vertical use of high-precision, fast-response three-phase motors. The control method uses DMX512 and Artnet. Easy to connect.

  Optics

. LED : 7x40W 4 in 1 RGBW LED, uniform and delicate color mixing effect

. Beam angle: 4 °

. Excellent color mixing effect and rainbow effect

. Life Span: 50000H, low power consumption, energy saving and environmental protection


  Scanning

. Pan / tilt operation:

                             ※ 8bit and 16bit fine-tuning

                             ※ Smooth and precise positioning

                             ※ Pan: 540 ° tilt  220 ° rotation

                             ※ The scanning position can be memorized, and it will be reset automatically after no expected operation.

                             ※ Pan and tilt with error correction function


  Colour

. Uniform RGBW color mixing system and rainbow effect

. White balance can be adjusted manually

. LED can be controlled by a single piece to create a more gorgeous chasing effect

Lighting Effect For 7x40W LED Bar Beam Moving Head Light


  Specification

. 3 DMX channel modes: 18CH (Basic mode) / 20CH (Stand mode) / 44CH (Extend mode)

. international standard DMX512 channels

. 4 control modes: DMX512, Artnet, voice control, master-slave

. Spot angle: 4 °

. 0-20HZ strobe, pulse strobe, random strobe effect

. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time


  Display

. 2.4-inch TFT color display

. High anti-interference four-button touch button

. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.


  Software

. Software update :Update via DMX link

. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time

. LED refresh frequency: 3000Hz

. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer


  Other functions

. Setting and addressing: RDM

. RJ45 input and output

. Fan cooling (fan changes speed with temperature change)

. LED temperature detection system to protect the life of lamp beads


  Power /DMX connection

. Power connection: PowerCON power line input and output

. DMX XLR socket: 3 Pin XLR socket  input, output


  Power

. AC100-240V 50 / 60HZ

. Power consumption : 380W


  Protection class

. Housing  material: ABS plastic fireproof material

. Waterproof level: IP20


  Working environment

. Indoor working temperature: -20 ° C~+ 40 ° C


  Size and weight

. Packing size: 935x370x360mm

. Net weight: 17KG

. Gross weight: 20KG


  Certificate:

. CE, ROHS
