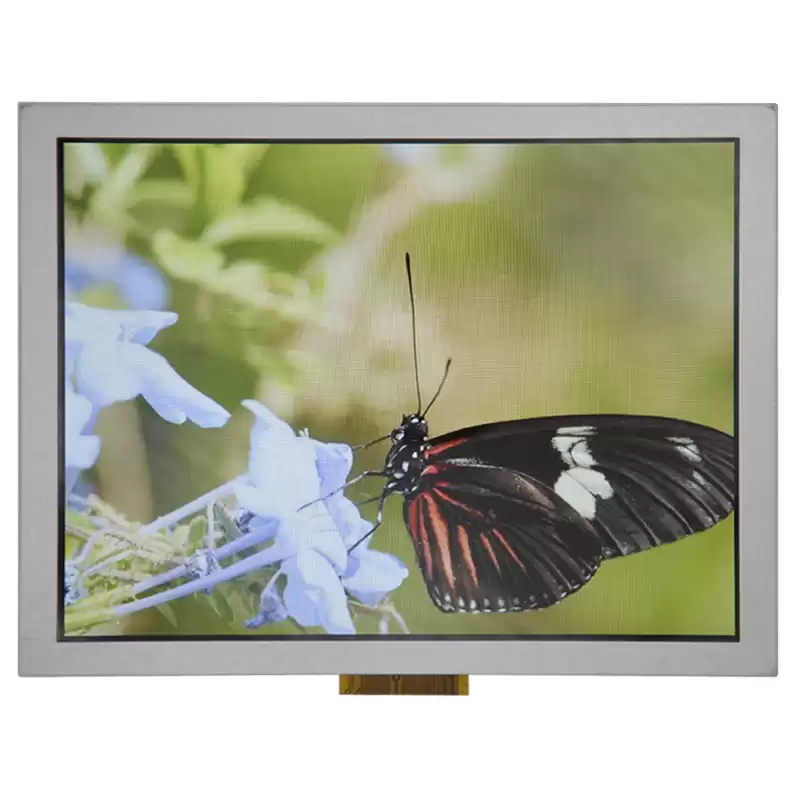

8.0 Inch IPS 1024(RGB)*768 LCD module with 500 nits brightness and a RTP, or a PCAP

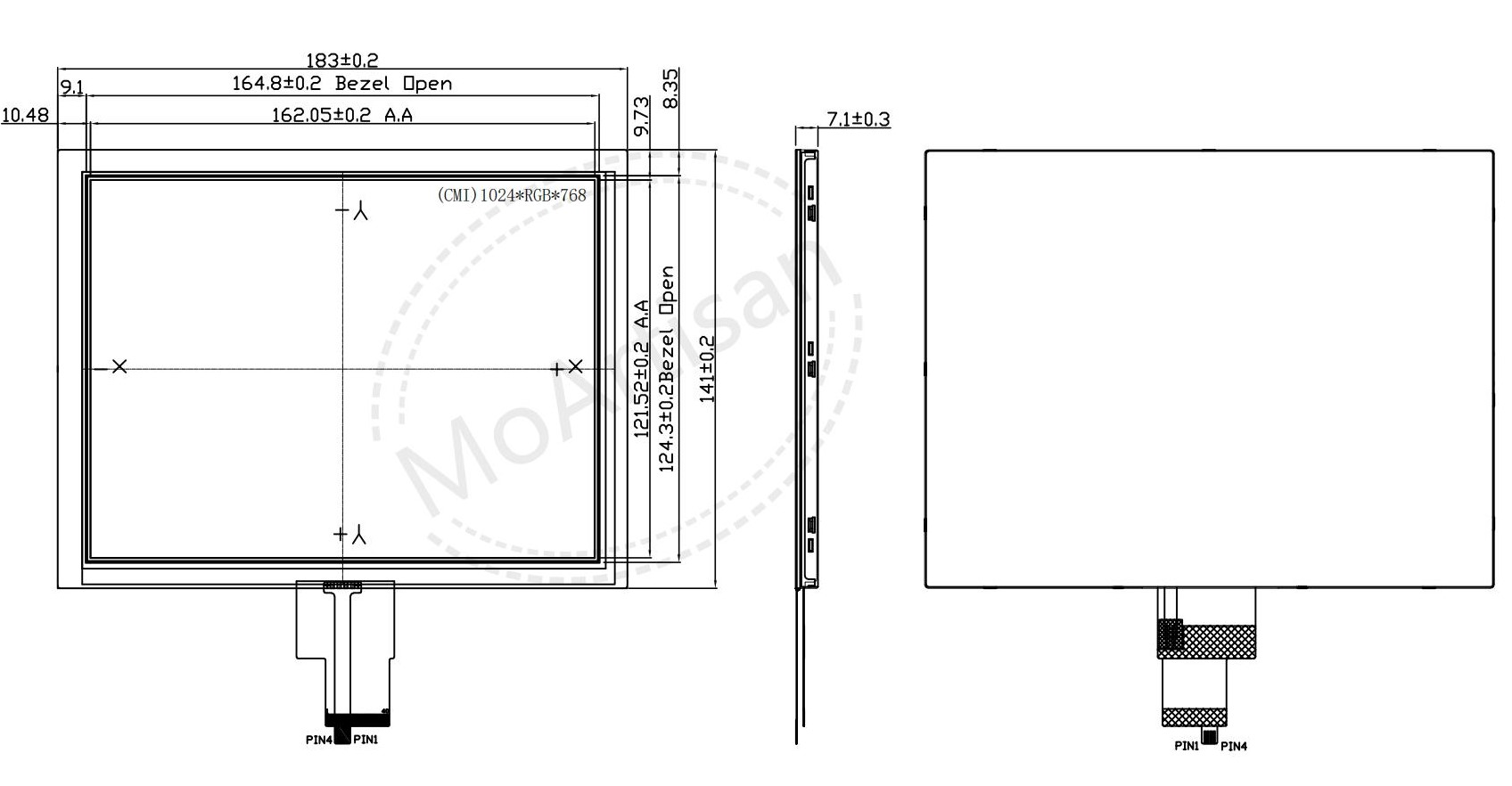

Production Drawings
WM080MR012XG-C Introduction
-
8.0 (4:3) inch
diagonally measured active display area.
-
XGA (1024 horizontal by 768 vertical pixel) resolution.
-
8.0 inch IPS XGA LCD module with 500 nits brightness.
-
This lcm is assemble a RTP module by frame bonding with double-sided adhesive.
-

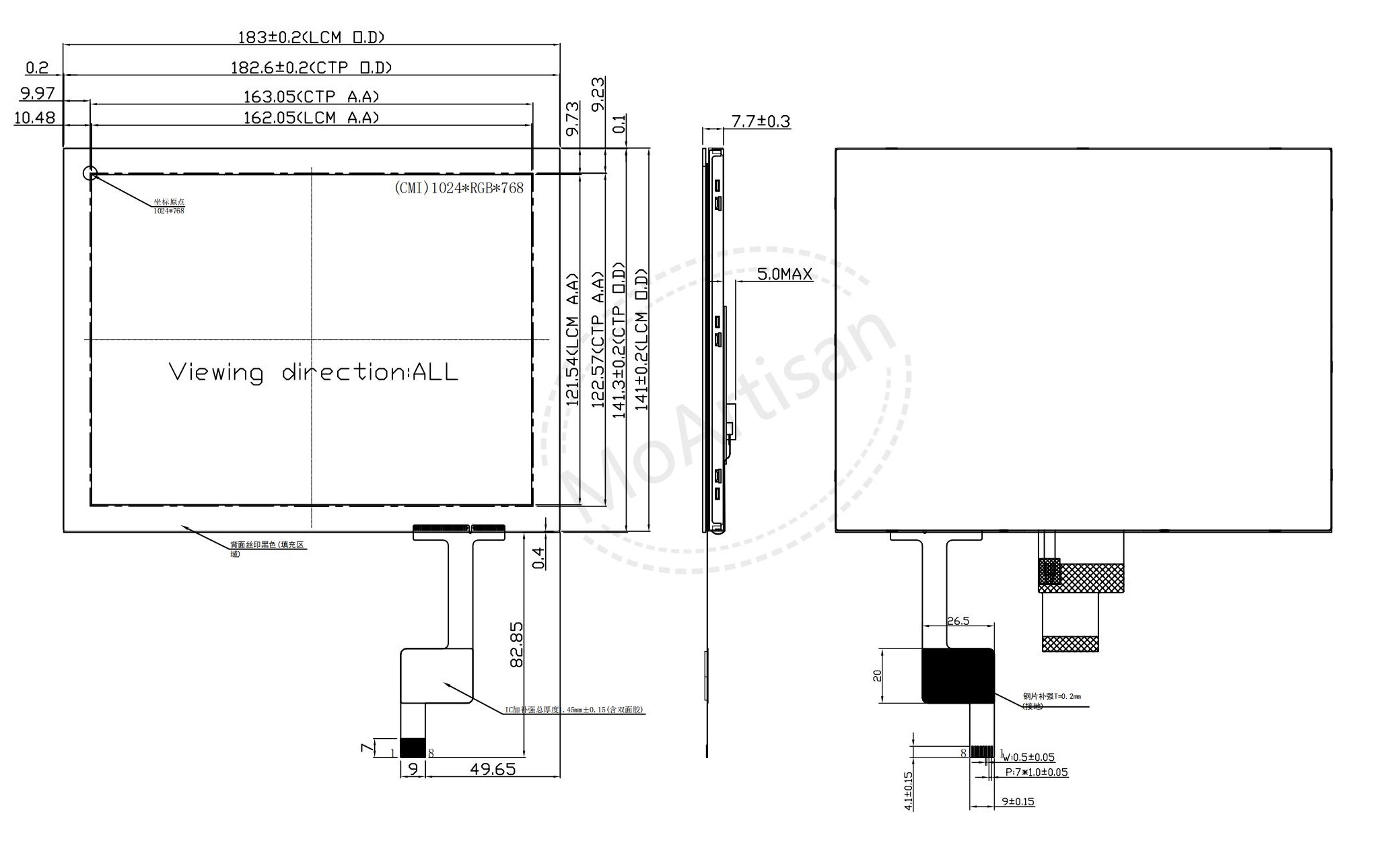

WM080MC012XG-C, this lcd module is optically bonded a PCAP module with OCA.
-
Operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
8.0
|
XGA, 1024RGB*768, IPS, 4:3 screen, RTP.
or a PCAP.
|
183*141*6.8
|
11X3 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS
|
500 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM080MR012WV-C
WM080MC012XG-C
|
Production Applications
Industrial appliance, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for sample: 3~4
weeks.
Notes:
This is one of main line of goods.
The LCM can be used for industrial and military,designed and selected materials for high reliability and long life.
