Concrete mixer truck up body is also known as cement mixer truck super structure, concrete mixer lorry super structure, mainly used to transporting cement from concrete batching plant to construction site.For the construction place which has
limited height and width requirements for the vehicle, small concrete
mixer trucks (2m³ to 6 m³) that are perfect for the demands. Beside,
our beiben 10 CBM mixer trucks and beiben 14 CBM transit mixer are widely export Africa countries for building construction project.

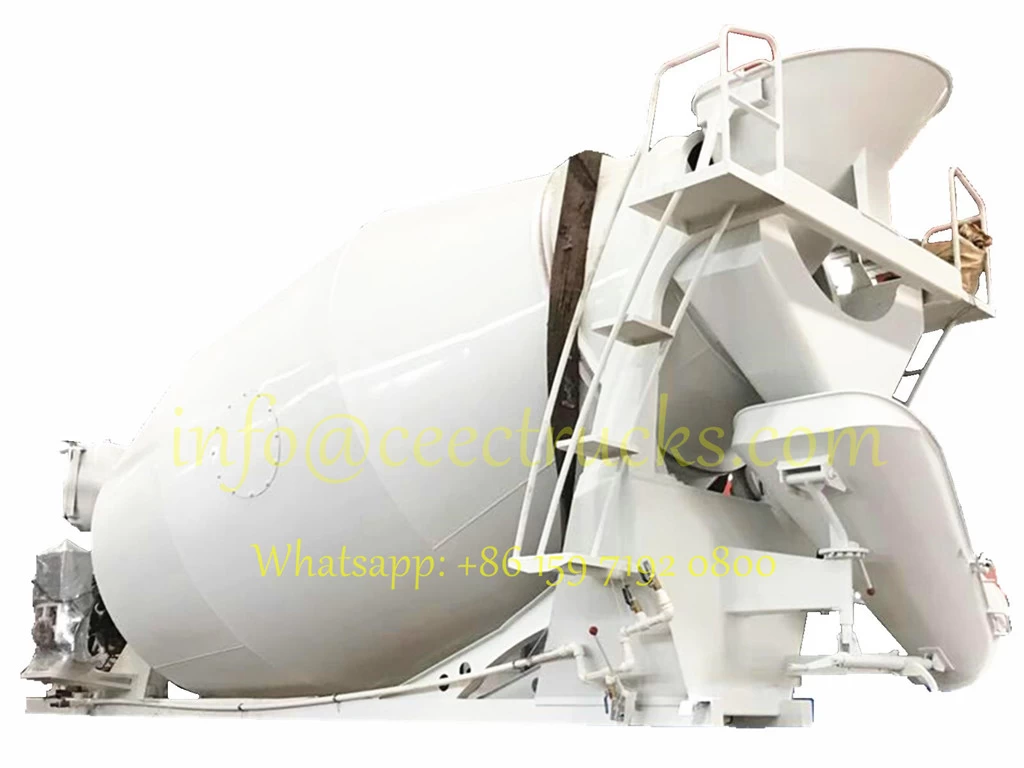

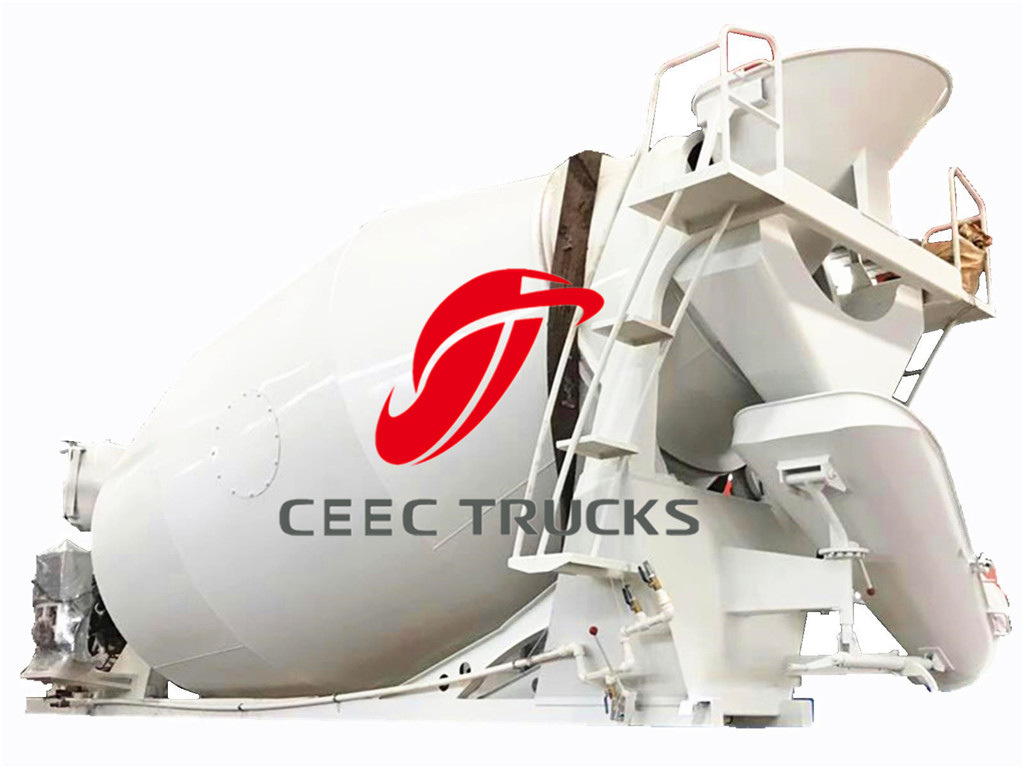

Kenya 8CBM Concrete Mixer Tanker Up-Body
Why Kenya customer prefer to choose CEEC TRUCKS produced 8CBM cement tanker up body?
1. Easily handled truck chassis
Famous truck chassis brands such as Beiben, ISUZU, Dongfeng, Howo, Foton, JAC and so on. Those special purpose chassis is specially developed for rural market, even narrow country road can be easily handled. As for special requirement, we can only supply 4-16cbm cement tanker up body based on customer chassis CAD drawing.
2. Stable mixer truck and high loading capacity
High strength steel plate, enhance vehicle loading capacity, ensure the mixer truck with high stability.
3. Optimized designs
Optimized design of concrete mixing tank, improve loading ability, mixing on average without separation.
4. Wear-resisting mixing blade and great mixing performance
Mixing blade with varying pitches design, and simplifies the feeding device; ensure the speed faster and mixing performance better. And the blade has unique wear-resisting protection structure, improving blade service life largely.
5. Lower mixing drum, safe driving
The angle of the mixing drum lower than same profession, effectively reduce the gravity of vehicles, improve the driving safety.
Advanced features for CEEC supply concrete mixer truck super structure:
transit
mixer, concrete transport truck, construction vehicle, mixer truck,
cement mixer, cement mixer truck, concrete mixer truck, mixer truck,
volumetric mixer truck, agitator truck
| Truck |
Drive mode |
6×4 |
6×4 |
8×4 |
| Recommend Chassis |
DFL5250GJBA |
DFL5250GJBA |
DFL5250GJBA |
| Engine |
Model |
Cummins L340 30 |
Cummins L340 30 |
CumminsL375 30 |
| Type |
6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR |
6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR |
6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR |
| Max. power(Kw/rpm) |
250/2200 |
250/2200 |
276/2200 |
| Max. torque(N.m/rpm) |
1350/1400 |
1350/1400 |
1480/1400 |
| Displacement(ml) |
8900 |
8900 |
8900 |
| Type of fuel |
Diesel |
Diesel |
8900 |
| Compression ratio |
(16.6±0.5):1 |
(16.6±0.5):1 |
(16.6±0.5):1 |
| Cab |
D310-S1 |
single berth |
single berth |
(16.6±0.5):1 |
| Gearbox |
Model |
9JS150T-B |
9JS150T-B |
9JS150T-B |
| Max.torque(N.m) |
1500 |
1500 |
|
| Clutch |
Φ430mm |
diaphragm spring clutch |
diaphragm spring clutch |
diaphragm spring clutch |
| Tyre |
Size |
11.00-20 |
11.00-20 |
12.00-20 |
| Dimensions |
Overall dimension (mm) |
8840×2500×3930 |
8940×2500×3930 |
10955×2500×3994 |
| Wheel base (mm) |
3650+1350 |
3650+1350 |
1850+3400+1350 |
| Front/Rear tread(mm) |
1986/1860 |
1986/1860 |
1850+3400+1350 |
| Appr./Depa. angel (°) |
30/18 |
30/18 |
25/20 |
| Min. ground cleanrance(mm) |
250 |
250 |
250 |
| Mass |
Payload(Kg) |
11870 |
11870 |
16565 |
| Curb weight(Kg) |
13000 |
13000 |
14305 |
| G.V.W(Kg) |
25000 |
25000 |
31000 |
| Performance |
Max. speed(Km/h) |
80 |
80 |
85 |
| Max. gradeability(%) |
40 |
40 |
40 |
| Min. turning diameter(m) |
23 |
23 |
20 |
| Fuel consumption(L/100Km) |
36 |
36 |
38 |
| High Performance Special function |
Mixing capacity(m³) |
8 |
9 |
14 |
| Angel of inclination of mixing drum(°) |
13.5 |
13 |
13 |
| Geometric volume(m³) |
13.4 |
14.3 |
19.2 |
| Filling ratio(%) |
58.01 |
58 |
58 |
| Feeding speed(m³/min) |
≥3 |
≥3 |
≥3 |
| Discharge speed(m³/min) |
≥2 |
≥2 |
≥2 |
| Residual ratio(%) |
＜0.7 |
＜0.8 |
＜0.8 |
| Collapsed degree range(mm) |
40-230 |
40-230 |
40-230 |
| Hydraulic pump |
PV089, Italy |
MA4VG90, Italy |
MA4VG90, Italy |
| Hydraulic motor |
MF089, Italy |
MF090W, Italy |
MF090W, Italy |
| Decelerator |
6SP, Italy |
577L3131AX1A, Italy |
577L3131AX1A, Italy |

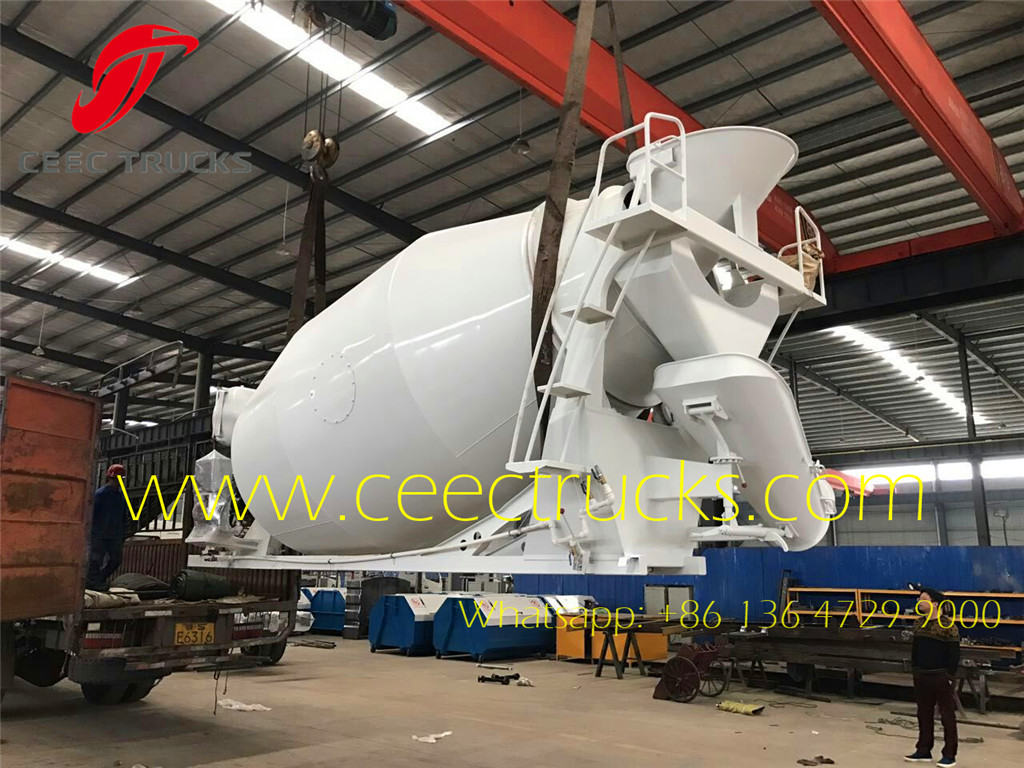

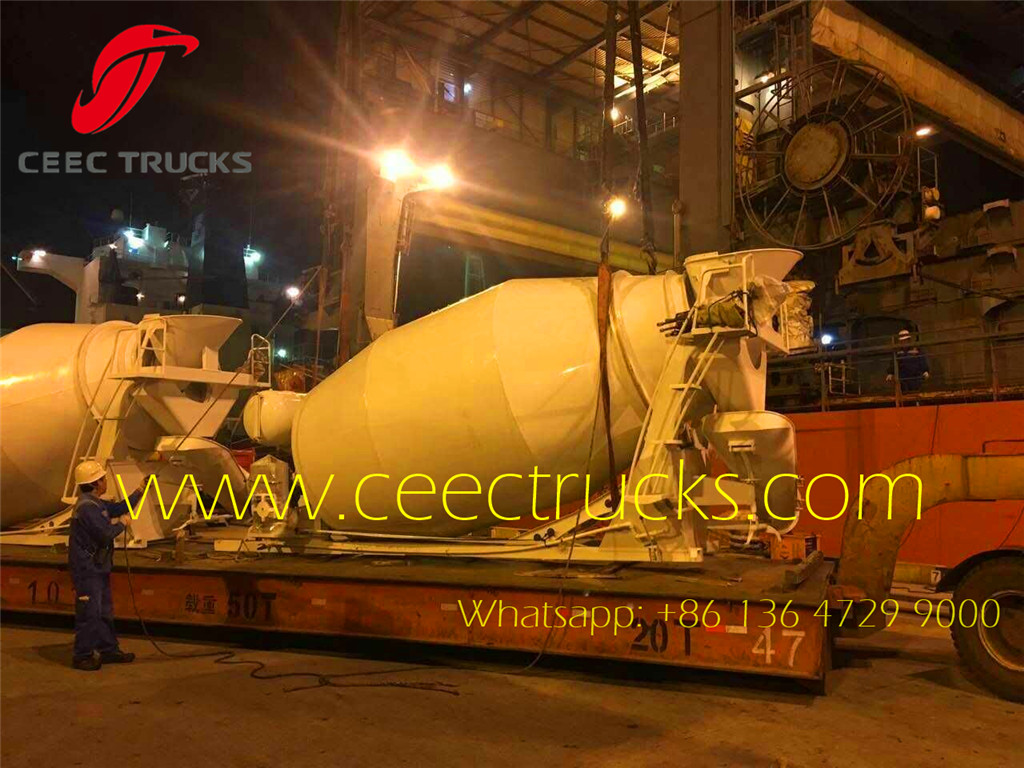

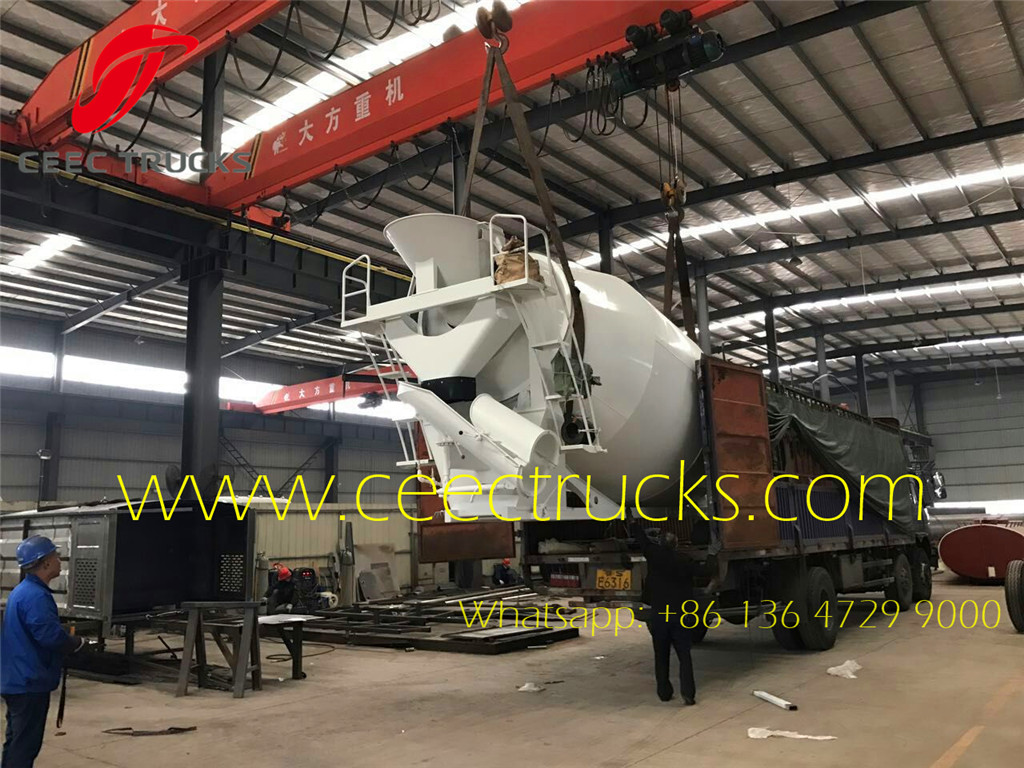

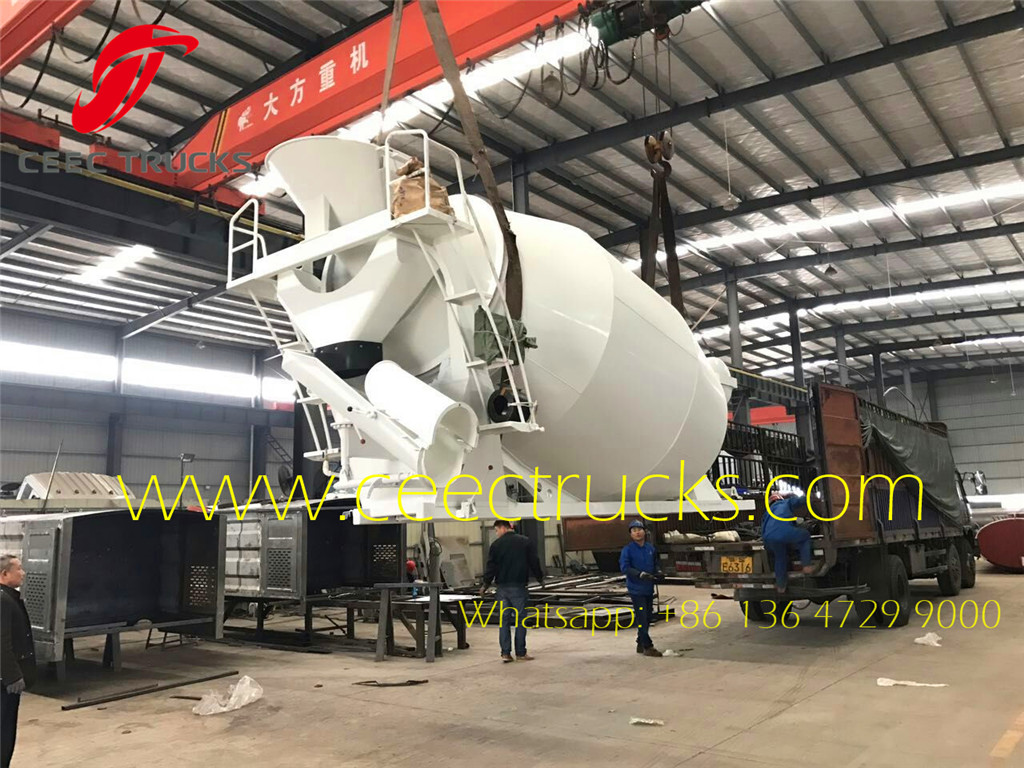

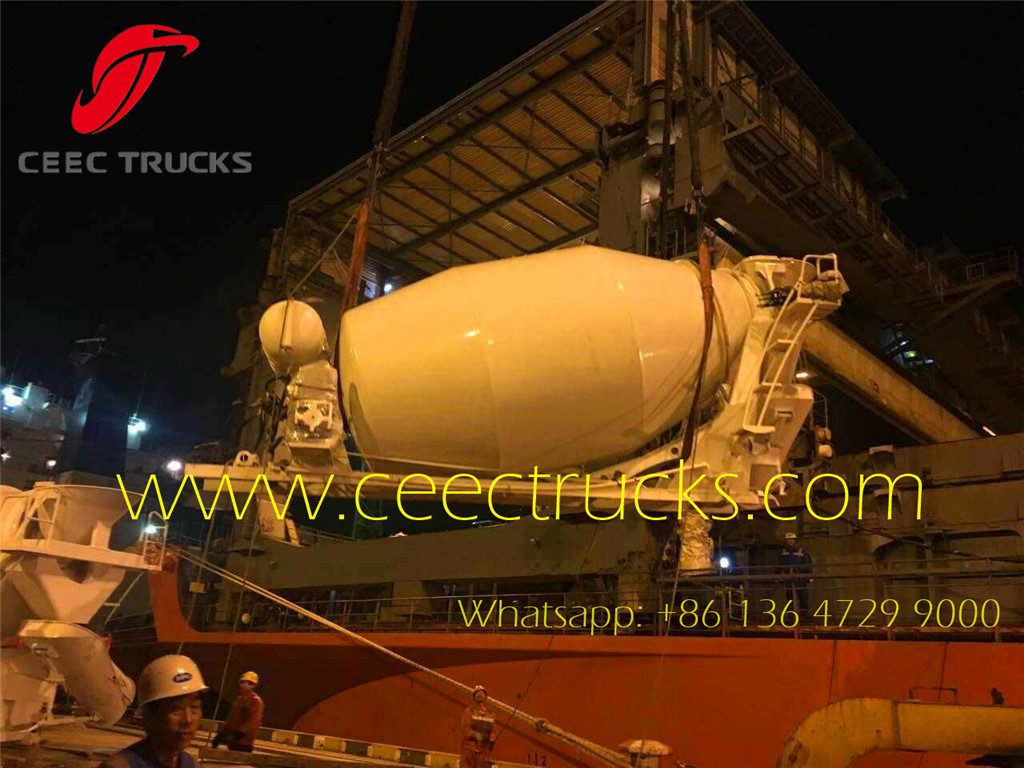

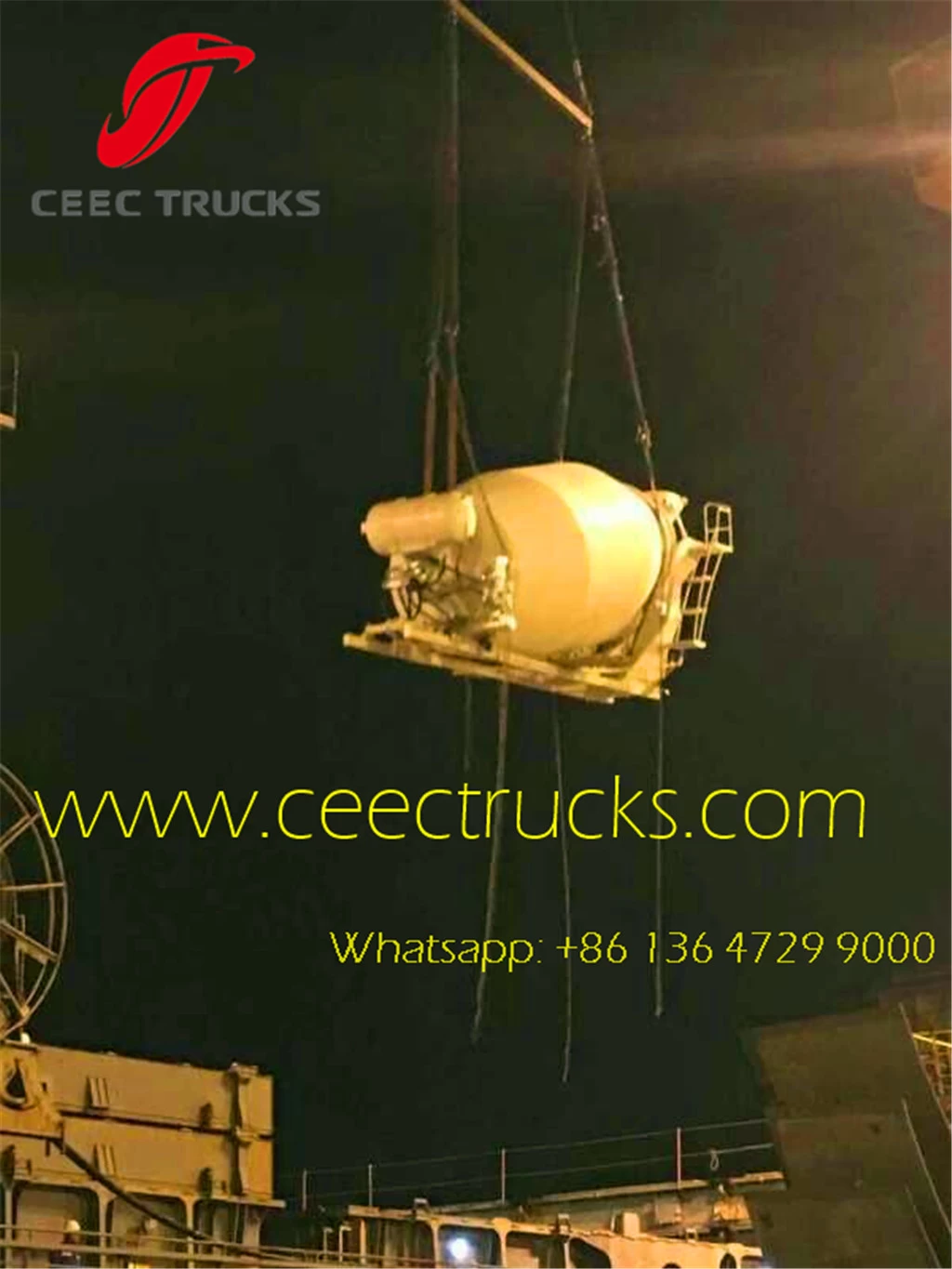

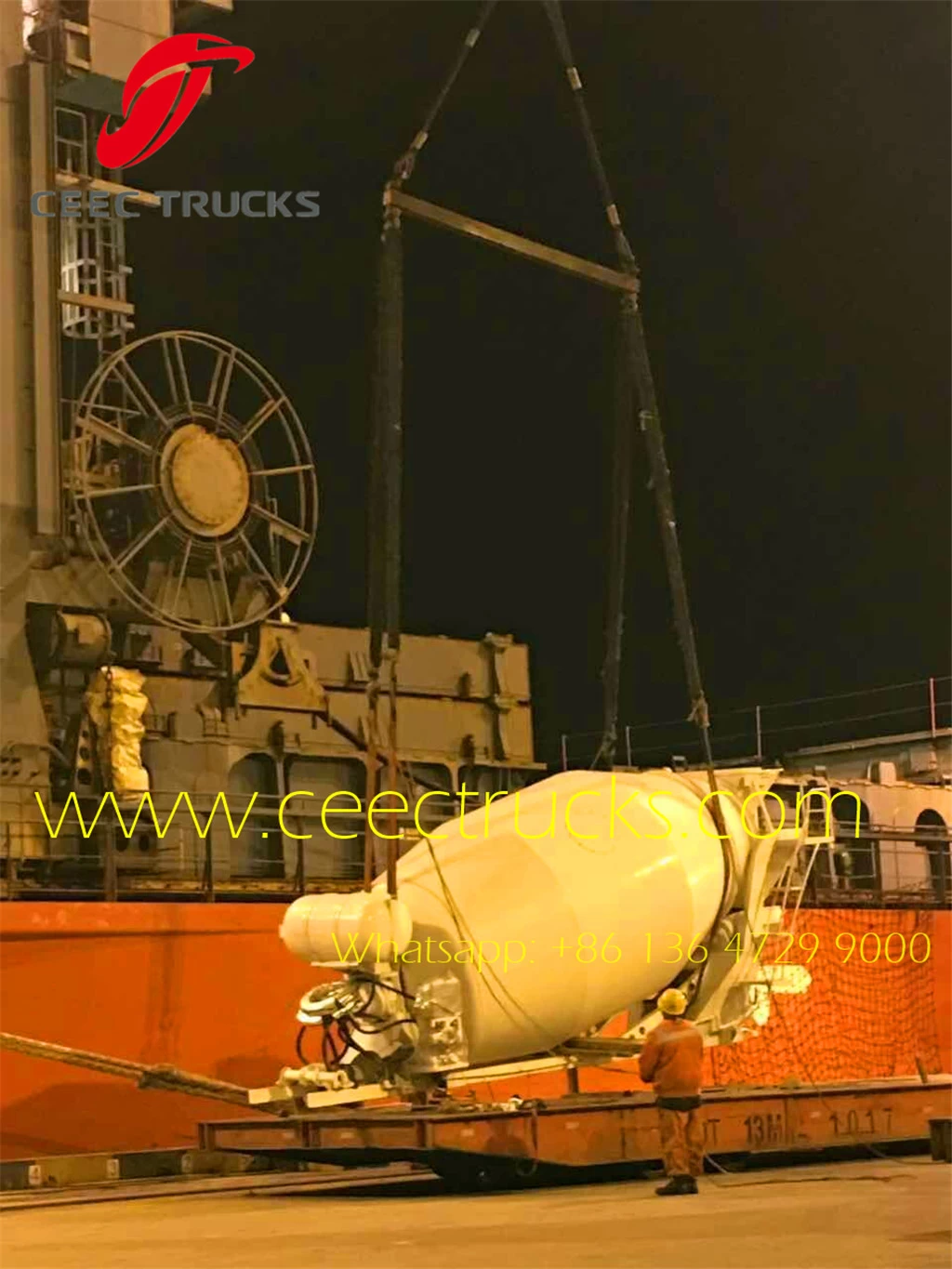

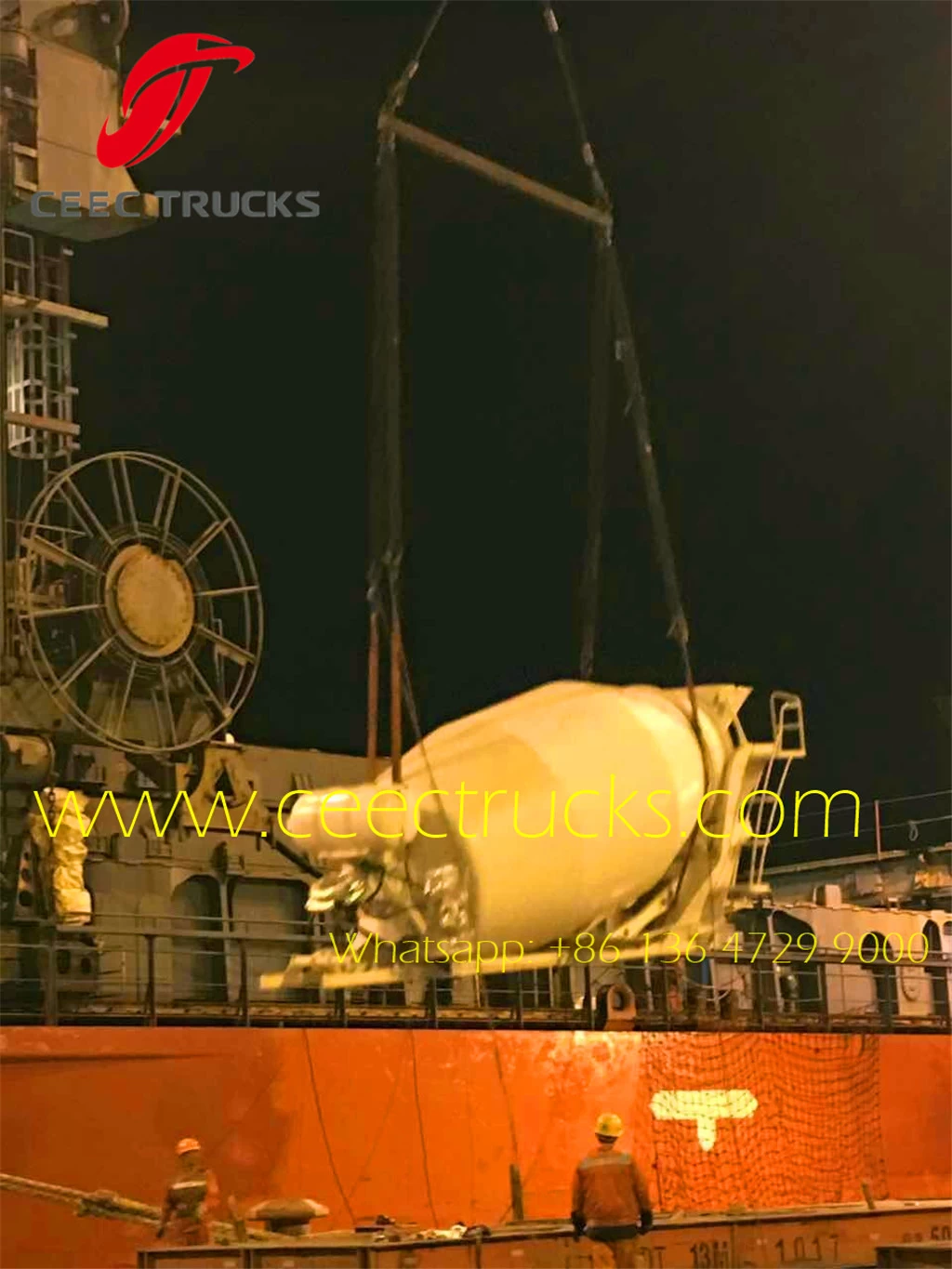

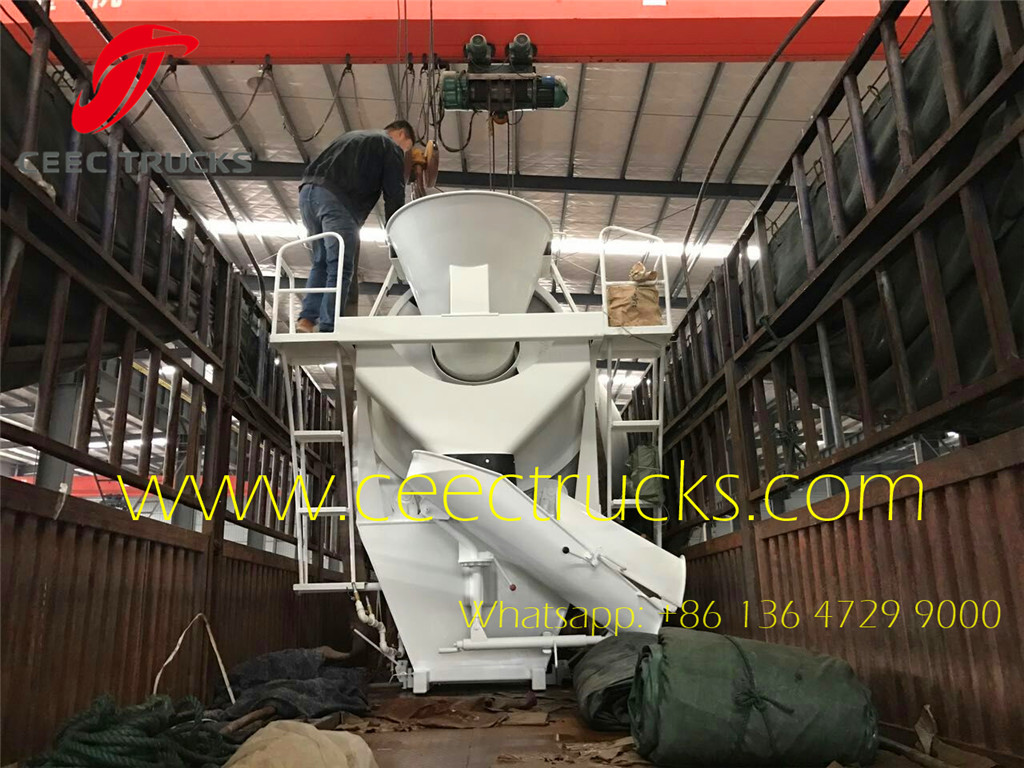

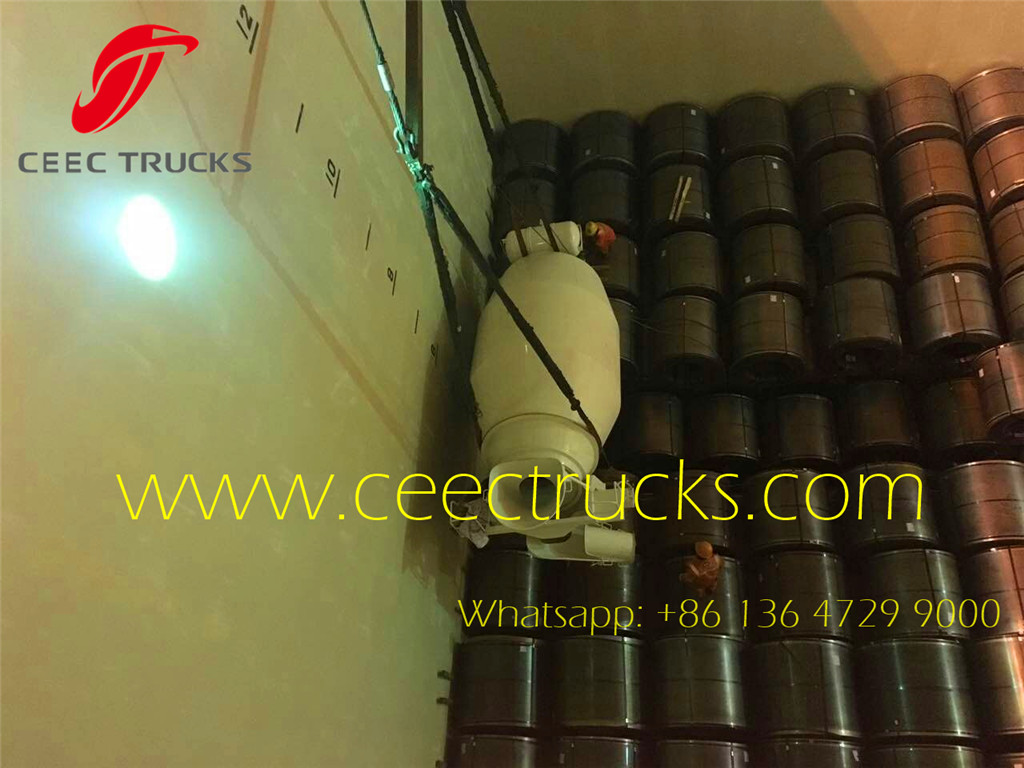

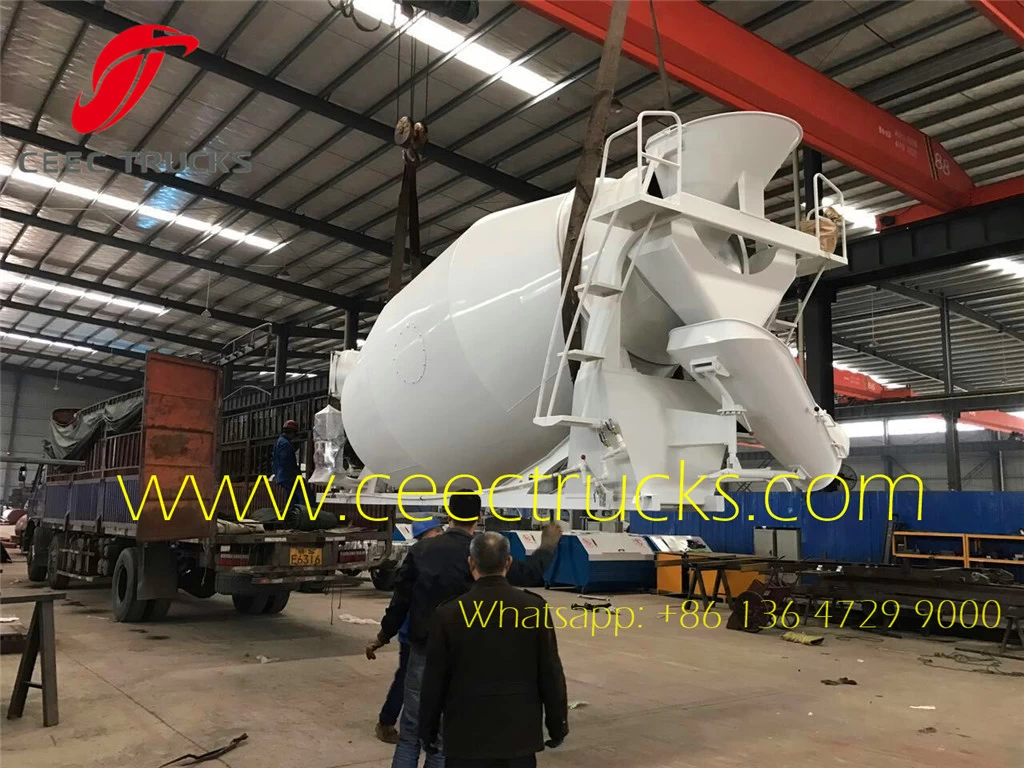

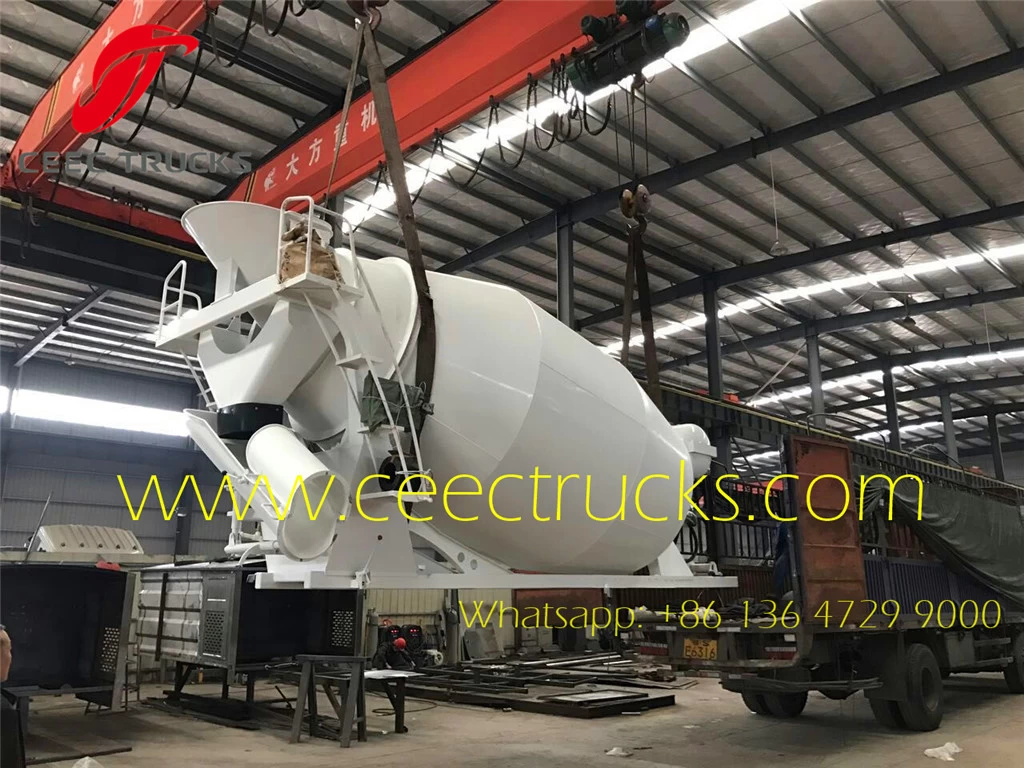

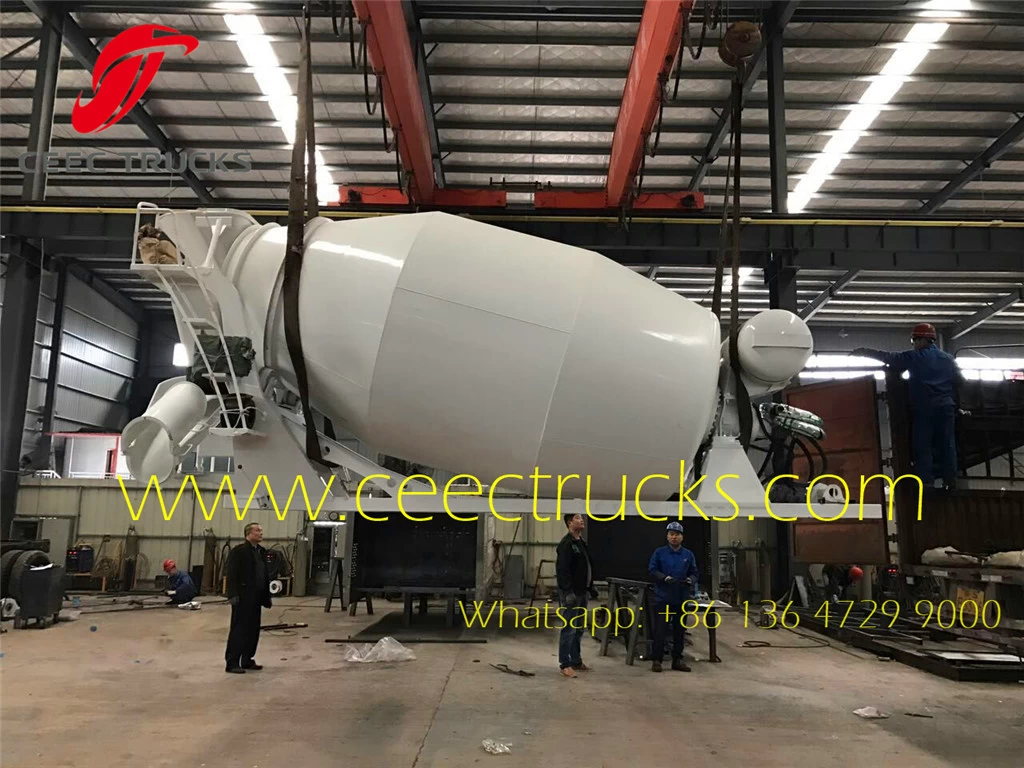

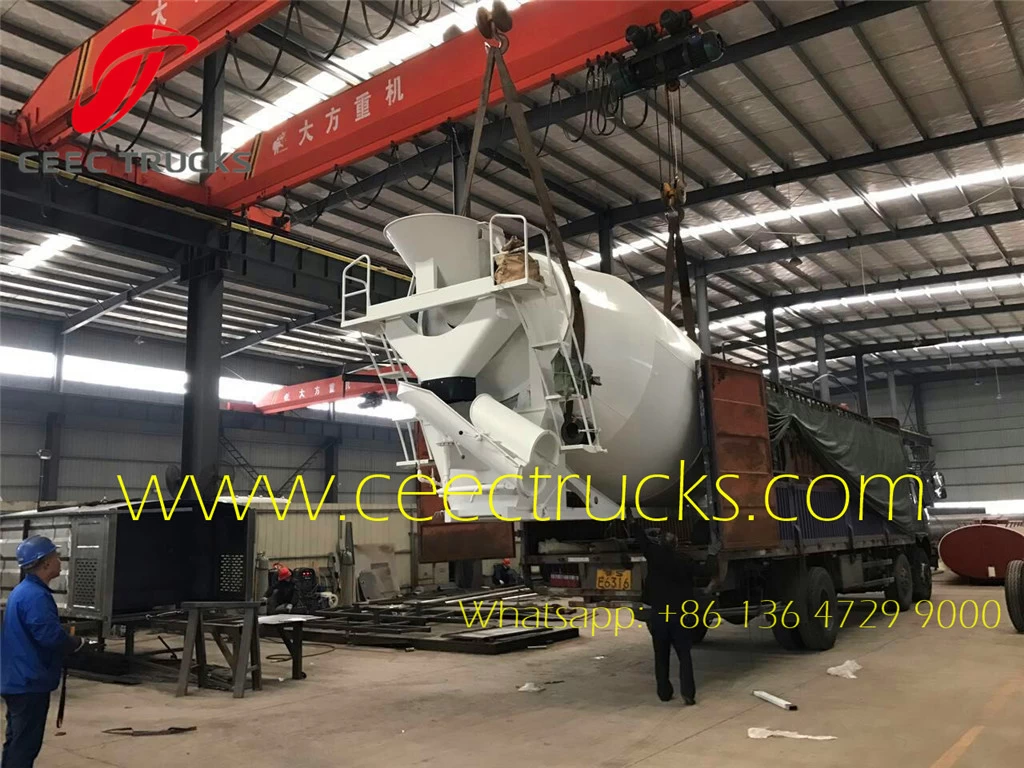

Following pictures show 2 units 8CBM cement mixer tank up-body loading on truck and ready delivery to Shanghai Seaport:
