8 Channel 5V6A Battery Tester Analyzer For Pouch Cell Polymer Battery
1. This tester can analyze polymer and cylindrical batteries from 0.1mA to 6 A, up to 5V.
2 The battery tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
|
Items
|
Values
|
|
Input AC
|
AC 220V/110V ±10% / 50Hz
|
|
Input power
|
425 W
|
|
Resolution
|
AD：16bit；DA：16bit
|
|
Input impendence
|
≥1MΩ
|
|
Voltage
|
CV output range
|
25mV~5V
|
|
Min discharge voltage
|
1.0V for universial holder,1.5V for 2m cable
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Current
|
Output range/channel
|
Range1: 0.5mA-100mA; Range2: 100mA-6A
|
|
Accuracy
|
± 0.05% of FS
|
|
CV cut-off current
|
Range1: 0.2mA; Range2: 12mA
|
|
Stability
|
± 0.05% of FS
|
|
Power
|
Output power/channel
|
30
|
W
|
|
Stability
|
± 0.1% of FS
|
|
Time
|
Current rsponse time
|
Max rising time:1ms
|
|
Working step time
|
≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)
|
|
Data record
|
Data record conditions
|
Min data record interval:100ms
|
|
Min voltage change：10mV
|
|
Min current change：Range1: 0.2mA; Range2: 12mA
|
|
Frequency
|
10Hz
|
|
Charge
|
Charge modes
|
CC、CV、CCCV、CP
|
|
Cut-off condition
|
Voltage、Current、Time、Capacity、-△V
|
|
Discharge
|
Discharge modes
|
CC、CP、CR、CV
|
|
Cut-off condition
|
Voltage、Current、Time、Capacity、-△V
|
|
Pulse
|
Charge
|
CC、CP
|
|
Discharge
|
CC、CP
|
|
Min pulse width
|
500ms
|
|
Pulse counts
|
Up to 32
|
|
Chg and Dischg switch
|
Supported
|
|
Cut-off condition
|
Voltage、Time
|
|
DCIR
|
Supported
|
|
Cycle
|
Max cycles
|
65535
|
|
Max steps
|
254
|
|
Cycle nest
|
3
|
|
Protection
|
Safety protection
|
● Power-off data protection
|
|
● Off-line operation mode
|
|
● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
|
|
Channels feature
|
Independent pairs of closed loop for constant
|
|
Channels control mode
|
Independent control
|
|
Data acquisition method
|
Kelvin connection
|
|
Noise
|
<85dB
|
|
Database
|
MySQL
|
|
Communicatin
|
TCP/IP
|
|
Operating system
|
Windows 7/8/10 64 bit
|
|
Data export
|
EXCEL、TXT、CSV、PDF、Plot/Graph
|
|
Disk drive
|
500GB
|
|
Communication port
|
Ethernet port
|
|
Leak Current
|
0.0000005mA
|
|
Channels per unit
|
8
|
|
Operation and storage environment requirement
|
|
Items
|
Values
|
|
Operation environment temperature
|
0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 50ppm /℃)
|
|
Storage environment temperature
|
-10℃~50℃
|
|
Operation environment humidity
|
≤70% RH(no moisture condensation)
|
|
Storage environment humidity
|
≤80% RH(no moisture condensation)
|
|
Clamps and dimensions
|
|
Items
|
Values
|
|

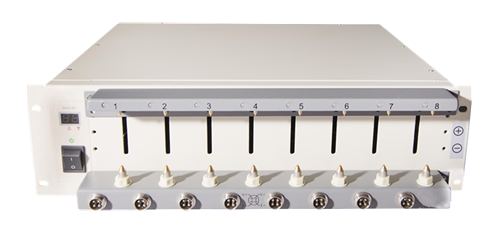

Tester pictures
|
|
|
Clamps pictures
|
|
|
|
|
Alligator
|
Polymer
|
Coin
|
|
Pictures just for reference
|
|
Dimensions（W*D*H）(mm)
|
3U1F，480*380*130
|
