Camera
|
|
|
Image Sensor
|
OV9732
|
|
Main processor
|
Hi3518E
|
|
Resolution
|
1080P
|
|
Effective Pixels
|
1920*1080
|
|
TV System
|
PAL/NTSC
|
|
Electronic Shutter Time
|
Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
|
|
S/N Ratio
|
≥52dB
|
|
Scanning System
|
Progressive
|
|
Video Output
|
Network
|
|
Lens
|
|
Focus Length
|
3.6mm
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Fixed
|
|
Pixels
|
2M Pixels
|
|
Night Vision
|
|
Infrared LED
|
14µ x 18PCS (42µ x 2PCS Optional)
|
|
Infrared Distance
|
25M(30M with 42µ x 2PCS LEDS)
|
|
IR Status
|
Under 10 Lux By CDS
|
|
IR Power On
|
CDS Auto Control
|
|
Network
|
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
|
|
ONVIF
|
Support ONVIF 2.4
|
|
P2P
|
YES, Support QR Code
|
|
WIFI
|
Support
|
|
Video Delay
|
0.3S (Within the Lan)
|
|
Main Stream
|
1280*720@(1-25)fps(default resolution:1280*720/frame rate:20fps/bit rate:1.5Mbps)
|
|
Sub Stream
|
720*480@(1-30)fps(1-30)fps(default frame rate:20fps/bit rate:0.5Mbps)
|
|
IE Brower
|
IE8-11, Google Chrome, Firefox
|
|
Smart Phone
|
iPhone, iPad, Android, Android Pad
|
|
Camera Features
|
|
|
Day/Night
|
Color/ B&W (IR-CUT )
|
|
Compression
|
H.264/JPEG/AVI
|
|
Image Config
|
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control),Defog Mode
|
|
Motion Detection
|
Support
|
|
Privacy Masking
|
3 Rectangular Zone
|
|
WDR
|
YES
|
|
Recording Mode
|
NVR/NAS/CMS/Web
|
|
Language
|
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French,
|
|
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands
|
|
General
|
|
|
Housing
|
Metal , IP66
|
|
Bracket
|
YES
|
|
IR Cut Filter
|
YES
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Power Source
|
DC12V±10%, 500mA
|
|
Dimension
|
157(W) x 70(H) x 66(D)mm
|
|
Weight
|
650g
|
|

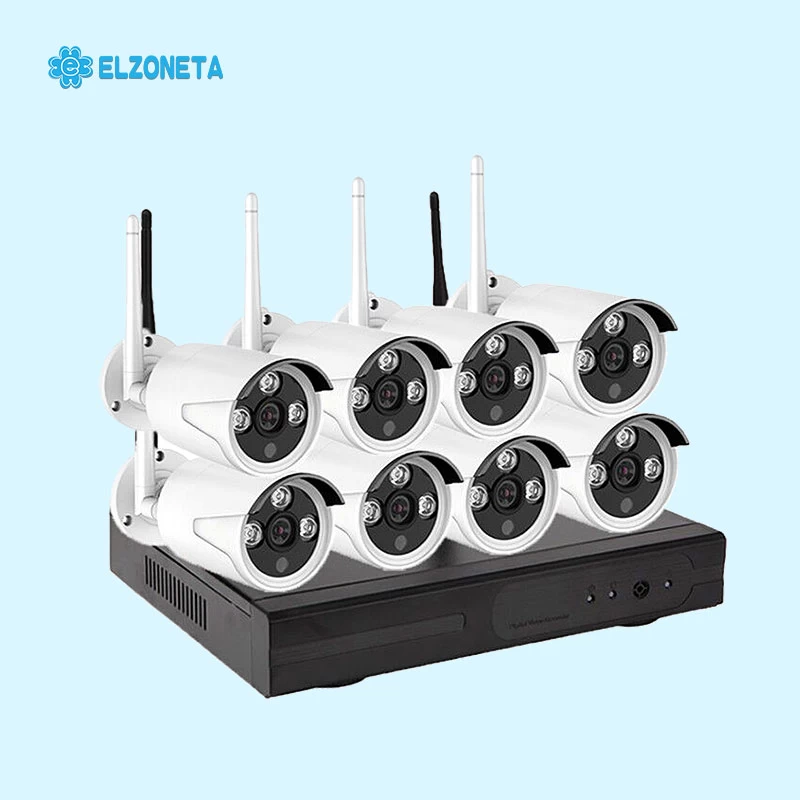

Model
|
TJ-KT5008WF-IP
|
|
System (NVR)
|
|
|
Main Processor
|
ARM Cortex A9 Processor(HI3520D)
|
|
Operating System
|
Embedded LINUX
|
|
Video
|
|
|
Input
|
8
Channel, Support 1920×1080, 1280×960, 1280×720 ect...
|
|
Output
|
1 VGA, 1 HDMI
|
|
Alarm
|
|
|
Sensor Input
|
NO
|
|
Output
|
NO
|
|
Motion Detection
|
8
Channel
|
|
Email Alarm
|
Support
|
|
Display
|
|
VGA
|
Resolution: 1920×1080/1280×1024/1280×720
|
|
HDMI
|
Resolution: 1080P(1920×1080) 720P:(1280×720)
|
|
Display Split
|
8 Channel / 1Channel
|
|
Digital Zoom
|
YES
|
|
OSD
|
Camera title, Time, Video loss, Recording, Motion Detection
|
|
Recording
|
|
Video Compression
|
H.264
|
|
Resolution
|
1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480)
|
|
Record Rate
|
PAL :1080P@4x25fps, 960P@4x25fps, 720P@4x25fpss, D1@4x25fps
|
|
NTSC:1080P@4x30fps, 960P@4x30fps, 720P@4x30fps, D1@4x30fps
|
|
Record Mode
|
Manual\Timer\Motion Detection
|
|
Playback & Backup
|
|
Local Sync Playback
|
1x1080P
|
|
Remote Sync Playback
|
YES
|
|
Search Mode
|
ALL, Channel, Time, Date, Motion Detection
|
|
Playback Functions
|
Play, Pause, Stop, Fast play
|
|
Backup Mode
|
USB Device/Network
|
|
Network
|
|
Interface
|
1xRJ45 10M/100M Adaptive Ethernet Interface
|
|
Network Functions
|
HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,PPPOE,FTP,SMTP, DDNS, Upnp
|
|
WIFI
|
Support
|
|
Onvif Version
|
Support Onvif 2.4
|
|
Web Browser
|
IE8-11, Google Chrome(IE Tab), Firefox(IE Tab)
|
|
CMS Software
|
Support Windows XP / Windows Vista / Windows 7/ Windows 8
|
|
Cloud Support(P2P)
|
Yes
|
|
Smart Phone
|
iPhone, iPad, Android, Android PAD
|
|
Hard Disk Driver
|
|
Interface Type
|
1 SATA Interface
|
|
Capacity
|
2.5" / 3.5" SATA up to 6TB
|
|
General
|
|
Language
|
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
|
|
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian,Nederlands,Greek
|
|
USB Interface
|
1 USB 2.0 Interfaces
|
|
Power Supply
|
DC12V/2A
|
|
Working Environment
|
-10~55℃/10~90%
|
|
Dimension(W×D×H)
|
211*200*40(mm)
|
|
Weight
|
2.0KG (without HDD)
|
