8 Channels Coin Cell Battery Tester Analyzer for Lithium Button Cell

8 channels battery tester for coin cell



8 Channels Coin Cell Battery Tester Analyzer for Lithium Button Cell


Product Specification



Machine model

Button Cell Battery Tester Analyzer  LIO-CT-4008-5V10ma-1

Source voltage

110v to 220v 50/60HZ

Power

30W

Current range

0-10mA 0.05%RD±0.1%FS (control and measurement)

Voltage range

0-5V 0.1%RD±0.1%FS (control and measurement)

Cycles

9999cycles

Contents of step

Constant current c/d , constant voltage c/d, constant power discharge,

constant resistance discharge, DCIR,rest

Protection modes

Overvoltage, under voltage, over current, under current, over capacity, etc.

Programming steps

Unlimited (more than 200 steps)

Channels

Eight independent programmable channels,

Each channel can set different working modes and functions independently

Output mode

4 electrode (supporting reference electrode test)

Software

1 The software with calibration function is included to set various working  modes for measuring capacity and life cycle for types of rechargeable batteries 2 Working modes Include constant current discharge, constant current charge,  constant voltage charge, rest, etc

3 Limited threshold conditions include voltage, current, time, capacity,negative

voltage slope, etc

4 With real-time monitoring windows and integrated graph/data windows,  the testing process can be observed more directly and efficiently 5 The calibration software can be used to calibrate the analyzer

Testing report

and curves

1 Different types of curves can be created by software base on user definition.

(Voltage-time curve, current-time curve, capacity-voltage curve,loops times-charge/ discharge capacity curve, loops times charge/ discharge efficiency curve, etc)

2 Data reports are created by software.

3 User can easily compare the performance of the batteries tested  in channels both visually and statistically

Dimension

250*200*60mm

Weight

12kg

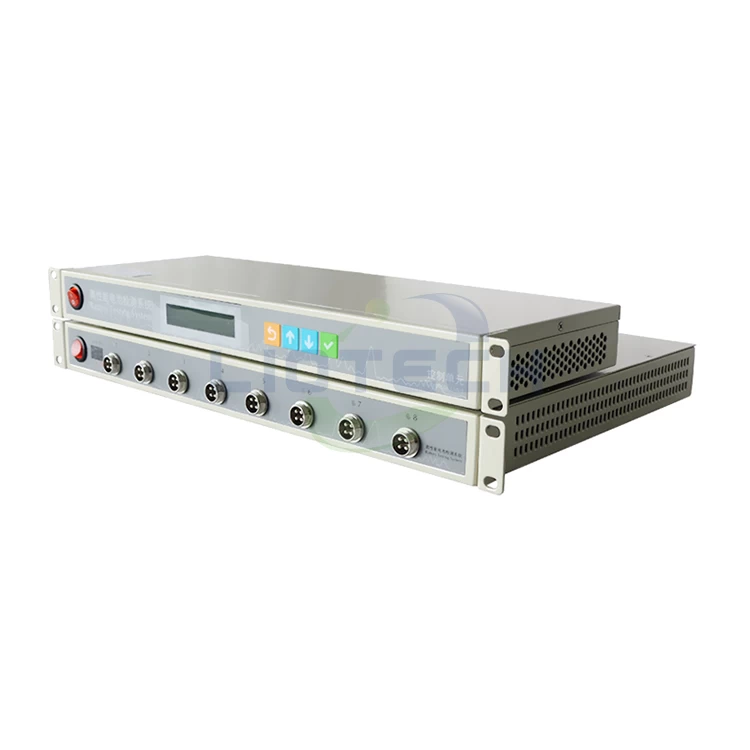

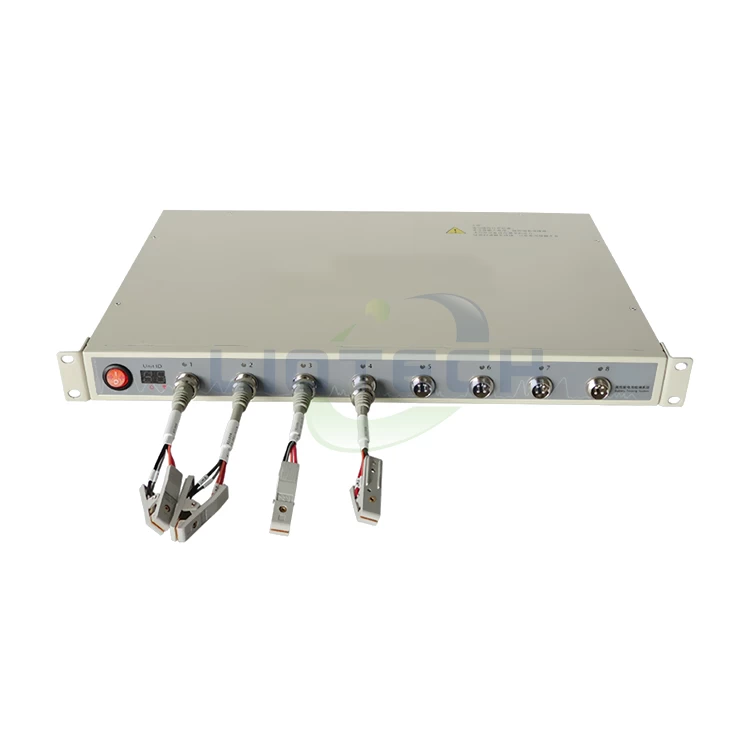

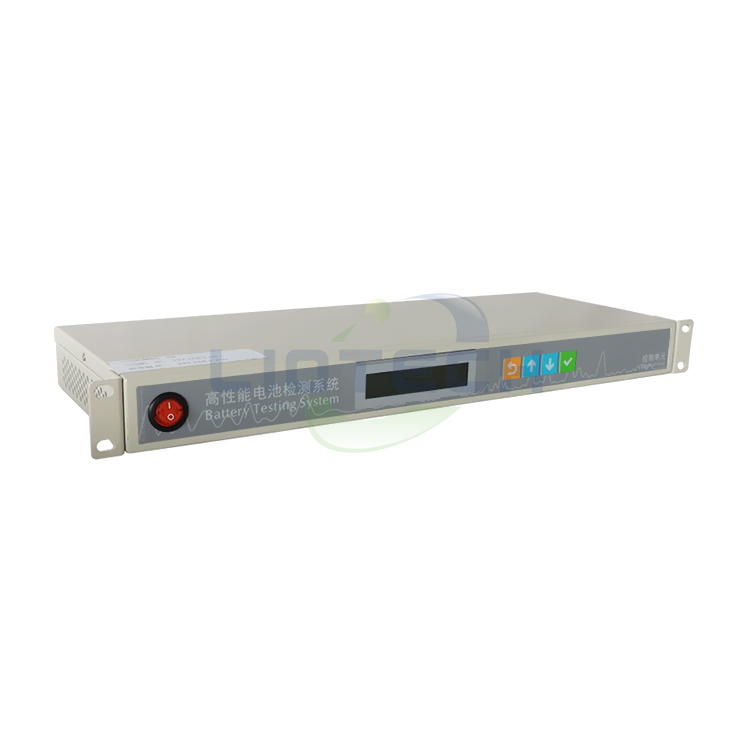

Product Images

8 Channels Coin Cell Battery Tester Analyzer8 Channels Coin Cell Battery Tester Analyzer for Lithium Button Cell8 Channels Coin Cell Battery Tester

Packing

Lithium Button Cell Tester Analyzer
