8 way Power Splitter with 8 Way SMA Female connectors OUT 1 Way N Female connector IN 698-2700MHz Power Divider

8 way Power Splitter  with 8 Way SMA Female connectors OUT 1 Way N Female connector IN 698-2700MHz Power Divider

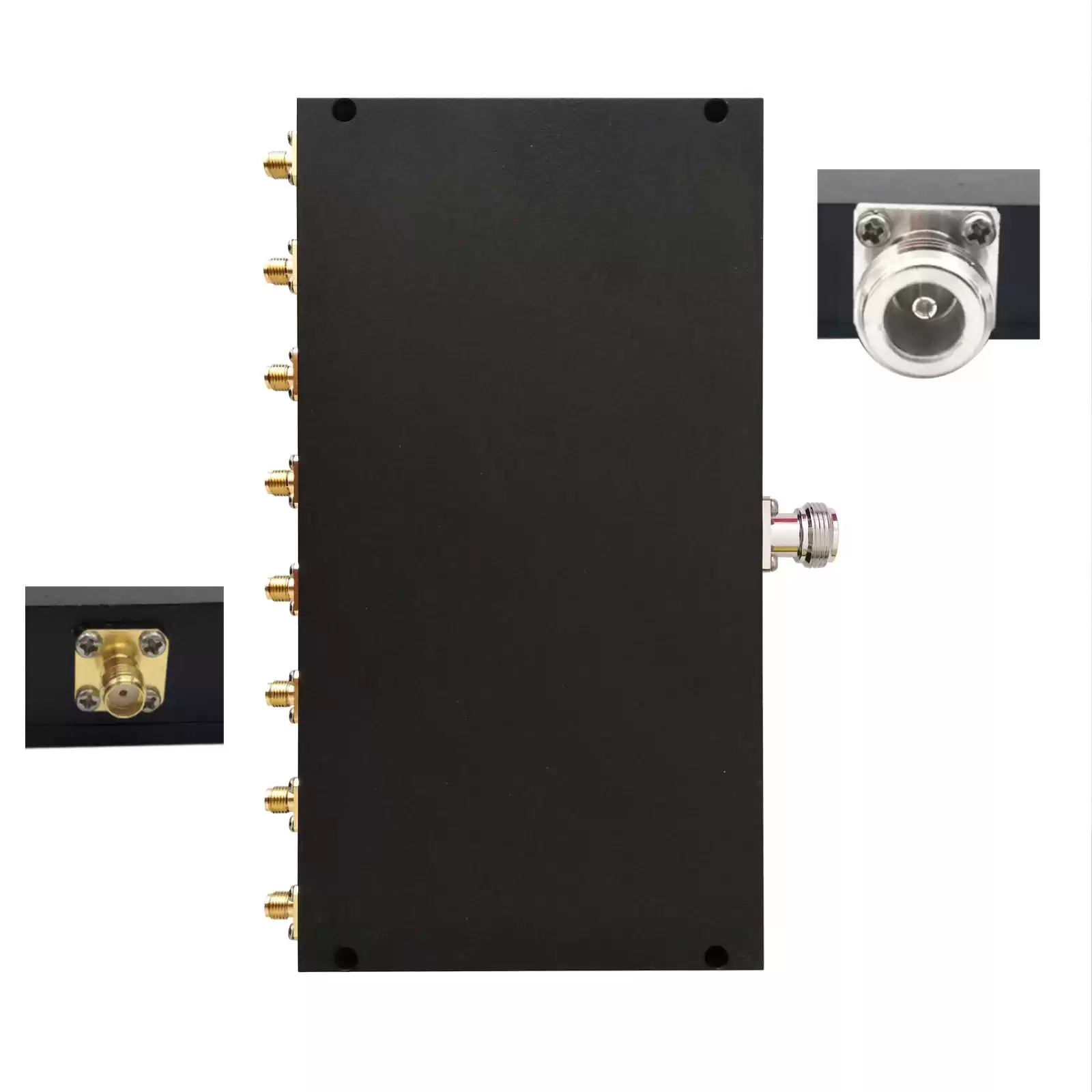

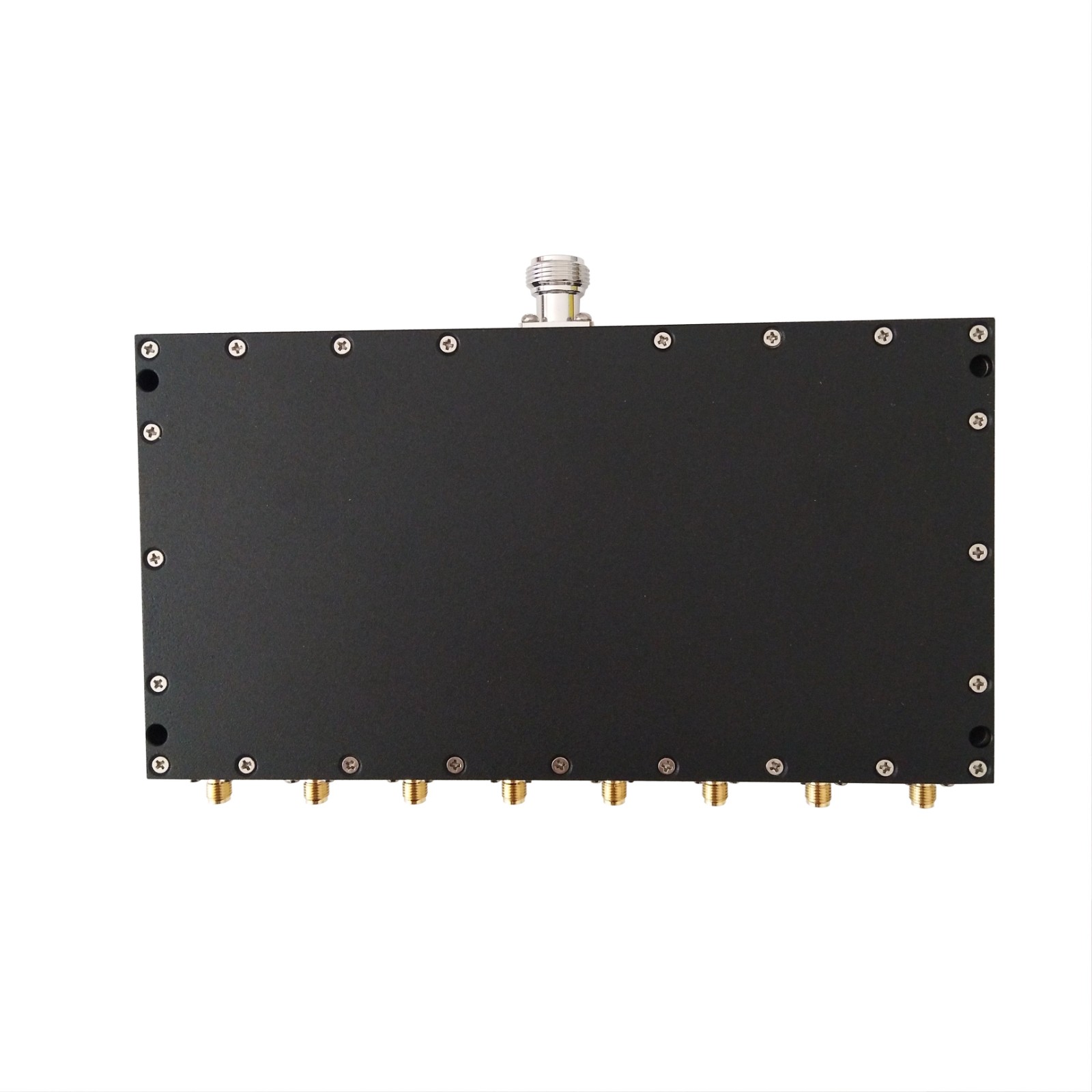

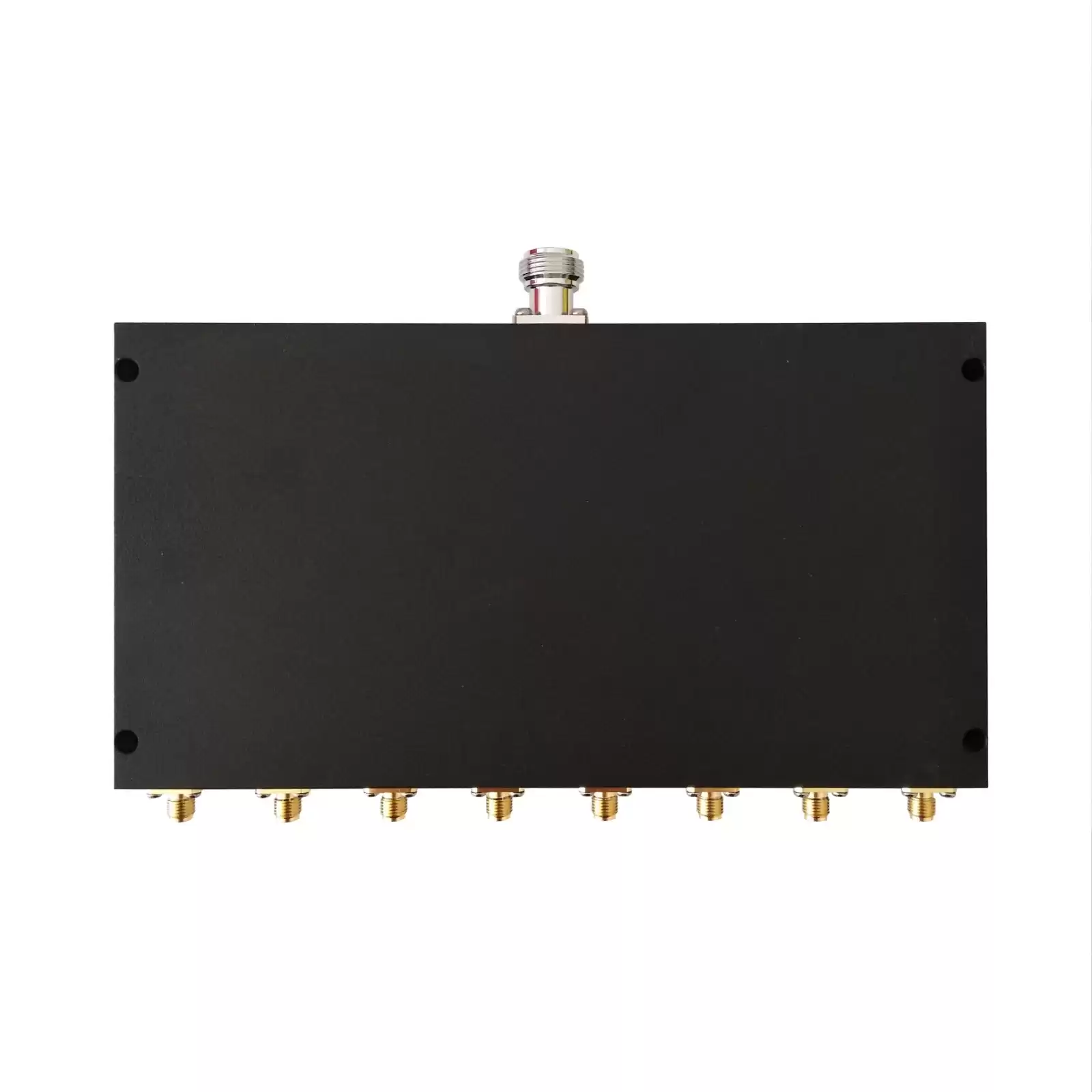

The wilkinson 8 way SMA Power Splitter (also known as  8 way SMA Power Divider ) is rated for a minimum frequency of 698MHz and a maximum frequency of 2.7GHz. This 8 port SMA power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 10W. ROHO's SMA coaxial RF splitter / divider has a female SMA input and 8 female SMA output ports;This 8 way SMA RF power divider is a wilkinson design and has a maximum insertion loss of 0. The maximum input VSWR of this SMA wilkinson splitter / divider is 1.4:1 and the minimum isolation is 20dB,The 8 port SMA power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.

Specifications

Applications

• Mobile Communication Network Optimization and In-door distribution system.
• Cluster communication, satellite communication, shortwave communication and hopping radio.
• Radar, electronic navigation and electronic confrontation.
•  Aerospace equipment systems.
