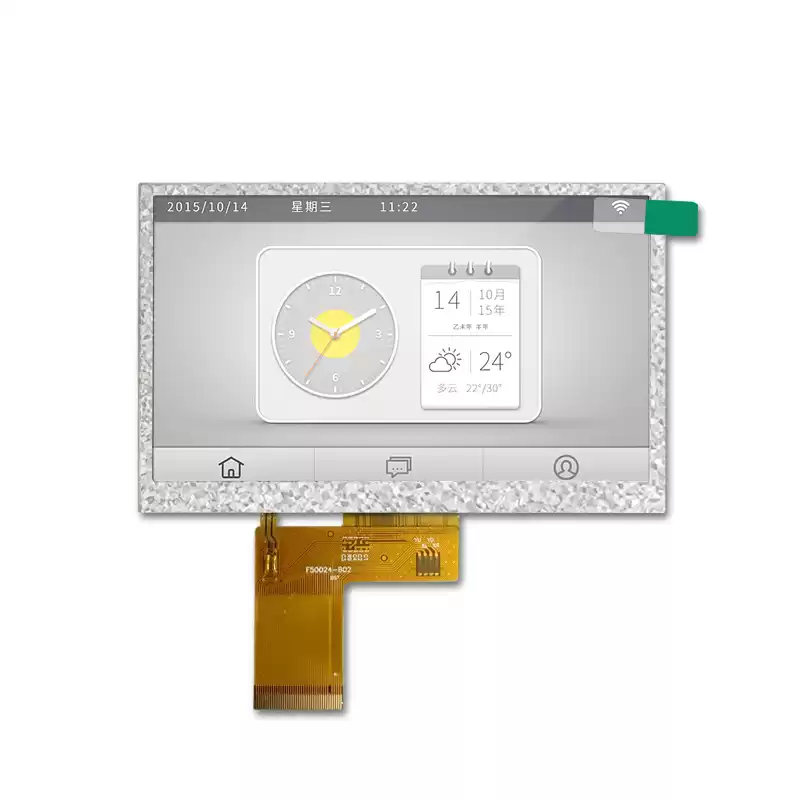

800x480 resolution 5 inch tft lcd module with 50 pins RGB TTL interface
|
Specification
|
|
LCD size
|
5.0 inch TFT LCD
|
|
Resolution
|
800 x (RGB) × 480
|
|
LCM (W × H × D )
|
120.7(W) x 75.8(H) x 4.1(D)
|
|
Active Area (W × H)
|
108 (W) x 64.8 (H)
|
|
Viewing Direction
|
12 o’clock
|
|
Color Depth
|
16.7M
|
|
Backlight Type
|
12 LEDs
|
|
Surface Luminance
|
300
|
|
Surface Treatment
|
Anti-Glare
|
|
Interface
|
RGB24-bit
|
|
Driver IC
|
Source: ILI6122 + Gate: ILI5960
|
|
Operating temperature
|
-20 C°~70 C°.
|
|
Storage temperature
|
-30 C°~80 C°.
|
|
Storage Humidity:
|
10RH ~ 40RH
|
