80CM Distance RS232 Interface Low Power UHF RFID Module ISO18000 6C Gen2

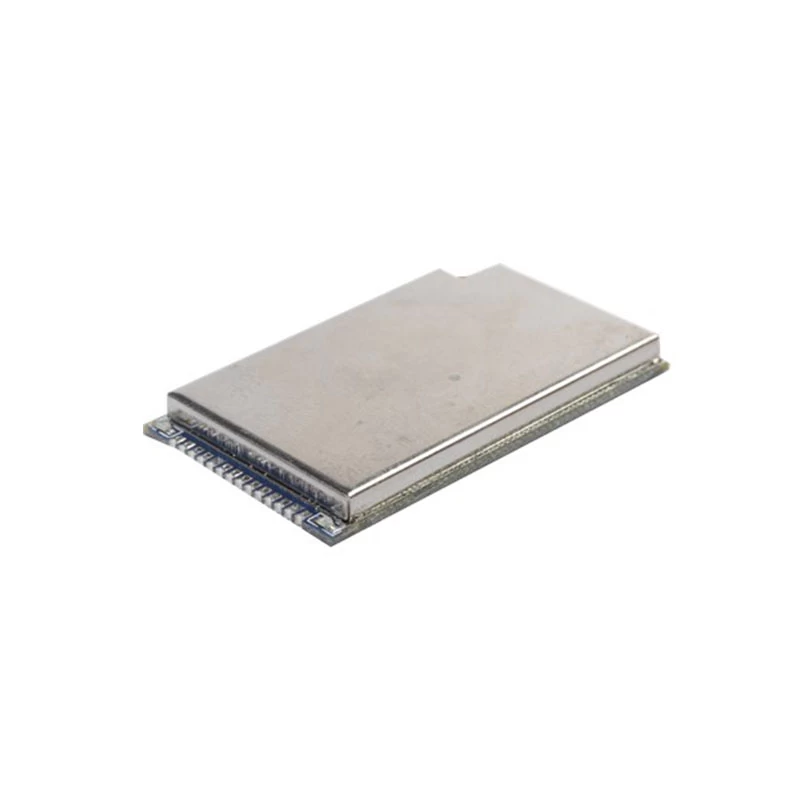

JT2850B is a low Power Single Tag RFID module ( 80CM reading distance )  small size,Support ISO18000-6C Gen 2 protocol,Low power output, less than 0.5W



Feature:

Working voltage range DC 5V/1A;

◆Low power output, less than 0.5W;

◆Can support two-way UART communication: one for RS485, other for RS232 communication;

◆Can built-in handheld device, PDA;

◆Using for Asset management, Staff management, etc.


Specification:

Item No.

JT-2850B

Performance parameters


Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Communication port

Two-way UART communication, one-way RS485 output, one-way RS232 output

Software & SDK

DEMO and C#, VC, VB, Java, DELPH, etc.,

RF power

17~20dBm

Operating power

+3.6V~+5.5V

Operating Current

Peak current 200mA

Reading range

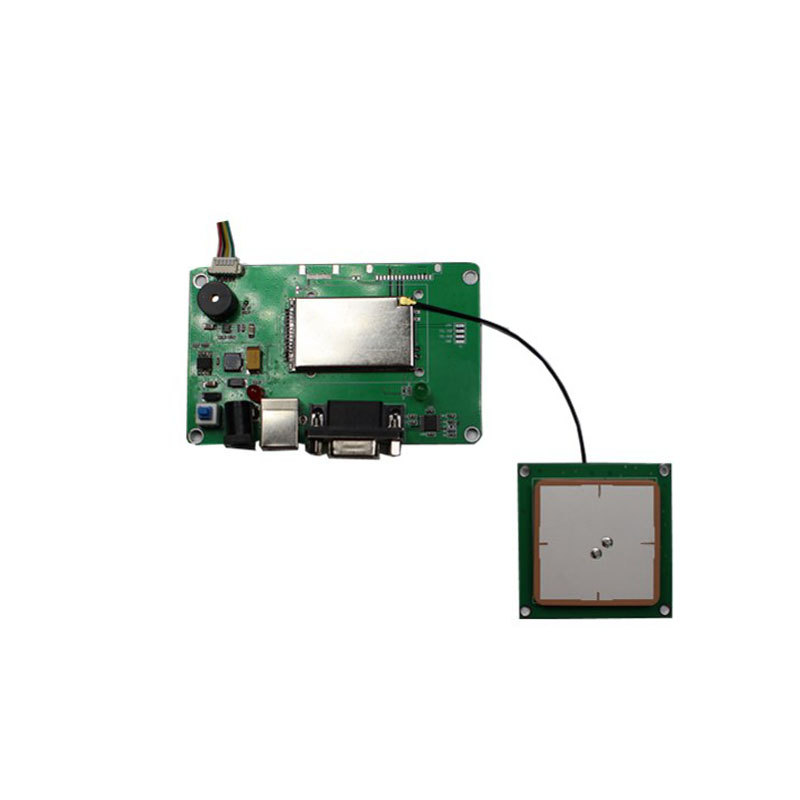

Stable writing 80~100cm(With 40x40 Ceramic Antenna)

Physical parameters:


Item size

41.5x25x3mm

Antenna port

IPEX

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃
