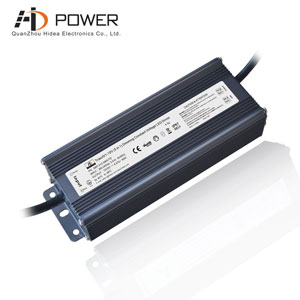

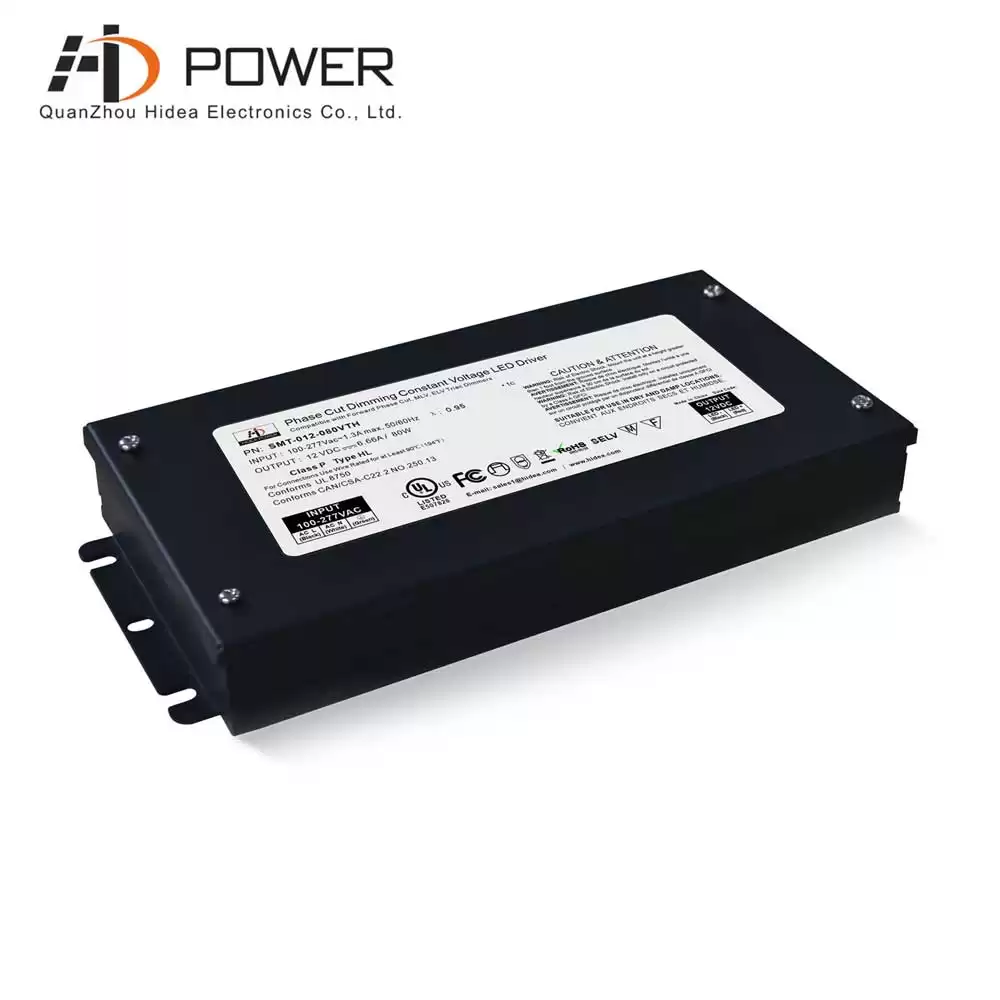

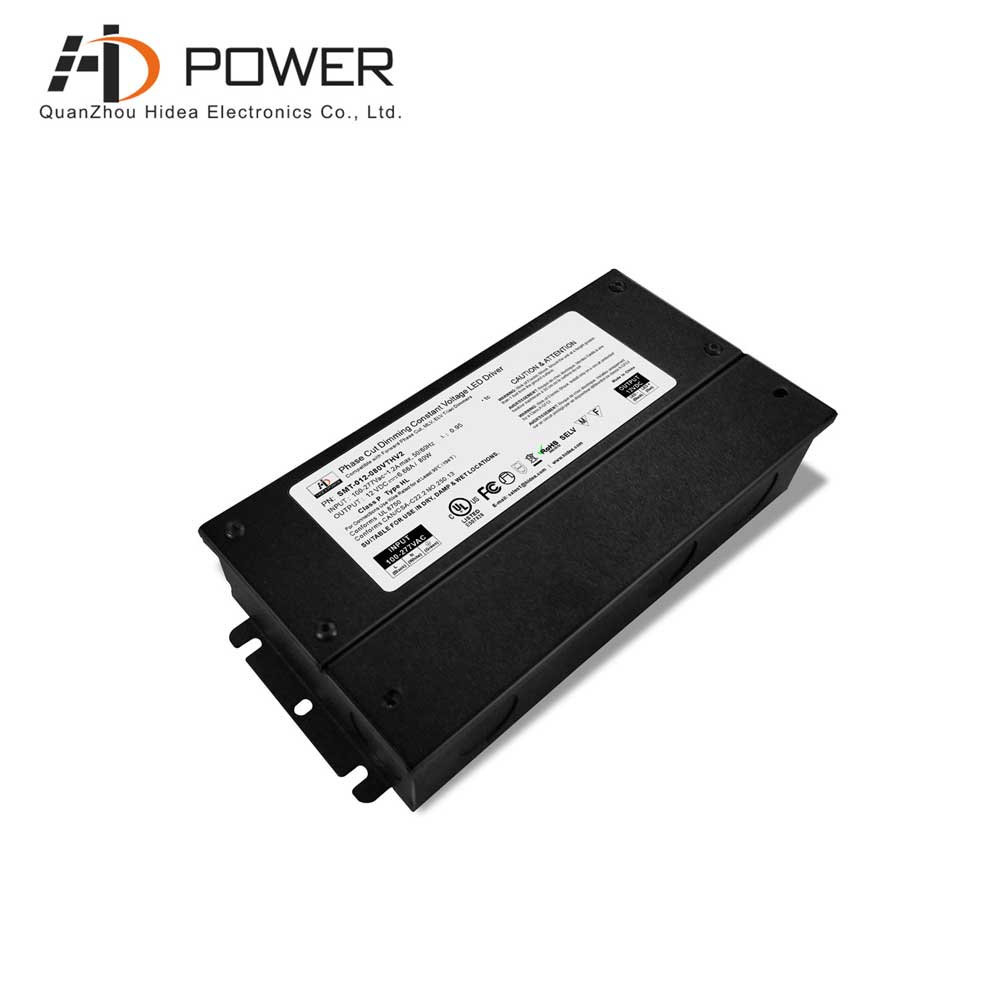

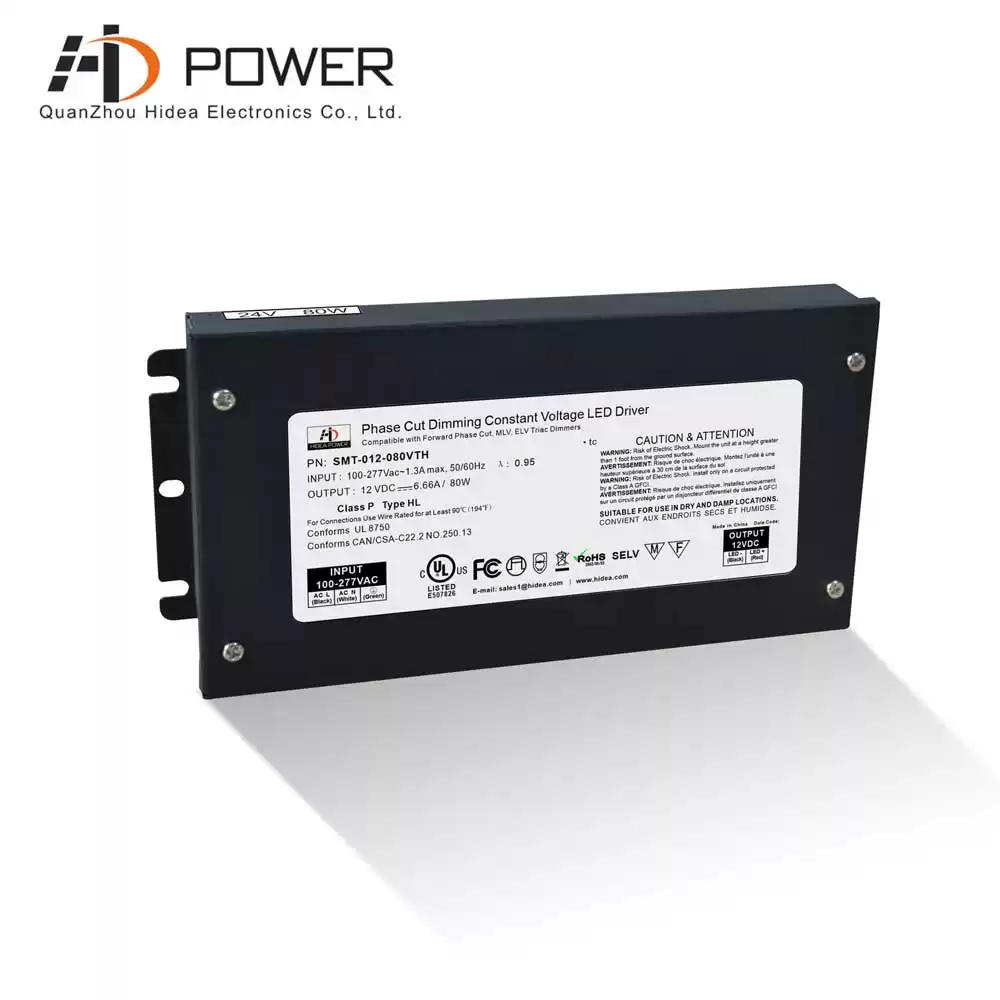

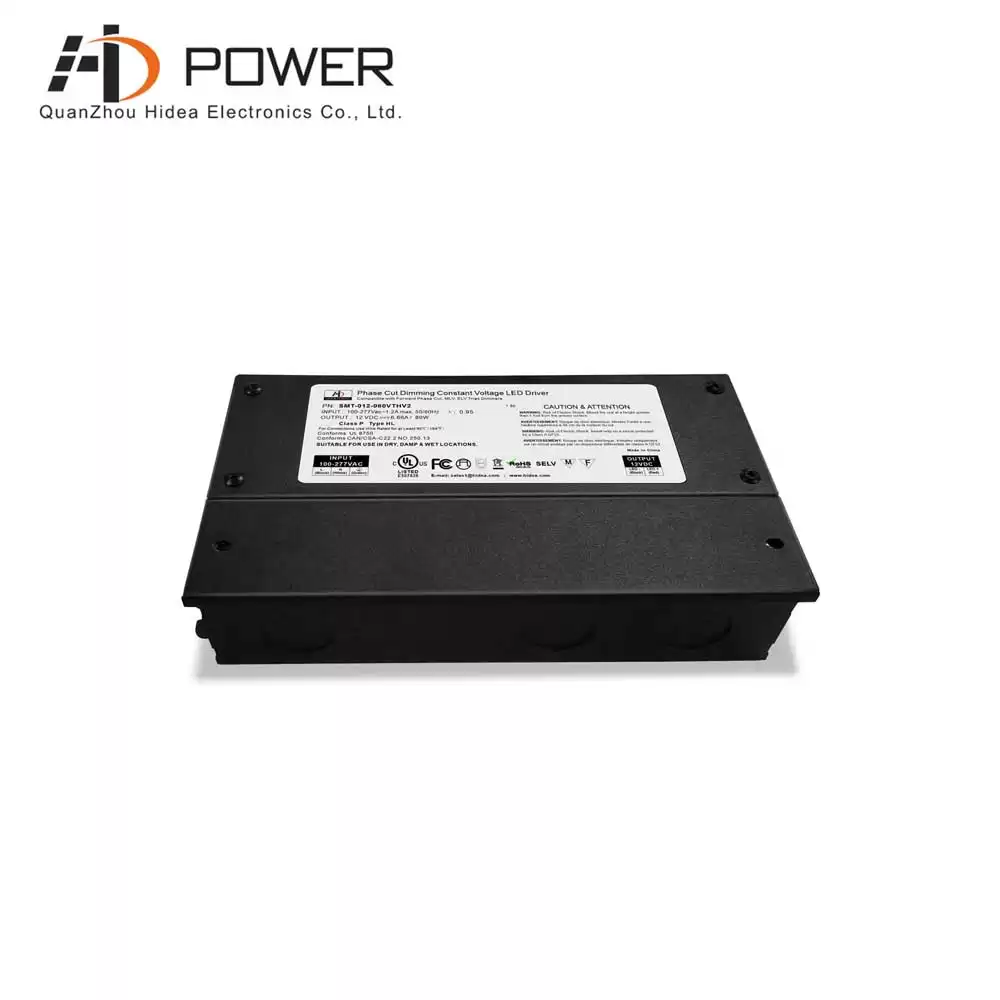

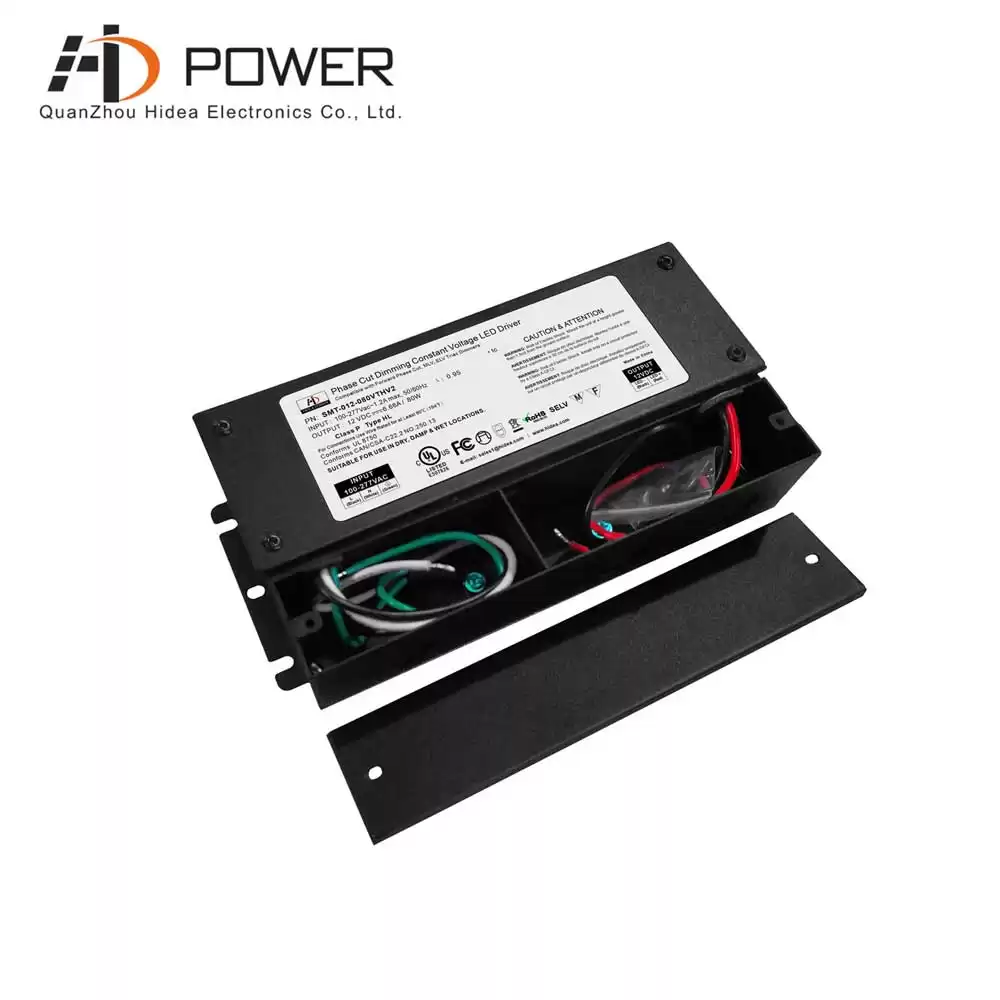

80w 24v triac dimmable constant voltage led driver power supply junction box
This 24v 80W triac dimmable led driver is designed with iron shell, adopts natural air convection cooling, good heat dissipation, can work perfectly under 0-100% load
Specification
|
Model
|
SMT-012-080VTH (1.0 ver)
|
SMT-024-080VTH (1.0 ver)
|
|
SMT-012-080VTHV2 (2.0 ver)
|
SMT-024-080VTHV2 (2.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
6.66A
|
3.33A (class 2 type)
|
|
Load Regulation
|
±1%
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
82% 79%
|
|
AC Current(Max.)
|
1.2A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
1.0 ver: 220*93*41mm (L*W*H); 2.0 ver: 220*94.5*40mm(L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
