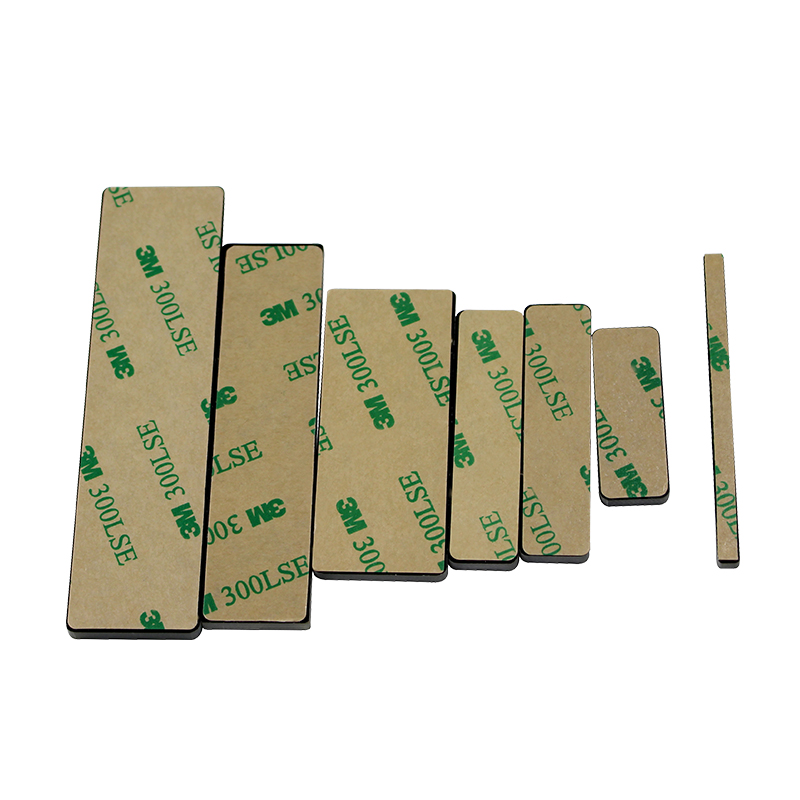

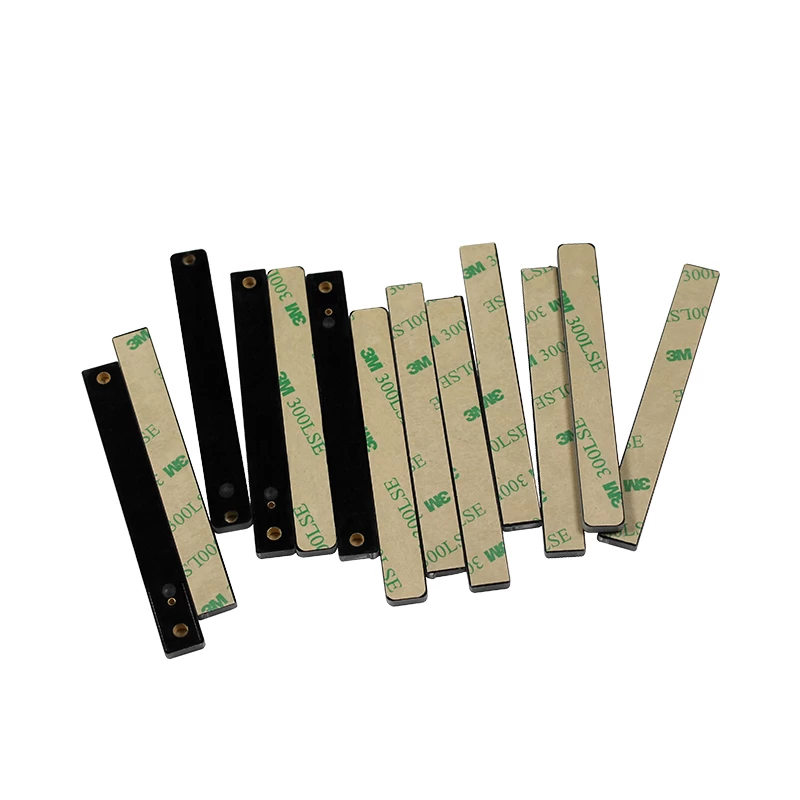

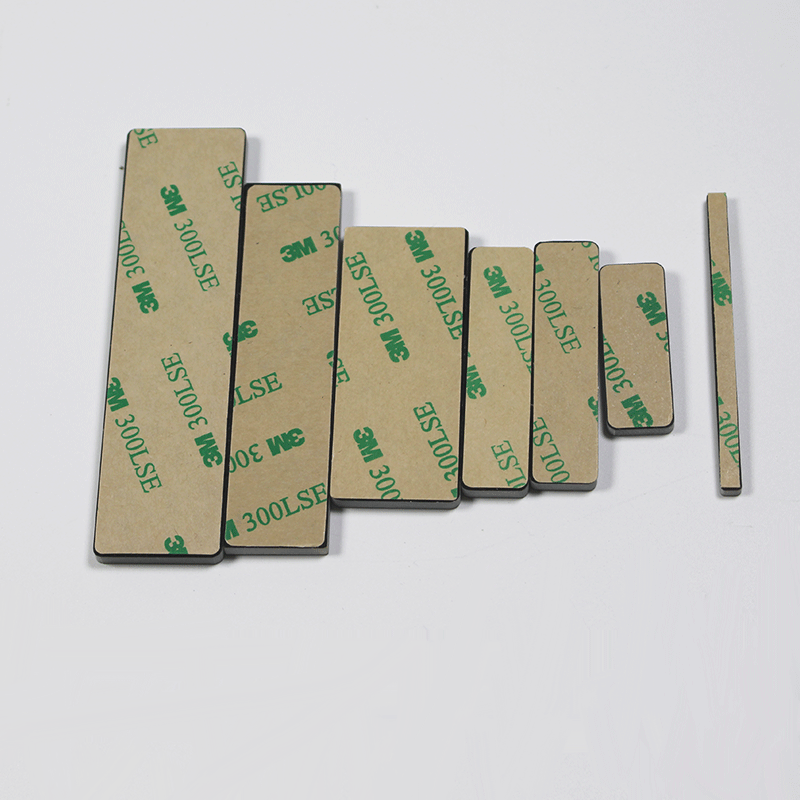

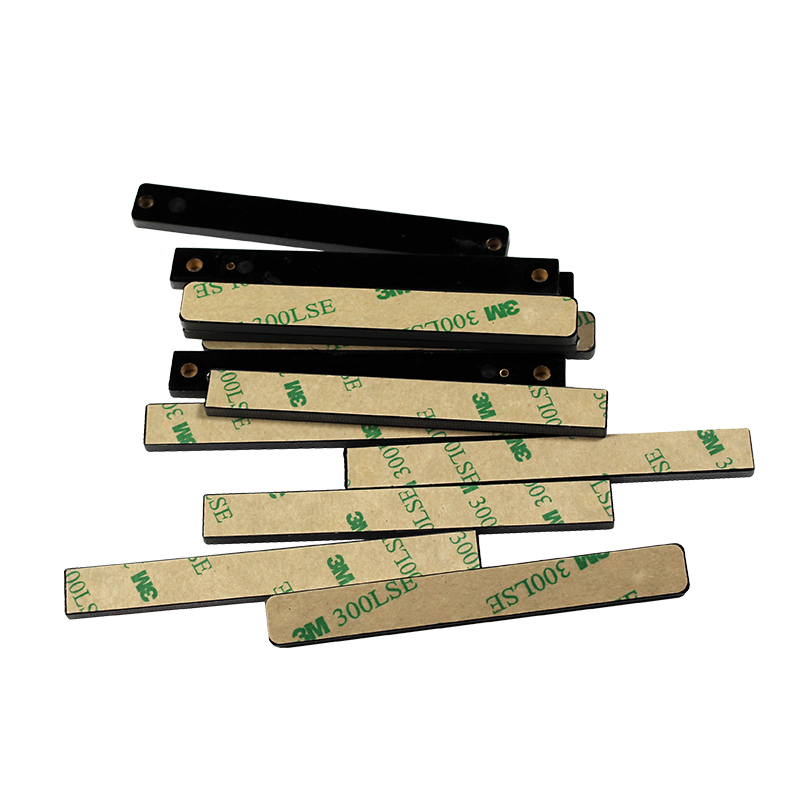

860-960MHZ UHF RFID on metal UHF Tag for Asset Management 97x27MM

This UHF PCB Anti-metal Tag is widely used in indoor asset management, inspection management, and tool management.UHF RF4 PCB On metal Passive RFID tags are designed and produced by special technology and process, for indoor and outdoor usage in harsh industrial environment.



860-960MHZ UHF RFID on metal UHF Tag for Asset Management 97x27MM


97x27 MM UHF on metal Tag Advantage:

Logistics warehousing management like information management, tracking, and counting.


ISO

EPC Class1 Gen2; ISO18000-6C

frequency

860-960MHz

Chip

Monza 4QT

memory

EPC 128bits

writable

yes rewritable

memory lead time

fifty years

Warranty

1year

Material

FR4

Color

Black

Size

97x27mm

Temperature

-25C~ +85C

Storage temperature

-30 C~ +110 C

Save humidity

5%~95%

Adhesive

3M 300LSE

weight

~1g

package

500pcs/bag

Drop test

Hih 1Meter /200times

Alcohol test

95%Concentration alcohol test passed

Gasoline test

NO. 92 test passed

High and low temperature alternating test

-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test

RoHS

yes

IP degree

IP65

Fixed RFID reader on metal surface (JT-8290A)

about 8-10Meter

Handheld reader on metal surface(JT-901)

about 3-5M ( JT-901 RFID handheld reader)

Polarization direction

Linear Polarization

Text

100% tested it before we send out
