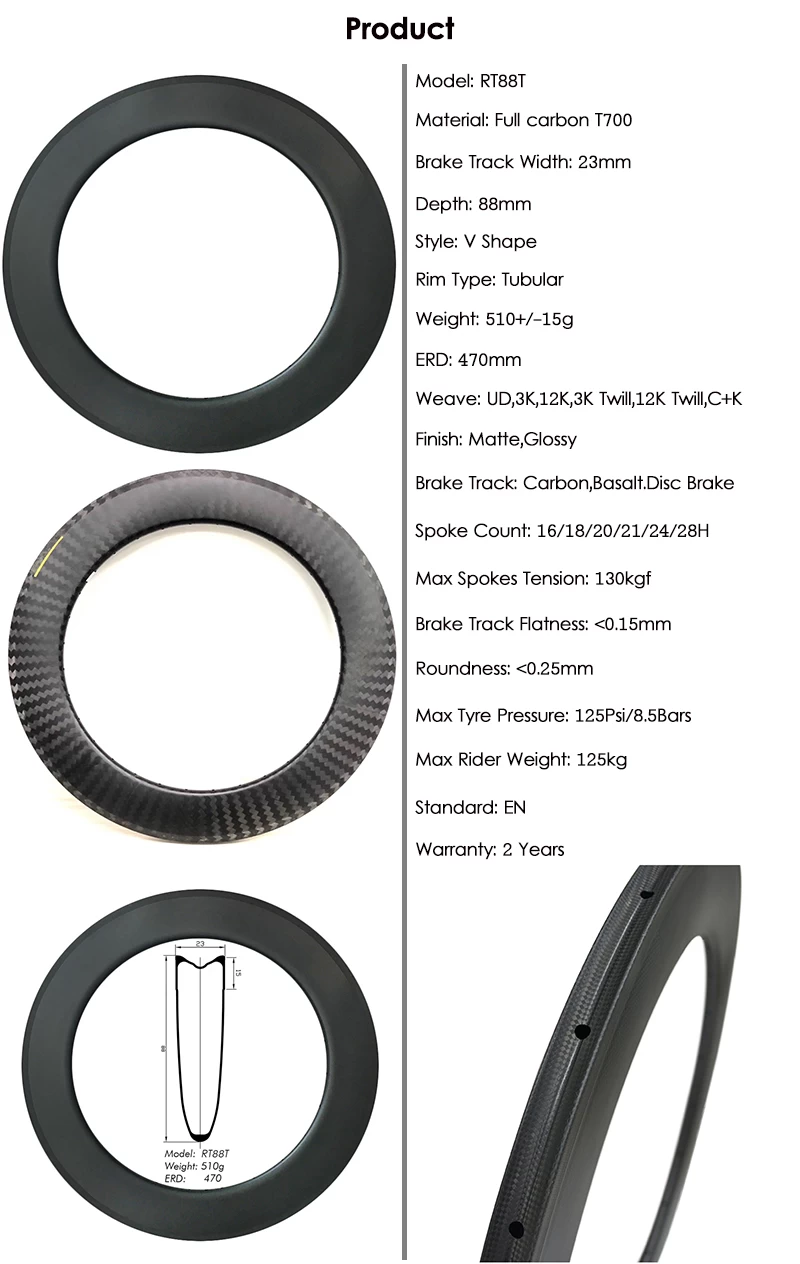

Model: RT88T
|
Size: 700C
|
|
Material: Carbon T700+30%T800
|
Brand Name: Superroad
|
|
Brade Track Width: 23mm
|
Drilling: Traditional/Internal
|
|
Rim Depth: 88mm
|
Spoke Hole: 16/18/20/21/24/28/32H
|
|
Rim Type: Tubular
|
Brake Track: Carbon,Basalt,High TG 255
|
|
Weight: 510+/-15g
|
Weave: UD/3K/12K,3K+Twill,12K+Twill,3K+Kevlar
|
|
ERD: 470mm
|
Finish: Matte/Glossy
|
|
Max Spokes Tension: 130kgf
|
Max Tyre Pressure: 125Psi/8.5Bars
|
|
Brake Track Flatness: <0.15mm
|
Roundness: <0.25mm
|
|
Decal: Customized
|
Max Rider Weight: 125kg
|
|
Business: OEM&ODM
|
Standard: EN
|
|
Port: Xiamen
|
Warranty: 2 Years
|
Contact info
Cell/Whatsapp: :+8613055508623
Features
1.One Piece Molding: Making by complete carbon fiber,stronger and more stable, better finish for rim.
2.Light Weight Design: Toray carbon fiber material,as far as possiable less weight and easier for ride.
3.High TG 255: High temperature TG resin, Prevents heat distortion, higher than general tech about 210 or 240 temperature.
4.TI Flange Design: Rim flange incl circle titanium,stronger and stabilized structure.
5.Basalt Brake Track: High temperature resistance, brake system is important for riding , more safety for cyclist.

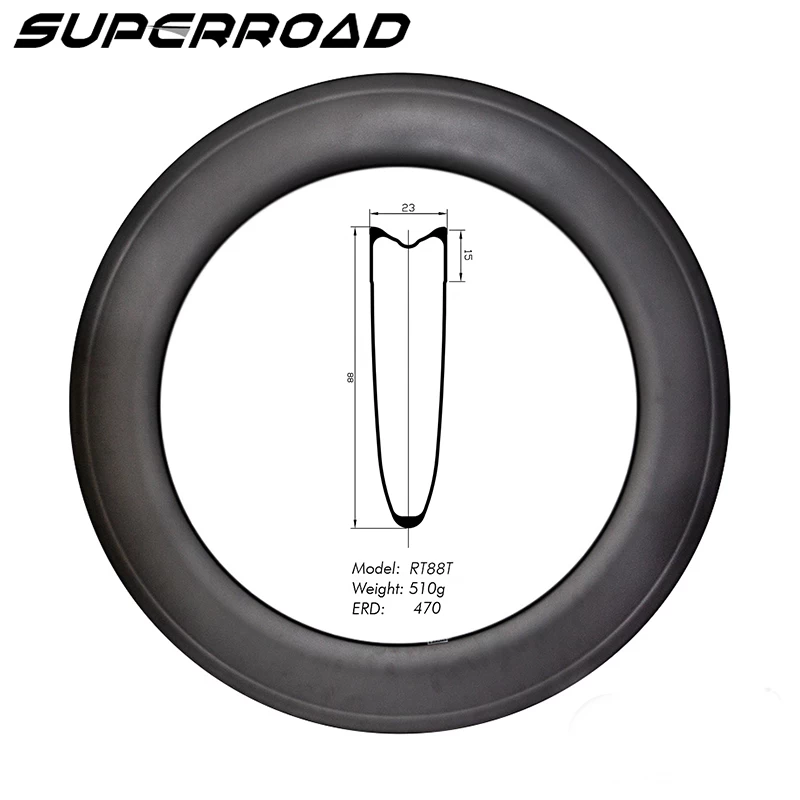

6.U-Shaped Design: Making the rim less susceptible to cross winds and improves aerodynamics in a range of real life wind conditions.
7. Asymmetric Design:The asymmetric rim enables even spoke tension for increased durability. Our rim have 2.4-2.6 of offset, which we have found is the perfect spot.
