Applications:

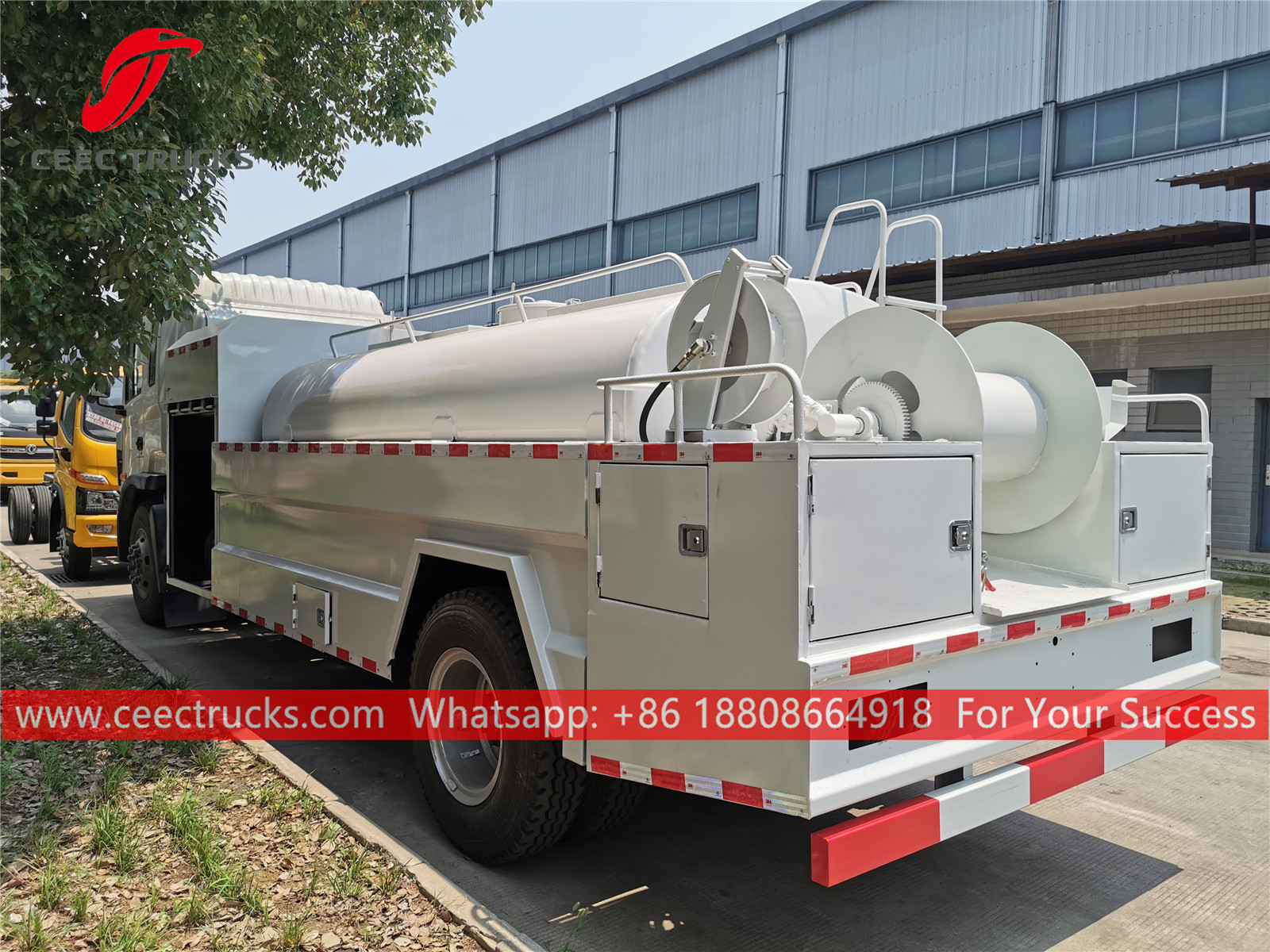

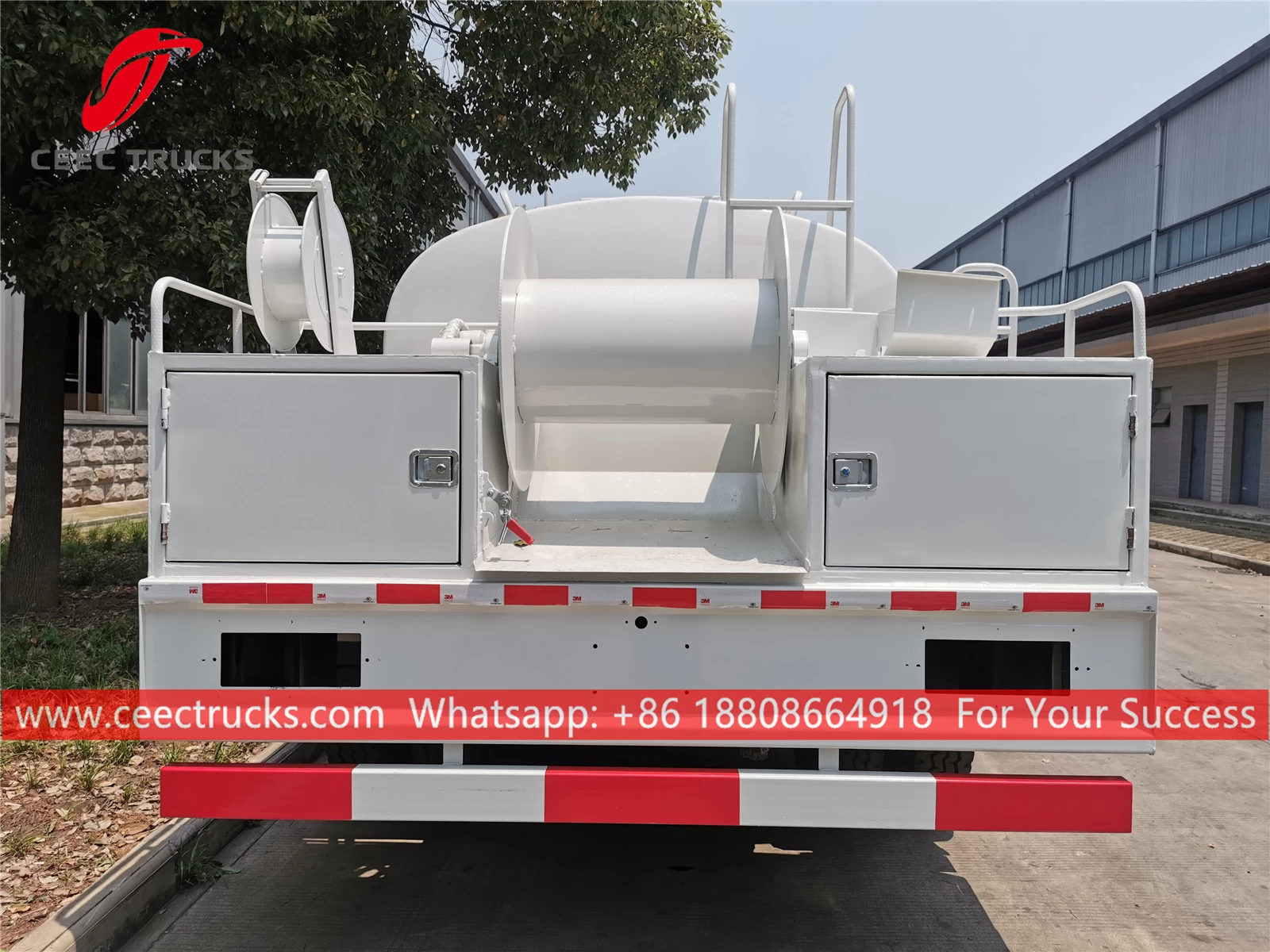

High PressureJetting truck JAC (also called High pressure washing truck, Sewer jetting truck, Water jetting vehicle, JAC Sewer flushing truck, High pressure washer truck, High pressure water truck, sewer jetting truck) is used for removing small stones, bottles, cans, grease,sludge and other debris from sanitary sewer or storm drain lines by the flushing action of high pressure water.
CEEC TRUCKS high pressure jetting truck is mainly composed of chassis, tank, high pressure pump, high pressure hoses and nozzles. Water truck is made of high
quality carbon steel sheet.
Key Features:
---- JAC chassis, perfect performance
---- YUCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High pressure pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|

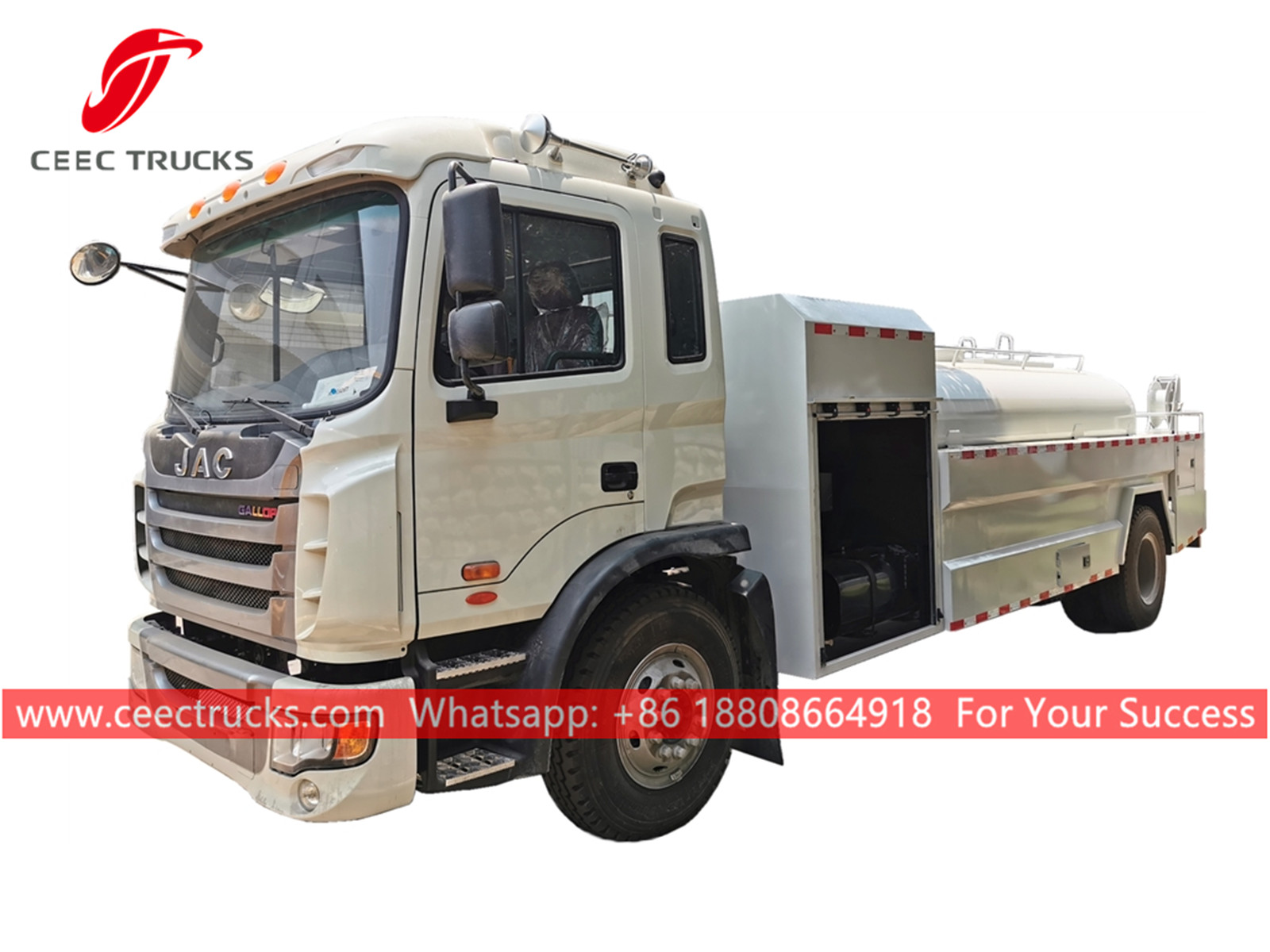

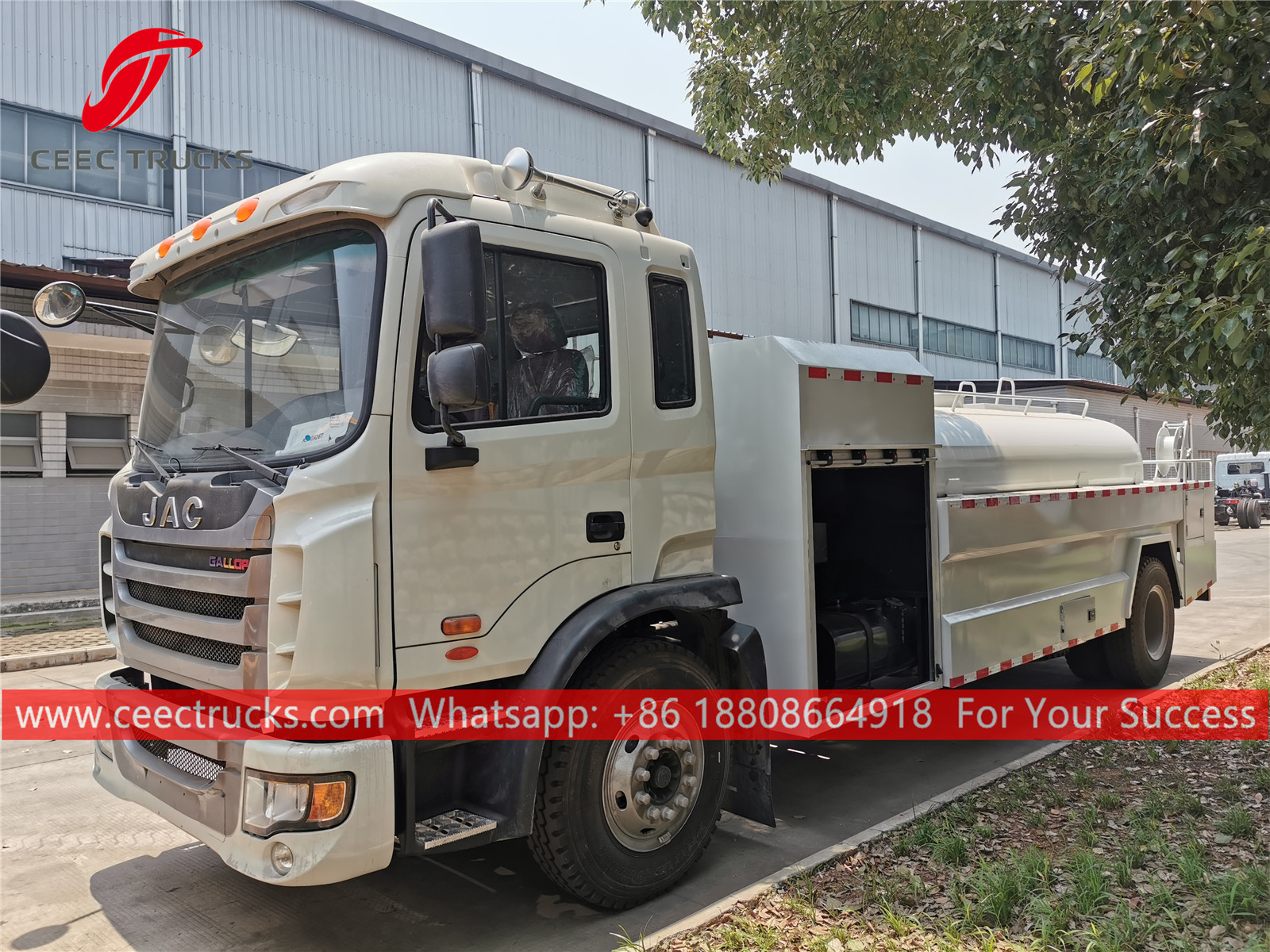

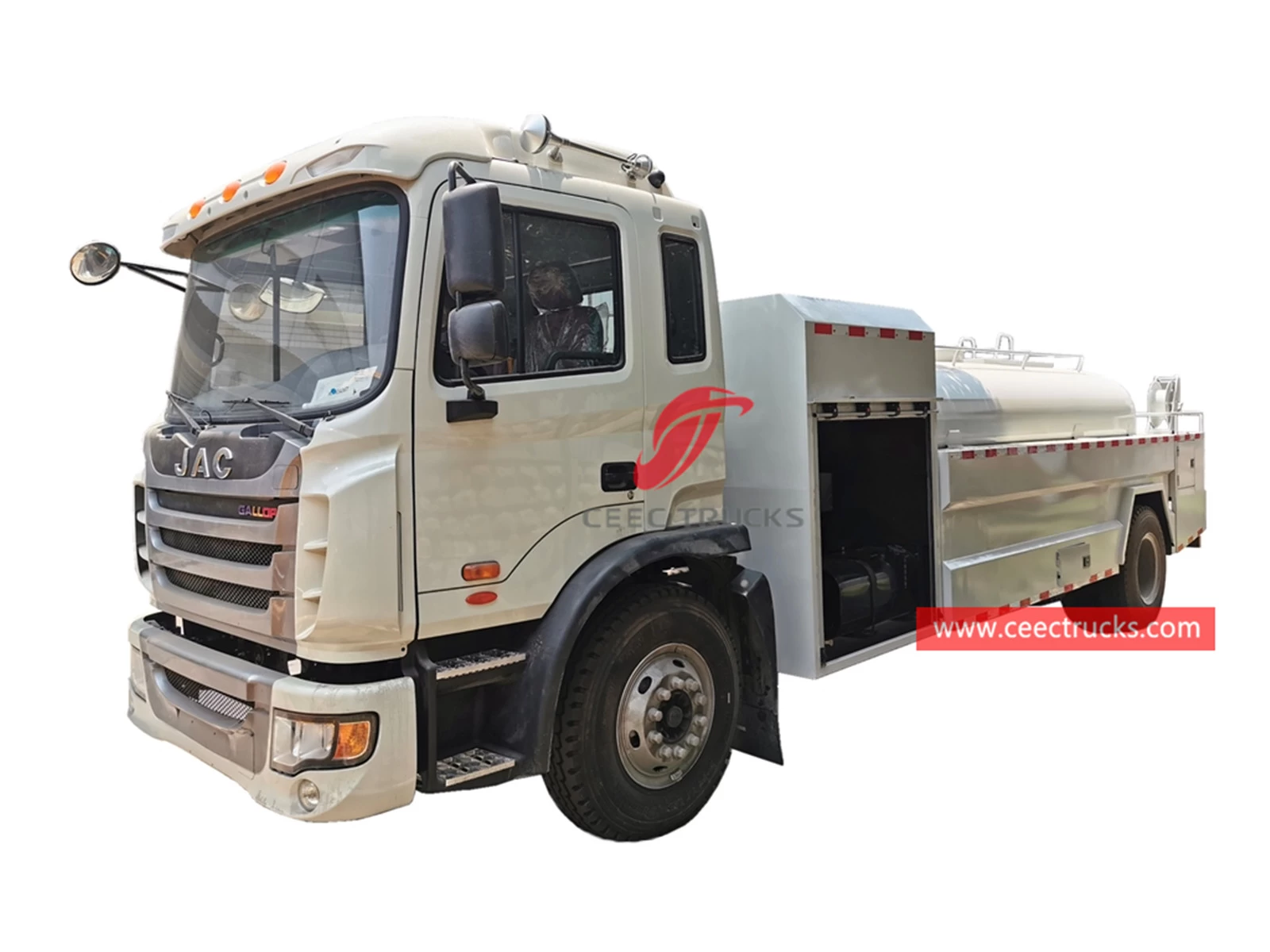

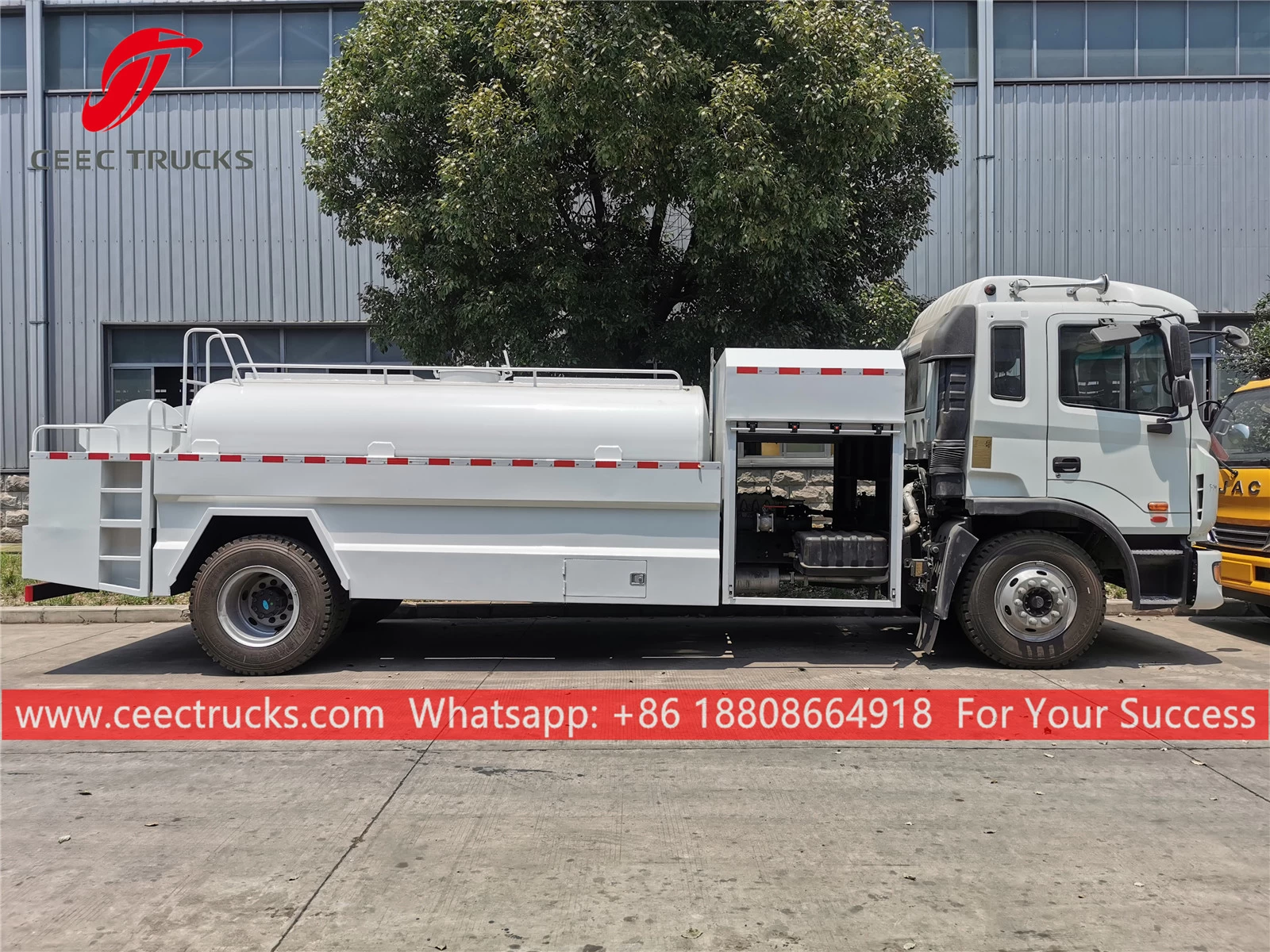

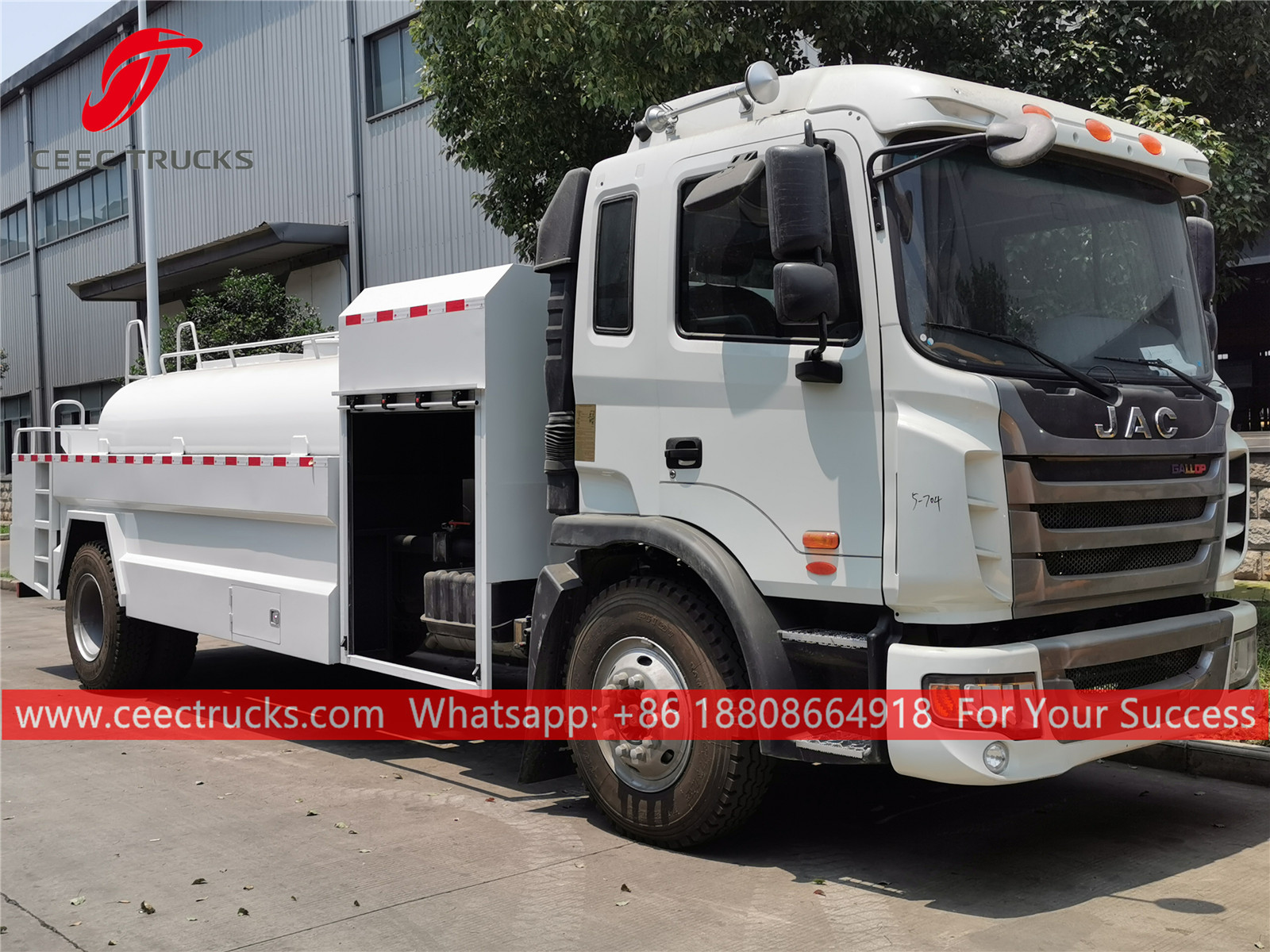

High pressure washer Truck JAC (8,000L)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
JAC
|
|
Overall Dimension
|
7895 * 2495 * 3050 mm
|
|
GVW / Kerb Weight
|
16,000kg / 8,900kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
YUCHAI
|
|
Power
|
190 HP (140 KW)
|
|
Displacement
|
6494ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2 (left hand drive)
|
|
Transmission
|
5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4500 mm / 2
|
|
Tire Specification
|
9.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|

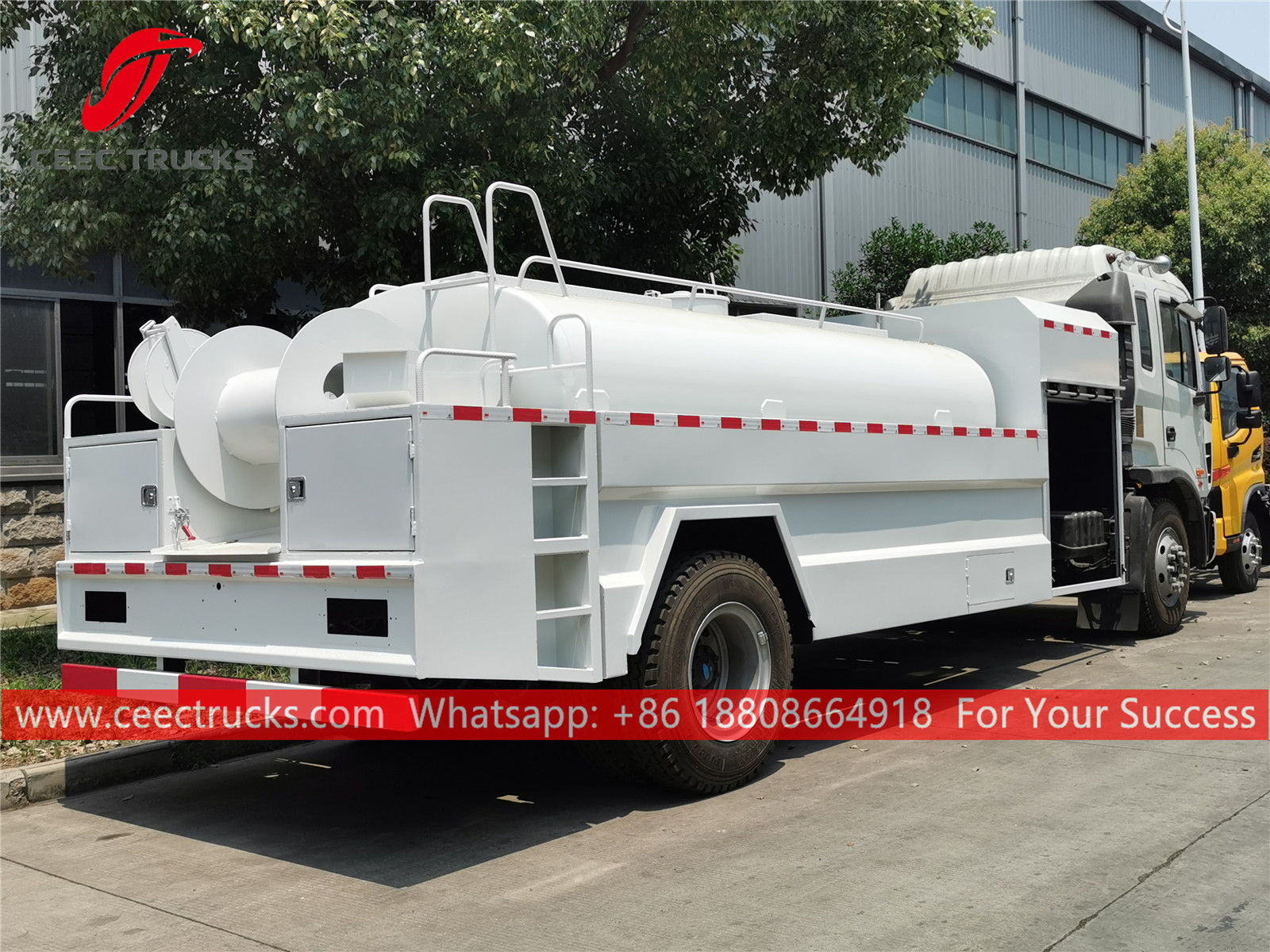

Superstructure
|
Tank Capacity
|
8,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 4mm
|
|

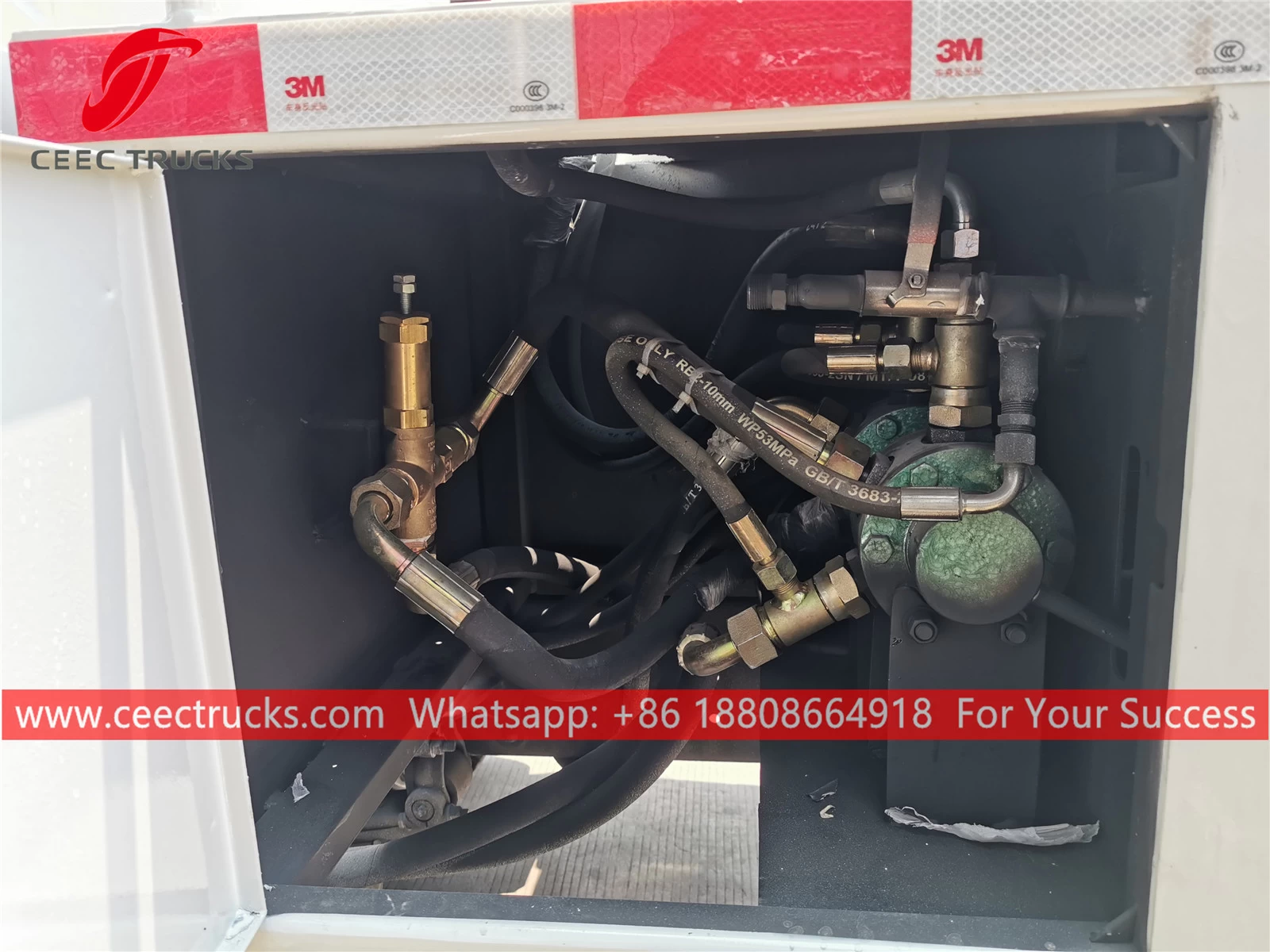

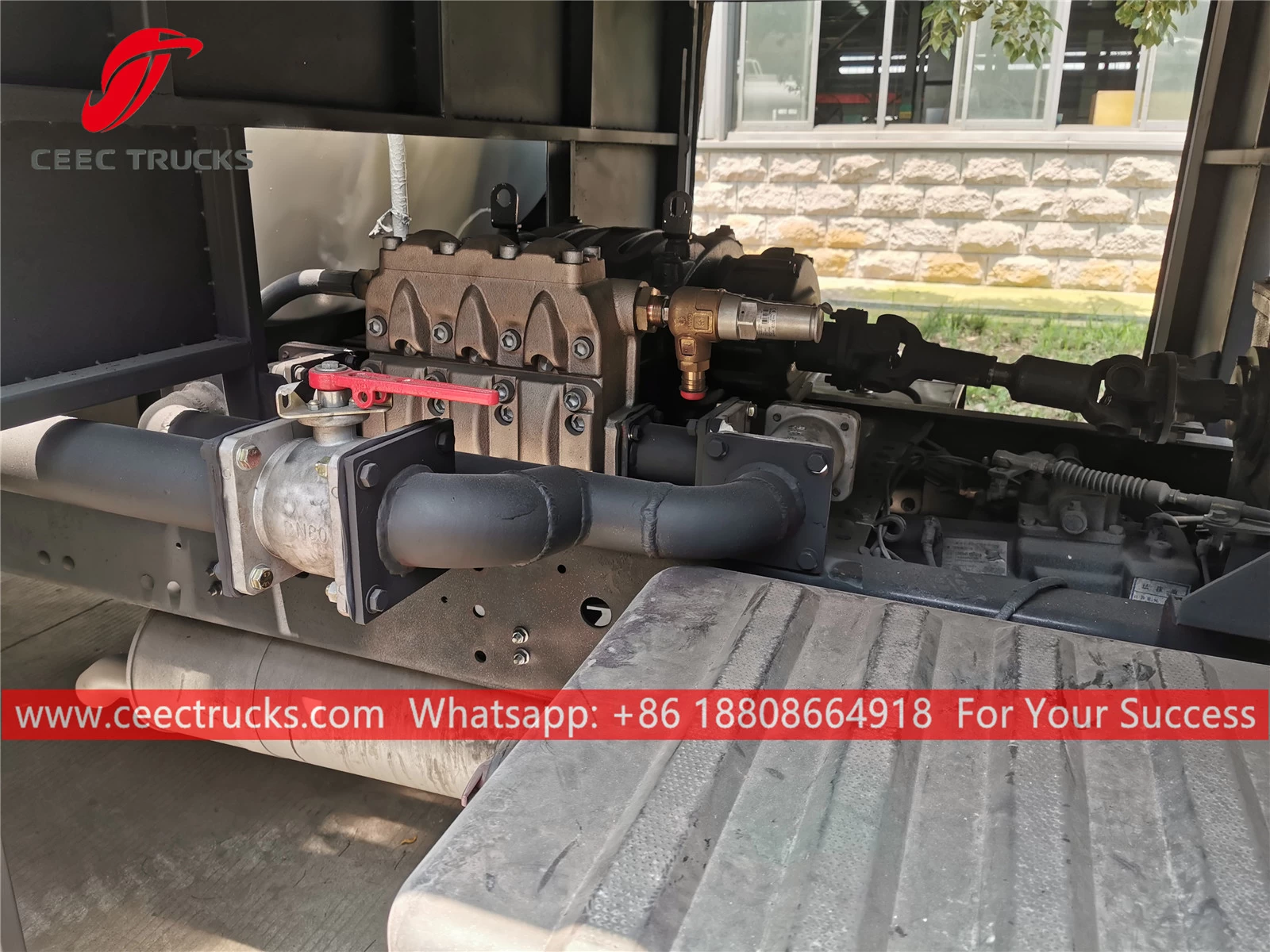

Water pump
|
China famous brand
|
|
Hose
|
60m
|
|
Suction head
|
6m
|
|
Nozzles
|
Stainless steel
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Manhole, ladder,
discharge, basic tool kit, English manual……
|
|
Optional
|
** Tank material can be stainless steel.
** High pressure
hose length can be customized.
** Operation
language can be English or Appointed language.
|
