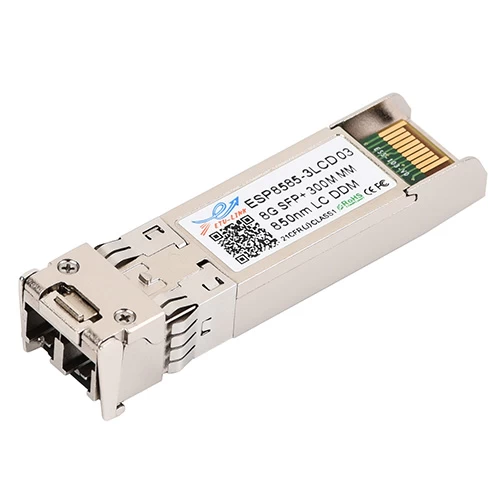

ES8585-3LCD03

8.5Gbps 850nm 300M SFP+ Optical Transceiver

Features

Ø Optical interface compliant to IEEE 802.3ae

Ø Electrical interface compliant to SFF-8431

Ø Hot Pluggable

Ø 850nm VCSEL transmitter, PIN photo-detector

Ø Maximum link length of 300m on 2000MHz/km MMF

Ø Operating case temperature: 0 to 70 °C

Ø Low power consumption

Ø All-metal housing for superior EMI performance

Ø Advanced firmware allow customer system encryption

information to be stored in transceiver

Ø Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Ø RoHS6 compliant (lead free)

Applications

Ø Tri Rate 1.0625 / 2.125 / 4.25/8.5Gbp/s Fibre Channel

Ø Other optical links

Product description

This 850 nm VCSEL 8.5Gigabit SFP+ transceiver is designed to transmit and receive optical data over

50/125 μm or 62.5/125 μm multimode optical fiber
