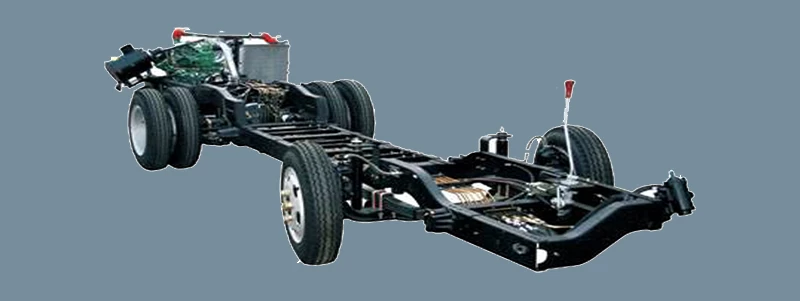

8m minibus chassis FZ6800 with engine

original quality chassis for bus and coach, available from 6m to 12m



Chassis Model: FZ6800
Wheel base: 4150 mm
Max speed:≥110km/h
Engine model: YUCHAI YC6J220-42  (EURO IV)
Rated power:162kw(220ps)/2500rpm
Max torque:800Nm/1200-1700rpm
Alternator:150A Prestolite


Chassis frame assy: three-stage; electrophoresis
Gearbox assy: Qijiang S6-80 (6 speed), double flexible cables
Clutch:φ395, diaphragm spring type, hydraulic operation
Front axle assy: DongFeng Dana / Fangsheng 3.6T; disc brake, Kemi ABS
Rear axle assy: DongFeng Dana / Fangsheng 8T, drum brake, fine gear, fine grinding gear, Chinese brake slack adjuster, final drive ratio: 4.11, Kemi ABS
Propeller shaft: Single, open, two quasi-constant velocity joints
Steering box: Domestic integrated power steering gear; Wan Guo steering column
Brake system: Pneumatic double circuit front disc rear drum brake system;
Parking brake: Energy storage spring, acting on the rear axle
Cooling: Radiator+intercooler, mechanical type
Suspension: Dongfeng/Hongyan multi-leaf spring suspension system with front 6 pieces and rear 8 pieces;
Wheels: normal steel rim 22.5*6.0
Tire: Double Coin 8R22.5-14PR Tubeless radial tire; with spare tire
Fuel tank:  240 L
Accessory tools: 1 set
Battery: Sail brand  120Ah
Chassis harness: yes


Note: we are able to customize different chassis length with different specification for citybus and coach.

Chassis length can be 6m to 12m, low entry and low floor type.

Engine can be Cummins, Yuchai, Weichai and other brands.

for other specification, welcome to enquiry.
