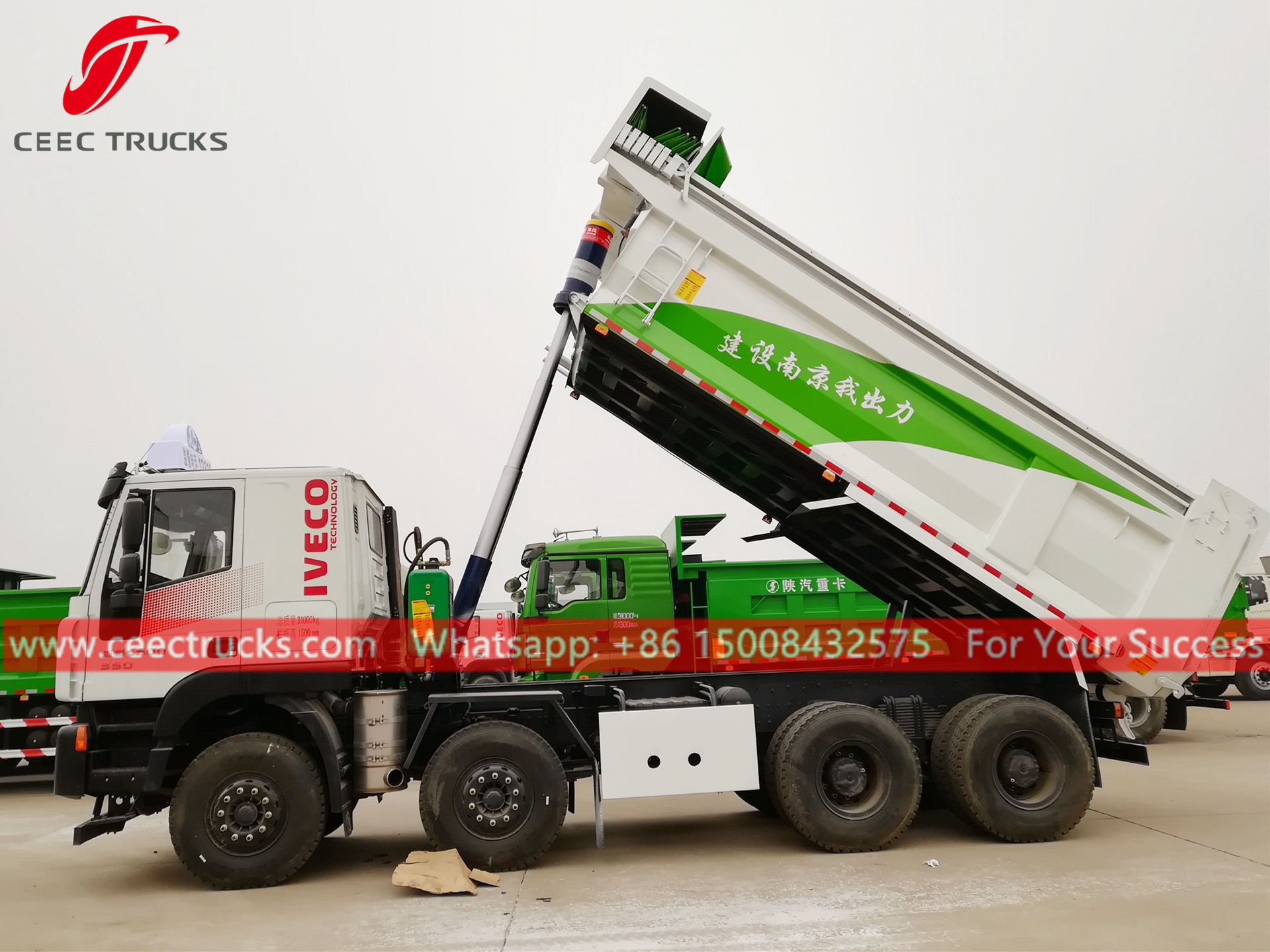

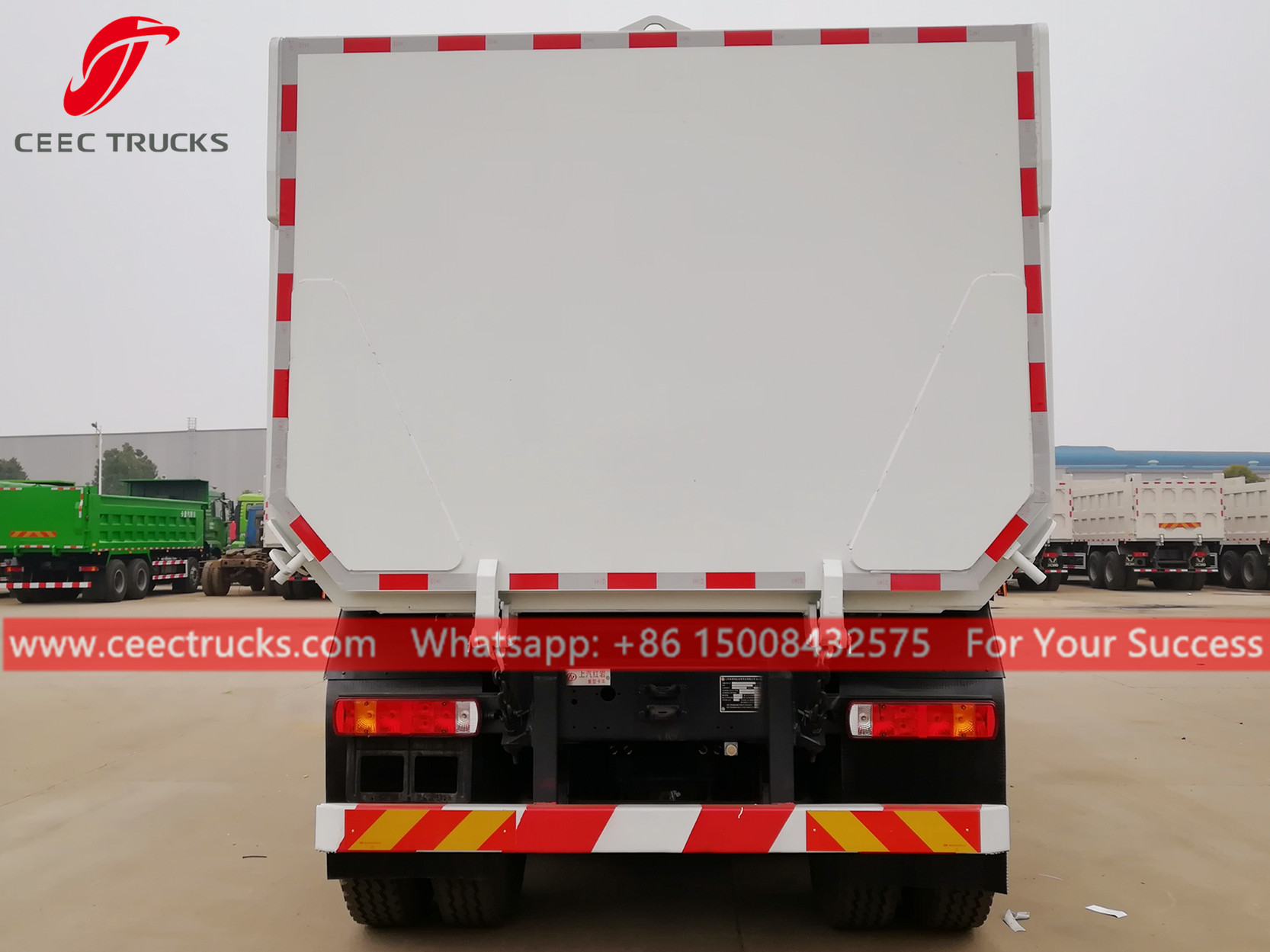

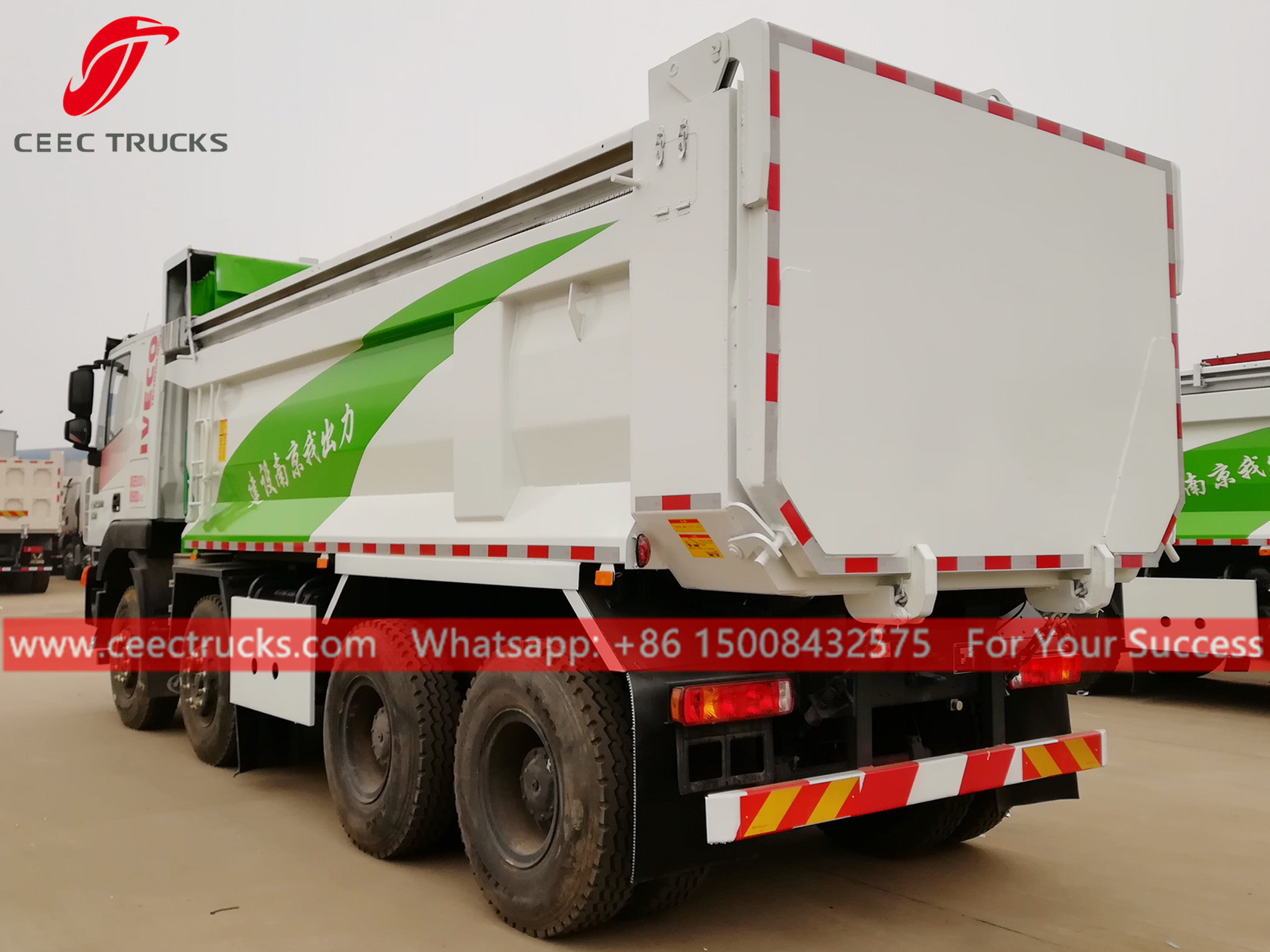

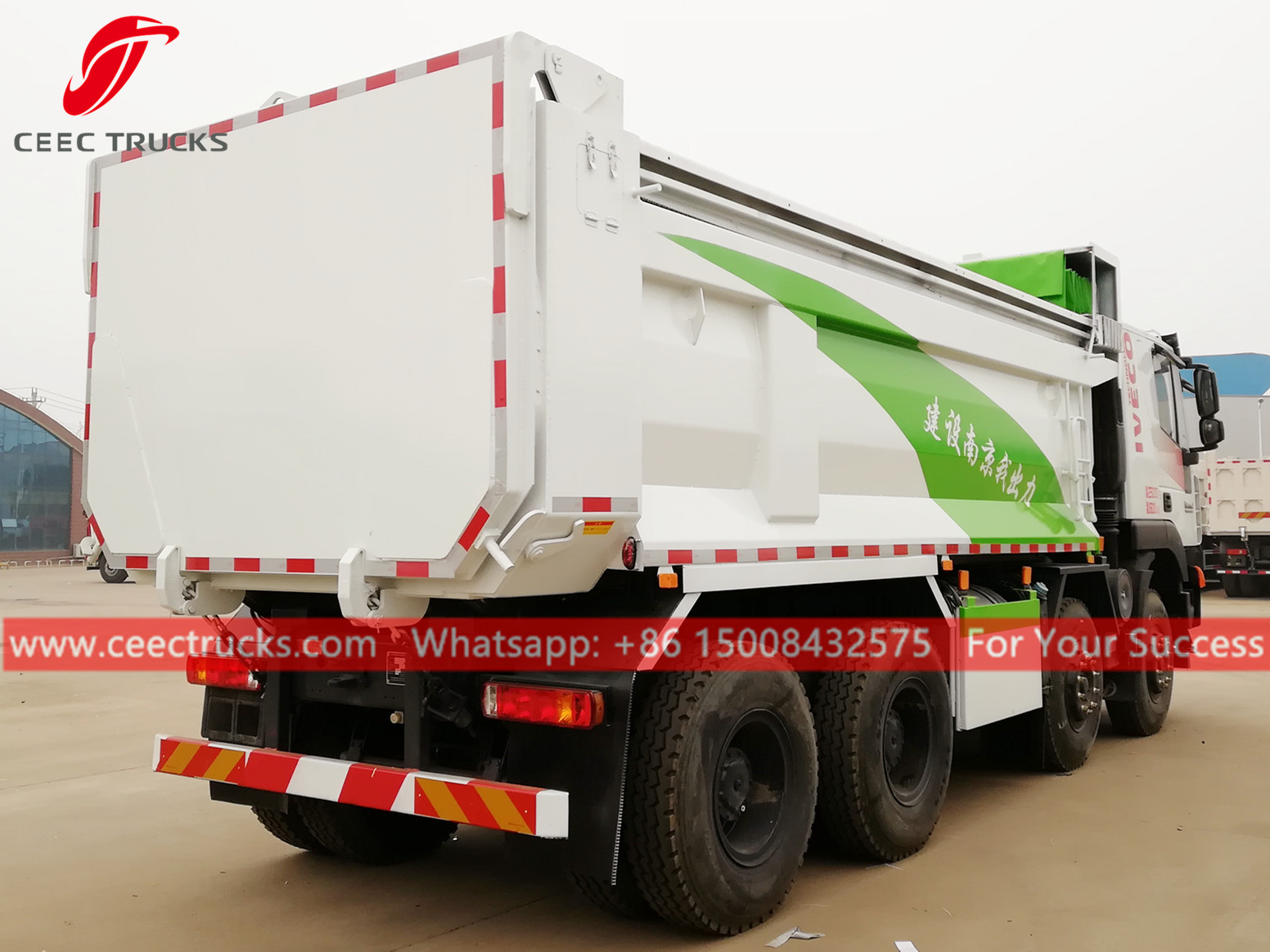

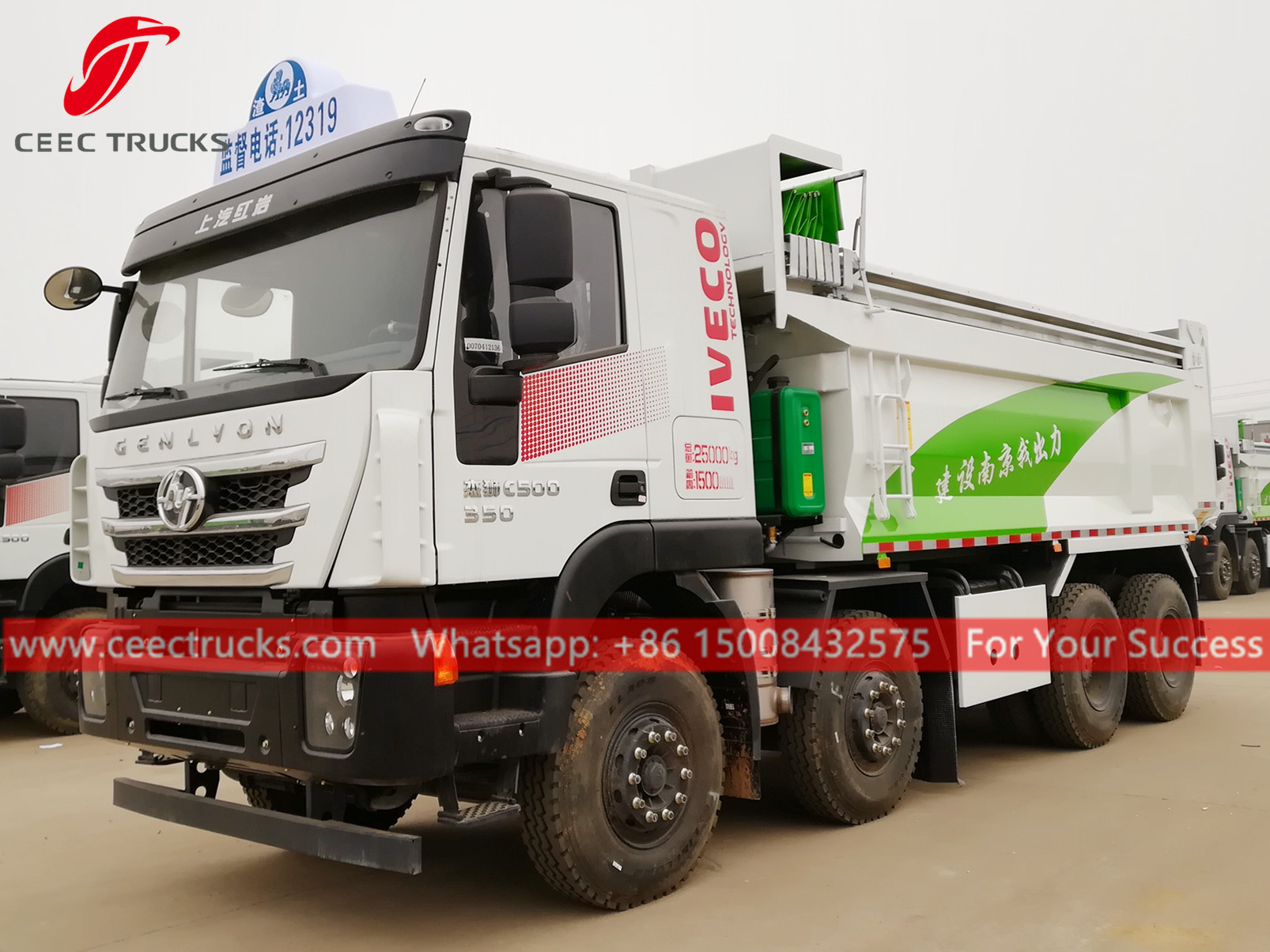

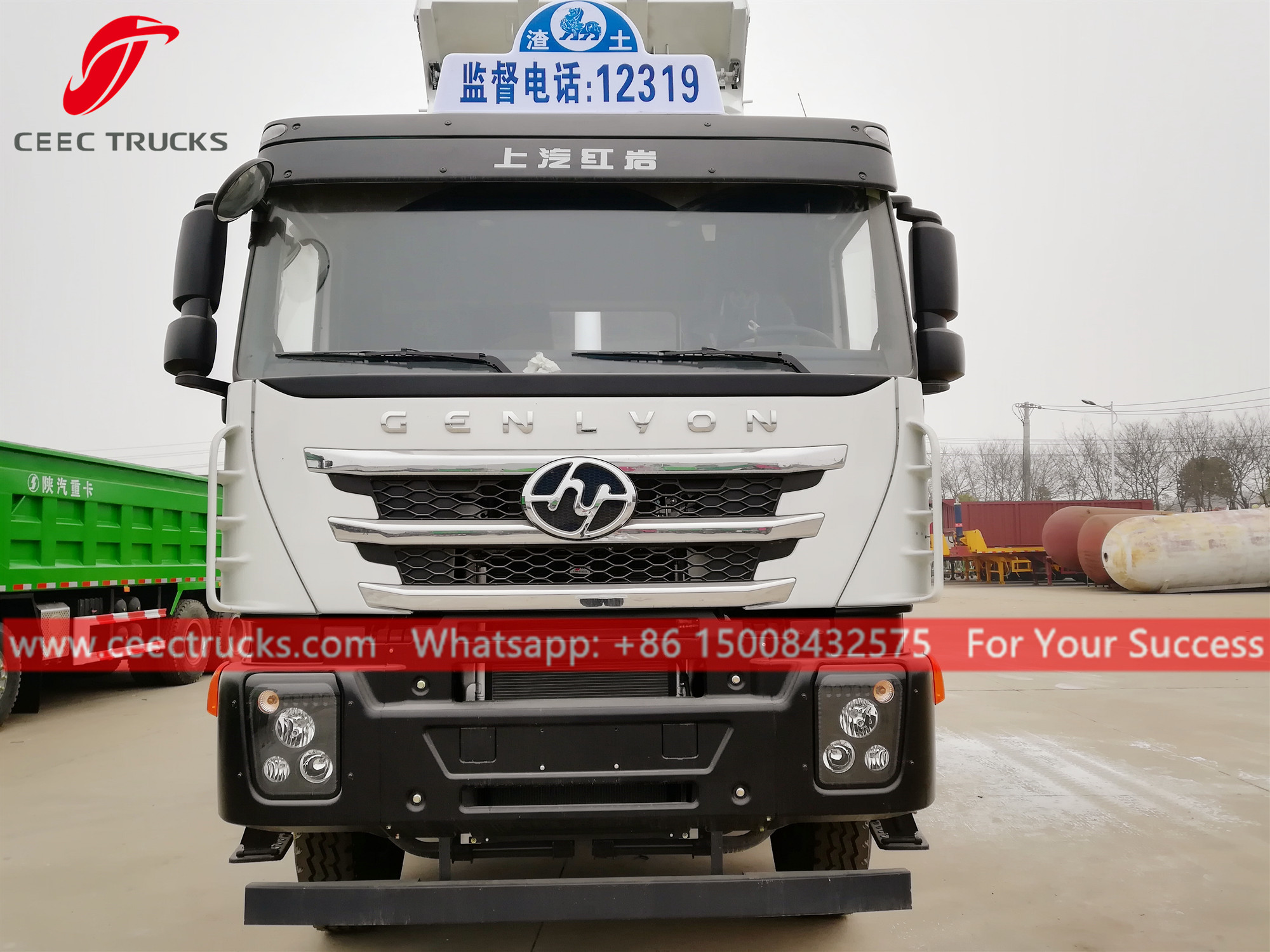

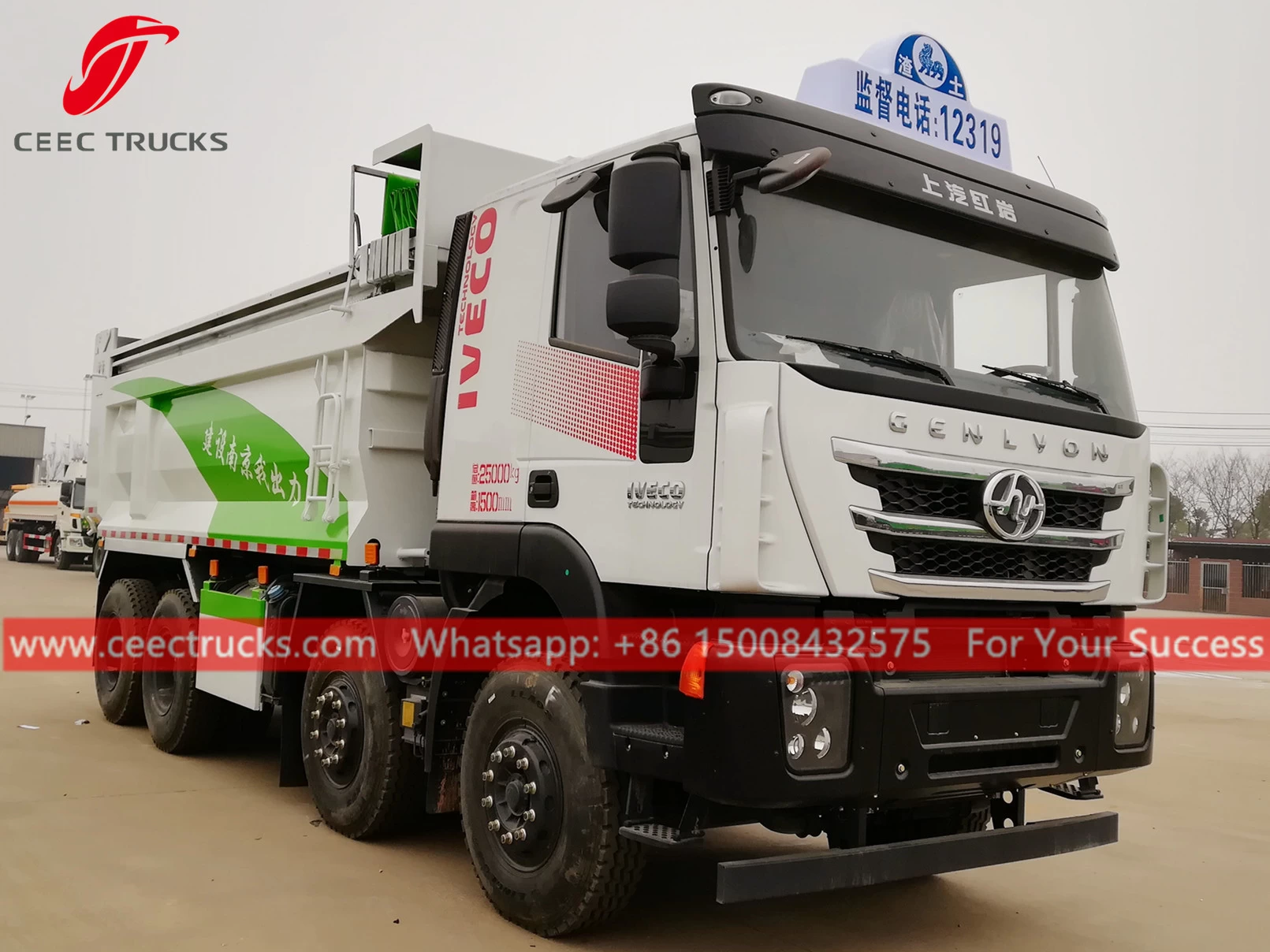

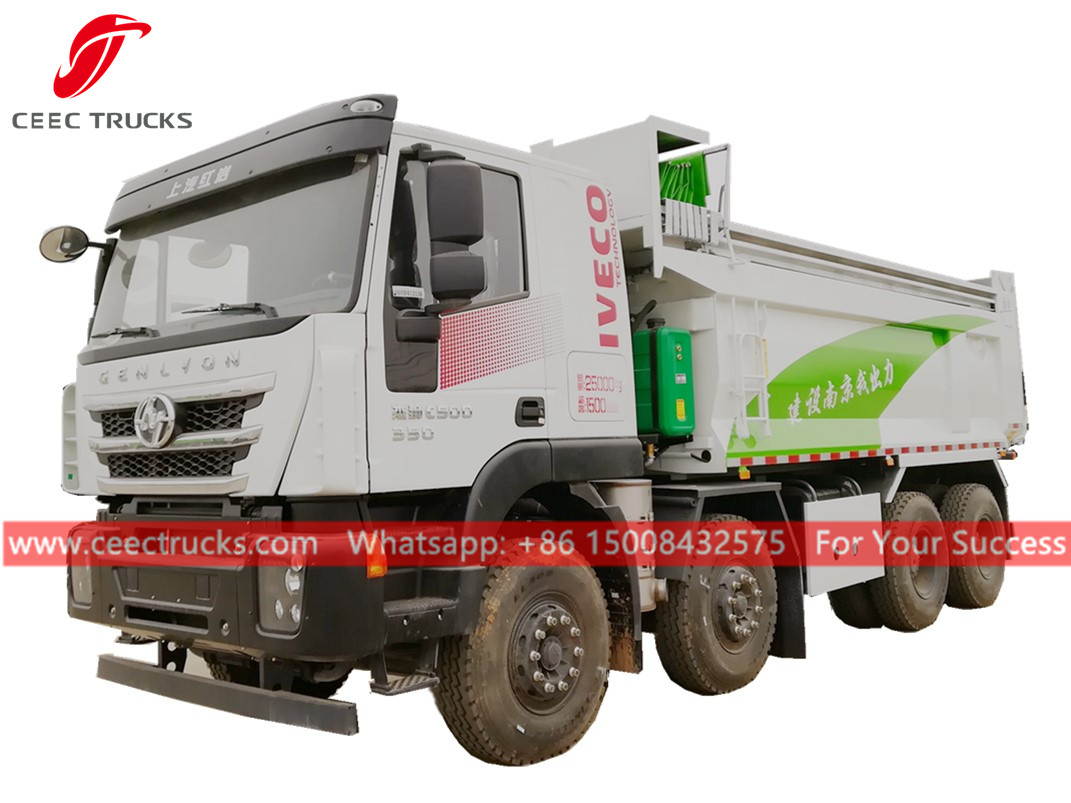

8x4 Dump truck IVECO

60Tons dump tipper truck, IVECO 8x4 LHD chassis, FAST 12-shift manual gearbox, famous Chinese brand SFH 390HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.





 Applications:

IVECO Genylon 8x4 Dump truck (also called heavy duty dump truck, tipper truck, 60tons tipper trucks, Hyva front lifting dump truck, dump truck, construction sand rock dump truck, tipper lorry, tip truck, dump truck tipping, tipper and lorry, tipper lorry) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- IVECO Genylon heavy duty chassis, perfect performance
---- SFH diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



IVECO Genylon tipper truck (60 tons)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Genylon

Overall Dimension

9935 * 2550 * 3460 mm

GVW / Kerb Weight

31,000kg / 15,500kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

SFH diesel engine

Power

390 HP (287 KW)

Displacement

8709 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

8X4 (LHD or RHD)

Transmission

FAST  12 speed levers with 2 reverse

Wheelbase/No. of axle

1800+3600+1400 mm / 4

Tire Specification

12.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

60 Tons

Cargo body

7200*2350*1500

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

Cylinder type

T Type or Domestic 220 or HYVA 200

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.
